COMMERCIAL & INDUSTRIAL SOLAR FLOOD LIGHTS

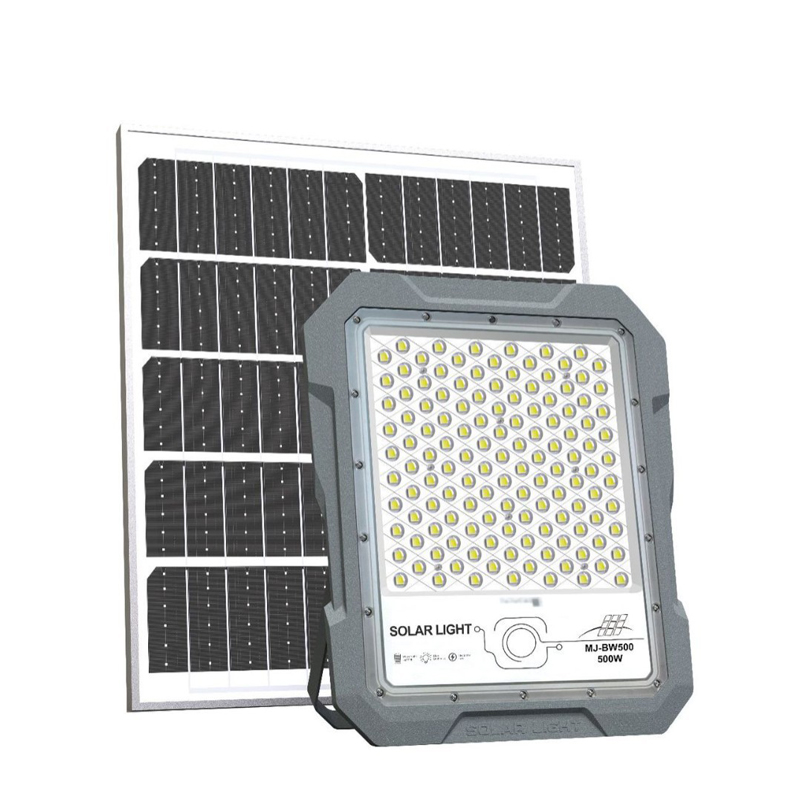

Quasar Wide-Beam Large-Area Solar Flood Light with High-Lumen SMD5054 LED Array & Optional 4G CCTV (QSJM-BW)
Quasar Wide-Beam Large-Area Solar Flood Light with High-Lumen SMD5054 LED Array & Optional 4G CCTV (QSJM-BW)
- Large-Area Wide-Beam Coverage: Engineered as a Large-Area Solar Flood Light (QSJM-BW series), this model integrates high-lumen SMD5054 LED arrays, an XT60 plug connection, and a clean no-cable-outlet design for Solar Flood Lights engineering projects.
- High-Lumen SMD5054 Array: Utilizes high-efficiency SMD5054 LED packages configured across multiple model sizes, delivering tested total luminous flux outputs ranging from 620lm to 5401lm for wide-area uniform illumination without dark zones or thermal fading.
- Wide Flood Beam Distribution: Features a 90°/120° wide flood beam pattern with high-transmittance optical PC and tempered glass lens, providing expansive symmetric illumination for sports courts, open compounds, and large perimeter security zones.
- Smart Control & Optional 4G CCTV: Integrates dusk-to-dawn light control and IR remote scheduling with optional radar motion sensing or an integrated 4G CCTV surveillance module, supporting versatile lighting profiles and continuous remote perimeter monitoring.
- LiFePO4 Storage & Autonomy: Powered by Grade-A LiFePO4 batteries (3.2V 6Ah–100Ah) with Smart BMS Protection, ensuring >12 Hours continuous single-night lighting and 2–3 overcast days autonomy after 4–6 Hours full sun charge.
- IP65 Aluminum Housing Structure: Built with heavy-duty aluminum alloy rated at IP65 and IK08, featuring an Adjustable U-Bracket Mount, IP65 waterproof XT60 plug cable, and clean exterior cableless outlet construction for rugged outdoor weatherability.
- Project Applications & Customization: Tailored for large-area B2B project illumination across sports courts, playgrounds, agricultural farms, and outdoor storage yards, backed by full OEM/ODM support for customized CCT, battery capacities, and private logo branding.
- All-Night Illumination
- All-Weather Proof
- Built for a Decade+
- Smart Adaptive Control
- Easy Plug & Play
- Low Lifetime Cost
- Certified Worldwide
- Reliable Supply & Delivery
The QSJM-BW series is a Large-Area Solar Flood Light engineered for wide-beam project lighting across open outdoor areas and low-to-medium mounting heights. Its high-lumen SMD5054 LED array and 90° / 120° symmetric wide flood distribution are configured to spread illumination across broad outdoor spaces rather than concentrate light into a narrow area. The series is suited to sports courts, playgrounds, farms, parking areas, storage yards, construction areas, and perimeter zones where wide-area off-grid lighting coverage is required.
Key Technical Advantages
The QSJM-BW platform combines model-scaled monocrystalline PV modules and LiFePO4 battery storage with high-lumen SMD5054 LED arrays, covering multiple system configurations from compact installations to larger project requirements. The lighting system supports dusk-to-dawn operation through a smart controller and IR remote control, while the optional radar motion sensor provides a choice between continuous lighting and motion-triggered operation. This allows project designers to balance whole-night illumination with sensor-based energy management according to site requirements.
A heavy-duty aluminum housing, IK08 impact resistance, IP65 protection, adjustable U-bracket, and XT60 waterproof plug-and-play connection support outdoor deployment and practical installation. The clean no-cable-outlet design keeps the fixture exterior organized while the plug-based connection simplifies PV cable installation. Recommended mounting heights range from 3–4 m for smaller models to 7–8 m for the largest configuration, providing a scalable platform for different large-area lighting requirements.
Available Models

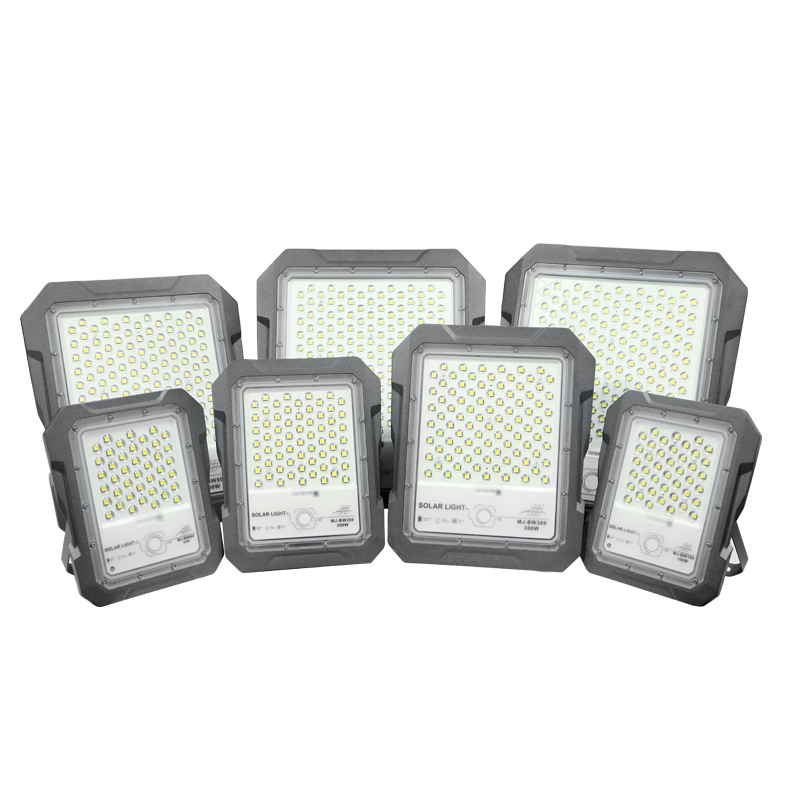

The QSJM-BW series is available in QSJM-BW60, QSJM-BW100, QSJM-BW200, QSJM-BW300, QSJM-BW500, QSJM-BW800, QSJM-BW1200, and QSJM-BW1500. The models provide different PV capacities, battery capacities, LED configurations, luminous outputs, and recommended mounting heights for project-specific sizing. For detailed specifications, see the Specifications tab. Explore our full range of Solar Flood Lights for additional commercial, industrial, and outdoor lighting solutions.
| Parameter | QSJM-BW60 | QSJM-BW100 | QSJM-BW200 | QSJM-BW300 | QSJM-BW500 | QSJM-BW800 | QSJM-BW1200 | QSJM-BW1500 |
|---|---|---|---|---|---|---|---|---|
| 🌞 Solar & Power System | ||||||||
| Solar Cell Type & Efficiency | A-Grade Monocrystalline Solar Cells (>21% Cell Efficiency) | |||||||
| PV Module Vmp & Rated Power | 5V (Vmp) / 12W | 5V (Vmp) / 18W | 5V (Vmp) / 30W | 5V (Vmp) / 40W | 5V (Vmp) / 45W | 5V (Vmp) / 50W | 5V (Vmp) / 60W | 5V (Vmp) / 80W |
| PV Dimensions | 350 × 235 mm | 400 × 235 mm | 430 × 350 mm | 480 × 400 mm | 530 × 400 mm | 590 × 400 mm | 670 × 445 mm | 670 × 580 mm |
| Battery Type & BMS Protection | Grade-A LiFePO4 with Smart BMS Protection (Overcharge/Over-discharge/Temp Protection), ≥2,000 Deep Discharge Cycles (@ 80% DOD) | |||||||
| Battery Capacity & System Voltage | 3.2V / 6Ah | 3.2V / 15Ah | 3.2V / 18Ah | 3.2V / 30Ah | 3.2V / 36Ah | 3.2V / 45Ah | 3.2V / 54Ah | 3.2V / 100Ah |
| Control & Operating Modes | Smart Controller + Radar Motion Sensor (Optional) + Dusk-to-Dawn Light Control + Remote Control | |||||||
| Motion Sensor Range & Angle | 6–10 m Range, 120° Sensing Angle (Optional) | |||||||
| Full Charge Time | 4–6 hours (Under Standard Peak Sun Hours) | |||||||
| Operating Time & Autonomy | 2–3 Overcast/Rainy Days Autonomy | |||||||
| 💡 Lighting & Optical | ||||||||
| LED Package | SMD5054 (42 pcs) | SMD5054 (42 pcs) | SMD5054 (63 pcs) | SMD5054 (91 pcs) | SMD5054 (130 pcs) | SMD5054 (165 pcs) | SMD5054 (165 pcs) | SMD5054 (165 pcs) |
| LED Package Efficacy | 160 lm/W | |||||||
| Total Luminous Flux Output | 620 lm | 1,097 lm | 1,343 lm | 2,178 lm | 2,641 lm | 3,263 lm | 3,795 lm | 5,500 lm |
| CCT | 6500K–7500K Cool Daylight (Customizable) | |||||||
| CRI | Ra ≥70 | |||||||
| Light Distribution & Beam Angle | 90° / 120° Symmetric Wide Flood Beam Angle | |||||||
| Diffuser / Optical Lens Material | Heavy-Duty Aluminum Body + High-Transmittance Teijin Optical PC Lens | |||||||
| LED Lifespan & Reliability | >50,000 Hours (L70 Performance) | |||||||
| 🏗️ Structure & Material | ||||||||
| Housing Material | Heavy-Duty Aluminum + Teijin Optical-Grade PC Lens | |||||||
| Product Dimensions | 235 × 200 × 50 mm | 235 × 200 × 50 mm | 271 × 220 × 50 mm | 311 × 264 × 55 mm | 360 × 306 × 55 mm | 405 × 345 × 58 mm | 405 × 345 × 58 mm | 405 × 345 × 58 mm |
| IP Rating | IP65 (Dust-tight & Water Jet Protected) | |||||||
| IK Rating | IK08 (High Impact Resistance) | |||||||
| Wind Resistance | Up to 30–45 m/s | |||||||
| Mounting Bracket & Angle Adjustability | Adjustable U-Bracket Mount | |||||||
| PV Connection & Cable | 3m Heavy-Duty Cable with XT60 Waterproof Plug-and-Play Connector | 2.5m Heavy-Duty Cable with XT60 Waterproof Plug-and-Play Connector | ||||||
| Recommended Mounting Height | 3–4 m | 3–4 m | 4 m | 4–5 m | 4–5 m | 5–6 m | 6–8 m | 7–8 m |
| Operating Temperature Range | −20°C–+60°C | |||||||
| 📦 Packaging & Compliance | ||||||||
| Master Carton Dimensions | 900 × 375 × 270 mm | 740 × 425 × 270 mm | 645 × 455 × 380 mm | 630 × 505 × 440 mm | 555 × 530 × 440 mm | 620 × 325 × 430 mm | 700 × 220 × 485 mm | 730 × 265 × 640 mm |
| Master Carton Gross Weight (GW) | 19.3 kg | 17.6 kg | 22.2 kg | 26.0 kg | 25.9 kg | 18.2 kg | 14.7 kg | 19.18 kg |
| Packaging Quantity | 10 pcs / CTN | 8 pcs / CTN | 7 pcs / CTN | 6 pcs / CTN | 5 pcs / CTN | 3 pcs / CTN | 2 pcs / CTN | 2 pcs / CTN |
| Standard Included Accessories | U-Bracket, IR Remote Controller, Expansion Bolts, User Manual | |||||||
| Certifications & Standards | CE, RoHS, ISO 9001, IP65 Certified | |||||||
| 💼 Commercial Terms | ||||||||
| Minimum Order Quantity (MOQ) | 20 pcs | |||||||
| Production Lead Time | 30 Calendar Days | |||||||
| Sample Availability | Sample Available (1–5 Units) | |||||||
| Warranty Period | 2 Years (System & Battery) | 8 Years (Solar Panel) | |||||||
| OEM/ODM | Custom logo/branding, customized CCT, tailored battery capacities, private packaging, and specialized lighting profiles | |||||||
Have specific technical or installation questions about this model? Contact our engineering team for support.
Applications & Scenarios
Precision-engineered for heavy-duty commercial and industrial applications, delivering wide-angle, high-visibility illumination across specialized outdoor facilities and high-security perimeters.

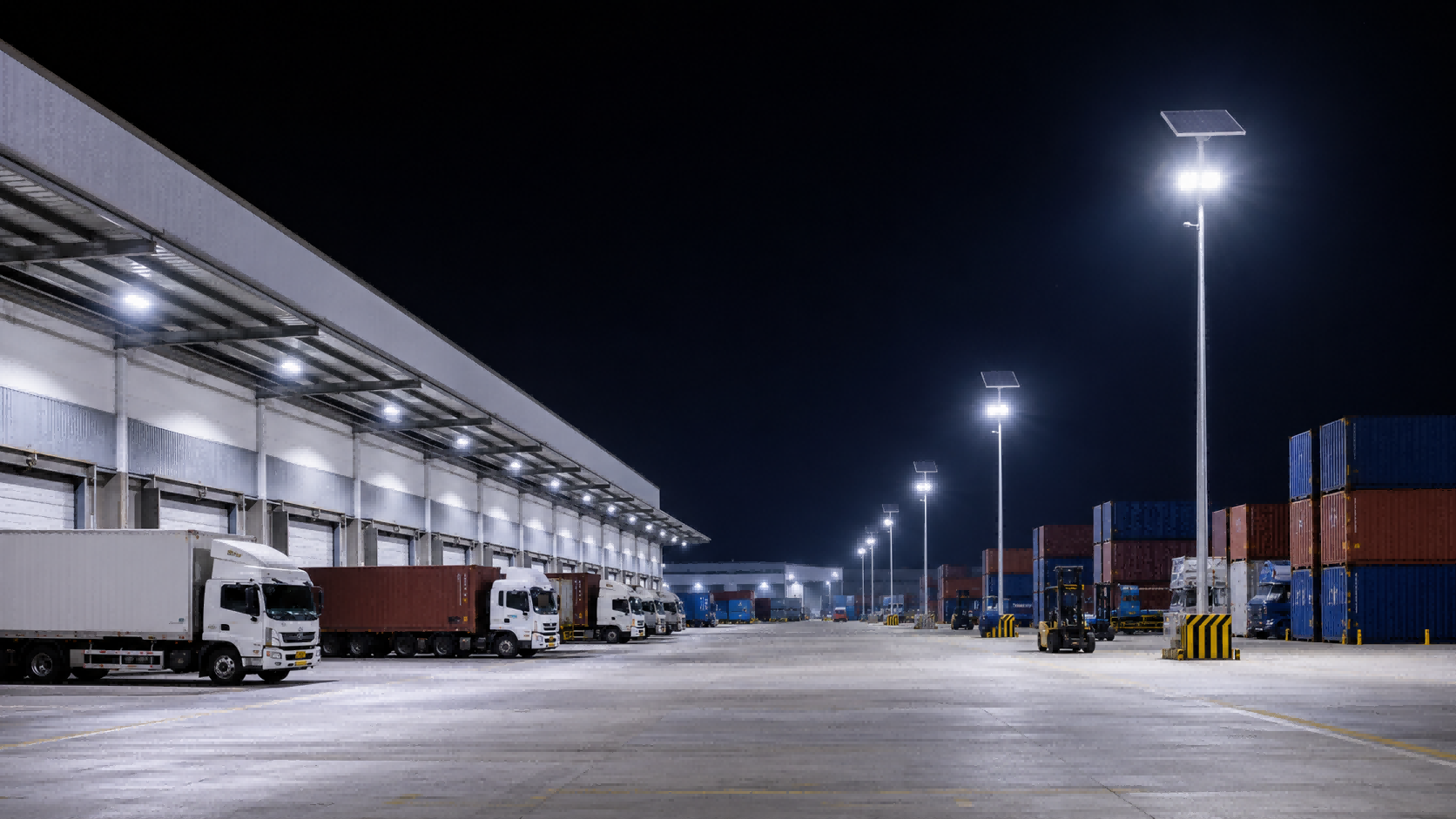

Industrial Yards, Warehouses & Logistics Hubs
Delivers uniform, glare-free illumination for freight loading bays, logistics hubs, and heavy equipment yards. Built with advanced Anti-Glare Nano Lens optics, IP67 die-cast aluminum housing, and long-life LiFePO4 battery storage. Powered by the Quasar QSJM-SAR, providing 170+ lm/W high-lumen output and 3-day rainy autonomy for zero-downtime industrial safety.

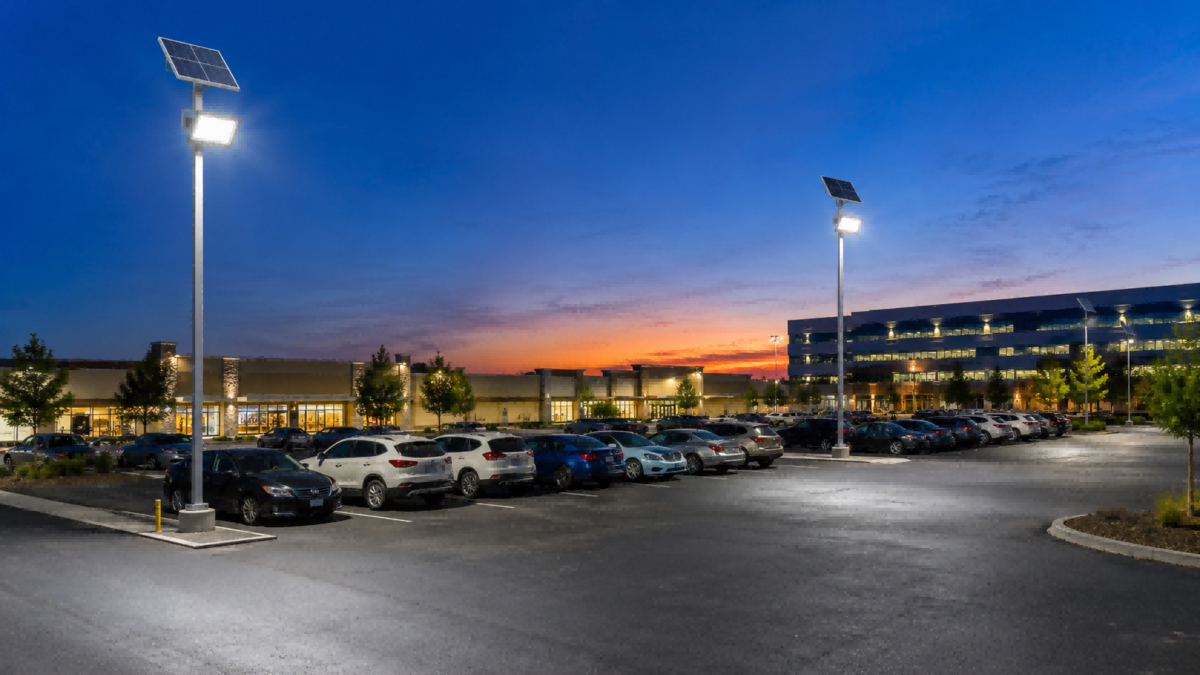

Commercial Parking Lots & Access Corridors
Engineered for wide-beam optical coverage and zero-grid-cost perimeter security across retail plazas, corporate parks, and vehicle corridors. Integrates high-efficiency SMD LED arrays, dusk-to-dawn smart sensor logic, and weather-sealed heat dissipation. Utilizing Quasar QSKZ-HD to ensure optimal traffic guidance and zero annual electrical overhead.

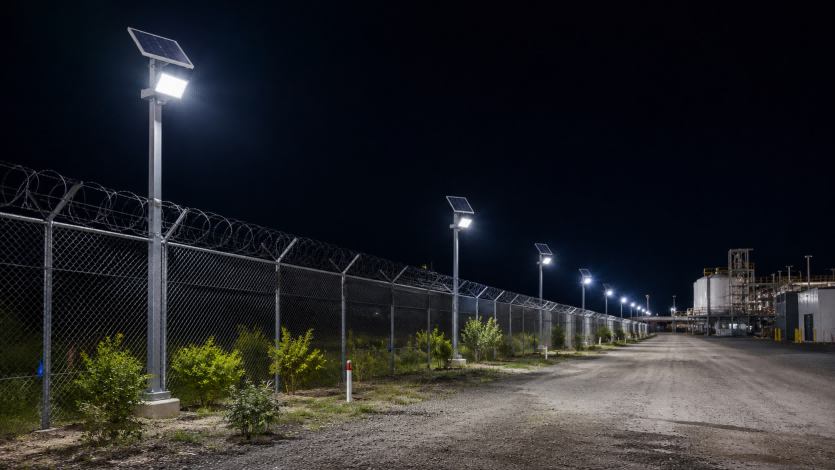

Facility Perimeter Security & Fence Lighting
Eliminates dark spots along critical boundary lines with 360° microwave radar motion sensing and automated two-stage dimming (30% standby to 100% full-brightness detection). Features corrosion-resistant IP67 construction and high-capacity battery autonomy. Configured with Quasar QSKZ-ST for robust, off-grid intruder deterrence around commercial facilities.

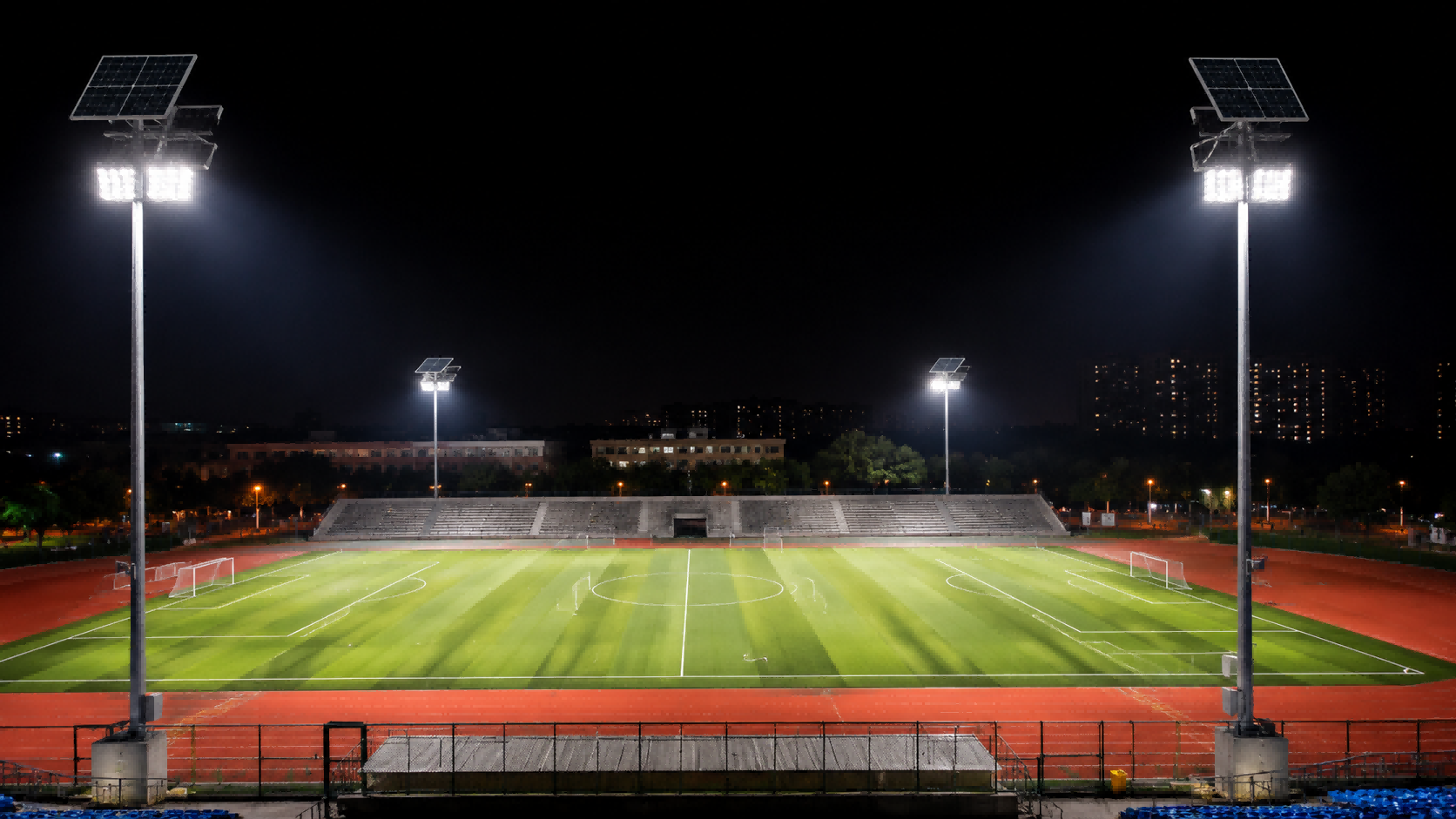

Sports Fields, Stadiums & High-Mast Arenas
Designed for high-mast pole installations (8m–12m+), generating high-flux lumen intensity required for outdoor sports arenas, courts, and large assembly grounds. Equipped with heavy-duty adjustable mounting brackets and high-transmittance optical diffusers. Driven by Quasar QSJM-BW for scalable, high-impact athletic field lighting without utility grid reliance.

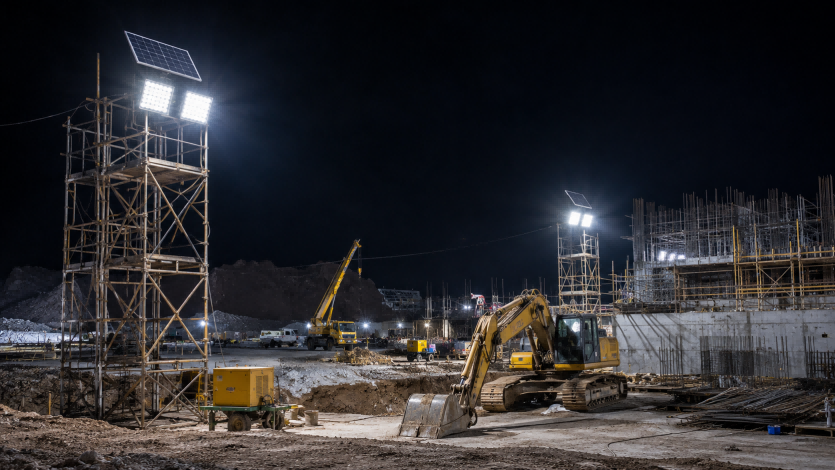

Construction Sites & Remote Infrastructure
Built for harsh, off-grid environments requiring rapid deployment, IK08 impact resistance, and all-weather operational durability. Combines high-efficiency monocrystalline PV panels and intelligent BMS battery protection for 12+ hours of continuous night operation. Deployed with Quasar QSKZ-ST to support night-shift productivity across temporary worksites.

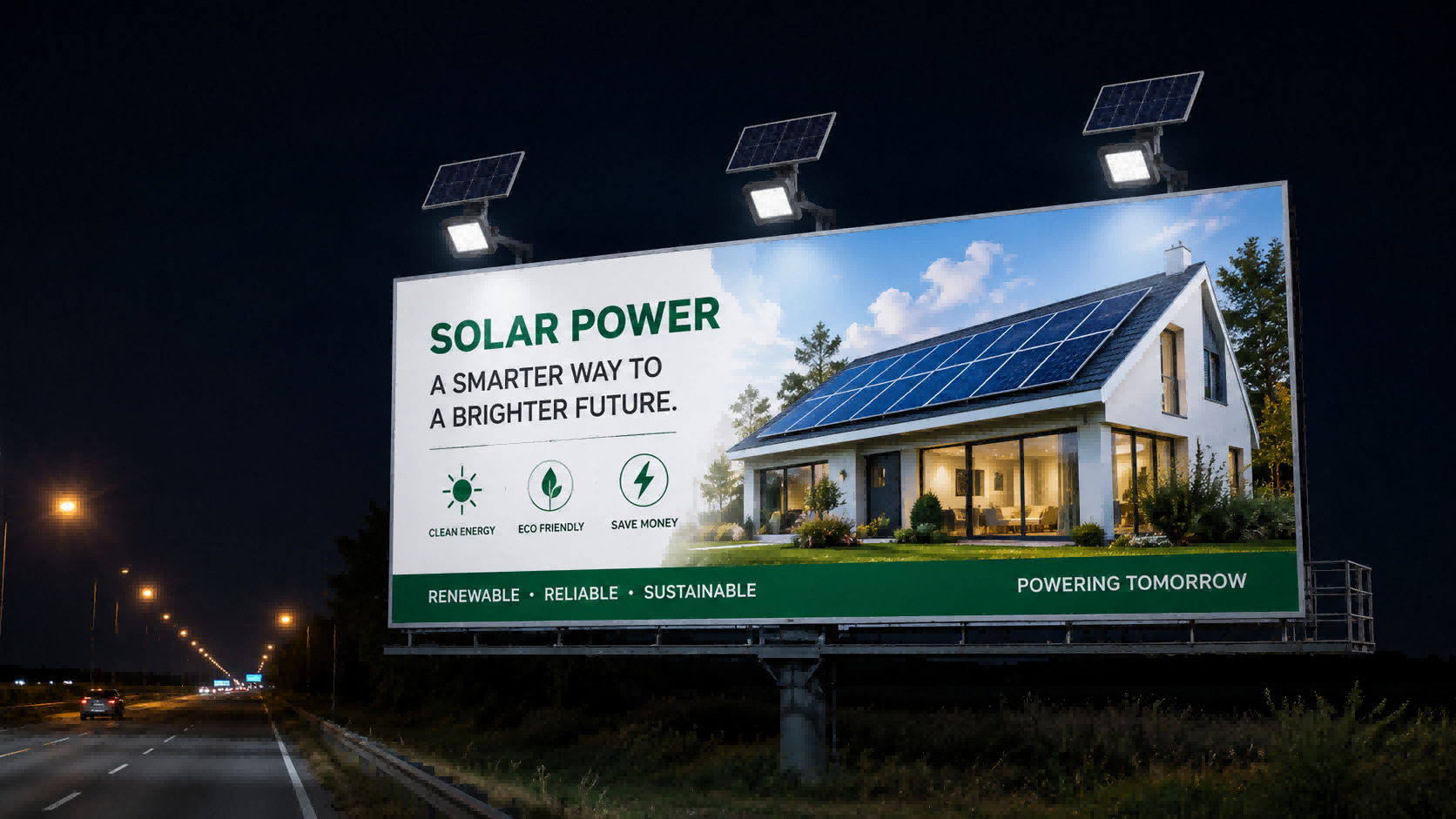

Billboards, Commercial Signage & Wall Washing
Delivers precision optical beam distribution (CRI > 80) for high-visibility commercial billboards, branding signage, and architectural wall washing. Features programmable timing modes and wireless remote control for flexible lighting schedules. Recommended model: Quasar QSKZ-HD to achieve vibrant, uniform coverage with zero light spill.
Global Compliance & Engineering Quality
Seamless Project Approvals & Rapid Tender Compliance Worldwide
Accelerate municipal tender approvals and eliminate import clearance risks across 40+ countries. Our manufacturing facilities and product lines undergo rigorous third-party testing to comply with international infrastructure standards—including ISO 9001:2015 Quality Management System, CE (EMC & LVD), RoHS 2.0, FCC Part 15 Class B, and IEC 62722 / IEC 60598 photobiological safety specifications, along with UN38.3 lithium battery transport certification.
Illuminating Success Stories Worldwide
See Our Products Powering Projects Globally
Community Safety Lighting: NV Series Street Lights for S2 Heights Village Roads
Thailand Farm Solar Lighting: Waterfront Illumination with “Moon in Water” Garden Lights
High-Temperature Municipal Street Lighting Project, Dubai
Illuminating the New Port of Ndayane: A Landmark Solar Lighting Project, Senegal
Coastal Illumination Upgrade: Solar Flood Lighting for Australian Seaside Accommodation
Industrial-Grade Technical Highlights for Solar Flood Infrastructure
High-lumen off-grid solar floodlights with scalable lumen output, advanced nano optical lenses, IP65/IP67 heavy-duty housings, and Grade-A LiFePO4 autonomy engineered for industrial yards, stadiums, and facility perimeters.
High-Lumen LED Array & Nano Optical Lenses
Engineered with high-efficacy, large-surface LED matrices (50W–1,500W) delivering up to 170+ lm/W output. Paired with precision anti-glare nano optical lenses to provide ultra-wide 120°–140° illumination, ensuring uniform, high-intensity coverage across commercial stadiums, industrial yards, and perimeter security lines.
ADC12 Die-Cast Housing & IP65 Sealed
Heavy-duty ADC12 die-cast aluminum housing with anti-corrosion coating and weather-tight silicone seals guarantees thermal dissipation and flawless operation across extreme temperatures from -20°C to 65°C.
Split Monocrystalline PV & Flexible Orientation
High-conversion monocrystalline solar panels with heavy-duty brackets and weather-sealed extended cabling enable optimal tilt angle adjustments for maximum daily solar absorption.
Grade-A LiFePO4 & 3–5 Day Overcast Backup
High-capacity Grade-A LiFePO4 battery storage provides 2,000+ deep cycles and integrated intelligent power management for 3–5 consecutive days of continuous overcast operation.
Smart Radar Sensing & Wireless Remote Control
Integrated microwave radar motion sensors and multi-mode wireless remote control enable automated 30% standby dimming and instant 100% full-brightness security coverage.
180° Heavy-Duty Bracket & Zero-Trenching Mount
Reinforced 180° adjustable steel brackets support fast surface, pole, and truss mounting without grid connections or cable trenching, significantly reducing installation labor.
SOLAR VS. GRID: TOTAL COST COMPARISON
Skip the Trenching. Eliminate Energy Bills.
Calculate your 5-year project ROI below and see how much your facility can save with Lumin Solar Solutions.
Private Project ROI Calculator
💡 Pro Tip: Switching to solar allows you to eliminate trenching costs and expensive cabling.
Traditional Grid vs. Lumin Solar Lighting Solutions Cost Analysis
| Project Cost Items (30 Units) | Traditional Grid | Lumin Solar Solutions |
|---|---|---|
| Trenching & Labor | $3,000 - $8,000 | $0 (No Digging) |
| Cabling & Wiring | $2,500 - $5,000 | $0 |
| Transformer/Switchgear | Essential Infrastructure Cost | Not Needed |
| Electricity Bill (Annual) | $1,500 - $2,500 | $0 (Free) |
| Installation Time | 7-14 Days | 1-2 Days |
| Total Hidden Costs | EXTREMELY HIGH | ZERO |
*Calculated based on average private industrial projects. Lumin Solar Solutions eliminates infrastructure overhead.
Why pay for copper wires and manual labor when you can invest that budget into high-quality solar technology?
Commercial & Ordering FAQ
Our standard Minimum Order Quantity (MOQ) is 50 units. We also fully support sample orders (1–5 units) for project evaluation, technical testing, and quality verification prior to bulk production.
We offer flexible international trade terms including FOB, CIF, EXW, and DDP (Delivered Duty Paid). Our DDP services cover 42+ countries to ensure seamless customs clearance and hassle-free door-to-door delivery.
We accept Wire Transfer (T/T) and Letter of Credit (L/C).
The standard lead time for mass production is 30 calendar days, calculated from the date your deposit is received. For customized OEM/ODM projects or specialized technical requirements, the delivery schedule will be mutually confirmed during contract review.
Yes, absolutely. We offer complete OEM/ODM solutions, including custom logo/branding, custom housing finishes, specialized lumen/wattage outputs, tailored optical spectrums, and smart controller lighting profiles.
We provide comprehensive warranty coverage across all system components: 2-year warranty for the LED luminaire and LiFePO4 battery, 8-year warranty for monocrystalline solar panels, and 10-year warranty for lighting poles. (Please refer to our product catalog for itemized terms).
We provide worldwide shipping via sea freight, air freight, and express courier. Our dedicated logistics team manages export documentation, compliance checks, and end-to-end cargo tracking to ensure safe delivery to your site or port.
Simply click the “Inquire Now” button or contact our sales department with your order details. Our sales engineers will review your project requirements and issue an official Proforma Invoice (PI) promptly.
