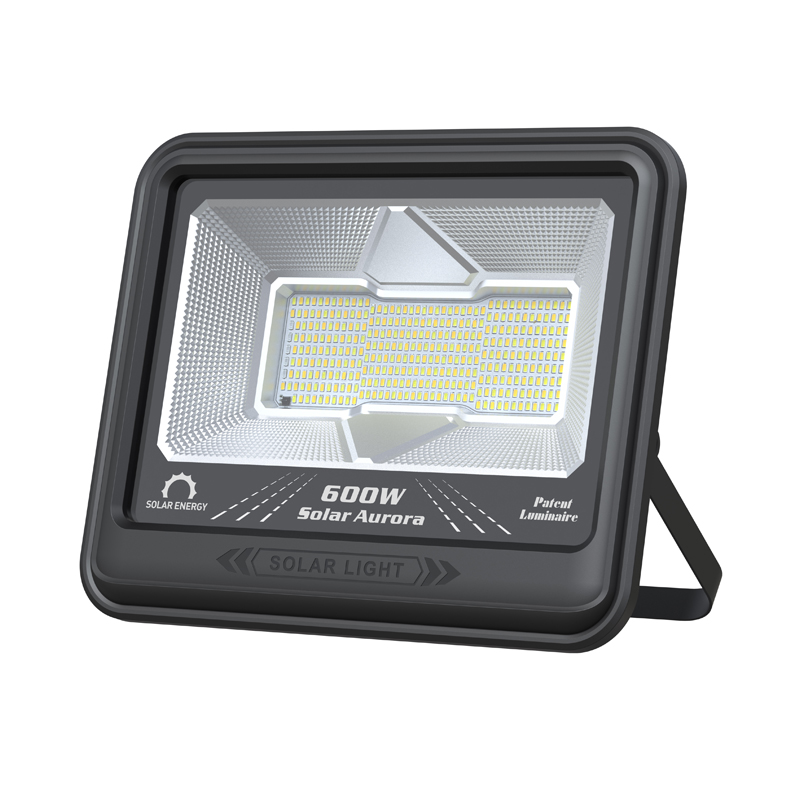

Quasar Demountable 3-CCT Selectable Solar Flood Light with SMD5730 LED (QSJM-SAR)
Quasar Demountable 3-CCT Selectable Solar Flood Light with SMD5730 LED (QSJM-SAR)
- Demountable 3-CCT Design: Engineered as a 3-CCT Selectable Solar Flood Light (QSJM-SAR series), this fixture integrates a demountable modular structure, flexible CCT switching, and UV-resistant ABS housing for low-height Solar Flood Lights projects.
- High-Efficacy LED Array: Configured with high-density SMD5730 LED packages delivering 120lm/W to 160lm/W package efficacy, ensuring bright, uniform surface illumination across multiple battery capacity options without thermal buildup or light degradation.
- Wide Flood Optical Distribution: Features a 90°/120° symmetric wide flood beam pattern with high-transmittance optical PC lens and tempered glass, maximizing output efficiency while providing wide anti-glare coverage for outdoor facilities.
- Smart Multi-CCT Control: Driven by an intelligent Smart Controller supporting Dusk-to-Dawn Light Control and a multifunction IR Remote Control for seamless timer programming and 3-CCT color temperature selection (3000K, 4000K, 6500K).
- LiFePO4 Storage & Autonomy: Powered by Grade-A LiFePO4 batteries with Smart BMS Protection, delivering ≥1,000 deep discharge cycles @ 80% DOD, >12 Hours continuous nocturnal operation, and 2–3 overcast days autonomy after 4–6 Hours full sun charge.
- Demountable Weatherproof Housing: Built from UV-resistant ABS housing rated at IP65 and IK07/IK08, featuring an Adjustable U-Bracket Mount and IP65 waterproof plug-and-play cable connectors for modular installation and simplified servicing.
- Modular Applications & Customization: Tailored for low-to-medium height mounting across residential compounds, commercial premises, farms, villas, and walkways, backed by full B2B OEM/ODM customization for private branding, tailored CCT profiles, and packaging.
- All-Night Illumination
- All-Weather Proof
- Built for a Decade+
- Smart Adaptive Control
- Easy Plug & Play
- Low Lifetime Cost
- Certified Worldwide
- Reliable Supply & Delivery
The QSJM-SAR series is a demountable 3-CCT Selectable Solar Flood Light designed for modular and serviceable outdoor lighting at low-to-medium mounting heights. Its modular construction separates the lighting fixture from the solar power system, supporting practical installation, maintenance, and configuration flexibility for residential compounds, commercial premises, farms, villas, walkways, and small outdoor projects. The selectable 3000K, 4000K, and 6500K CCT options allow the same fixture platform to accommodate different visual and application requirements.
Key Technical Advantages
For projects where lighting requirements may vary by site or application, the QSJM-SAR combines SMD5730 LED technology with a wide 90° / 120° symmetric flood distribution and a high-transmittance tempered glass optical cover. The solar power system uses A-Grade monocrystalline solar cells with model-specific PV capacity and Grade-A LiFePO4 batteries with Smart BMS protection, providing an integrated off-grid lighting solution with 2–3 consecutive overcast/rainy days of autonomy. Dusk-to-dawn control and IR remote operation provide practical control of the lighting system without requiring grid power.
The UV-resistant ABS housing, IP65 ingress protection, IK08 impact resistance, adjustable U-bracket, and waterproof plug-and-play PV connection support outdoor deployment while keeping the system practical to install and service. The five-model range provides different PV dimensions, battery capacities, LED quantities, luminous outputs, and recommended mounting heights so project designers can select an appropriate configuration without changing the overall product architecture.
Available Models

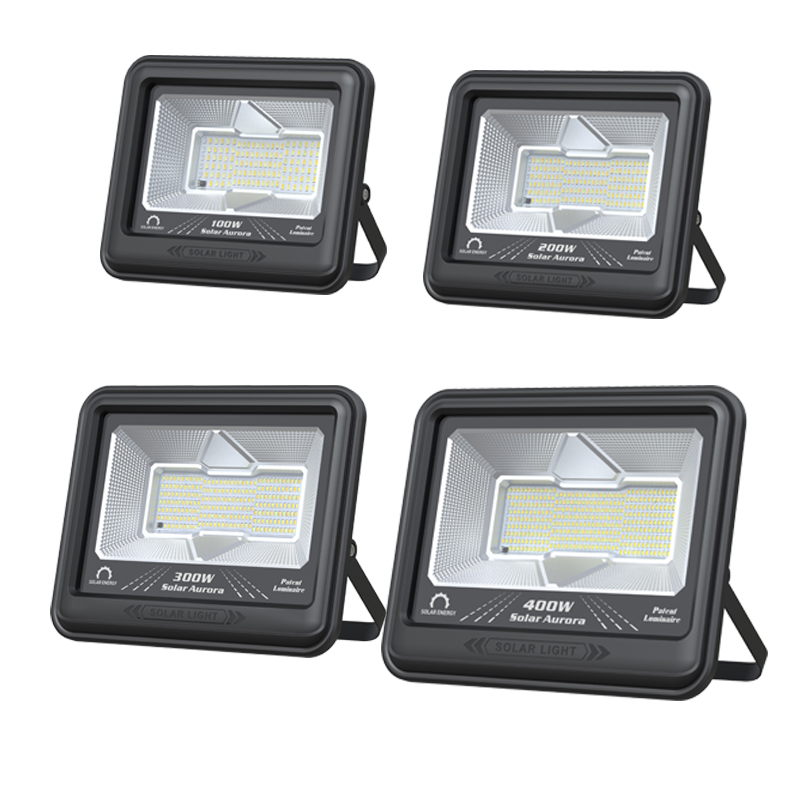

The QSJM-SAR series is available in QSJM-SAR100, QSJM-SAR200, QSJM-SAR300, QSJM-SAR400, and QSJM-SAR600. These models cover different solar charging, battery storage, LED quantity, luminous output, and mounting-height requirements for small-scale commercial and outdoor lighting projects. For detailed specifications, see the Specifications tab. Explore our full range of Solar Flood Lights for additional commercial, industrial, and outdoor lighting solutions.
← Swipe horizontally to compare models →
| Parameter | QSJM-SAR100 | QSJM-SAR200 | QSJM-SAR300 | QSJM-SAR400 | QSJM-SAR600 |
|---|---|---|---|---|---|
| 🌞 Solar & Power System | |||||
| Solar Cell Type & Efficiency | A-Grade Monocrystalline Solar Cells (>21% Cell Efficiency) | ||||
| PV Module Vmp & Rated Power | 5V (Vmp) / 12W | 5V (Vmp) / 18W | 5V (Vmp) / 25W | 5V (Vmp) / 30W | 5V (Vmp) / 40W |
| PV Dimensions | 350 × 235 mm | 350 × 290 mm | 350 × 350 mm | 350 × 450 mm | 350 × 580 mm |
| Battery Type & BMS Protection | Grade-A LiFePO4 with Smart BMS Protection (Overcharge/Over-discharge/Temperature Protection), ≥1,000 Deep Discharge Cycles (@ 80% DOD) | ||||
| Battery Capacity & System Voltage | 3.2V / 6Ah | 3.2V / 12Ah | 3.2V / 18Ah | 3.2V / 24Ah | 3.2V / 36Ah |
| Control & Operating Modes | Dusk-to-Dawn Smart Light Control + IR Remote Control | ||||
| Motion Sensor Range & Angle | — | ||||
| Full Charge Time | 4–5 hours (Under Standard Peak Sun Hours) | ||||
| Operating Time & Autonomy | 2–3 Consecutive Overcast/Rainy Days of Autonomy | ||||
| 💡 Lighting & Optical | |||||
| LED Package | SMD5730 (120 pcs) | SMD5730 (161 pcs) | SMD5730 (236 pcs) | SMD5730 (358 pcs) | SMD5730 (358 pcs) |
| LED Package Efficacy | 120–160 lm/W | ||||
| Total Luminous Flux Output | 624 lm | 915 lm | 1,248 lm | 1,664 lm | 2,288 lm |
| Color Temperature (CCT) | 3-CCT Selectable: 3000K (Warm White) / 4000K (Neutral White) / 6500K (Cool White) | ||||
| Color Rendering Index (CRI) | Ra ≥ 70 | ||||
| Light Distribution & Beam Angle | 90° / 120° Symmetric Wide Flood Beam Angle | ||||
| Diffuser / Optical Lens Material | High-Transmittance Anti-Explosion Tempered Glass | ||||
| LED Lifespan & Reliability | >50,000 Hours (L70 Performance) | ||||
| 🏗️ Structure & Material | |||||
| Housing Material | UV-Resistant ABS Body + High-Transmittance Tempered Glass | ||||
| Ingress Protection (IP Rating) | IP65 (Dust-tight & Water Jet Protected) | ||||
| Impact Resistance (IK Rating) | IK08 (High Impact Resistance) | ||||
| Wind Resistance | Up to 30–45 m/s | ||||
| Mounting Bracket & Angle Adjustability | Adjustable U-Bracket Mount | ||||
| PV Connection & Cable | 5m Heavy-Duty UV-Resistant Cable with IP65 Waterproof Plug-and-Play Connector | ||||
| Recommended Mounting Height | 3 m | 3–4 m | 3–4 m | 3–4 m | 4–5 m |
| Product Dimensions (L × W × H) | 246 × 200 × 60 mm | 295 × 240 × 64.5 mm | 346 × 282 × 70 mm | 401 × 326 × 80 mm | 401 × 326 × 80 mm |
| Operating Temperature Range | −20°C–+60°C | ||||
| 📦 Packaging & Compliance | |||||
| Carton / Packaging Dimensions | 75.5 × 37 × 26 cm | 65 × 37 × 31.5 cm | 60.5 × 37 × 37.5 cm | 55 × 47 × 37.5 cm | 60 × 47 × 37.5 cm |
| Packaging Quantity | 10 pcs / CTN | 8 pcs / CTN | 7 pcs / CTN | 6 pcs / CTN | 5 pcs / CTN |
| Standard Included Accessories | 5m Waterproof Extension Cable, Heavy-Duty U-Frame Bracket, IR Remote Control, Stainless Steel Installation Screws/Bolts, User Manual | ||||
| Certifications & Standards | CE, RoHS, ISO 9001, IP65 Certified | ||||
| Warranty Period | 2 Years (System & Battery) | 8 Years (Solar Panel) | ||||
| 💼 Commercial Terms | |||||
| Minimum Order Quantity (MOQ) | 20 pcs | ||||
| Production Lead Time | 30 Calendar Days | ||||
| Sample Availability | Sample Available (1–5 Units) | ||||
| OEM/ODM Customization | Custom logo/branding, customized CCT, tailored battery capacities, private packaging, and specialized lighting profiles | ||||
Have specific technical or installation questions about this model? Contact our engineering team for support.
Applications & Scenarios
Precision-engineered for heavy-duty commercial and industrial applications, delivering wide-angle, high-visibility illumination across specialized outdoor facilities and high-security perimeters.
Industrial Yards, Warehouses & Logistics Hubs
Delivers uniform, glare-free illumination for freight loading bays, logistics hubs, and heavy equipment yards. Built with advanced Anti-Glare Nano Lens optics, IP67 die-cast aluminum housing, and long-life LiFePO4 battery storage. Powered by the Quasar QSJM-SAR, providing 170+ lm/W high-lumen output and 3-day rainy autonomy for zero-downtime industrial safety.
Commercial Parking Lots & Access Corridors
Engineered for wide-beam optical coverage and zero-grid-cost perimeter security across retail plazas, corporate parks, and vehicle corridors. Integrates high-efficiency SMD LED arrays, dusk-to-dawn smart sensor logic, and weather-sealed heat dissipation. Utilizing Quasar QSKZ-HD to ensure optimal traffic guidance and zero annual electrical overhead.
Facility Perimeter Security & Fence Lighting
Eliminates dark spots along critical boundary lines with 360° microwave radar motion sensing and automated two-stage dimming (30% standby to 100% full-brightness detection). Features corrosion-resistant IP67 construction and high-capacity battery autonomy. Configured with Quasar QSKZ-ST for robust, off-grid intruder deterrence around commercial facilities.
Sports Fields, Stadiums & High-Mast Arenas
Designed for high-mast pole installations (8m–12m+), generating high-flux lumen intensity required for outdoor sports arenas, courts, and large assembly grounds. Equipped with heavy-duty adjustable mounting brackets and high-transmittance optical diffusers. Driven by Quasar QSJM-BW for scalable, high-impact athletic field lighting without utility grid reliance.
Construction Sites & Remote Infrastructure
Built for harsh, off-grid environments requiring rapid deployment, IK08 impact resistance, and all-weather operational durability. Combines high-efficiency monocrystalline PV panels and intelligent BMS battery protection for 12+ hours of continuous night operation. Deployed with Quasar QSKZ-ST to support night-shift productivity across temporary worksites.
Billboards, Commercial Signage & Wall Washing
Delivers precision optical beam distribution (CRI > 80) for high-visibility commercial billboards, branding signage, and architectural wall washing. Features programmable timing modes and wireless remote control for flexible lighting schedules. Recommended model: Quasar QSKZ-HD to achieve vibrant, uniform coverage with zero light spill.
Global Compliance & Engineering Quality
Seamless Project Approvals & Rapid Tender Compliance Worldwide
Accelerate municipal tender approvals and eliminate import clearance risks across 40+ countries. Our manufacturing facilities and product lines undergo rigorous third-party testing to comply with international infrastructure standards—including ISO 9001:2015 Quality Management System, CE (EMC & LVD), RoHS 2.0, FCC Part 15 Class B, and IEC 62722 / IEC 60598 photobiological safety specifications, along with UN38.3 lithium battery transport certification.
Illuminating Success Stories Worldwide
See Our Products Powering Projects Globally
Community Safety Lighting: NV Series Street Lights for S2 Heights Village Roads
Thailand Farm Solar Lighting: Waterfront Illumination with “Moon in Water” Garden Lights
High-Temperature Municipal Street Lighting Project, Dubai
Illuminating the New Port of Ndayane: A Landmark Solar Lighting Project, Senegal
Coastal Illumination Upgrade: Solar Flood Lighting for Australian Seaside Accommodation
Industrial-Grade Technical Highlights for Solar Flood Infrastructure
High-lumen off-grid solar floodlights with scalable lumen output, advanced nano optical lenses, IP65/IP67 heavy-duty housings, and Grade-A LiFePO4 autonomy engineered for industrial yards, stadiums, and facility perimeters.
High-Lumen LED Array & Nano Optical Lenses
Engineered with high-efficacy, large-surface LED matrices (50W–1,500W) delivering up to 170+ lm/W output. Paired with precision anti-glare nano optical lenses to provide ultra-wide 120°–140° illumination, ensuring uniform, high-intensity coverage across commercial stadiums, industrial yards, and perimeter security lines.
ADC12 Die-Cast Housing & IP65 Sealed
Heavy-duty ADC12 die-cast aluminum housing with anti-corrosion coating and weather-tight silicone seals guarantees thermal dissipation and flawless operation across extreme temperatures from -20°C to 65°C.
Split Monocrystalline PV & Flexible Orientation
High-conversion monocrystalline solar panels with heavy-duty brackets and weather-sealed extended cabling enable optimal tilt angle adjustments for maximum daily solar absorption.
Grade-A LiFePO4 & 3–5 Day Overcast Backup
High-capacity Grade-A LiFePO4 battery storage provides 2,000+ deep cycles and integrated intelligent power management for 3–5 consecutive days of continuous overcast operation.
Smart Radar Sensing & Wireless Remote Control
Integrated microwave radar motion sensors and multi-mode wireless remote control enable automated 30% standby dimming and instant 100% full-brightness security coverage.
180° Heavy-Duty Bracket & Zero-Trenching Mount
Reinforced 180° adjustable steel brackets support fast surface, pole, and truss mounting without grid connections or cable trenching, significantly reducing installation labor.
SOLAR VS. GRID: TOTAL COST COMPARISON
Skip the Trenching. Eliminate Energy Bills.
Calculate your 5-year project ROI below and see how much your facility can save with Lumin Solar Solutions.
Private Project ROI Calculator
💡 Pro Tip: Switching to solar allows you to eliminate trenching costs and expensive cabling.
Traditional Grid vs. Lumin Solar Lighting Solutions Cost Analysis
| Project Cost Items (30 Units) | Traditional Grid | Lumin Solar Solutions |
|---|---|---|
| Trenching & Labor | $3,000 - $8,000 | $0 (No Digging) |
| Cabling & Wiring | $2,500 - $5,000 | $0 |
| Transformer/Switchgear | Essential Infrastructure Cost | Not Needed |
| Electricity Bill (Annual) | $1,500 - $2,500 | $0 (Free) |
| Installation Time | 7-14 Days | 1-2 Days |
| Total Hidden Costs | EXTREMELY HIGH | ZERO |
*Calculated based on average private industrial projects. Lumin Solar Solutions eliminates infrastructure overhead.
Why pay for copper wires and manual labor when you can invest that budget into high-quality solar technology?
Commercial & Ordering FAQ
Our standard Minimum Order Quantity (MOQ) is 50 units. We also fully support sample orders (1–5 units) for project evaluation, technical testing, and quality verification prior to bulk production.
We offer flexible international trade terms including FOB, CIF, EXW, and DDP (Delivered Duty Paid). Our DDP services cover 42+ countries to ensure seamless customs clearance and hassle-free door-to-door delivery.
We accept Wire Transfer (T/T) and Letter of Credit (L/C).
The standard lead time for mass production is 30 calendar days, calculated from the date your deposit is received. For customized OEM/ODM projects or specialized technical requirements, the delivery schedule will be mutually confirmed during contract review.
Yes, absolutely. We offer complete OEM/ODM solutions, including custom logo/branding, custom housing finishes, specialized lumen/wattage outputs, tailored optical spectrums, and smart controller lighting profiles.
We provide comprehensive warranty coverage across all system components: 2-year warranty for the LED luminaire and LiFePO4 battery, 8-year warranty for monocrystalline solar panels, and 10-year warranty for lighting poles. (Please refer to our product catalog for itemized terms).
We provide worldwide shipping via sea freight, air freight, and express courier. Our dedicated logistics team manages export documentation, compliance checks, and end-to-end cargo tracking to ensure safe delivery to your site or port.
Simply click the “Inquire Now” button or contact our sales department with your order details. Our sales engineers will review your project requirements and issue an official Proforma Invoice (PI) promptly.
