COMMERCIAL & INDUSTRIAL SOLAR FLOOD LIGHTS

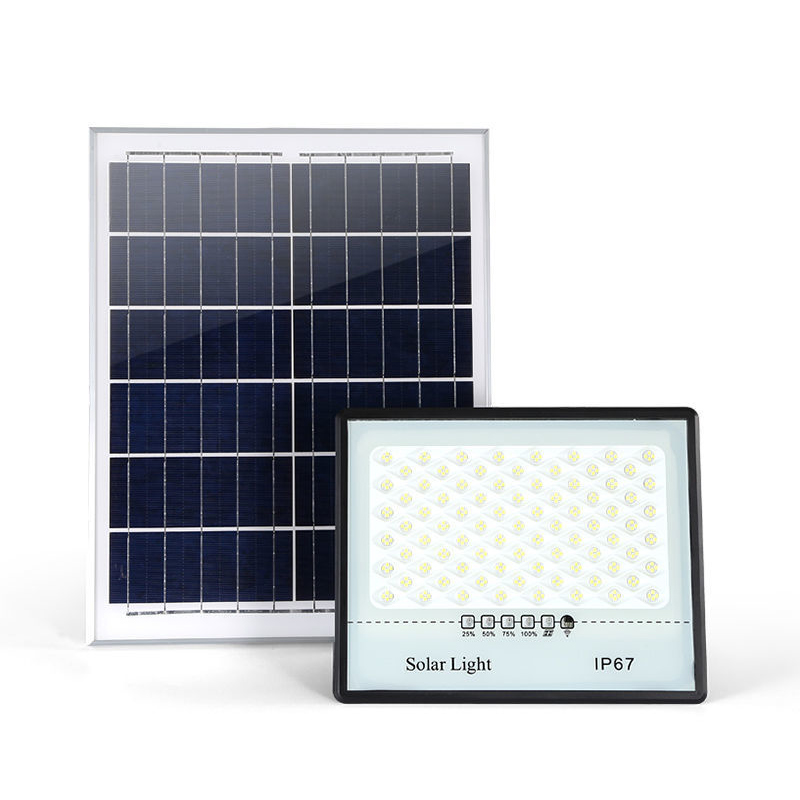

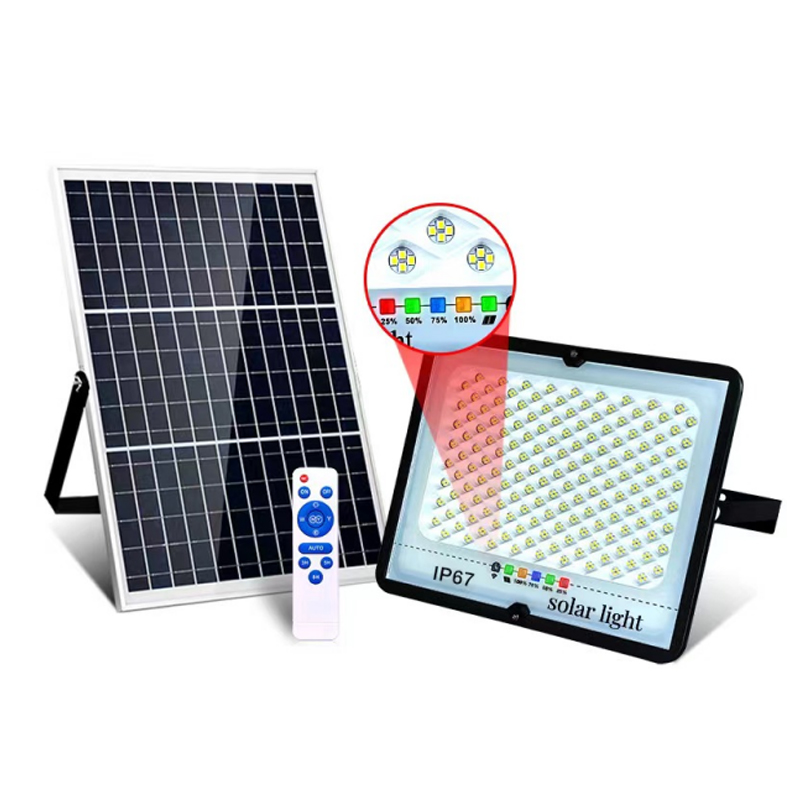

Quasar High-Density SMD2835 Solar Flood Light (QSKZ-HD)
Quasar High-Density SMD2835 Solar Flood Light (QSKZ-HD)
- High-Density Compact Illumination: Engineered as a High-Density SMD2835 Solar Flood Light, the Quasar series combines high-efficiency LED arrays with compact aluminum housing for high-performance Solar Flood Lights project deployments.
- High-Efficacy LED Array: Configured with 128 to 644 SMD2835 chips delivering 160lm/W to 180lm/W package efficacy, ensuring maximum luminous output across 6Ah to 25Ah battery configurations without thermal degradation or light attenuation.
- Wide Flood Beam Distribution: Features a 90°/120° symmetric wide flood beam angle with high-transmittance tempered glass, providing expansive anti-glare coverage for large-scale outdoor facilities, perimeters, and architectural structures.
- Smart Control System: Equipped with a Smart Controller + Dusk-to-Dawn Light Control + Remote Control (Timer Function), enabling automated night activation and customized timing profiles via wireless IR remote controller.
- LiFePO4 Storage & Autonomy: Powered by Grade-A LiFePO4 batteries (3.2V 6Ah–25Ah) with Smart BMS Protection, offering ≥2,000 cycles @ 80% DOD and >12 Hours of continuous all-night discharge after 4–6 Hours full sun charge.
- Rugged IP65 Weatherproof Structure: Constructed from heavy-duty aluminum alloy rated at IP65 and IK08, complete with an Adjustable U-Bracket Mount and IP65 waterproof plug-and-play cables for reliable surface, pole, or wall installation.
- Industrial Applications & Customization: Engineered for perimeter security, yards, compounds, and building facades, backed by comprehensive B2B OEM/ODM customization for private branding, tailored CCT, battery capacities, and specialized lighting profiles.
- All-Night Illumination
- All-Weather Proof
- Built for a Decade+
- Smart Adaptive Control
- Easy Plug & Play
- Low Lifetime Cost
- Certified Worldwide
- Reliable Supply & Delivery
The QSKZ-HD series is a High-Density SMD2835 Solar Flood Light engineered for compact, high-density illumination where a concentrated LED array is required within a relatively compact fixture structure. By combining a high-density SMD2835 LED configuration with heavy-duty aluminum alloy construction and wide flood optics, the series provides an engineering-oriented solution for security lighting, yards, commercial compounds, building façades, and open outdoor areas.
Key Technical Advantages
The defining architecture of the QSKZ-HD series is its high-density LED arrangement, with configurations from 128 to 644 SMD2835 LEDs and 160–180 lm/W package efficacy. This allows the LED system to maintain a dense light-emitting surface within different fixture sizes, supporting broad illumination while keeping the luminaire form compact. The 90° / 120° symmetric wide flood distribution and high-transmittance tempered glass work with the LED array to distribute light across outdoor areas rather than relying on a narrow directional beam.
The lighting system combines model-scaled monocrystalline PV modules and LiFePO4 battery storage with smart control for autonomous overnight operation. Dusk-to-dawn control provides automatic night activation, while the IR remote and timer function allow project operators to configure operating schedules according to site requirements. The aluminum alloy housing, IP65 / IK08 protection, adjustable U-bracket, and waterproof plug-and-play connection provide a practical platform for exposed outdoor installations, with all models designed around a standardized 3–4 m mounting height.
Available Models
The QSKZ-HD series is available in QSKZ-HD-50, QSKZ-HD-100, QSKZ-HD-200, QSKZ-HD-300, QSKZ-HD-500, and QSKZ-HD-600. The models provide progressively different PV, battery, LED-array, and fixture configurations for project-specific sizing while maintaining the same high-density SMD2835 design approach. For detailed specifications, see the Specifications tab. Explore our full range of Solar Flood Lights for additional commercial and industrial off-grid lighting solutions.
← Swipe horizontally to compare models →
| Parameter | QSKZ-HD-50 | QSKZ-HD-100 | QSKZ-HD-200 | QSKZ-HD-300 | QSKZ-HD-500 | QSKZ-HD-600 |
|---|---|---|---|---|---|---|
| 🌞 Solar & Power System | ||||||
| Solar Cell Type & Efficiency | A-Grade Monocrystalline Solar Cells (>21% Cell Efficiency) | |||||
| PV Module Vmp & Rated Power | 6V (Vmp) / 8W | 6V (Vmp) / 12W | 6V (Vmp) / 15W | 6V (Vmp) / 20W | 6V (Vmp) / 25W | 6V (Vmp) / 30W |
| PV Dimensions | 350 × 235 mm | 350 × 290 mm | 350 × 350 mm | 350 × 460 mm | 350 × 520 mm | 350 × 600 mm |
| Battery Type & BMS Protection | Grade-A LiFePO4 with Smart BMS Protection (Overcharge/Over-discharge/Temp Protection), ≥ 2,000 Deep Discharge Cycles (@ 80% DOD) | |||||
| Battery Capacity & System Voltage | 3.2V / 6Ah | 3.2V / 10Ah | 3.2V / 12Ah | 3.2V / 15Ah | 3.2V / 20Ah | 3.2V / 25Ah |
| Control & Operating Modes | Smart Controller + Dusk-to-Dawn Light Control + Remote Control (Timer Function) | |||||
| Motion Sensor Range & Angle | — | |||||
| Full Charge Time | 4–6 hours (Under Standard Peak Sun Hours) | |||||
| Operating Time & Autonomy | > 12 Hours | |||||
| 💡 Lighting & Optical | ||||||
| LED Package | SMD2835 (128 pcs) | SMD2835 (200 pcs) | SMD2835 (308 pcs) | SMD2835 (308 pcs) | SMD2835 (332 pcs) | SMD2835 (644 pcs) |
| LED Package Efficacy | 160–180 lm/W | |||||
| Total Luminous Flux Output | — | |||||
| Color Temperature (CCT) | 3000K Warm White–6500K Cool Daylight (Customizable) | |||||
| Color Rendering Index (CRI) | Ra ≥ 70 | |||||
| Light Distribution & Beam Angle | 90° / 120° Symmetric Wide Flood Beam Angle | |||||
| Diffuser / Optical Lens Material | Heavy-Duty Aluminum Alloy + High-Transmittance Tempered Glass | |||||
| LED Lifespan & Reliability | > 50,000 Hours (L70 Performance) | |||||
| 🏗️ Structure & Material | ||||||
| Housing Material | Heavy-Duty Aluminum Alloy + High-Transmittance Tempered Glass | |||||
| Product Dimensions (L × W) | 190 × 150 mm | 240 × 180 mm | 260 × 200 mm | 260 × 200 mm | 300 × 240 mm | 360 × 290 mm |
| Ingress Protection (IP Rating) | IP65 (Dust-tight & Water Jet Protected) | |||||
| Impact Resistance (IK Rating) | IK08 (High Impact Resistance) | |||||
| Wind Resistance | Up to 30–45 m/s | |||||
| Mounting Bracket & Angle Adjustability | Adjustable U-Bracket Mount | |||||
| PV Connection & Cable | Heavy-Duty Cable with IP65 Waterproof Plug-and-Play Connector | |||||
| Recommended Mounting Height | 3–4 m | |||||
| Operating Temperature Range | −20°C–+60°C | |||||
| 📦 Packaging & Compliance | ||||||
| Master Carton Dimensions | 520 × 380 × 500 mm | 500 × 310 × 390 mm | 380 × 380 × 380 mm | Lamp: 570 × 360 × 490 mm PV: 500 × 320 × 380 mm |
Lamp: 520 × 380 × 500 mm PV: 570 × 320 × 380 mm |
Lamp: 510 × 320 × 390 mm PV: 630 × 320 × 380 mm |
| Packaging Quantity | 10 pcs / CTN | 5 pcs / CTN | 5 pcs / CTN | Lamp: 20 pcs / CTN PV: 10 pcs / CTN |
Lamp: 10 pcs / CTN PV: 10 pcs / CTN |
Lamp: 5 pcs / CTN PV: 10 pcs / CTN |
| Standard Included Accessories | U-bracket, IR Remote Controller, Expansion Bolts, User Manual | |||||
| Certifications & Standards | CE, RoHS, ISO 9001 | |||||
| 💼 Commercial Terms | ||||||
| Minimum Order Quantity (MOQ) | 20 pcs | |||||
| Production Lead Time | 30 Calendar Days | |||||
| Sample Availability | Sample Available (1–5 Units) | |||||
| Warranty Period | 2 Years (System & Battery) | 8 Years (Solar Panel) | |||||
| OEM/ODM Customization | Custom logo/branding, customized CCT, tailored battery capacities, private packaging, and specialized lighting profiles | |||||
Have specific technical or installation questions about this model? Contact our engineering team for support.
Applications & Scenarios
Precision-engineered for heavy-duty commercial and industrial applications, delivering wide-angle, high-visibility illumination across specialized outdoor facilities and high-security perimeters.
Industrial Yards, Warehouses & Logistics Hubs
Delivers uniform, glare-free illumination for freight loading bays, logistics hubs, and heavy equipment yards. Built with advanced Anti-Glare Nano Lens optics, IP67 die-cast aluminum housing, and long-life LiFePO4 battery storage. Powered by the Quasar QSJM-SAR, providing 170+ lm/W high-lumen output and 3-day rainy autonomy for zero-downtime industrial safety.
Commercial Parking Lots & Access Corridors
Engineered for wide-beam optical coverage and zero-grid-cost perimeter security across retail plazas, corporate parks, and vehicle corridors. Integrates high-efficiency SMD LED arrays, dusk-to-dawn smart sensor logic, and weather-sealed heat dissipation. Utilizing Quasar QSKZ-HD to ensure optimal traffic guidance and zero annual electrical overhead.
Facility Perimeter Security & Fence Lighting
Eliminates dark spots along critical boundary lines with 360° microwave radar motion sensing and automated two-stage dimming (30% standby to 100% full-brightness detection). Features corrosion-resistant IP67 construction and high-capacity battery autonomy. Configured with Quasar QSKZ-ST for robust, off-grid intruder deterrence around commercial facilities.
Sports Fields, Stadiums & High-Mast Arenas
Designed for high-mast pole installations (8m–12m+), generating high-flux lumen intensity required for outdoor sports arenas, courts, and large assembly grounds. Equipped with heavy-duty adjustable mounting brackets and high-transmittance optical diffusers. Driven by Quasar QSJM-BW for scalable, high-impact athletic field lighting without utility grid reliance.
Construction Sites & Remote Infrastructure
Built for harsh, off-grid environments requiring rapid deployment, IK08 impact resistance, and all-weather operational durability. Combines high-efficiency monocrystalline PV panels and intelligent BMS battery protection for 12+ hours of continuous night operation. Deployed with Quasar QSKZ-ST to support night-shift productivity across temporary worksites.
Billboards, Commercial Signage & Wall Washing
Delivers precision optical beam distribution (CRI > 80) for high-visibility commercial billboards, branding signage, and architectural wall washing. Features programmable timing modes and wireless remote control for flexible lighting schedules. Recommended model: Quasar QSKZ-HD to achieve vibrant, uniform coverage with zero light spill.
Global Compliance & Engineering Quality
Seamless Project Approvals & Rapid Tender Compliance Worldwide
Accelerate municipal tender approvals and eliminate import clearance risks across 40+ countries. Our manufacturing facilities and product lines undergo rigorous third-party testing to comply with international infrastructure standards—including ISO 9001:2015 Quality Management System, CE (EMC & LVD), RoHS 2.0, FCC Part 15 Class B, and IEC 62722 / IEC 60598 photobiological safety specifications, along with UN38.3 lithium battery transport certification.
Illuminating Success Stories Worldwide
See Our Products Powering Projects Globally
Community Safety Lighting: NV Series Street Lights for S2 Heights Village Roads
Thailand Farm Solar Lighting: Waterfront Illumination with “Moon in Water” Garden Lights
High-Temperature Municipal Street Lighting Project, Dubai
Illuminating the New Port of Ndayane: A Landmark Solar Lighting Project, Senegal
Coastal Illumination Upgrade: Solar Flood Lighting for Australian Seaside Accommodation
Industrial-Grade Technical Highlights for Solar Flood Infrastructure
High-lumen off-grid solar floodlights with scalable lumen output, advanced nano optical lenses, IP65/IP67 heavy-duty housings, and Grade-A LiFePO4 autonomy engineered for industrial yards, stadiums, and facility perimeters.
High-Lumen LED Array & Nano Optical Lenses
Engineered with high-efficacy, large-surface LED matrices (50W–1,500W) delivering up to 170+ lm/W output. Paired with precision anti-glare nano optical lenses to provide ultra-wide 120°–140° illumination, ensuring uniform, high-intensity coverage across commercial stadiums, industrial yards, and perimeter security lines.
ADC12 Die-Cast Housing & IP65 Sealed
Heavy-duty ADC12 die-cast aluminum housing with anti-corrosion coating and weather-tight silicone seals guarantees thermal dissipation and flawless operation across extreme temperatures from -20°C to 65°C.
Split Monocrystalline PV & Flexible Orientation
High-conversion monocrystalline solar panels with heavy-duty brackets and weather-sealed extended cabling enable optimal tilt angle adjustments for maximum daily solar absorption.
Grade-A LiFePO4 & 3–5 Day Overcast Backup
High-capacity Grade-A LiFePO4 battery storage provides 2,000+ deep cycles and integrated intelligent power management for 3–5 consecutive days of continuous overcast operation.
Smart Radar Sensing & Wireless Remote Control
Integrated microwave radar motion sensors and multi-mode wireless remote control enable automated 30% standby dimming and instant 100% full-brightness security coverage.
180° Heavy-Duty Bracket & Zero-Trenching Mount
Reinforced 180° adjustable steel brackets support fast surface, pole, and truss mounting without grid connections or cable trenching, significantly reducing installation labor.
SOLAR VS. GRID: TOTAL COST COMPARISON
Skip the Trenching. Eliminate Energy Bills.
Calculate your 5-year project ROI below and see how much your facility can save with Lumin Solar Solutions.
Private Project ROI Calculator
💡 Pro Tip: Switching to solar allows you to eliminate trenching costs and expensive cabling.
Traditional Grid vs. Lumin Solar Lighting Solutions Cost Analysis
| Project Cost Items (30 Units) | Traditional Grid | Lumin Solar Solutions |
|---|---|---|
| Trenching & Labor | $3,000 - $8,000 | $0 (No Digging) |
| Cabling & Wiring | $2,500 - $5,000 | $0 |
| Transformer/Switchgear | Essential Infrastructure Cost | Not Needed |
| Electricity Bill (Annual) | $1,500 - $2,500 | $0 (Free) |
| Installation Time | 7-14 Days | 1-2 Days |
| Total Hidden Costs | EXTREMELY HIGH | ZERO |
*Calculated based on average private industrial projects. Lumin Solar Solutions eliminates infrastructure overhead.
Why pay for copper wires and manual labor when you can invest that budget into high-quality solar technology?
Commercial & Ordering FAQ
Our standard Minimum Order Quantity (MOQ) is 50 units. We also fully support sample orders (1–5 units) for project evaluation, technical testing, and quality verification prior to bulk production.
We offer flexible international trade terms including FOB, CIF, EXW, and DDP (Delivered Duty Paid). Our DDP services cover 42+ countries to ensure seamless customs clearance and hassle-free door-to-door delivery.
We accept Wire Transfer (T/T) and Letter of Credit (L/C).
The standard lead time for mass production is 30 calendar days, calculated from the date your deposit is received. For customized OEM/ODM projects or specialized technical requirements, the delivery schedule will be mutually confirmed during contract review.
Yes, absolutely. We offer complete OEM/ODM solutions, including custom logo/branding, custom housing finishes, specialized lumen/wattage outputs, tailored optical spectrums, and smart controller lighting profiles.
We provide comprehensive warranty coverage across all system components: 2-year warranty for the LED luminaire and LiFePO4 battery, 8-year warranty for monocrystalline solar panels, and 10-year warranty for lighting poles. (Please refer to our product catalog for itemized terms).
We provide worldwide shipping via sea freight, air freight, and express courier. Our dedicated logistics team manages export documentation, compliance checks, and end-to-end cargo tracking to ensure safe delivery to your site or port.
Simply click the “Inquire Now” button or contact our sales department with your order details. Our sales engineers will review your project requirements and issue an official Proforma Invoice (PI) promptly.
