Commercial & Municipal Off-Grid Solar Street Lights

Commercial and municipal solar street lights typically require 3 to 5 continuous days of autonomy (battery backup) to maintain uninterrupted operation during prolonged rainy or overcast weather.

• Autonomy Sizing Standard: Systems designed for high-sunlight regions require 3 days (72 hours) of backup, while high-latitude or storm-prone zones mandate 5 to 7 days (120–168 hours) of unassisted power.

• Depth of Discharge (DoD): High-grade 3.2V and 12.8V Lithium Iron Phosphate (LiFePO4) batteries operate at 80% DoD, preserving stable system voltage across consecutive low-solar discharge cycles.

• Smart Dimming Protocols: Intelligent controllers automatically scale LED output to 30%–50% during late-night hours or low battery states, extending total runtime by up to 40%.

• Solar Over-Sizing Ratio: Photovoltaic array capacity is oversized by a 1.3:1 to 1.5:1 ratio relative to daily LED power load to ensure rapid recharge after multi-day storms.

Municipal solar street light poles are engineered to withstand severe wind speeds ranging from 150 km/h to 240 km/h (42 m/s to 67 m/s) under full structural payload conditions.

• Structural Steel Grade: Poles are fabricated from high-tensile Q235B or Q355B structural steel featuring wall thicknesses from 3.0 mm to 5.0 mm for 6m to 12m mounting heights.

• Corrosion Protection: Hot-dip galvanization conforming to ISO 1461 provides a minimum 86 µm zinc coating thickness, ensuring 25+ years of atmospheric corrosion resistance in C4/C5 coastal environments.

• Effective Projected Area (EPA): Structural calculations evaluate total wind load torque across the combined surface area of the solar panel array, mounting brackets, and luminaire head under AASHTO standards.

• Anchor Foundation Cage: Heavy-duty Grade 8.8 galvanized anchor bolts embedded in reinforced concrete foundations (700 mm to 1200 mm depth) prevent foundation tipping and bending fatigue.

Lithium Iron Phosphate (LiFePO4) is the benchmark chemistry for solar street lights due to its high thermal stability, safety profile, and deep-cycle durability across harsh ambient conditions.

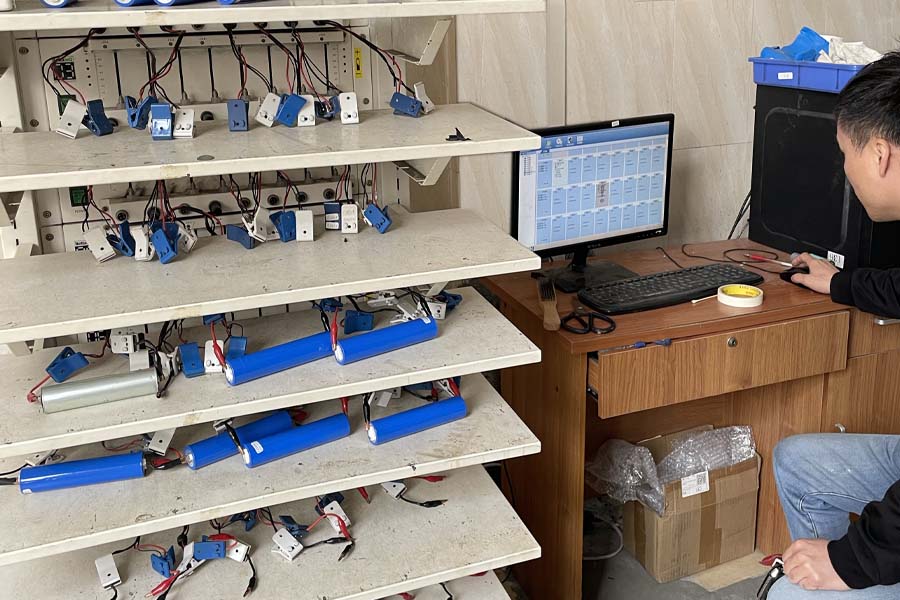

• Wide Operating Temperature: LiFePO4 cells function reliably between -20°C and +65°C, managed by built-in Battery Management Systems (BMS) with high-temperature thermal cut-off protection.

• Extended Cycle Life: Delivers 3,000 to 6,000 charge cycles at 80% Depth of Discharge (DoD), yielding an 8 to 12-year service life compared to 2–3 years for traditional lead-acid or gel batteries.

• High Energy Density: Provides 120–160 Wh/kg energy density with over 95% charge-discharge efficiency, significantly reducing enclosure volume and weight on pole structures.

• Chemical & Thermal Safety: Features a high thermal runaway threshold (+270°C), eliminating fire or explosion risks under mechanical puncture, overcharge, or extreme desert heat.

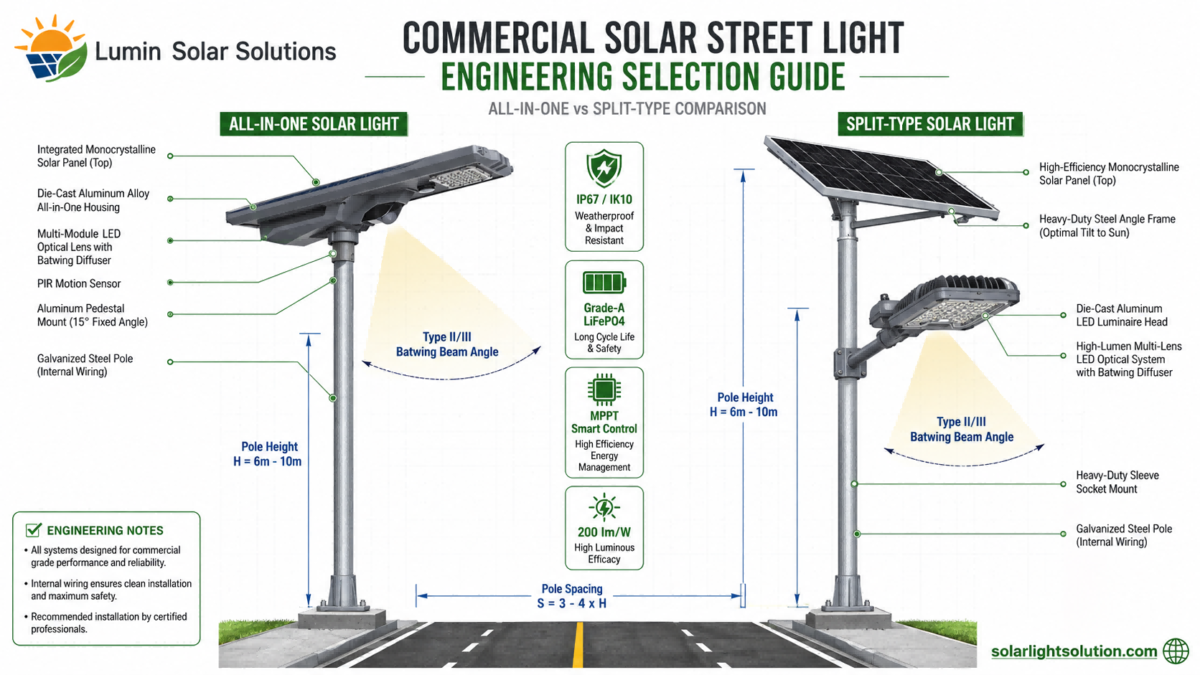

Type II Medium and Type III Medium batwing optical distributions are recommended for solar street lights to maximize pole spacing distance while maintaining strict roadway luminance uniformity.

• Illumination Uniformity: Specialized optical lenses achieve an Overall Uniformity ratio (U0) ≥ 0.40 and Longitudinal Uniformity (Ul) ≥ 0.60 in compliance with EN 13201 and IESNA RP-8 roadway standards.

• Expanded Pole Spacing: Asymmetrical beam angles (140° × 70° or 150° × 75°) allow pole spacing ratios of 3.5 to 4.5 times the mounting height (e.g., 28m–36m spacing on an 8m pole).

• Dark-Sky & Glare Control: Full-cutoff optical designs with Bug Ratings of B2-U0-G2 eliminate upward light pollution (ULR = 0%) and suppress driver threshold increment glare.

• Luminous System Efficacy: High-transmittance PC or tempered glass optical lenses maintain ≥ 93% light transmission, achieving overall fixture efficacy exceeding 180 to 200 lm/W.

Commercial solar street light installations are designed for a 20 to 25-year structural lifespan, supported by tiered warranties aligned with international infrastructure procurement rules.

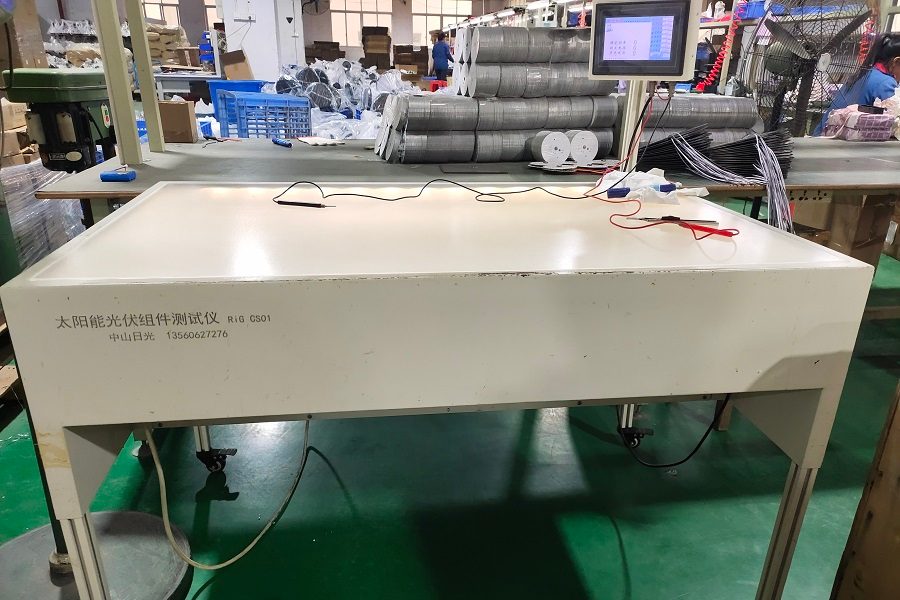

• Monocrystalline Solar Panels: 10-year mechanical workmanship warranty and a 25-year linear power output performance guarantee (maintaining ≥ 80% output at Year 25).

• LiFePO4 Batteries & Controllers: 5 to 8-year full replacement warranty covering capacity retention above 70% and electronic circuit stability.

• LED Luminaire & Engine: 5 to 10-year warranty supporting L70 lumen maintenance exceeding 100,000 operational hours based on LM-80 and TM-21 test data.

• Steel Poles & Mounting Arms: 10 to 25-year structural warranty covering mechanical integrity and anti-corrosion protection under hot-dip galvanizing standards.

Maximum Power Point Tracking (MPPT) charge controllers increase solar charging efficiency by 15% to 30% over Pulse Width Modulation (PWM) systems, particularly in cold or overcast climates.

• High Peak Tracking Efficiency: Advanced digital MPPT algorithms track the solar module’s maximum power point (Vmp/Imp) with ≥ 99.5% tracking accuracy and up to 98% DC-to-DC conversion efficiency.

• Winter Solar Conversion: Solar panel operating voltage increases in low ambient temperatures; MPPT converts excess voltage into additional charging current to maximize short-day energy harvest.

• 4-Stage Smart Charging: Implements Bulk, Absorption, Float, and Equalization charging cycles tailored for LiFePO4 cells to prevent premature degradation and cell imbalance.

• IoT Remote Diagnostics: Integrates RS485, 4G, or WiFi wireless protocols for real-time telemetry monitoring of voltage, current, battery state of charge (SoC), and system fault logs.
