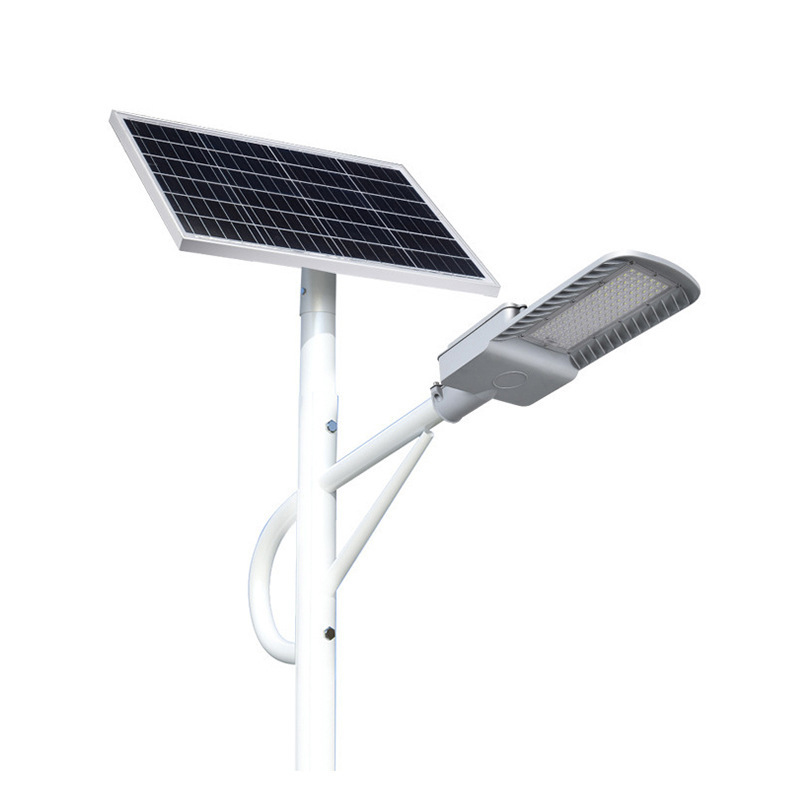

Nova High-Capacity Split Solar Street Light with SMD3030 LED Array (NVKZ-HC)
Nova High-Capacity Split Solar Street Light with SMD3030 LED Array (NVKZ-HC)
- High-Capacity Solar Architecture: Engineered as a heavy-duty commercial solar street light and municipal solar street light system featuring oversized monocrystalline solar panels (>21% Cell Efficiency) and expanded LiFePO4 battery arrays for maximum energy capture.
- High Optical Efficacy: Delivers package efficacy up to 180 lm/W with SMD3030 LED arrays, generating Total Luminous Flux Outputs ranging from 1,500 lm to 3,000 lm across 3.2V / 30Ah to 12.8V / 30Ah battery options.
- Asymmetric Batwing Distribution: Features optical-grade UV-Resistant PC lenses with 70° × 140° asymmetric anti-glare coverage, delivering uniform Type II / Type III Light Distribution across multi-lane roadways without glare or light spill.
- Smart Adaptive Management: Integrates an intelligent Dusk-to-Dawn lighting controller with multi-stage programmable timer dimming and IR Remote Control to optimize energy efficiency during varied night traffic cycles.
- Grade-A LiFePO4 Storage: Powered by Grade-A LiFePO4 battery cells in 3.2V (up to 80Ah) and 12.8V (up to 30Ah) configurations with Smart BMS Protection, ensuring ≥2,000 deep discharge cycles (@ 80% DOD) and up to 12 hours of continuous dusk-to-dawn operation.
- Heavy-Duty Weather Protection: Built with a corrosion-resistant aluminum alloy housing rated IP65 waterproof and IK08 impact-resistant, featuring an adjustable slip fitter (±15° tilt, Φ60 mm spigot) and IP68 MC4 / XT60 extension cables.
- Commercial & Municipal Fit: Purpose-built for municipal solar street light projects, commercial solar street light developments, highways, and industrial logistics parks, supporting direct factory OEM/ODM customization for cable lengths, custom lighting spectrums, and private branding.
- All-Night Illumination
- All-Weather Proof
- Built for a Decade+
- Smart Adaptive Control
- Easy Plug & Play
- Low Lifetime Cost
- Certified Worldwide
- Reliable Supply & Delivery
Engineered for High-Capacity Solar Roadway Projects
The Nova High-Capacity Split Solar Street Light from Lumin Solar Solutions is an industrial-grade commercial solar street light and municipal solar street light solution designed for highways, arterial roads, and logistics parks where higher solar energy collection, extended energy storage, and flexible off-grid installation need to work together as one system. Its separate photovoltaic panel and luminaire architecture allows the solar module and light head to be positioned independently, supporting different pole configurations and site conditions.
Integrated Energy, Optics, and Adaptive Lighting Control
The system combines a scalable solar-to-lighting architecture with SMD3030 LED arrays and asymmetric Batwing optics to address roadway coverage and nighttime operating requirements. The independently mounted monocrystalline PV system and LiFePO4 battery configurations allow project designers to match solar generation and energy storage to the required lighting output and installation scale. Type II / Type III distribution with controlled asymmetric coverage supports lateral roadway illumination, while programmable timer dimming and Dusk-to-Dawn control enable the lighting system to adapt its nighttime operating profile without relying on grid power.
Flexible Model Selection for Commercial Deployment
The Nova series is available in seven configurations: NVKZ-HC-35, NVKZ-HC-40, NVKZ-HC-50, NVKZ-HC-60, NVKZ-HC-80-3280, NVKZ-HC-80-12824, and NVKZ-HC-100. The models provide different verified PV, battery, LED, luminous-flux, and recommended installation configurations, allowing project designers to select an appropriate system according to roadway scale, mounting height, spacing, and energy requirements. For detailed specifications, see the Specifications tab. Explore our complete range of Split Solar Street Lights for for direct factory OEM/ODM engineering customization across commercial solar street light and municipal solar street light projects.
← Swipe horizontally to compare models →
| Parameter | NVKZ-HC-35 | NVKZ-HC-40 | NVKZ-HC-50 | NVKZ-HC-60 | NVKZ-HC-80-3280 | NVKZ-HC-80-12824 | NVKZ-HC-100 |
|---|---|---|---|---|---|---|---|
| 🌞 Solar & Power System | |||||||
| Solar Cell Type & Efficiency | A-Grade Monocrystalline Solar Cells (>21% Cell Efficiency) | ||||||
| PV Module Vmp & Rated Power | 6V (Vmp) / 35W | 6V (Vmp) / 40W | 6V (Vmp) / 50W | 6V (Vmp) / 60W | 6V (Vmp) / 80W | 6V (Vmp) / 80W | 6V (Vmp) / 100W |
| PV Dimensions | 390 × 470 mm | 400 × 600 mm | 600 × 500 mm | 600 × 620 mm | 600 × 800 mm | 600 × 880 mm | 600 × 950 mm |
| Battery Type & BMS Protection | Grade-A LiFePO4 with Smart BMS Protection (Overcharge/Over-discharge/Temp Protection), ≥2,000 Deep Discharge Cycles (@ 80% DOD) |
||||||
| Battery Capacity & System Voltage | 3.2V / 30Ah | 3.2V / 40Ah | 3.2V / 50Ah | 3.2V / 60Ah | 3.2V / 80Ah | 12.8V / 24Ah | 12.8V / 30Ah |
| Control & Operating Modes | Smart Controller + Dusk-to-Dawn Light Control + Remote Control + Timer | ||||||
| Motion Sensor Range & Angle | — | ||||||
| Full Charge Time | 4–6 Hours (Under Standard Peak Sun Hours) | ||||||
| Operating Time & Autonomy | Up to 12 Hours (Dusk-to-Dawn) | ||||||
| 💡 Lighting & Optical | |||||||
| LED Package | SMD3030 (60 pcs) | SMD3030 (80 pcs) | SMD3030 (80 pcs) | SMD3030 (80 pcs) | SMD3030 (80 pcs) | SMD3030 (120 pcs) | SMD3030 (120 pcs) |
| LED Package Efficacy | Up to 180 lm/W | ||||||
| Total Luminous Flux Output | 1,500 lm | 2,000 lm | 2,000 lm | 2,000 lm | 2,000 lm | 3,000 lm | 3,000 lm |
| Color Temperature (CCT) | 3000K–6500K, Customizable CCT | ||||||
| Color Rendering Index (CRI) | Ra ≥ 70 | ||||||
| Light Distribution | Type II / Type III | ||||||
| Optical Pattern | Batwing, Asymmetric | ||||||
| Beam Angle | 70° × 140° | ||||||
| LED Lifespan & Reliability | >50,000 Hours (L70 Performance) | ||||||
| 🏗️ Structure & Material | |||||||
| Housing & Optical Materials | Heavy-Duty Corrosion-Resistant Aluminum Alloy + Optical-Grade UV-Resistant Polycarbonate Lens | ||||||
| Pole Supply | Optional; ordered separately and not included in the luminaire carton. | ||||||
| Pole Material & Corrosion Resistance | Q235 Structural Steel, Hot-Dip Galvanized (HDG) + Outdoor Anti-Corrosion Powder Coating | ||||||
| Ingress Protection (IP Rating) | IP65 (Dust-tight & Water Jet Protected) | ||||||
| Impact Resistance (IK Rating) | IK08 (High Impact Resistance) | ||||||
| Wind Resistance | Up to 60 m/s* *Actual system wind resistance depends on pole height, pole geometry, installation conditions, and structural design. |
||||||
| Mounting Bracket & Angle Adjustability | Lamp Head: Adjustable Slip Fitter (±15° Tilt, Φ60 mm) PV Panel: Heavy-Duty Angle-Adjustable PV Mounting Bracket |
||||||
| PV Connection & Cable | UV-Resistant Cable with IP68 MC4 / XT60 Connectors (Customizable) | ||||||
| Recommended Pole Height & Installation Spacing | 4–5 m Height (Spacing 10–15 m) | 4–5 m Height (Spacing 10–15 m) | 5–7 m Height (Spacing 15–20 m) | 5–7 m Height (Spacing 15–20 m) | 6–8 m Height (Spacing 20–25 m) | 6–8 m Height (Spacing 20–25 m) | 8–10 m Height (Spacing 25–30 m) |
| Product Dimensions (L × W × H) | 520 × 210 × 72 mm | 590 × 245 × 95 mm | |||||
| Operating Temperature Range | −20°C–+60°C | ||||||
| 📦 Packaging & Compliance | |||||||
| Carton / Packaging Dimensions | 570 × 400 × 140 mm | 640 × 400 × 140 mm | 740 × 400 × 140 mm | 740 × 500 × 140 mm | |||
| Packaging Quantity (PCS/CTN) | 2 Cartons per Set (1 CTN for Lamp Head & Accessories, 1 CTN for Solar Panel) | ||||||
| Standard Included Accessories | PV Mounting Frame/Bracket, IR Remote Control, Stainless Steel Installation Screws, Heavy-Duty UV-Resistant Extension Cable with Plug-and-Play XT60 Connectors | ||||||
| Certifications & Standards | CE, RoHS, ISO 9001 | ||||||
| Warranty Period | 2 Years (LED & Battery) 8 Years (Solar Panel) 10 Years (Poles) |
||||||
| 💼 Commercial Terms | |||||||
| Minimum Order Quantity (MOQ) | 50 pcs | ||||||
| Production Lead Time | 30 Calendar Days | ||||||
| Sample Availability | Sample Available (1–5 Units) | ||||||
| OEM/ODM Customization | Custom spectrum, lighting profiles, private label branding, and customized extension cables for split-type setup. | ||||||
Have specific technical or installation questions about this model? Contact our engineering team for support.
Applications & Scenarios
Engineered off-grid solar lighting solutions designed to meet the performance, reliability, and application requirements of commercial, municipal, and industrial projects across diverse outdoor environments.
Municipal Roads & Streets
Engineered for urban thoroughfares requiring standardized pole configurations, precise optics, and rapid deployment.
Recommended: All-in-One Systems
Highways & Arterial Roads
High-lumen, multi-lane illumination designed to meet rigorous roadway safety standards and extended nighttime runtimes.
Recommended: Split-Type Systems
Industrial Parks & Logistics Zones
Continuous zero-downtime lighting for heavy-traffic industrial corridors, freight yards, and manufacturing facilities.
Recommended: Split-Type Systems
Residential Communities & Campuses
Visual comfort optics optimized for glare-free, neighborhood-level illumination along residential streets and parks.
Recommended: All-in-One Systems
Rural & Off-Grid Infrastructure
Autonomous off-grid lighting solutions designed for remote villages, agricultural access roads, and grid-isolated regions.
Recommended: All-in-One Systems
Commercial Parking Lots & Perimeters
Wide-area security illumination engineered for retail plazas, outdoor facility perimeters, and commercial transit grounds.
Recommended: All-in-One / Split-Type
Need Custom Engineering Support for Your Roadway Project?
Our technical engineering team provides end-to-end design assistance for municipal contractors, EPCs, and infrastructure planners worldwide.
- DIALux Photometric Simulations – Precise Lux level and optimal pole spacing calculations
- Customized System Sizing – Tailored solar panel, LiFePO4 battery, and LED wattage configurations for specific autonomy days
- Full Technical Documentation – Complete IES files, CAD drawings, and installation specifications
Contact our engineering specialists today to receive customized technical proposals and IES test reports for your project.
Global Compliance & Engineering Quality
Seamless Project Approvals & Rapid Tender Compliance Worldwide
Accelerate municipal tender approvals and eliminate import clearance risks across 40+ countries. Our manufacturing facilities and product lines undergo rigorous third-party testing to comply with international infrastructure standards—including ISO 9001:2015 Quality Management System, CE (EMC & LVD), RoHS 2.0, FCC Part 15 Class B, and IEC 62722 / IEC 60598 photobiological safety specifications, along with UN38.3 lithium battery transport certification.
Illuminating Success Stories Worldwide
See Our Products Powering Projects Globally
Community Safety Lighting: NV Series Street Lights for S2 Heights Village Roads
Thailand Farm Solar Lighting: Waterfront Illumination with “Moon in Water” Garden Lights
High-Temperature Municipal Street Lighting Project, Dubai
Illuminating the New Port of Ndayane: A Landmark Solar Lighting Project, Senegal
Coastal Illumination Upgrade: Solar Flood Lighting for Australian Seaside Accommodation
Industrial-Grade Technical Highlights for Municipal Solar Street Lighting
High-lumen All-in-One and Split-Type solar street lights engineered with EN 13201 compliant optics, high-efficiency MPPT charge controllers, ADC12 die-cast housings, and Grade-A LiFePO4 battery autonomy for 6m–12m municipal, highway, and industrial road infrastructure.
EN 13201 Compliant Batwing Optics
Precision Type II / Type III asymmetric batwing optical lenses deliver high-uniformity, anti-glare road illumination optimized for 6m–12m mounting heights in full compliance with EN 13201 municipal safety standards.
Heavy-Duty Anti-Corrosion Housing & IP65/IP67 Rating
Rugged ADC12 aluminum alloy or high-density anti-rust PE composite housings with weather-tight silicone sealing guarantee long-term structural integrity across harsh coastal, high-salinity, and extreme temperature environments (-20°C to 65°C).
High-Efficiency Monocrystalline PV & MPPT Tracking
High-conversion monocrystalline solar panels paired with smart MPPT controllers (>98% tracking efficiency) maximize daily solar energy absorption even during low-irradiance overcast conditions.
Grade-A LiFePO4 & 3–5 Day Overcast Autonomy
High-capacity Grade-A LiFePO4 battery storage delivers 2,000+ deep cycles and smart battery management (BMS) for 3–5 days of continuous overcast lighting autonomy.
Microwave Sensing & Multi-Stage Timer Automation
Integrated 360° microwave radar sensors and customizable 4-in-1 timer modes automatically manage lumen output from 30% standby dimming to 100% full brightness upon traffic movement.
Adjustable Slip-Fitter Mount & Zero-Trenching
Reinforced adjustable mounting sleeves (0°–15° tilt adjustment) enable fast top-pole and side-arm installation on standard 60mm–89mm poles without grid trenching or cable routing.
SOLAR VS. GRID: TOTAL COST COMPARISON
Skip the Trenching. Eliminate Energy Bills.
Calculate your 5-year project ROI below and see how much your facility can save with Lumin Solar Solutions.
Private Project ROI Calculator
💡 Pro Tip: Switching to solar allows you to eliminate trenching costs and expensive cabling.
Traditional Grid vs. Lumin Solar Lighting Solutions Cost Analysis
| Project Cost Items (30 Units) | Traditional Grid | Lumin Solar Solutions |
|---|---|---|
| Trenching & Labor | $3,000 - $8,000 | $0 (No Digging) |
| Cabling & Wiring | $2,500 - $5,000 | $0 |
| Transformer/Switchgear | Essential Infrastructure Cost | Not Needed |
| Electricity Bill (Annual) | $1,500 - $2,500 | $0 (Free) |
| Installation Time | 7-14 Days | 1-2 Days |
| Total Hidden Costs | EXTREMELY HIGH | ZERO |
*Calculated based on average private industrial projects. Lumin Solar Solutions eliminates infrastructure overhead.
Why pay for copper wires and manual labor when you can invest that budget into high-quality solar technology?
