COMMERCIAL & INDUSTRIAL SOLAR STREET LIGHTS

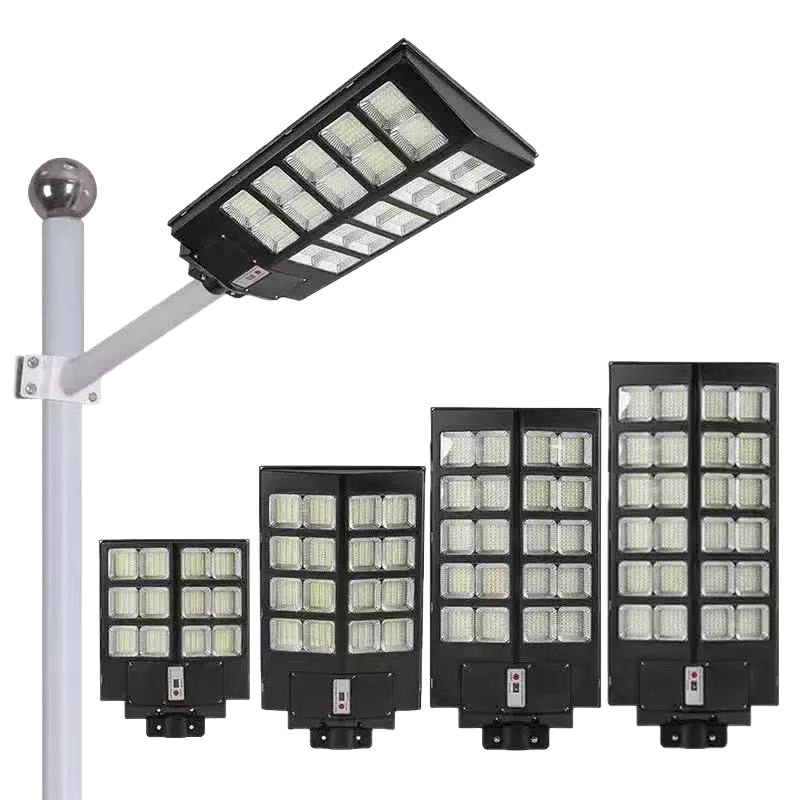

Nova High-Density SMD5730 All-in-One Solar Street Light with Rust-Proof PE Housing (NVKZ-PE)
Nova High-Density SMD5730 All-in-One Solar Street Light with Rust-Proof PE Housing (NVKZ-PE)
-
- Rust-Proof PE Housing: Engineered with anti-corrosion polyethylene housing, this All-in-One Solar Street Lights fixture resists salt spray and harsh coastal weather, integrating High-Density SMD5730 All-in-One Solar Street Light technology.
- High-Density LED Engine: Outfitted with 480–800 high-efficiency SMD5730 LEDs delivering high luminous flux output across 12Ah, 18Ah, 24Ah, and 36Ah battery capacity configurations.
- Asymmetric Optical Precision: Features high-transmittance optical lenses providing uniform anti-glare Batwing light distribution, maximizing pole spacing while eliminating dark spots on coastal roadways and pathways.
- Intelligent Motion Control: Integrates PIR motion sensor, Dusk-to-Dawn photocell, multi-segment timer control, and IR remote control to optimize energy management and ensure 12 hours of continuous night operation.
- Grade-A LiFePO4 Battery: Powered by 3.2V Grade-A LiFePO4 battery packs (12Ah–36Ah) matched with 18W–30W PV panels, supporting 4–6 hours of rapid sunlight charging and ≥2,000 Deep Discharge Cycles.
- IP65 Weatherproof Structure: Built with an IP65 dust-tight and Water Jet Protected PE chassis, IK08 impact resistance, and a standard Φ60mm spigot adapter for universal pole mounting.
- Municipal & Coastal Application: Optimized for municipal solar street light infrastructure, saline coastal roadways, and high-humidity logistics ports, supporting complete OEM/ODM customization for bespoke dimming profiles and private branding.
- All-Night Illumination
- All-Weather Proof
- Built for a Decade+
- Smart Adaptive Control
- Easy Plug & Play
- Low Lifetime Cost
- Certified Worldwide
- Reliable Supply & Delivery
Engineered for Corrosion-Exposed Solar Roadway Lighting
The Nova High-Density SMD5730 All-in-One Solar Street Light is an integrated off-grid municipal solar street light solution developed for coastal roads, high-humidity sites, and harsh outdoor environments where corrosion resistance is a primary infrastructure requirement. Its PE housing and all-in-one architecture combine solar energy harvesting, energy storage, LED illumination, and intelligent lighting control within a compact luminaire, providing a practical configuration for projects exposed to saline air and harsh weather.
PE Housing with High-Density Illumination
The design places particular emphasis on protecting the lighting system from corrosion while maintaining concentrated roadway illumination. The engineered polyethylene housing with anti-UV coating provides the structural enclosure, while the high-density SMD5730 LED configuration supports high luminous flux within the integrated fixture. Asymmetric Batwing optics and Type II / Type III light distribution are used to direct illumination across the roadway rather than relying on a concentrated forward beam, helping the system address practical coverage requirements for municipal roadways, highways, and coastal pathways.
Integrated Energy and Adaptive Lighting Architecture
The solar and lighting systems are configured as a coordinated off-grid platform, with A-Grade monocrystalline solar cells available across most configurations, Grade-A LiFePO4 energy storage with Smart BMS protection, and intelligent control combining motion sensing, Dusk-to-Dawn light control, timer operation, and remote control. This architecture allows the system configuration to be matched to different project energy and illumination requirements without changing the fundamental all-in-one installation concept.

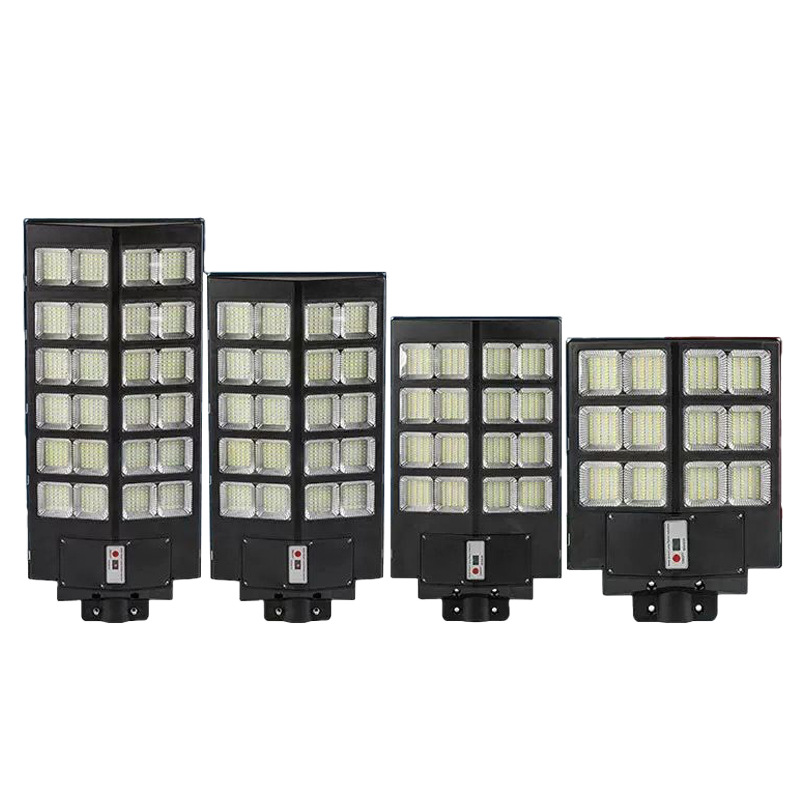

The Nova NVKZ-PE series is available in four product models: NVKZ-PE-100, NVKZ-PE-200, NVKZ-PE-300, and NVKZ-PE-500. The models provide different PV, battery, LED, and installation configurations to accommodate varying roadway scale and lighting requirements. For detailed specifications, see the Specifications tab. Explore our All-in-One Solar Street Lights collection for additional commercial, municipal, and off-grid outdoor lighting solutions.
← Swipe horizontally to compare models →
| Parameter | NVKZ-PE-100 | NVKZ-PE-200 | NVKZ-PE-300 | NVKZ-PE-500 |
|---|---|---|---|---|
| 🌞 Solar & Power System | ||||
| Solar Cell Type & Efficiency | Polycrystalline Silicon | A-Grade Monocrystalline Solar Cells (>21% Cell Efficiency) | A-Grade Monocrystalline Solar Cells (>21% Cell Efficiency) | A-Grade Monocrystalline Solar Cells (>21% Cell Efficiency) |
| PV Module Vmp & Rated Power | 6V (Vmp) / 18W | 6V (Vmp) / 25W | 6V (Vmp) / 30W | 6V (Vmp) / 45W |
| PV Dimensions | 335 × 360 mm | 335 × 510 mm | 335 × 590 mm | |
| Battery Type & BMS Protection | Grade-A LiFePO4 with Smart BMS Protection (Overcharge/Over-discharge/Temperature Protection), ≥2,000 Deep Discharge Cycles (at 80% DOD) |
|||
| Battery Capacity & System Voltage | 3.2V / 12Ah | 3.2V / 18Ah | 3.2V / 24Ah | 3.2V / 36Ah |
| Control & Operating Modes | Smart Controller + Motion Sensor + Dusk-to-Dawn Light Control + Remote Control + Timer | |||
| Motion Sensor Range & Angle | 8–12 m Sensor Range, 120° Wide-Angle Detection | |||
| Full Charge Time | 4–6 hours (Under Standard Peak Sun Hours) | |||
| Operating Time & Autonomy | Up to 12 Hours (Dusk-to-Dawn) | |||
| 💡 Lighting & Optical | ||||
| LED Package | High-Efficacy SMD5730 (480 pcs) | High-Efficacy SMD5730 (640 pcs) | High-Efficacy SMD5730 (800 pcs) | |
| LED Package Efficacy | Up to 180 lm/W | |||
| Total Luminous Flux Output | 5,760–7,200 lm | 7,680–9,600 lm | 9,600–12,000 lm | |
| Color Temperature (CCT) | 3000K–6500K, Customizable CCT | |||
| Color Rendering Index (CRI) | Ra ≥ 70 | |||
| Light Distribution | Type II / Type III | |||
| Optical Pattern | Batwing, Asymmetric | |||
| Beam Angle | 70° × 140° | |||
| Diffuser / Optical Lens Material | Optical-Grade UV-Resistant Polycarbonate Lens / Tempered Glass | |||
| LED Lifespan & Reliability | >50,000 Hours (L70 Performance) | |||
| 🏗️ Structure & Material | ||||
| Housing & Optical Materials | Heavy-Duty Engineered Polyethylene (PE) Housing + Anti-UV Coating | |||
| Pole Supply | Optional; ordered separately and not included in the luminaire carton. | |||
| Pole Material & Corrosion Resistance | Q235 Structural Steel, Hot-Dip Galvanized (HDG) + Outdoor Anti-Corrosion Powder Coating | |||
| Ingress Protection (IP Rating) | IP65 (Dust-tight & Water Jet Protected) | |||
| Impact Resistance (IK Rating) | IK08 (High Impact Resistance) | |||
| Wind Resistance | Up to 60 m/s* *Actual system wind resistance depends on pole height, pole geometry, installation conditions, and structural design. |
|||
| Pole Tenon & Spigot Diameter | Φ60 mm (Standard Pole Fit) | |||
| Mounting Bracket & Angle Adjustability | Integrated Sleeve / Adjustable Slip Fitter (±15° Optional) | |||
| PV Connection & Cable | Integrated Internal Connection (Plug-and-Play) | |||
| Recommended Pole Height & Installation Spacing | 4–6 m Height (Spacing 10–15 m) | 6–8 m Height (Spacing 15–20 m) | 8–10 m Height (Spacing 20–25 m) | 10 – 12m Height (Spacing 30 – 35m |
| Product Dimensions (L × W × H) | 343 × 448 × 70 mm | 343 × 598 × 70 mm | 343 × 675 × 70 mm | |
| Operating Temperature Range | −20°C–+60°C | |||
| 📦 Packaging & Compliance | ||||
| Carton / Packaging Dimensions | 420 × 360 × 470 mm | 620 × 420 × 370 mm | 700 × 420 × 370 mm | |
| Packaging Quantity (PCS/CTN) | 5 pcs / CTN | |||
| Standard Included Accessories | IR Remote Control, Stainless Steel Installation Screws/Bolts, User Manual | |||
| Certifications & Standards | CE, RoHS, ISO 9001 | |||
| Warranty Period | 2 Years (LED & Battery) | 8 Years (Solar Panel) | 10 Years (Poles) | |||
| 💼 Commercial Terms | ||||
| Minimum Order Quantity (MOQ) | 50 pcs | |||
| Production Lead Time | 30 Calendar Days | |||
| Sample Availability | Sample Available (1–5 Units) | |||
| OEM/ODM Customization | Full OEM/ODM support: logo silk-screen printing, customized brand packaging, tailored CCT/lumen specifications. | |||
Have specific technical or installation questions about this model? Contact our engineering team for support.
Applications & Scenarios
Engineered off-grid solar lighting solutions designed to meet the performance, reliability, and application requirements of commercial, municipal, and industrial projects across diverse outdoor environments.
Municipal Roads & Streets
Engineered for urban thoroughfares requiring standardized pole configurations, precise optics, and rapid deployment.
Recommended: All-in-One Systems
Highways & Arterial Roads
High-lumen, multi-lane illumination designed to meet rigorous roadway safety standards and extended nighttime runtimes.
Recommended: Split-Type Systems
Industrial Parks & Logistics Zones
Continuous zero-downtime lighting for heavy-traffic industrial corridors, freight yards, and manufacturing facilities.
Recommended: Split-Type Systems
Residential Communities & Campuses
Visual comfort optics optimized for glare-free, neighborhood-level illumination along residential streets and parks.
Recommended: All-in-One Systems
Rural & Off-Grid Infrastructure
Autonomous off-grid lighting solutions designed for remote villages, agricultural access roads, and grid-isolated regions.
Recommended: All-in-One Systems
Commercial Parking Lots & Perimeters
Wide-area security illumination engineered for retail plazas, outdoor facility perimeters, and commercial transit grounds.
Recommended: All-in-One / Split-Type
Need Custom Engineering Support for Your Roadway Project?
Our technical engineering team provides end-to-end design assistance for municipal contractors, EPCs, and infrastructure planners worldwide.
- DIALux Photometric Simulations – Precise Lux level and optimal pole spacing calculations
- Customized System Sizing – Tailored solar panel, LiFePO4 battery, and LED wattage configurations for specific autonomy days
- Full Technical Documentation – Complete IES files, CAD drawings, and installation specifications
Contact our engineering specialists today to receive customized technical proposals and IES test reports for your project.
Global Compliance & Engineering Quality
Seamless Project Approvals & Rapid Tender Compliance Worldwide
Accelerate municipal tender approvals and eliminate import clearance risks across 40+ countries. Our manufacturing facilities and product lines undergo rigorous third-party testing to comply with international infrastructure standards—including ISO 9001:2015 Quality Management System, CE (EMC & LVD), RoHS 2.0, FCC Part 15 Class B, and IEC 62722 / IEC 60598 photobiological safety specifications, along with UN38.3 lithium battery transport certification.
Illuminating Success Stories Worldwide
See Our Products Powering Projects Globally
Community Safety Lighting: NV Series Street Lights for S2 Heights Village Roads
Thailand Farm Solar Lighting: Waterfront Illumination with “Moon in Water” Garden Lights
High-Temperature Municipal Street Lighting Project, Dubai
Illuminating the New Port of Ndayane: A Landmark Solar Lighting Project, Senegal
Coastal Illumination Upgrade: Solar Flood Lighting for Australian Seaside Accommodation
Industrial-Grade Technical Highlights for Municipal Solar Street Lighting
High-lumen All-in-One and Split-Type solar street lights engineered with EN 13201 compliant optics, high-efficiency MPPT charge controllers, ADC12 die-cast housings, and Grade-A LiFePO4 battery autonomy for 6m–12m municipal, highway, and industrial road infrastructure.
EN 13201 Compliant Batwing Optics
Precision Type II / Type III asymmetric batwing optical lenses deliver high-uniformity, anti-glare road illumination optimized for 6m–12m mounting heights in full compliance with EN 13201 municipal safety standards.
Heavy-Duty Anti-Corrosion Housing & IP65/IP67 Rating
Rugged ADC12 aluminum alloy or high-density anti-rust PE composite housings with weather-tight silicone sealing guarantee long-term structural integrity across harsh coastal, high-salinity, and extreme temperature environments (-20°C to 65°C).
High-Efficiency Monocrystalline PV & MPPT Tracking
High-conversion monocrystalline solar panels paired with smart MPPT controllers (>98% tracking efficiency) maximize daily solar energy absorption even during low-irradiance overcast conditions.
Grade-A LiFePO4 & 3–5 Day Overcast Autonomy
High-capacity Grade-A LiFePO4 battery storage delivers 2,000+ deep cycles and smart battery management (BMS) for 3–5 days of continuous overcast lighting autonomy.
Microwave Sensing & Multi-Stage Timer Automation
Integrated 360° microwave radar sensors and customizable 4-in-1 timer modes automatically manage lumen output from 30% standby dimming to 100% full brightness upon traffic movement.
Adjustable Slip-Fitter Mount & Zero-Trenching
Reinforced adjustable mounting sleeves (0°–15° tilt adjustment) enable fast top-pole and side-arm installation on standard 60mm–89mm poles without grid trenching or cable routing.
SOLAR VS. GRID: TOTAL COST COMPARISON
Skip the Trenching. Eliminate Energy Bills.
Calculate your 5-year project ROI below and see how much your facility can save with Lumin Solar Solutions.
Private Project ROI Calculator
💡 Pro Tip: Switching to solar allows you to eliminate trenching costs and expensive cabling.
Traditional Grid vs. Lumin Solar Lighting Solutions Cost Analysis
| Project Cost Items (30 Units) | Traditional Grid | Lumin Solar Solutions |
|---|---|---|
| Trenching & Labor | $3,000 - $8,000 | $0 (No Digging) |
| Cabling & Wiring | $2,500 - $5,000 | $0 |
| Transformer/Switchgear | Essential Infrastructure Cost | Not Needed |
| Electricity Bill (Annual) | $1,500 - $2,500 | $0 (Free) |
| Installation Time | 7-14 Days | 1-2 Days |
| Total Hidden Costs | EXTREMELY HIGH | ZERO |
*Calculated based on average private industrial projects. Lumin Solar Solutions eliminates infrastructure overhead.
Why pay for copper wires and manual labor when you can invest that budget into high-quality solar technology?
Commercial & Ordering FAQ
Our standard Minimum Order Quantity (MOQ) is 50 units. We also fully support sample orders (1–5 units) for project evaluation, technical testing, and quality verification prior to bulk production.
We offer flexible international trade terms including FOB, CIF, EXW, and DDP (Delivered Duty Paid). Our DDP services cover 42+ countries to ensure seamless customs clearance and hassle-free door-to-door delivery.
We accept Wire Transfer (T/T) and Letter of Credit (L/C).
The standard lead time for mass production is 30 calendar days, calculated from the date your deposit is received. For customized OEM/ODM projects or specialized technical requirements, the delivery schedule will be mutually confirmed during contract review.
Yes, absolutely. We offer complete OEM/ODM solutions, including custom logo/branding, custom housing finishes, specialized lumen/wattage outputs, tailored optical spectrums, and smart controller lighting profiles.
We provide comprehensive warranty coverage across all system components: 2-year warranty for the LED luminaire and LiFePO4 battery, 8-year warranty for monocrystalline solar panels, and 10-year warranty for lighting poles. (Please refer to our product catalog for itemized terms).
We provide worldwide shipping via sea freight, air freight, and express courier. Our dedicated logistics team manages export documentation, compliance checks, and end-to-end cargo tracking to ensure safe delivery to your site or port.
Simply click the “Inquire Now” button or contact our sales department with your order details. Our sales engineers will review your project requirements and issue an official Proforma Invoice (PI) promptly.
