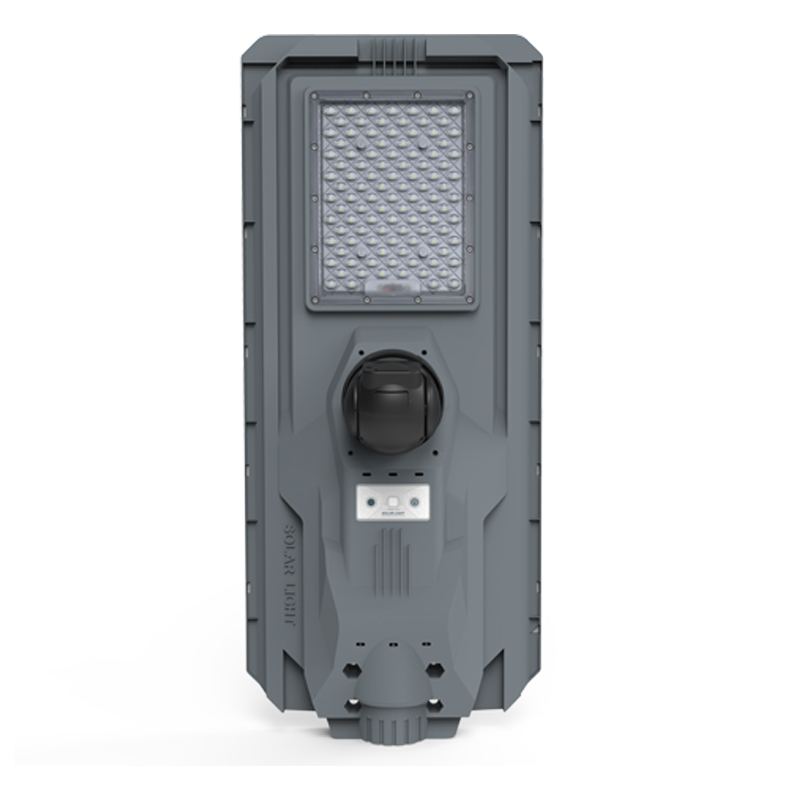

Nova Wall and Pole Mount All-in-One Solar Street Light with SMD3030 LEDs & Optional Dual-Lens 4G CCTV (NVJM-SSTH)
Nova Wall and Pole Mount All-in-One Solar Street Light with SMD3030 LEDs & Optional Dual-Lens 4G CCTV (NVJM-SSTH)
-
- Dual-Mount Security Camera: Features a patent wall and pole mount all-in-one solar street light architecture with optional 1440P HD 4G/WiFi CCTV, 350° rotation, and AI human tracking for perimeter security.
- High Luminous Output: Powered by high-efficiency SMD3030 LED arrays delivering total luminous flux outputs of 2,550 lm (30Ah) to 3,840 lm (45Ah) with 6500K–7500K cool daylight for commercial roadway coverage.
- Asymmetric Batwing Optics: Equipped with Teijin optical-grade UV-resistant PC lenses featuring 70° × 140° Type II and Type III asymmetric beam angles to deliver uniform, anti-glare, wide-area illumination.
- Intelligent Energy Control: Integrates 360° radar motion sensing, Dusk-to-Dawn Light Control, IR Remote Control programming, and a physical power switch, maintaining continuous 365-day lighting via intelligent power management.
- Grade-A LiFePO4 Storage: Driven by high-conversion Monocrystalline Solar Panels and brand-new Grade-A LiFePO4 batteries (3.2V / 30–45Ah) providing ≥2,000 Deep Discharge Cycles and up to 4–5 nights autonomy.
- Impact Composite Construction: Built with weather-resistant ABS and Teijin PC composite housing rated IP65 waterproof and IK08 impact-resistant, equipped with a Φ50mm spigot for dual wall and pole installation.
- Roadway & Perimeter Fit: Optimized for commercial logistics parks, perimeter security, and municipal solar street light installations, supporting optional 4G CCTV integration and complete OEM/ODM customization.
- All-Night Illumination
- All-Weather Proof
- Built for a Decade+
- Smart Adaptive Control
- Easy Plug & Play
- Low Lifetime Cost
- Certified Worldwide
- Reliable Supply & Delivery
Designed for Flexible Solar Roadway and Perimeter Installation

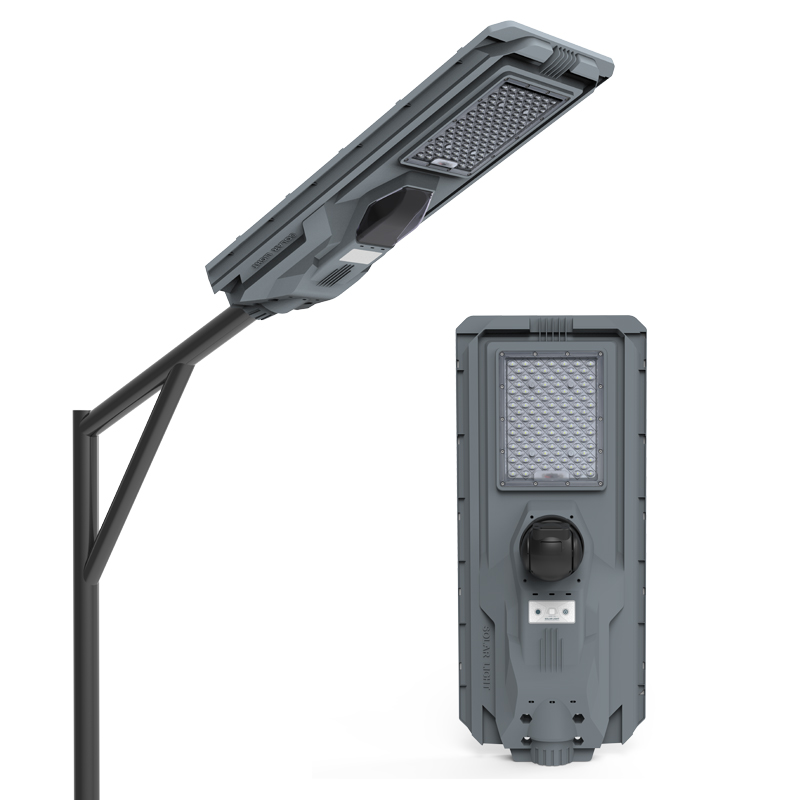

The Nova NVJM-SSTH is a wall and pole mount all-in-one solar street light designed for commercial, municipal solar street light, and rural perimeter projects where lighting and security monitoring share a compact off-grid platform. Its dual-mount architecture allows the luminaire to be configured on walls or compatible poles, making it suitable for perimeter walls, industrial parks, rural roadways, and other outdoor infrastructure where conventional grid wiring is difficult or costly.
Integrated Lighting and Surveillance Architecture
The system combines high-efficiency SMD3030 LED illumination, asymmetric batwing optics, solar energy harvesting, LiFePO4 energy storage, and an optional dual-lens 4G CCTV system within one coordinated platform. The lighting system uses Type II / Type III distribution to extend coverage laterally, while radar-based sensing and Dusk-to-Dawn control adapt operation to nighttime activity. When surveillance is required, the optional camera platform adds HD monitoring, pan/tilt coverage, two-way audio, local storage, and 4G/WiFi connectivity, allowing lighting and perimeter observation to be deployed through the same solar-powered infrastructure.
Model Selection for Different Coverage Requirements
The Nova NVJM-SSTH series is available in two configurations: NVJM-SSTH-800 and NVJM-SSTH-1200. The models use different PV module and battery configurations, LED quantities, luminous outputs, recommended mounting heights, and coverage levels, allowing project designers to select the configuration according to site dimensions and lighting demand. The optional dual-lens CCTV system provides an additional surveillance layer for security-sensitive installations. For detailed specifications, see the Specifications tab. Explore our All-in-One Solar Street Lights range for additional commercial and municipal solar street light off-grid solutions.
← Swipe horizontally to compare models →
| Parameter | NVJM-SSTH-800 Optional Dual-Lens 4G CCTV System |
NVJM-SSTH-1200 Optional Dual-Lens 4G CCTV System |
||
|---|---|---|---|---|
| 🌞 Solar & Power System | ||||
| Solar Cell Type & Efficiency | A-Grade Monocrystalline Solar Cells (>21% Cell Efficiency) | |||
| PV Module Vmp & Rated Power | 4V (Vmp) / 30W | 4V (Vmp) / 40W | ||
| PV Dimensions | 574 × 295.5 mm | 693 × 295.5 mm | ||
| Battery Type & BMS Protection | Grade-A LiFePO4 with Smart BMS Protection (Overcharge / Over-discharge / Temperature Protection), ≥2,000 Deep Discharge Cycles (@ 80% DOD) |
|||
| Battery Capacity & System Voltage | 3.2V / 30Ah | 3.2V / 45Ah | ||
| Control & Operating Modes | Smart Controller + Radar Motion Sensor + Dusk-to-Dawn Light Control + Remote Control + Physical Power Switch | |||
| Motion Sensor Range & Angle | 8–12 m Sensor Range, 120° Wide Angle Detection | |||
| Full Charge Time | 4–6 hours (Under Standard Peak Sun Hours) | |||
| Operating Time & Autonomy | Up to 4–5 Nights* *Actual runtime and autonomy depend on the programmed dimming profile, radar activation frequency, local solar conditions, and system configuration. |
|||
| 💡 Lighting & Optical | ||||
| LED Package | High-Brightness SMD3030 (104 pcs) | High-Brightness SMD3030 (154 pcs) | ||
| LED Package Efficacy | Up to 180 lm/W | |||
| Total Luminous Flux Output | 2,550 lm | 3,840 lm | ||
| Color Temperature (CCT) | 6500K–7500K, Cool White | |||
| Color Rendering Index (CRI) | Ra ≥ 70 | |||
| Light Distribution | Type II / Type III | |||
| Optical Pattern | Batwing, Asymmetric | |||
| Beam Angle | 70° × 150° | |||
| LED Lifespan & Reliability | >50,000 hours (L70 Performance) | |||
| 🏗️ Structure & Material | ||||
| Housing & Optical Materials | Heavy-Duty ABS + Teijin Optical-Grade UV-Resistant Polycarbonate (PC) Lens | |||
| Pole Supply | Optional; ordered separately and not included in the luminaire carton. | |||
| Pole Material & Corrosion Resistance | Q235 Structural Steel, Hot-Dip Galvanized (HDG) + Outdoor Anti-Corrosion Powder Coating | |||
| Ingress Protection (IP Rating) | IP65 (Dust-tight & Water Jet Protected) | |||
| Impact Resistance (IK Rating) | IK08 (High Impact Resistance) | |||
| Wind Resistance | Up to 60 m/s* *Actual system wind resistance depends on pole height, pole geometry, installation conditions, and structural design. |
|||
| Pole Tenon & Spigot Diameter | Φ50 mm (Standard Pole / Arm Fit) | |||
| Mounting Arm & Bracket | Φ50 mm × 500 mm Galvanized Steel Arm | Wall Mount or Pole Mount Bracket (Selectable) | |||
| PV Connection & Cable | Integrated Internal Connection (Plug-and-Play) | |||
| Recommended Pole Height & Installation Spacing | 6–8 m Height 15–20 m Spacing Approx. 150 m² Coverage |
8–10 m Height 20–25 m Spacing Approx. 300 m² Coverage |
||
| Product Dimensions (L × W × H) | 700 × 300 × 81 mm | 820 × 300 × 81 mm | ||
| Operating Temperature Range | −20°C–+60°C | |||
| 📷 Security & Surveillance (Optional Dual-Lens) | ||||
| Camera Module Type | Dual-Lens Dual-View, Low-Power 4G AOV Camera | 24/7 Monitoring | |||
| Image Resolution & Sensor | 4MP HD (4.0 Megapixel) | 1/2.8″ CMOS Sensor | |||
| Lens & Pan/Tilt Rotation | Dual 3.6mm Fixed Lenses (2 pcs) | Pan Range: Up to 355° | Tilt Range: Up to 90° (Pan/Tilt Speed: 0.1°–20°/s) | |||
| Video & Audio Encoding | H.264 / H.265 Dual-Stream Support | Two-Way Audio (AAC / G.711) | |||
| Data Storage & App Control | MicroSD Card Storage (Up to 256GB) | V380 Mobile App (iOS / Android) | |||
| Protection Rating | IP65 Weatherproof Rating | |||
| 📦 Packaging & Compliance | ||||
| Carton Dimensions | 710 × 455 × 320 mm | 835 × 365 × 320 mm | ||
| Master Carton Gross Weight (GW) | 18.0 kg | 18.0 kg | ||
| Packaging Quantity (PCS/CTN) | 5 pcs / CTN | 4 pcs / CTN | ||
| Standard Included Accessories | IR Remote Control, Stainless Steel Installation Screws/Bolts, User Manual | |||
| Certifications & Standards | CE, RoHS, ISO 9001 | |||
| Warranty Period | 2 Years (LED & Battery) | 8 Years (Solar Panel) | 10 Years (Poles) | |||
| 💼 Commercial Terms | ||||
| Minimum Order Quantity (MOQ) | 50 pcs | |||
| Production Lead Time | 30 Calendar Days | |||
| Sample Availability | Sample Available (1–5 Units) | |||
| OEM/ODM Customization | Full OEM/ODM support: logo silk-screen printing, customized brand packaging, tailored CCT/lumen specifications | |||
Have specific technical or installation questions about this model? Contact our engineering team for support.
Applications & Scenarios
Engineered off-grid solar lighting solutions designed to meet the performance, reliability, and application requirements of commercial, municipal, and industrial projects across diverse outdoor environments.
Municipal Roads & Streets
Engineered for urban thoroughfares requiring standardized pole configurations, precise optics, and rapid deployment.
Recommended: All-in-One Systems
Highways & Arterial Roads
High-lumen, multi-lane illumination designed to meet rigorous roadway safety standards and extended nighttime runtimes.
Recommended: Split-Type Systems
Industrial Parks & Logistics Zones
Continuous zero-downtime lighting for heavy-traffic industrial corridors, freight yards, and manufacturing facilities.
Recommended: Split-Type Systems
Residential Communities & Campuses
Visual comfort optics optimized for glare-free, neighborhood-level illumination along residential streets and parks.
Recommended: All-in-One Systems
Rural & Off-Grid Infrastructure
Autonomous off-grid lighting solutions designed for remote villages, agricultural access roads, and grid-isolated regions.
Recommended: All-in-One Systems
Commercial Parking Lots & Perimeters
Wide-area security illumination engineered for retail plazas, outdoor facility perimeters, and commercial transit grounds.
Recommended: All-in-One / Split-Type
Need Custom Engineering Support for Your Roadway Project?
Our technical engineering team provides end-to-end design assistance for municipal contractors, EPCs, and infrastructure planners worldwide.
- DIALux Photometric Simulations – Precise Lux level and optimal pole spacing calculations
- Customized System Sizing – Tailored solar panel, LiFePO4 battery, and LED wattage configurations for specific autonomy days
- Full Technical Documentation – Complete IES files, CAD drawings, and installation specifications
Contact our engineering specialists today to receive customized technical proposals and IES test reports for your project.
Global Compliance & Engineering Quality
Seamless Project Approvals & Rapid Tender Compliance Worldwide
Accelerate municipal tender approvals and eliminate import clearance risks across 40+ countries. Our manufacturing facilities and product lines undergo rigorous third-party testing to comply with international infrastructure standards—including ISO 9001:2015 Quality Management System, CE (EMC & LVD), RoHS 2.0, FCC Part 15 Class B, and IEC 62722 / IEC 60598 photobiological safety specifications, along with UN38.3 lithium battery transport certification.
Illuminating Success Stories Worldwide
See Our Products Powering Projects Globally
Community Safety Lighting: NV Series Street Lights for S2 Heights Village Roads
Thailand Farm Solar Lighting: Waterfront Illumination with “Moon in Water” Garden Lights
High-Temperature Municipal Street Lighting Project, Dubai
Illuminating the New Port of Ndayane: A Landmark Solar Lighting Project, Senegal
Coastal Illumination Upgrade: Solar Flood Lighting for Australian Seaside Accommodation
Industrial-Grade Technical Highlights for Municipal Solar Street Lighting
High-lumen All-in-One and Split-Type solar street lights engineered with EN 13201 compliant optics, high-efficiency MPPT charge controllers, ADC12 die-cast housings, and Grade-A LiFePO4 battery autonomy for 6m–12m municipal, highway, and industrial road infrastructure.
EN 13201 Compliant Batwing Optics
Precision Type II / Type III asymmetric batwing optical lenses deliver high-uniformity, anti-glare road illumination optimized for 6m–12m mounting heights in full compliance with EN 13201 municipal safety standards.
Heavy-Duty Anti-Corrosion Housing & IP65/IP67 Rating
Rugged ADC12 aluminum alloy or high-density anti-rust PE composite housings with weather-tight silicone sealing guarantee long-term structural integrity across harsh coastal, high-salinity, and extreme temperature environments (-20°C to 65°C).
High-Efficiency Monocrystalline PV & MPPT Tracking
High-conversion monocrystalline solar panels paired with smart MPPT controllers (>98% tracking efficiency) maximize daily solar energy absorption even during low-irradiance overcast conditions.
Grade-A LiFePO4 & 3–5 Day Overcast Autonomy
High-capacity Grade-A LiFePO4 battery storage delivers 2,000+ deep cycles and smart battery management (BMS) for 3–5 days of continuous overcast lighting autonomy.
Microwave Sensing & Multi-Stage Timer Automation
Integrated 360° microwave radar sensors and customizable 4-in-1 timer modes automatically manage lumen output from 30% standby dimming to 100% full brightness upon traffic movement.
Adjustable Slip-Fitter Mount & Zero-Trenching
Reinforced adjustable mounting sleeves (0°–15° tilt adjustment) enable fast top-pole and side-arm installation on standard 60mm–89mm poles without grid trenching or cable routing.
SOLAR VS. GRID: TOTAL COST COMPARISON
Skip the Trenching. Eliminate Energy Bills.
Calculate your 5-year project ROI below and see how much your facility can save with Lumin Solar Solutions.
Private Project ROI Calculator
💡 Pro Tip: Switching to solar allows you to eliminate trenching costs and expensive cabling.
Traditional Grid vs. Lumin Solar Lighting Solutions Cost Analysis
| Project Cost Items (30 Units) | Traditional Grid | Lumin Solar Solutions |
|---|---|---|
| Trenching & Labor | $3,000 - $8,000 | $0 (No Digging) |
| Cabling & Wiring | $2,500 - $5,000 | $0 |
| Transformer/Switchgear | Essential Infrastructure Cost | Not Needed |
| Electricity Bill (Annual) | $1,500 - $2,500 | $0 (Free) |
| Installation Time | 7-14 Days | 1-2 Days |
| Total Hidden Costs | EXTREMELY HIGH | ZERO |
*Calculated based on average private industrial projects. Lumin Solar Solutions eliminates infrastructure overhead.
Why pay for copper wires and manual labor when you can invest that budget into high-quality solar technology?
Commercial & Ordering FAQ
Our standard Minimum Order Quantity (MOQ) is 50 units. We also fully support sample orders (1–5 units) for project evaluation, technical testing, and quality verification prior to bulk production.
We offer flexible international trade terms including FOB, CIF, EXW, and DDP (Delivered Duty Paid). Our DDP services cover 42+ countries to ensure seamless customs clearance and hassle-free door-to-door delivery.
We accept Wire Transfer (T/T) and Letter of Credit (L/C).
The standard lead time for mass production is 30 calendar days, calculated from the date your deposit is received. For customized OEM/ODM projects or specialized technical requirements, the delivery schedule will be mutually confirmed during contract review.
Yes, absolutely. We offer complete OEM/ODM solutions, including custom logo/branding, custom housing finishes, specialized lumen/wattage outputs, tailored optical spectrums, and smart controller lighting profiles.
We provide comprehensive warranty coverage across all system components: 2-year warranty for the LED luminaire and LiFePO4 battery, 8-year warranty for monocrystalline solar panels, and 10-year warranty for lighting poles. (Please refer to our product catalog for itemized terms).
We provide worldwide shipping via sea freight, air freight, and express courier. Our dedicated logistics team manages export documentation, compliance checks, and end-to-end cargo tracking to ensure safe delivery to your site or port.
Simply click the “Inquire Now” button or contact our sales department with your order details. Our sales engineers will review your project requirements and issue an official Proforma Invoice (PI) promptly.
