COMMERCIAL & INDUSTRIAL SOLAR STREET LIGHTS

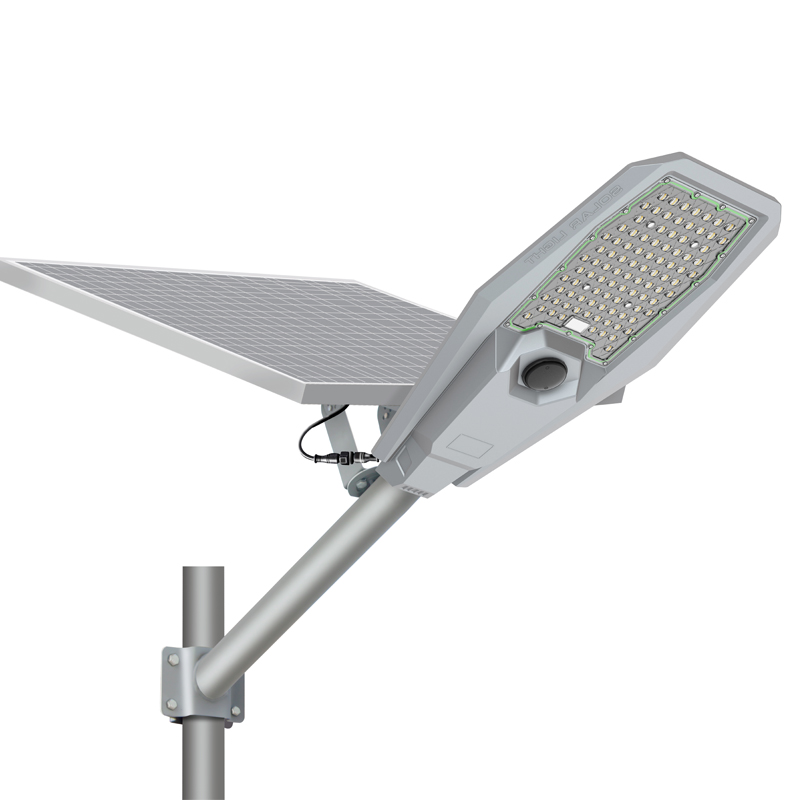

Nova Patented Split Solar Street Light with High-Brightness SMD5050 LEDs & Outreach Arm (NVJM-XJ)
Nova Patented Split Solar Street Light with High-Brightness SMD5050 LEDs & Outreach Arm (NVJM-XJ)
-
- Patented Original Design: Engineered as an original patented split solar street light with an integrated outreach arm structure, high-conversion monocrystalline solar panels, and high-brightness SMD5050 LEDs for heavy-duty commercial roadway projects.
- High Luminous Output: Delivers high-efficacy system output up to 160 lm/W with total flux output spanning 1,800–5,500 lm across 20–75Ah battery configurations for tailored municipal solar street light demands.
- Precision Optical Distribution: Features optical-grade Teijin PC lenses with 150° × 70° asymmetric anti-glare coverage, expanding effective irradiation area by 30% with uniform Type II / Type III Batwing beam dispersion.
- Smart Control & Fast Charging: Integrates 5V fast-charging technology boosting efficiency by 20%, Smart MPPT power management, Dusk-to-Dawn Light Control, programmable time switching, and optional microwave radar sensing via IR remote.
- Grade-A LiFePO4 Cell: Packed with brand-new Grade-A LiFePO4 battery storage offering ≥2,000 Deep Discharge Cycles with Smart BMS Protection, guaranteeing 365-day continuous night lighting autonomy and reliable overcast performance.
- Heavy-Duty Weather Proofing: Constructed from die-cast aluminum housing rated IP65 waterproof and IK08 impact-resistant, equipped with heavy-gauge wiring, IP68 XT60 connectors, and robust integrated mounting arm hardware.
- Commercial & Municipal Applications: Purpose-built for commercial solar street light developments, municipal solar street light roadways, industrial parks, and perimeter security, offering full factory OEM/ODM customization.
- All-Night Illumination
- All-Weather Proof
- Built for a Decade+
- Smart Adaptive Control
- Easy Plug & Play
- Low Lifetime Cost
- Certified Worldwide
- Reliable Supply & Delivery
Engineered for Heavy-Duty Solar Roadway Infrastructure
The Nova Patented Split Solar Street Light from Lumin Solar Solutions is an industrial-grade commercial solar street light and municipal solar street light solution designed for arterial highways, industrial parks, and perimeter security projects where independent solar positioning and robust roadway illumination are required. Its split architecture separates the photovoltaic panel from the luminaire while integrating a dedicated outreach arm, allowing the lighting and solar components to be arranged according to pole configuration and site conditions without relying on grid power.
Integrated Outreach Architecture for Controlled Roadway Coverage

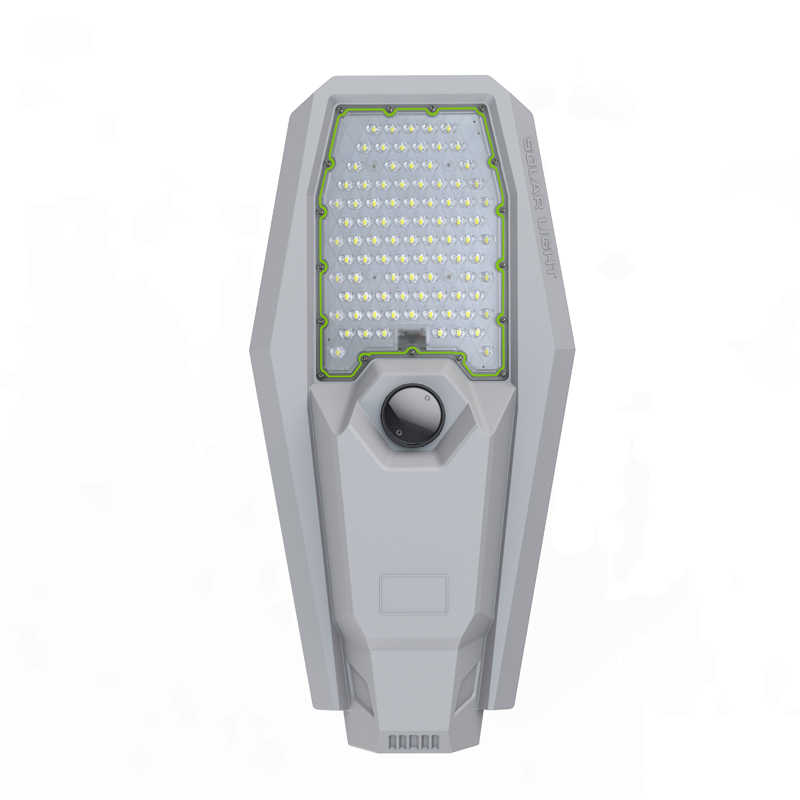

The system is engineered around the interaction of high-brightness SMD5050 LED arrays, asymmetric Batwing optics, and independent solar energy collection and storage. The optical system directs illumination laterally across roadway areas through Type II / Type III distribution, while the split photovoltaic and battery architecture provides a configurable energy source for extended nighttime operation. Smart control and optional radar sensing further allow the lighting profile to be adapted to project operating requirements, making the architecture suitable for larger roadway corridors and infrastructure environments.
Scalable Model Selection for Commercial Deployment
The Nova series is available in six model configurations: NVJM-XJ-902, NVJM-XJ-903, NVJM-XJ-904, NVJM-XJ-905, NVJM-XJ-906, and NVJM-S5500 Pro. The models provide different verified PV, battery, LED, luminous-flux, and recommended installation configurations, allowing project designers to match the system to roadway scale, mounting height, installation spacing, and nighttime energy requirements. For detailed specifications, see the Specifications tab. Explore our full collection of Split Solar Street Lights for direct factory OEM/ODM engineering customization across commercial solar street light and municipal solar street light projects.
← Swipe horizontally to compare models →
| Parameter | NVJM-XJ-902 | NVJM-XJ-903 | NVJM-XJ-904 | NVJM-XJ-905 | NVJM-XJ-906 | NVJM-S5500 Pro |
|---|---|---|---|---|---|---|
| 🌞 Solar & Power System | ||||||
| Solar Cell Type & Efficiency | A-Grade Monocrystalline Solar Cells (>21% Cell Efficiency) | |||||
| PV Module Vmp & Rated Power | 5V (Vmp) / 30W | 5V (Vmp) / 40W | 5V (Vmp) / 45W | 5V (Vmp) / 50W | 5V (Vmp) / 60W | 5V (Vmp) / 80W |
| PV Dimensions | 430 × 350 mm | 480 × 400 mm | 530 × 400 mm | 590 × 400 mm | 670 × 445 mm | 670 × 580 mm |
| Battery Type & BMS Protection | Grade-A LiFePO4 with Smart BMS Protection (Overcharge / Over-discharge / Temperature Protection), ≥ 2,000 Deep Discharge Cycles (@ 80% DOD) |
|||||
| Battery Capacity & System Voltage | 3.2V / 20Ah | 3.2V / 30Ah | 3.2V / 36Ah | 3.2V / 48Ah | 3.2V / 60Ah | 3.2V / 75Ah |
| Control & Operating Modes | Smart Controller + Radar Motion Sensor (Optional) + Dusk-to-Dawn Light Control + Remote Control | Smart AI Simulated MPPT Controller + Radar Motion Sensor (Optional) + Dusk-to-Dawn Light Control + IR Remote Control |
||||
| Motion Sensor Range & Angle | 8–12 m Sensor Range, 120° Wide-Angle Detection | |||||
| Full Charge Time | 4–6 Hours (Under Standard Peak Sun Hours) | |||||
| Operating Time & Autonomy | Up to 18 Hours (Dusk-to-Dawn) | Up to 18 Hours (Dusk-to-Dawn) | Up to 2 Nights | Up to 2 Nights | Up to 2 Nights | Up to 3 Nights |
| 💡 Lighting & Optical | ||||||
| LED Package | SMD5050 (64 pcs) | SMD5050 (64 pcs) | SMD5050 (90 pcs) | SMD5050 (90 pcs) | SMD5050 (90 pcs) | SMD5050 (90 pcs) |
| LED Package Efficacy | Up to 160 lm/W | |||||
| Total Luminous Flux Output | 1,800 lm | 2,650 lm | 3,358 lm | 3,512 lm | 3,840 lm | 5,500 lm |
| Color Temperature (CCT) | 6500K–7500K, Cool White | |||||
| Color Rendering Index (CRI) | Ra ≥ 70 | |||||
| Light Distribution | Type II / Type III | |||||
| Optical Pattern | Batwing, Asymmetric | |||||
| Beam Angle | 70° × 150° | |||||
| LED Lifespan & Reliability | > 50,000 Hours (L70 Performance) | |||||
| 🏗️ Structure & Material | ||||||
| Housing & Optical Materials | Heavy-Duty Die-Cast Aluminum Housing + Teijin Optical UV-Resistant PC Lens |
|||||
| Pole Supply | Optional; ordered separately and not included in the luminaire carton. | |||||
| Pole Material & Corrosion Resistance | Q235 Structural Steel, Hot-Dip Galvanized (HDG) + Outdoor Anti-Corrosion Powder Coating |
|||||
| Ingress Protection (IP Rating) | IP65 (Dust-Tight & Water-Jet Protected) | |||||
| Impact Resistance (IK Rating) | IK08 (High Impact Resistance) | |||||
| Wind Resistance | Up to 60 m/s | |||||
| Mounting Bracket & Angle Adjustability | Lamp Head: Adjustable Slip Fitter (±15° Tilt, Wall / Pole-Mount Compatible) PV Panel: Heavy-Duty Angle-Adjustable PV Mounting Bracket |
|||||
| PV Connection & Cable | Heavy-Duty UV-Resistant Extension Cable with IP68 XT60 Waterproof Connectors |
|||||
| Recommended Pole Height & Spacing | 6–8 m (Spacing 15–20 m) | 8–10 m (Spacing 20–25 m) | 9–11 m (Spacing 25–30 m) | 10–12 m (Spacing 30–35 m) | 10–12 m (Spacing 30–35 m) | 10–12 m (Spacing 30–35 m) |
| Product Dimensions (L × W × H) | 530 × 260 × 80 mm | 530 × 260 × 80 mm | 615 × 300 × 80 mm | 615 × 300 × 80 mm | 615 × 300 × 80 mm | 615 × 300 × 80 mm |
| Operating Temperature Range | −20°C to +60°C | |||||
| 📦 Packaging & Compliance | ||||||
| Carton Dimensions | 590 × 550 × 420 mm | 590 × 550 × 480 mm | 680 × 425 × 475 mm | 680 × 425 × 475 mm | 730 × 300 × 520 mm | 725 × 150 × 630 mm |
| Master Carton Gross Weight (GW) | 22.7 kg (4 pcs / CTN) | 24.0 kg (4 pcs / CTN) | 21.7 kg (3 pcs / CTN) | 21.7 kg (3 pcs / CTN) | 17.8 kg (2 pcs / CTN) | 10.8 kg (1 pc / CTN) |
| Packaging Quantity (PCS / CTN) | 4 pcs / CTN | 4 pcs / CTN | 3 pcs / CTN | 3 pcs / CTN | 2 pcs / CTN | 1 pc / CTN |
| Standard Included Accessories | PV Mounting Bracket / Arm, IR Remote Control, Stainless Steel Installation Screws / Bolts, Heavy-Duty UV-Resistant Extension Cable with XT60 Waterproof Connectors |
|||||
| Certifications & Standards | CE, RoHS, ISO 9001 | |||||
| Warranty Period | 2 Years (LED & Battery) | 8 Years (Solar Panel) | 10 Years (Poles) |
|||||
| 💼 Commercial Terms | ||||||
| Minimum Order Quantity (MOQ) | 50 pcs | |||||
| Production Lead Time | 30 Calendar Days | |||||
| Sample Availability | Sample Available (1–5 Units) | |||||
| OEM / ODM Customization | Custom spectrum, lighting profiles, private label branding, and customized extension cables for split-type setup. |
|||||
Have specific technical or installation questions about this model? Contact our engineering team for support.
Applications & Scenarios
Engineered off-grid solar lighting solutions designed to meet the performance, reliability, and application requirements of commercial, municipal, and industrial projects across diverse outdoor environments.
Municipal Roads & Streets
Engineered for urban thoroughfares requiring standardized pole configurations, precise optics, and rapid deployment.
Recommended: All-in-One Systems
Highways & Arterial Roads
High-lumen, multi-lane illumination designed to meet rigorous roadway safety standards and extended nighttime runtimes.
Recommended: Split-Type Systems
Industrial Parks & Logistics Zones
Continuous zero-downtime lighting for heavy-traffic industrial corridors, freight yards, and manufacturing facilities.
Recommended: Split-Type Systems
Residential Communities & Campuses
Visual comfort optics optimized for glare-free, neighborhood-level illumination along residential streets and parks.
Recommended: All-in-One Systems
Rural & Off-Grid Infrastructure
Autonomous off-grid lighting solutions designed for remote villages, agricultural access roads, and grid-isolated regions.
Recommended: All-in-One Systems
Commercial Parking Lots & Perimeters
Wide-area security illumination engineered for retail plazas, outdoor facility perimeters, and commercial transit grounds.
Recommended: All-in-One / Split-Type
Need Custom Engineering Support for Your Roadway Project?
Our technical engineering team provides end-to-end design assistance for municipal contractors, EPCs, and infrastructure planners worldwide.
- DIALux Photometric Simulations – Precise Lux level and optimal pole spacing calculations
- Customized System Sizing – Tailored solar panel, LiFePO4 battery, and LED wattage configurations for specific autonomy days
- Full Technical Documentation – Complete IES files, CAD drawings, and installation specifications
Contact our engineering specialists today to receive customized technical proposals and IES test reports for your project.
Global Compliance & Engineering Quality
Seamless Project Approvals & Rapid Tender Compliance Worldwide
Accelerate municipal tender approvals and eliminate import clearance risks across 40+ countries. Our manufacturing facilities and product lines undergo rigorous third-party testing to comply with international infrastructure standards—including ISO 9001:2015 Quality Management System, CE (EMC & LVD), RoHS 2.0, FCC Part 15 Class B, and IEC 62722 / IEC 60598 photobiological safety specifications, along with UN38.3 lithium battery transport certification.
Illuminating Success Stories Worldwide
See Our Products Powering Projects Globally
Community Safety Lighting: NV Series Street Lights for S2 Heights Village Roads
Thailand Farm Solar Lighting: Waterfront Illumination with “Moon in Water” Garden Lights
High-Temperature Municipal Street Lighting Project, Dubai
Illuminating the New Port of Ndayane: A Landmark Solar Lighting Project, Senegal
Coastal Illumination Upgrade: Solar Flood Lighting for Australian Seaside Accommodation
Industrial-Grade Technical Highlights for Municipal Solar Street Lighting
High-lumen All-in-One and Split-Type solar street lights engineered with EN 13201 compliant optics, high-efficiency MPPT charge controllers, ADC12 die-cast housings, and Grade-A LiFePO4 battery autonomy for 6m–12m municipal, highway, and industrial road infrastructure.
EN 13201 Compliant Batwing Optics
Precision Type II / Type III asymmetric batwing optical lenses deliver high-uniformity, anti-glare road illumination optimized for 6m–12m mounting heights in full compliance with EN 13201 municipal safety standards.
Heavy-Duty Anti-Corrosion Housing & IP65/IP67 Rating
Rugged ADC12 aluminum alloy or high-density anti-rust PE composite housings with weather-tight silicone sealing guarantee long-term structural integrity across harsh coastal, high-salinity, and extreme temperature environments (-20°C to 65°C).
High-Efficiency Monocrystalline PV & MPPT Tracking
High-conversion monocrystalline solar panels paired with smart MPPT controllers (>98% tracking efficiency) maximize daily solar energy absorption even during low-irradiance overcast conditions.
Grade-A LiFePO4 & 3–5 Day Overcast Autonomy
High-capacity Grade-A LiFePO4 battery storage delivers 2,000+ deep cycles and smart battery management (BMS) for 3–5 days of continuous overcast lighting autonomy.
Microwave Sensing & Multi-Stage Timer Automation
Integrated 360° microwave radar sensors and customizable 4-in-1 timer modes automatically manage lumen output from 30% standby dimming to 100% full brightness upon traffic movement.
Adjustable Slip-Fitter Mount & Zero-Trenching
Reinforced adjustable mounting sleeves (0°–15° tilt adjustment) enable fast top-pole and side-arm installation on standard 60mm–89mm poles without grid trenching or cable routing.
SOLAR VS. GRID: TOTAL COST COMPARISON
Skip the Trenching. Eliminate Energy Bills.
Calculate your 5-year project ROI below and see how much your facility can save with Lumin Solar Solutions.
Private Project ROI Calculator
💡 Pro Tip: Switching to solar allows you to eliminate trenching costs and expensive cabling.
Traditional Grid vs. Lumin Solar Lighting Solutions Cost Analysis
| Project Cost Items (30 Units) | Traditional Grid | Lumin Solar Solutions |
|---|---|---|
| Trenching & Labor | $3,000 - $8,000 | $0 (No Digging) |
| Cabling & Wiring | $2,500 - $5,000 | $0 |
| Transformer/Switchgear | Essential Infrastructure Cost | Not Needed |
| Electricity Bill (Annual) | $1,500 - $2,500 | $0 (Free) |
| Installation Time | 7-14 Days | 1-2 Days |
| Total Hidden Costs | EXTREMELY HIGH | ZERO |
*Calculated based on average private industrial projects. Lumin Solar Solutions eliminates infrastructure overhead.
Why pay for copper wires and manual labor when you can invest that budget into high-quality solar technology?
Commercial & Ordering FAQ
Our standard Minimum Order Quantity (MOQ) is 50 units. We also fully support sample orders (1–5 units) for project evaluation, technical testing, and quality verification prior to bulk production.
We offer flexible international trade terms including FOB, CIF, EXW, and DDP (Delivered Duty Paid). Our DDP services cover 42+ countries to ensure seamless customs clearance and hassle-free door-to-door delivery.
We accept Wire Transfer (T/T) and Letter of Credit (L/C).
The standard lead time for mass production is 30 calendar days, calculated from the date your deposit is received. For customized OEM/ODM projects or specialized technical requirements, the delivery schedule will be mutually confirmed during contract review.
Yes, absolutely. We offer complete OEM/ODM solutions, including custom logo/branding, custom housing finishes, specialized lumen/wattage outputs, tailored optical spectrums, and smart controller lighting profiles.
We provide comprehensive warranty coverage across all system components: 2-year warranty for the LED luminaire and LiFePO4 battery, 8-year warranty for monocrystalline solar panels, and 10-year warranty for lighting poles. (Please refer to our product catalog for itemized terms).
We provide worldwide shipping via sea freight, air freight, and express courier. Our dedicated logistics team manages export documentation, compliance checks, and end-to-end cargo tracking to ensure safe delivery to your site or port.
Simply click the “Inquire Now” button or contact our sales department with your order details. Our sales engineers will review your project requirements and issue an official Proforma Invoice (PI) promptly.
