COMMERCIAL & INDUSTRIAL SOLAR STREET LIGHTS

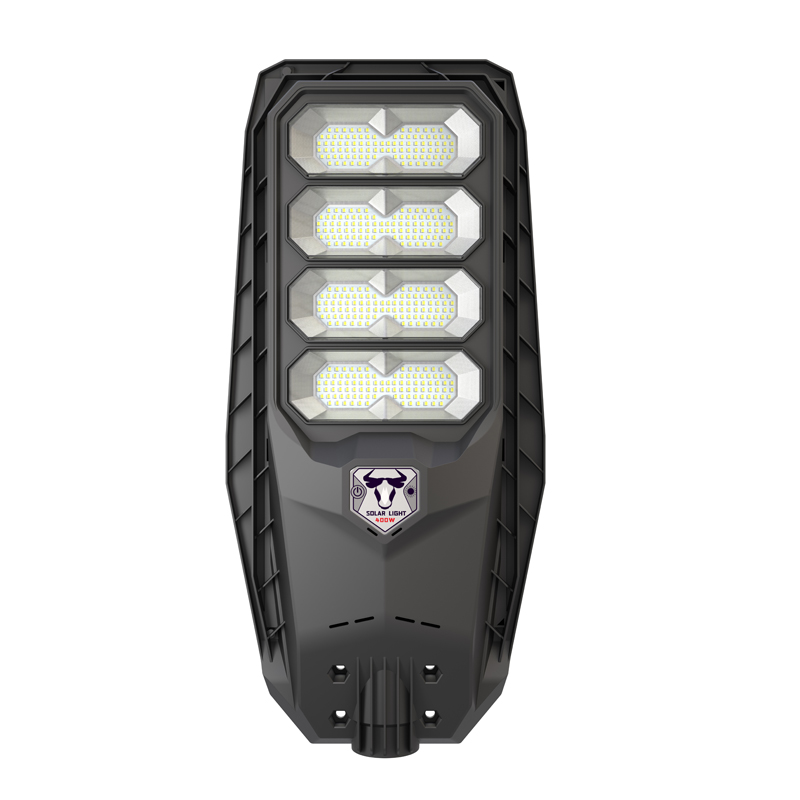

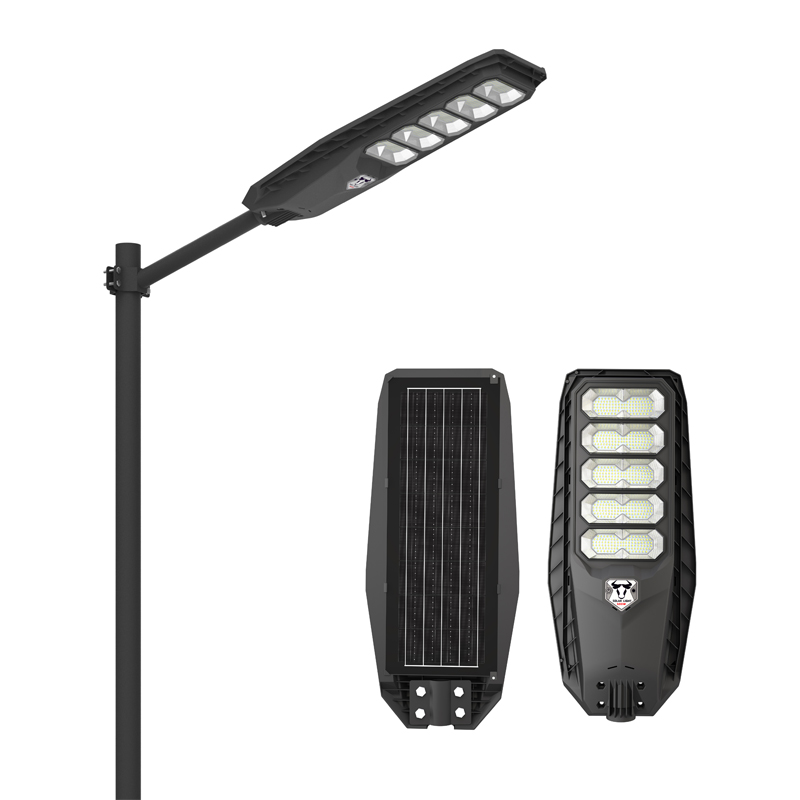

Nova High-Density LED Matrix All-in-One Solar Street Light (NVJM-LH)
Nova High-Density LED Matrix All-in-One Solar Street Light (NVJM-LH)
-
- Original Patent Design: Built as an original patent high-density LED matrix all-in-one solar street light with high-conversion monocrystalline solar panels and anti-corrosion housing for cost-effective pathway lighting.
- High Luminous Efficacy: Delivers system efficacy up to 180 lm/W using high-density SMD2835 LED arrays, outputting 994 lm (300 pcs), 1,476 lm (400 pcs), 1,970 lm (500 pcs), and 2,488 lm (600 pcs).
- Asymmetric Batwing Optics: Features optical-grade UV-resistant Teijin PC lenses with 70° × 140° Type II and Type III asymmetric light distribution, providing uniform, glare-free illumination without dark spots.
- Intelligent Energy Management: Combines a microwave radar motion sensor, Dusk-to-Dawn Light Control, time switch settings, and IR Remote Control, enabling continuous 365-day lighting performance in energy-saving mode.
- Grade-A LiFePO4 Chemistry: Powered by Grade-A LiFePO4 battery packs (3.2V / 10Ah–30Ah) rated for ≥2,000 Deep Discharge Cycles (@80% DOD), delivering up to 4–5 nights autonomy during rainy days.
- Anti-Corrosion Modular Body: Constructed from heavy-duty engineered ABS and PC housing rated IP65 (Dust-tight) and IK08 (High Impact Resistance), equipped with a Φ48 mm spigot for easy arm or pole mounting.
- Pathway & Municipal Fit: Engineered for rural roadways, residential pathways, agricultural parks, and municipal solar street light installations, supporting complete OEM/ODM customization for custom dimming profiles, optics, and private branding.
- All-Night Illumination
- All-Weather Proof
- Built for a Decade+
- Smart Adaptive Control
- Easy Plug & Play
- Low Lifetime Cost
- Certified Worldwide
- Reliable Supply & Delivery
Designed for High-Density Off-Grid Pathway Lighting
The Nova NVJM-LH series is a high-density LED matrix all-in-one solar street light designed for rural roadways, residential pathways, agricultural parks, municipal solar street light applications, and other off-grid outdoor lighting projects where compact system integration and controlled illumination are required. Its high-density SMD2835 LED architecture works with a high-conversion monocrystalline PV module and integrated energy storage to provide a self-contained solar lighting solution.
Integrated Lighting, Optical, and Energy Management
The NVJM-LH combines a dense LED matrix with asymmetric batwing optics to distribute light laterally for roadway and pathway coverage, while optical-grade UV-resistant PC lenses support consistent outdoor optical performance. The integrated controller coordinates microwave radar sensing, Dusk-to-Dawn Light Control, time-switch settings, and IR Remote Control, allowing project operators to select lighting modes according to site requirements rather than relying on continuous full-output operation.
Configured for Scalable Project Deployment
The series is available in four model configurations: NVJM-LH-9300, NVJM-LH-9400, NVJM-LH-9500, and NVJM-LH-9600. The models use different PV, battery, LED quantity, and physical configurations to accommodate varying installation heights, spacing requirements, and illuminated areas. This makes the series suitable for projects that require consistent product architecture with scalable system configurations. For detailed specifications, see the Specifications tab. Explore our All-in-One Solar Street Lights range for additional commercial and municipal solar street light off-grid solutions.
← Swipe horizontally to compare models →
| Parameter | NVJM-LH-9300 | NVJM-LH-9400 | NVJM-LH-9500 | NVJM-LH-9600 |
|---|---|---|---|---|
| 🌞 Solar & Power System | ||||
| Solar Cell Type & Efficiency | A-Grade Monocrystalline Solar Cells (>21% Cell Efficiency) | |||
| PV Module Vmp & Rated Power | 6V (Vmp) / 12W | 6V (Vmp) / 15W | 6V (Vmp) / 20W | 6V (Vmp) / 25W |
| PV Dimensions | 389 × 199 mm | 459 × 199 mm | 559 × 209 mm | 659 × 209 mm |
| Battery Type & BMS Protection | Grade-A LiFePO4 with Smart BMS Protection (Overcharge/Over-discharge/Temp Protection), ≥2,000 Deep Discharge Cycles (@ 80% DOD) |
|||
| Battery Capacity & System Voltage | 3.2V / 10Ah | 3.2V / 15Ah | 3.2V / 18Ah | 3.2V / 30Ah |
| Control & Operating Modes | Smart Controller + Radar Motion Sensor + Dusk-to-Dawn Light Control + Remote Control (Selectable Modes: Constant Light / 2H-3H Constant + Radar / Full Radar) |
|||
| Motion Sensor Range & Angle | 6–8 m Sensor Range, 120° Wide Angle Detection | |||
| Full Charge Time | 6–8 Hours (Under Standard Peak Sun Hours) | |||
| Operating Time & Autonomy | Up to 3 Nights* *Actual runtime and autonomy depend on the programmed dimming profile, radar activation frequency, local solar conditions, and system configuration. |
|||
| 💡 Lighting & Optical | ||||
| LED Package | SMD2835 (300 pcs) | SMD2835 (400 pcs) | SMD2835 (500 pcs) | SMD2835 (600 pcs) |
| LED Package Efficacy | Up to 180 lm/W | |||
| Total Luminous Flux Output | 994 lm | 1,476 lm | 1,970 lm | 2,488 lm |
| Color Temperature (CCT) | 6500K–7500K, Cool White | |||
| Color Rendering Index (CRI) | Ra ≥ 70 | |||
| Light Distribution | Type II / Type III | |||
| Optical Pattern | Batwing, Asymmetric | |||
| Beam Angle | 70° × 140° | |||
| LED Lifespan & Reliability | >50,000 Hours (L70 Performance) | |||
| 🏗️ Structure & Material | ||||
| Housing & Optical Materials | Heavy-Duty Engineered ABS + Optical-Grade UV-Resistant Polycarbonate (PC) Lens | |||
| Pole Supply | Optional; ordered separately and not included in the luminaire carton. | |||
| Pole Material & Corrosion Resistance | Q235 Structural Steel, Hot-Dip Galvanized (HDG) + Outdoor Anti-Corrosion Powder Coating | |||
| Ingress Protection (IP Rating) | IP65 (Dust-tight & Water Jet Protected) | |||
| Impact Resistance (IK Rating) | IK08 (High Impact Resistance) | |||
| Wind Resistance | Up to 60 m/s* *Actual system wind resistance depends on pole height, pole geometry, installation conditions, and structural design. |
|||
| Pole Tenon & Spigot Diameter | Φ48 mm (Standard Pole / Arm Fit) | |||
| Mounting Arm & Bracket | Φ48 mm × 500 mm Galvanized Steel Arm | Wall Mount or Pole Mount Bracket (Selectable) | |||
| PV Connection & Cable | Integrated Internal Connection (Plug-and-Play) | |||
| Recommended Pole Height & Installation Spacing | 3–5 m Height (Spacing 10–15 m | Area 80 m²) | 4–6 m Height (Spacing 12–18 m | Area 100 m²) | 5–7 m Height (Spacing 15–20 m | Area 150 m²) | 6–8 m Height (Spacing 18–25 m | Area 200 m²) |
| Product Dimensions (L × W × H) | 515 × 260 × 65 mm | 580 × 270 × 65 mm | 680 × 290 × 65 mm | 780 × 290 × 65 mm |
| Operating Temperature Range | −20°C–+60°C | |||
| 📦 Packaging & Compliance | ||||
| Carton / Packaging Dimensions | 525 × 360 × 275 mm | 595 × 360 × 285 mm | 695 × 360 × 305 mm | 795 × 360 × 310 mm |
| Master Carton Gross Weight (GW) | 12.3 kg (5 pcs / CTN) | 13.5 kg (5 pcs / CTN) | 14.5 kg (5 pcs / CTN) | 17.0 kg (5 pcs / CTN) |
| Packaging Quantity (PCS/CTN) | 5 pcs / Master Carton | |||
| Standard Included Accessories | IR Remote Control, Stainless Steel Installation Screws/Bolts, User Manual | |||
| Certifications & Standards | CE, RoHS, ISO 9001 | |||
| Warranty Period | 2 Years (LED & Battery) 8 Years (Solar Panel) 10 Years (Poles) |
|||
| 💼 Commercial Terms | ||||
| Minimum Order Quantity (MOQ) | 50 pcs | |||
| Production Lead Time | 30 Calendar Days | |||
| Sample Availability | Sample Available (1–5 Units) | |||
| OEM/ODM Customization | Custom spectrum, lighting profiles, and private label branding. | |||
Have specific technical or installation questions about this model? Contact our engineering team for support.
Applications & Scenarios
Engineered off-grid solar lighting solutions designed to meet the performance, reliability, and application requirements of commercial, municipal, and industrial projects across diverse outdoor environments.
Municipal Roads & Streets
Engineered for urban thoroughfares requiring standardized pole configurations, precise optics, and rapid deployment.
Recommended: All-in-One Systems
Highways & Arterial Roads
High-lumen, multi-lane illumination designed to meet rigorous roadway safety standards and extended nighttime runtimes.
Recommended: Split-Type Systems
Industrial Parks & Logistics Zones
Continuous zero-downtime lighting for heavy-traffic industrial corridors, freight yards, and manufacturing facilities.
Recommended: Split-Type Systems
Residential Communities & Campuses
Visual comfort optics optimized for glare-free, neighborhood-level illumination along residential streets and parks.
Recommended: All-in-One Systems
Rural & Off-Grid Infrastructure
Autonomous off-grid lighting solutions designed for remote villages, agricultural access roads, and grid-isolated regions.
Recommended: All-in-One Systems
Commercial Parking Lots & Perimeters
Wide-area security illumination engineered for retail plazas, outdoor facility perimeters, and commercial transit grounds.
Recommended: All-in-One / Split-Type
Need Custom Engineering Support for Your Roadway Project?
Our technical engineering team provides end-to-end design assistance for municipal contractors, EPCs, and infrastructure planners worldwide.
- DIALux Photometric Simulations – Precise Lux level and optimal pole spacing calculations
- Customized System Sizing – Tailored solar panel, LiFePO4 battery, and LED wattage configurations for specific autonomy days
- Full Technical Documentation – Complete IES files, CAD drawings, and installation specifications
Contact our engineering specialists today to receive customized technical proposals and IES test reports for your project.
Global Compliance & Engineering Quality
Seamless Project Approvals & Rapid Tender Compliance Worldwide
Accelerate municipal tender approvals and eliminate import clearance risks across 40+ countries. Our manufacturing facilities and product lines undergo rigorous third-party testing to comply with international infrastructure standards—including ISO 9001:2015 Quality Management System, CE (EMC & LVD), RoHS 2.0, FCC Part 15 Class B, and IEC 62722 / IEC 60598 photobiological safety specifications, along with UN38.3 lithium battery transport certification.
Illuminating Success Stories Worldwide
See Our Products Powering Projects Globally
Community Safety Lighting: NV Series Street Lights for S2 Heights Village Roads
Thailand Farm Solar Lighting: Waterfront Illumination with “Moon in Water” Garden Lights
High-Temperature Municipal Street Lighting Project, Dubai
Illuminating the New Port of Ndayane: A Landmark Solar Lighting Project, Senegal
Coastal Illumination Upgrade: Solar Flood Lighting for Australian Seaside Accommodation
Industrial-Grade Technical Highlights for Municipal Solar Street Lighting
High-lumen All-in-One and Split-Type solar street lights engineered with EN 13201 compliant optics, high-efficiency MPPT charge controllers, ADC12 die-cast housings, and Grade-A LiFePO4 battery autonomy for 6m–12m municipal, highway, and industrial road infrastructure.
EN 13201 Compliant Batwing Optics
Precision Type II / Type III asymmetric batwing optical lenses deliver high-uniformity, anti-glare road illumination optimized for 6m–12m mounting heights in full compliance with EN 13201 municipal safety standards.
Heavy-Duty Anti-Corrosion Housing & IP65/IP67 Rating
Rugged ADC12 aluminum alloy or high-density anti-rust PE composite housings with weather-tight silicone sealing guarantee long-term structural integrity across harsh coastal, high-salinity, and extreme temperature environments (-20°C to 65°C).
High-Efficiency Monocrystalline PV & MPPT Tracking
High-conversion monocrystalline solar panels paired with smart MPPT controllers (>98% tracking efficiency) maximize daily solar energy absorption even during low-irradiance overcast conditions.
Grade-A LiFePO4 & 3–5 Day Overcast Autonomy
High-capacity Grade-A LiFePO4 battery storage delivers 2,000+ deep cycles and smart battery management (BMS) for 3–5 days of continuous overcast lighting autonomy.
Microwave Sensing & Multi-Stage Timer Automation
Integrated 360° microwave radar sensors and customizable 4-in-1 timer modes automatically manage lumen output from 30% standby dimming to 100% full brightness upon traffic movement.
Adjustable Slip-Fitter Mount & Zero-Trenching
Reinforced adjustable mounting sleeves (0°–15° tilt adjustment) enable fast top-pole and side-arm installation on standard 60mm–89mm poles without grid trenching or cable routing.
SOLAR VS. GRID: TOTAL COST COMPARISON
Skip the Trenching. Eliminate Energy Bills.
Calculate your 5-year project ROI below and see how much your facility can save with Lumin Solar Solutions.
Private Project ROI Calculator
💡 Pro Tip: Switching to solar allows you to eliminate trenching costs and expensive cabling.
Traditional Grid vs. Lumin Solar Lighting Solutions Cost Analysis
| Project Cost Items (30 Units) | Traditional Grid | Lumin Solar Solutions |
|---|---|---|
| Trenching & Labor | $3,000 - $8,000 | $0 (No Digging) |
| Cabling & Wiring | $2,500 - $5,000 | $0 |
| Transformer/Switchgear | Essential Infrastructure Cost | Not Needed |
| Electricity Bill (Annual) | $1,500 - $2,500 | $0 (Free) |
| Installation Time | 7-14 Days | 1-2 Days |
| Total Hidden Costs | EXTREMELY HIGH | ZERO |
*Calculated based on average private industrial projects. Lumin Solar Solutions eliminates infrastructure overhead.
Why pay for copper wires and manual labor when you can invest that budget into high-quality solar technology?
Commercial & Ordering FAQ
Our standard Minimum Order Quantity (MOQ) is 50 units. We also fully support sample orders (1–5 units) for project evaluation, technical testing, and quality verification prior to bulk production.
We offer flexible international trade terms including FOB, CIF, EXW, and DDP (Delivered Duty Paid). Our DDP services cover 42+ countries to ensure seamless customs clearance and hassle-free door-to-door delivery.
We accept Wire Transfer (T/T) and Letter of Credit (L/C).
The standard lead time for mass production is 30 calendar days, calculated from the date your deposit is received. For customized OEM/ODM projects or specialized technical requirements, the delivery schedule will be mutually confirmed during contract review.
Yes, absolutely. We offer complete OEM/ODM solutions, including custom logo/branding, custom housing finishes, specialized lumen/wattage outputs, tailored optical spectrums, and smart controller lighting profiles.
We provide comprehensive warranty coverage across all system components: 2-year warranty for the LED luminaire and LiFePO4 battery, 8-year warranty for monocrystalline solar panels, and 10-year warranty for lighting poles. (Please refer to our product catalog for itemized terms).
We provide worldwide shipping via sea freight, air freight, and express courier. Our dedicated logistics team manages export documentation, compliance checks, and end-to-end cargo tracking to ensure safe delivery to your site or port.
Simply click the “Inquire Now” button or contact our sales department with your order details. Our sales engineers will review your project requirements and issue an official Proforma Invoice (PI) promptly.
