COMMERCIAL & ARCHITECTURAL SOLAR COURTYARD & POST-TOP LUMINAIRES
Galaxy Smart RGB Solar Post Lights – 2091-2679LM / 25W Panel (GLJMEW)
Galaxy Smart RGB Solar Post Lights – 2091-2679LM / 25W Panel (GLJMEW)
- Architectural Profile & Tenon: Constructed from heavy-duty die-cast aluminum, this Solar Courtyard & Garden Post-Top Lights fitting serves as an interactive smart RGB solar post light compatible with standard Ø78mm (3.07″) pole tenons.
- High-Capacity PV Storage: Integrates a 4V/32W–40W monocrystalline solar panel paired with a 3.2V/32Ah–48Ah (102.4Wh–153.6Wh) Grade-A LiFePO4 battery and Smart BMS, yielding 2,000+ deep cycles and 3–5 hours rapid recharge.
- High-Lumen Output Engine: Equipped with a high-power SMD LED module delivering 2091 lm to 2679 lm across dual models, providing high visual clarity and true color rendering with Ra ≥ 80 across 350㎡.
- 360° Radial PC Diffuser: Utilizes an anti-UV optical PC diffuser to cast symmetric 360° radial beam distribution, delivering uniform horizontal perimeter illumination without diode glare or high-angle optical hot spots.
- Smart Bluetooth App Control: Features Bluetooth APP connectivity supporting music synchronization, dynamic multi-color RGB spectra, Warm White, Pure White, and automated dusk-to-dawn operation delivering 10–12 hours nightly autonomy.
- Heavy-Duty Weatherproof Protection: Features a corrosion-resistant die-cast aluminum housing with IP65 weatherproof sealing and IK08 impact resistance, ensuring continuous operational reliability under ambient thermal conditions from −20°C–+50°C.
- Entertainment Venue Deployment: Engineered for resort party lawns, outdoor hospitality venues, and commercial plazas; fully customizable for B2B engineering projects including battery expansion, housing finishes, and corporate branding.
- All-Night Illumination
- All-Weather Proof
- Built for a Decade+
- Smart Adaptive Control
- Easy Plug & Play
- Low Lifetime Cost
- Certified Worldwide
- Reliable Supply & Delivery

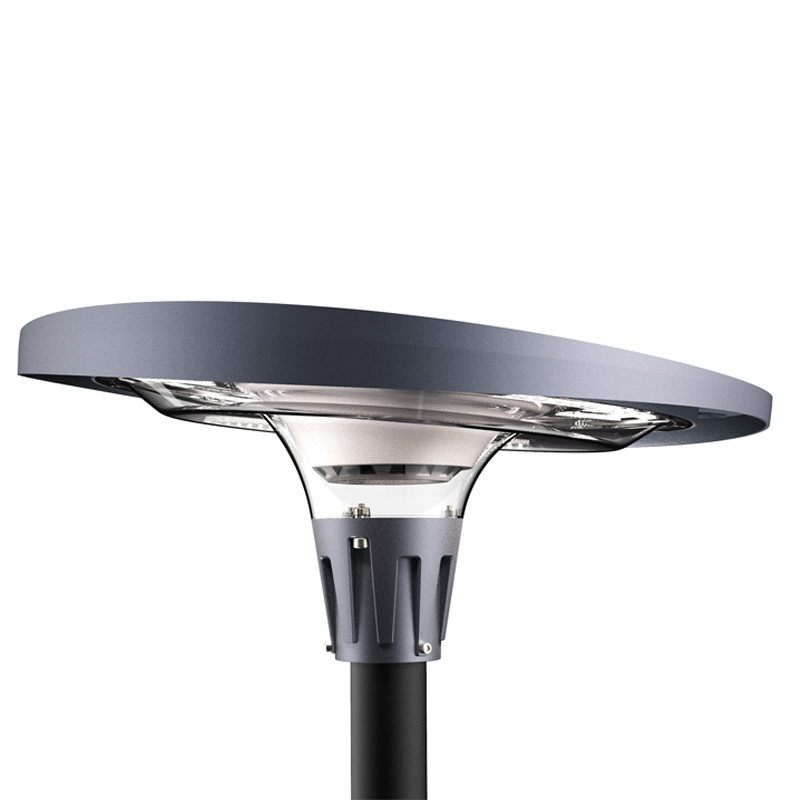

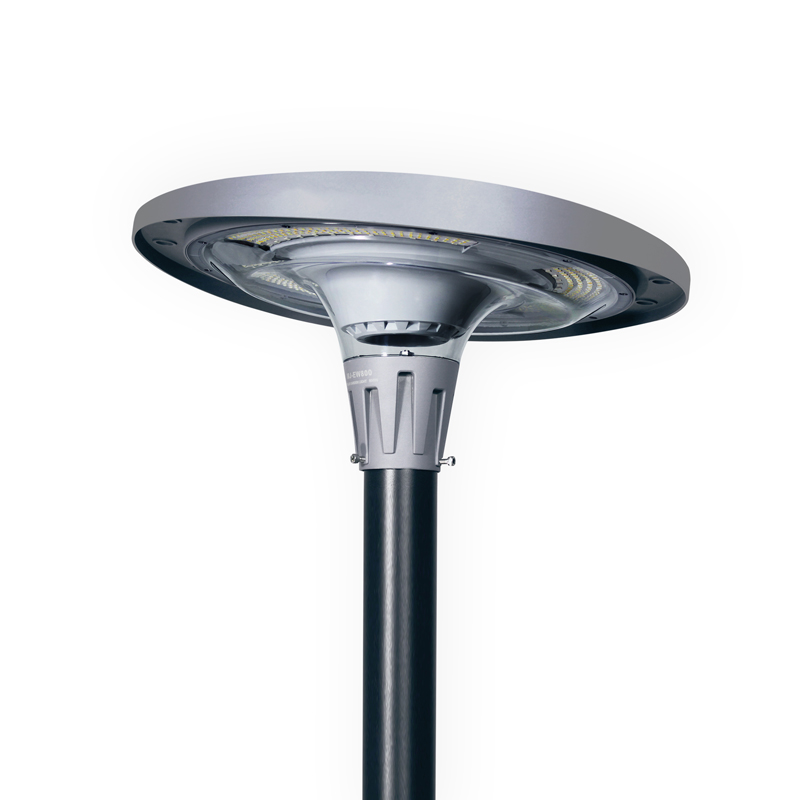

The Galaxy (GLJMEW) is a commercial-grade smart RGB solar post light engineered for resort party lawns, outdoor entertainment venues, and hospitality plazas that demand interactive color ambiance combined with high-lumen functional illumination. Featuring a heavy-duty die-cast aluminum housing, an integrated 4V/32W–40W monocrystalline PV panel, and Bluetooth APP connectivity with audio rhythm synchronization, this luminaire mounts directly onto standard Ø78mm (3.07″) pole tenons. Positioned as a versatile hybrid fixture within our broader Solar Courtyard & Garden Post-Top Lights portfolio, the GLJMEW delivers up to 2679 lm of high-efficacy output across a 350m² coverage area with dynamic Warm White, Pure White, and multi-color RGB spectra.
Key Differentiators
- Bluetooth APP & Music Sync: Integrated wireless controller enabling real-time smartphone APP color tuning, full RGB spectrum switching, and audio rhythm synchronization for event spaces.
- Dual Spec High-Lumen Engine: Offered in 32W/32Ah (2091 lm) and 40W/48Ah (2679 lm) configurations to provide tailored optical coverage across expansive grounds up to 350m².
- High-Capacity PV & LiFePO4 Storage: Combines a 4V monocrystalline solar panel with Grade-A LiFePO4 battery cells (102.4Wh–153.6Wh) and Smart BMS for 2,000+ deep cycles.
- 360° Optical PC Diffuser: Encases high-power SMD LEDs in an anti-UV optical PC diffuser, projecting symmetric 360° radial distribution without high-angle diode glare.
Engineering Applications
- Resort Party Lawns & Hospitality Spaces: Delivers dynamic RGB color scenes and music beat synchronization for outdoor bars, event lawns, and theme park night zones.
- Commercial Plazas & Courtyards: Provides bright 2091–2679 lm functional white illumination during standard hours, transitioning to decorative color scenes for holiday events.
- HOA Amenities & Clubhouse Decks: Enhances community gathering spaces, poolside perimeters, and recreational parks with customizable architectural lighting scenes.
Technical Logic
The GLJMEW utilizes an optimized power ratio pairing a 4V monocrystalline panel with up to 153.6Wh LiFePO4 energy storage. This configuration achieves rapid 3–5 hour solar recharge under standard peak sun hours, sustaining continuous 10–12 hours of nightly dusk-to-dawn operation with 2–3 rainy days autonomy. The integrated Bluetooth driver seamlessly manages dual-chip arrays—combining functional white LEDs (3000K/6500K) and high-brightness RGB diodes—allowing facility managers to automate schedules or synchronize illumination to live sound input. Furthermore, the die-cast aluminum body functions as a passive heat sink to maintain optimal junction temperatures, making this smart RGB solar post light an exceptionally reliable off-grid solution across operating temperatures from −20°C to +50°C.
Selection & Specification Guide
- Model & Lumen Output Selection: Specify the 32W/32Ah model (2091 lm) for standard pedestrian walkways or the 40W/48Ah model (2679 lm) for open lawns requiring up to 350m² light distribution.
- Pole Tenon & Height Fitment: Engineered to mount onto standard Ø78mm (3.07″) top pole tenons at recommended installation heights between 3.0m and 4.5m (10ft–15ft).
- OEM/ODM Customization: Supports B2B custom project specifications including custom housing finishes, expanded battery capacities, and laser-engraved corporate branding.
← Swipe horizontally to view details →
| Parameter | GLJMEW-800 | GLJMEW-1200 |
|---|---|---|
| 🌞 Solar & Power System | ||
| Solar Cell Type & Efficiency | A-Grade Monocrystalline Solar Cells (>21% Cell Efficiency) | |
| PV Module Vmp & Rated Power | 4 V (Vmp) / 32 W Monocrystalline PV Panel | 4 V (Vmp) / 40 W Monocrystalline PV Panel |
| Battery Spec & Protection | 3.2 V / 32 Ah (102.4 Wh) LiFePO4 (2,000+ Cycles) | 3.2 V / 48 Ah (153.6 Wh) LiFePO4 (2,000+ Cycles) |
| Full Charge Time | 3–5 hours (Under Standard Peak Sun Hours) | |
| Operating Time & Autonomy | 10–12 hours/night (Dusk-to-Dawn) | 2–3 Rainy Days Backup | |
| 💡 Lighting & Optical | ||
| LED Package & Configuration | 408 pcs Total (186 × SMD5730 White + 186 × SMD5730 Warm White + 36 × SMD5054 RGB) | |
| Luminous Flux & Coverage | 2,091 lm (Coverage: Up to 200 m²) | 2,679 lm (Coverage: Up to 350 m²) |
| Color Temperature & Modes | 3000 K Warm White / 6500 K Cool White + Full RGB Multi-Color Spectrum | |
| Smart Control Features | Bluetooth App Control + Music Rhythm Sync + IR Remote + Auto Light Sensor | |
| Color Rendering Index (CRI) | Ra ≥ 80 (True Color Preservation) | |
| Light Distribution | Symmetric 360° Radial Distribution | |
| Beam Angle | 360° Horizontal Omnidirectional Beam | |
| 🏗️ Structure & Material | ||
| Housing Materials | Heavy-Duty Die-Cast Aluminum Body + UV-Resistant Optical PC Lens | |
| Ingress Protection (IP Rating) | IP65 (Dust-Tight & Water-Jet Protected) | |
| Impact Resistance (IK Rating) | IK08 (Vandal-Resistant Impact Rating) | |
| Tenon / Pole Adapter Size | Fits Ø76 mm (3.0″) Standard Pole Tenon (Inner Collar Ø78 mm) | |
| Recommended Mounting Height | 2.5–4.5 m (8–15 ft) | |
| Product Dimensions | Φ580 mm × H248 mm | |
| Operating Temperature Range | −20 °C–+60 °C | |
| 📦 Packaging & Compliance | ||
| Standard Package Includes | IR Remote Controller, Stainless Steel Mounting Screws & Hardware | |
| Carton / Packaging Dimensions | 590 × 590 × 270 mm (1 CTN) | |
| Certifications & Standards | CE, RoHS, FCC, ISO 9001 | |
| Warranty Period | 2-Year Limited Warranty — Extended Warranty Available | |
| 💼 Commercial Terms | ||
| Minimum Order Quantity (MOQ) | 30 pcs | |
| Production Lead Time | 20–25 calendar days | |
| Sample Availability | Sample Available (1–2 Units) | |
| OEM/ODM Customization | Custom branding, custom housing colors, scalable battery capacities, and bespoke lighting control profiles. | |
Have specific technical or installation questions about this model? Contact our engineering team for support.
Engineered for Architectural Integration & Visual Comfort
Combining wide-area 360° optical diffusers, heavy-duty weatherproof housings, and smart MPPT battery management for seamless civic plaza & pole-mount integration.
Architectural Post-Top Forms
Designed for 2.5m–4.5m (8ft–15ft) pole installations, featuring UFO, Clover, and Chalice forms to complement modern architectural landscapes.
360° Symmetric Area Optics
Engineered with optical-grade PC diffusers delivering high-lumen 360° wide coverage while suppressing direct glare for pedestrians.
76mm / 89mm Tenon Fitment
Features a heavy-duty slip-fitter collar designed for tool-free mounting on standard 76mm (3.0") or 89mm (3.5") pole tenons without grid wiring.
IP65 & Wind-Resistant Housing
Constructed from corrosion-resistant die-cast aluminum with structural sealing and high wind-load endurance for elevated outdoor pole mounting.
Smart Dusk-to-Dawn Control
Integrated microwave/PIR sensors and optical sensors automatically adjust light output from dusk to dawn for maximum off-grid efficiency.
Adaptive Power & LiFePO4
Powered by high-efficiency mono PV panels and A-grade LiFePO4 batteries with intelligent power regulation for 3–5 continuous cloudy days.
Lumin Solar Solutions manufactures high-output post-top solar courtyard lights and pole-mounted garden luminaires for wide-area site illumination. Engineered with heavy-duty die-cast aluminum, wind-resistant structural design, and smart MPPT dusk-to-dawn energy management, these systems deliver reliable perimeter and plaza lighting without underground cabling. Fits industry-standard 60mm (2.375″) and 76mm (3″) mounting poles. Contact our engineering team for Dialux 3D layout simulations and IES files.
Applications & Scenarios
Thoughtfully designed to blend architectural aesthetics with wide-area site security, delivering high-efficiency, uniform illumination for public parks, civic plazas, university campuses, and resort courtyards.
Municipal Parks & Civic Plazas
Delivers 360° wide-angle illumination for open public plazas, municipal park avenues, and civic gathering spaces, ensuring uniform light distribution and nighttime safety without utility power.
Luxury Resort Courtyards & Hotel Grounds
Enhances hospitality aesthetics with warm, anti-glare architectural lighting mounted at 2.5m–3.5m heights, creating a welcoming ambient glow for resort courtyards, pool perimeters, and outdoor dining areas.
Park Avenues & Pedestrian Greenways
Provides continuous high-visibility overhead lighting along 3.0m–4.5m park corridors and greenways, featuring dusk-to-dawn smart power management to maximize off-grid battery autonomy.
Commercial Facilities & Residential Community Roads
Offers reliable, zero-electricity perimeter illumination for office parks, industrial facilities, and residential HOA roadways with robust 60mm/76mm tenon mount wind resistance.
Global Compliance & Engineering Quality
Seamless Project Approvals & Rapid Tender Compliance Worldwide
Accelerate municipal tender approvals and eliminate import clearance risks across 40+ countries. Our manufacturing facilities and product lines undergo rigorous third-party testing to comply with international infrastructure standards—including ISO 9001:2015 Quality Management System, CE (EMC & LVD), RoHS 2.0, FCC Part 15 Class B, and IEC 62722 / IEC 60598 photobiological safety specifications, along with UN38.3 lithium battery transport certification.
Illuminating Success Stories Worldwide
See Our Products Powering Projects Globally
SOLAR VS. GRID: TOTAL COST COMPARISON
Skip the Trenching. Eliminate Energy Bills.
Calculate your 5-year project ROI below and see how much your facility can save with Lumin Solar Solutions.
Private Project ROI Calculator
💡 Pro Tip: Switching to solar allows you to eliminate trenching costs and expensive cabling.
Traditional Grid vs. Lumin Solar Lighting Solutions Cost Analysis
| Project Cost Items (30 Units) | Traditional Grid | Lumin Solar Solutions |
|---|---|---|
| Trenching & Labor | $3,000 - $8,000 | $0 (No Digging) |
| Cabling & Wiring | $2,500 - $5,000 | $0 |
| Transformer/Switchgear | Essential Infrastructure Cost | Not Needed |
| Electricity Bill (Annual) | $1,500 - $2,500 | $0 (Free) |
| Installation Time | 7-14 Days | 1-2 Days |
| Total Hidden Costs | EXTREMELY HIGH | ZERO |
*Calculated based on average private industrial projects. Lumin Solar Solutions eliminates infrastructure overhead.
Why pay for copper wires and manual labor when you can invest that budget into high-quality solar technology?
Commercial & Ordering FAQ
Our standard Minimum Order Quantity (MOQ) is 50 units. We also fully support sample orders (1–5 units) for project evaluation, technical testing, and quality verification prior to bulk production.
We offer flexible international trade terms including FOB, CIF, EXW, and DDP (Delivered Duty Paid). Our DDP services cover 42+ countries to ensure seamless customs clearance and hassle-free door-to-door delivery.
We accept Wire Transfer (T/T) and Letter of Credit (L/C).
The standard lead time for mass production is 30 calendar days, calculated from the date your deposit is received. For customized OEM/ODM projects or specialized technical requirements, the delivery schedule will be mutually confirmed during contract review.
Yes, absolutely. We offer complete OEM/ODM solutions, including custom logo/branding, custom housing finishes, specialized lumen/wattage outputs, tailored optical spectrums, and smart controller lighting profiles.
We provide comprehensive warranty coverage across all system components: 2-year warranty for the LED luminaire and LiFePO4 battery, 8-year warranty for monocrystalline solar panels, and 10-year warranty for lighting poles. (Please refer to our product catalog for itemized terms).
We provide worldwide shipping via sea freight, air freight, and express courier. Our dedicated logistics team manages export documentation, compliance checks, and end-to-end cargo tracking to ensure safe delivery to your site or port.
Simply click the “Inquire Now” button or contact our sales department with your order details. Our sales engineers will review your project requirements and issue an official Proforma Invoice (PI) promptly.
