COMMERCIAL & ARCHITECTURAL SOLAR COURTYARD & POST-TOP LUMINAIRES

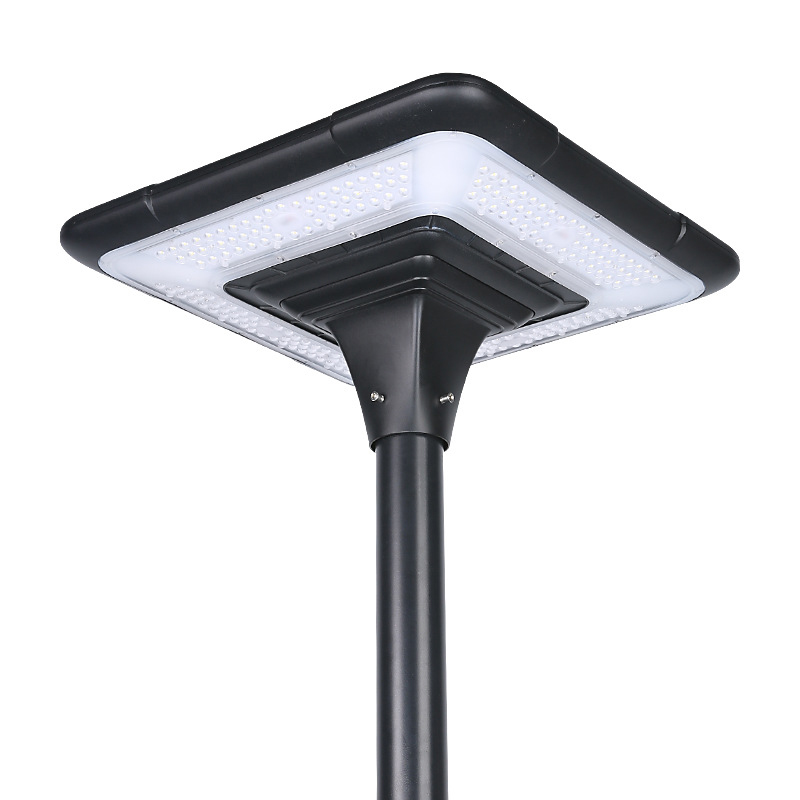

Galaxy Square UFO 45W Panel Solar Post-Top Lights – Fast-Charging 60Ah (GLCZ-2505)
Galaxy Square UFO 45W Panel Solar Post-Top Lights – Fast-Charging 60Ah (GLCZ-2505)
- Square UFO Geometry: Engineered with a 580×580mm die-cast aluminum frame, this commercial Solar Courtyard & Garden Post-Top Lights fixture serves as a high-output square solar post top light fitting Ø76mm (3.0″) standard pole tenons.
- 45W/60Ah Fast-Charging Power: Integrates a 5V/45W monocrystalline PV panel and 3.2V/60Ah (192Wh) Grade-A LiFePO4 battery with Smart BMS, achieving full power in 3–5 hours and delivering 2,000+ deep discharge cycles.
- High-Efficacy LED Output: Packed with 200 pcs high-efficiency SMD LEDs delivering powerful standard high-lumen output, ensuring bright and uniform nighttime perimeter visibility with Ra ≥ 80 true color preservation.
- 360° Omnidirectional Optics: Features an optical-grade UV-resistant PC diffuser engineered for symmetric 360° radial distribution and omnidirectional broad beam coverage, eliminating ground dark zones while suppressing harsh glare.
- CCT Options & Smart Control: Available in factory-preset 3000K Warm White or 6500K Cool White options, integrated with dusk-to-dawn light control supporting 10–12 hours nightly operation with 2–3 rainy days autonomy.
- Rugged IP65 & IK08 Housing: Constructed from corrosion-resistant sand black die-cast aluminum rated at IP65 weatherproof and IK08 impact resistance, functioning reliably across extreme ambient temperatures from −20°C–+60°C.
- Project Deployment & OEM/ODM: Ideal for tech parks, civic plazas, and commercial perimeters; fully customizable for bulk B2B engineering orders including bespoke battery capacities, housing colors, CCT profiles, and brand laser etching.
- All-Night Illumination
- All-Weather Proof
- Built for a Decade+
- Smart Adaptive Control
- Easy Plug & Play
- Low Lifetime Cost
- Certified Worldwide
- Reliable Supply & Delivery
The Galaxy Square UFO (GLCZ-2505) is an industrial-grade square solar post top light engineered for wide-area commercial illumination, site security, and architectural landscape integration. Built with a 580×580mm die-cast aluminum square geometry and an integrated 45W monocrystalline solar panel, this high-output luminaire fits standard Ø76mm (3.0″) pole tenons without underground cabling or grid infrastructure. As a flagship model within our broader Solar Courtyard & Garden Post-Top Lights collection, the GLCZ-2505 delivers zero-electricity, maintenance-free dusk-to-dawn lighting for modern municipal and commercial projects.
Key Differentiators
- 45W/60Ah Rapid-Charge System: Pairs a high-efficiency 5V/45W monocrystalline PV panel with a 3.2V/60Ah (192Wh) Grade-A LiFePO4 battery, achieving full charge in just 3–5 peak sun hours for rapid daily energy recovery.
- 580mm Square UFO Architecture: Utilizes a sleek 580×580mm square die-cast frame paired with an anti-glare optical PC diffuser to deliver symmetric 360° radial distribution across expansive ground perimeters.
- Heavy-Duty IP65 & IK08 Structure: Manufactured from corrosion-resistant die-cast aluminum with a durable sand black powder finish, offering IP65 dust-and-water protection and IK08 impact resistance across extreme ambient temperatures from −20°C to +60°C.
- Factory-Preset CCT Selection: Available in factory-configured 3000K Warm White or 6500K Cool White color temperatures to match specific architectural and landscape lighting standards.
Engineering Applications
- Commercial & Tech Parks: Provides wide-coverage perimeter, walkway, and main plaza illumination for corporate headquarters, industrial facilities, and technology hubs.
- Civic Plazas & Municipal Parks: Delivers uniform 360° nighttime visibility along public gathering spaces, pedestrian avenues, and town squares requiring reliable off-grid lighting.
- Educational & Institutional Campuses: Illuminates university walkways, sports complex perimeters, and parking boundaries without utility trenching costs or grid disruption risks.
Technical Logic
The GLCZ-2505 features an optimized power-to-storage ratio (45W PV : 192Wh Battery), ensuring rapid battery replenishment even during short daylight windows or cloudy seasons. Its intelligent Battery Management System (BMS) regulates charging and discharge profiles, supporting 10–12 hours of continuous dusk-to-dawn illumination with 2–3 days of rainy day autonomy. The heavy-duty die-cast aluminum enclosure acts as an integral thermal heat sink for the 200-piece SMD LED array, maintaining LED lumen efficacy and extending component longevity, making this square solar post top light an exceptionally reliable off-grid lighting asset.
Selection & Specification Guide

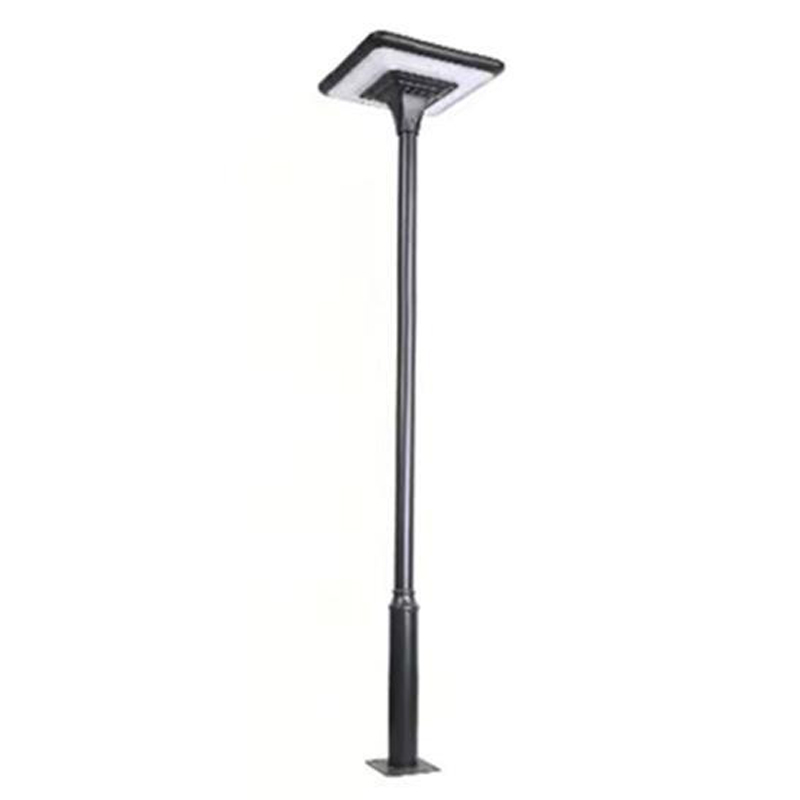

- Pole & Mounting Fitment: Designed for standard Ø76mm (3.0″) top pole tenons at recommended mounting heights between 3.0m and 5.0m (10ft–16ft).
- CCT & Ordering Options: Select desired color temperature (3000K Warm White or 6500K Cool White) upon order placement to align with project ambient requirements.
- OEM/ODM Customization: Supports bulk engineering customization including custom housing powder coatings, scalable battery/PV configurations, and laser-engraved corporate branding.
← Swipe horizontally to view details →
| Parameter | GLCZ-2505 |
|---|---|
| 🌞 Solar & Power System | |
| Solar Cell Type & Efficiency | A-Grade Monocrystalline Solar Cells (>21% Cell Efficiency) |
| PV Module Vmp & Rated Power | 5V (Vmp) / 45W Monocrystalline PV Panel |
| Battery Spec & Protection | 3.2V / 60Ah (192Wh) LiFePO4 with Smart BMS |
| Full Charge Time | 3–5 Hours (Under Standard Peak Sun Hours) |
| Operating Time & Autonomy | 10–12 Hours/Night (Dusk-to-Dawn) | 2–3 Rainy Days Backup |
| 💡 Lighting & Optical | |
| LED Package | High-Efficacy LED Array (200 pcs) |
| Total Luminous Flux Output | Standard High-Lumen Output |
| Color Temperature (CCT) | 3000K Warm White / 6500K Cool White |
| CRI | Ra ≥ 80 (True Color Preservation) |
| Light Distribution | Symmetric 360° Radial Distribution |
| Beam Angle | 360° Omnidirectional Broad Beam |
| 🏗️ Structure & Material | |
| Housing Materials | Heavy-Duty Die-Cast Aluminum Body + PC Diffuser (Sand Black) |
| Ingress Protection (IP Rating) | IP65 (Dust-tight & Water Jet Protected) |
| Impact Resistance (IK Rating) | IK08 (Vandal-Resistant Impact Rating) |
| Tenon / Pole Adapter Size | Fits Ø76mm (3.0″) Standard Pole Tenon |
| Recommended Mounting Height | 4.0–6.0 m (13–20 ft) |
| Product Dimensions (L × W × H) | 580 × 580 × 255 mm |
| Operating Temperature Range | −20°C–+60°C |
| 📦 Packaging & Compliance | |
| Carton / Packaging Dimensions | 585 × 585 × 330 mm (1 CTN) |
| Net / Gross Weight | NW: 9.20 kg | GW: 10.62 kg |
| Certifications & Standards | CE, RoHS, FCC, ISO 9001 |
| Warranty Period | 2-Year Limited Warranty — Extended Warranty Available |
| 💼 Commercial Terms | |
| Minimum Order Quantity (MOQ) | 30 pcs |
| Production Lead Time | 20–25 Calendar Days |
| Sample Availability | Sample Available (1–2 Units) |
| OEM/ODM Customization | Custom branding, custom CCT & housing colors, scalable battery capacities, and bespoke dimming profiles. |
Have specific technical or installation questions about this model? Contact our engineering team for support.
Engineered for Architectural Integration & Visual Comfort
Combining wide-area 360° optical diffusers, heavy-duty weatherproof housings, and smart MPPT battery management for seamless civic plaza & pole-mount integration.
Architectural Post-Top Forms
Designed for 2.5m–4.5m (8ft–15ft) pole installations, featuring UFO, Clover, and Chalice forms to complement modern architectural landscapes.
360° Symmetric Area Optics
Engineered with optical-grade PC diffusers delivering high-lumen 360° wide coverage while suppressing direct glare for pedestrians.
76mm / 89mm Tenon Fitment
Features a heavy-duty slip-fitter collar designed for tool-free mounting on standard 76mm (3.0") or 89mm (3.5") pole tenons without grid wiring.
IP65 & Wind-Resistant Housing
Constructed from corrosion-resistant die-cast aluminum with structural sealing and high wind-load endurance for elevated outdoor pole mounting.
Smart Dusk-to-Dawn Control
Integrated microwave/PIR sensors and optical sensors automatically adjust light output from dusk to dawn for maximum off-grid efficiency.
Adaptive Power & LiFePO4
Powered by high-efficiency mono PV panels and A-grade LiFePO4 batteries with intelligent power regulation for 3–5 continuous cloudy days.
Lumin Solar Solutions manufactures high-output post-top solar courtyard lights and pole-mounted garden luminaires for wide-area site illumination. Engineered with heavy-duty die-cast aluminum, wind-resistant structural design, and smart MPPT dusk-to-dawn energy management, these systems deliver reliable perimeter and plaza lighting without underground cabling. Fits industry-standard 60mm (2.375″) and 76mm (3″) mounting poles. Contact our engineering team for Dialux 3D layout simulations and IES files.
Applications & Scenarios
Thoughtfully designed to blend architectural aesthetics with wide-area site security, delivering high-efficiency, uniform illumination for public parks, civic plazas, university campuses, and resort courtyards.
Municipal Parks & Civic Plazas
Delivers 360° wide-angle illumination for open public plazas, municipal park avenues, and civic gathering spaces, ensuring uniform light distribution and nighttime safety without utility power.
Luxury Resort Courtyards & Hotel Grounds
Enhances hospitality aesthetics with warm, anti-glare architectural lighting mounted at 2.5m–3.5m heights, creating a welcoming ambient glow for resort courtyards, pool perimeters, and outdoor dining areas.
Park Avenues & Pedestrian Greenways
Provides continuous high-visibility overhead lighting along 3.0m–4.5m park corridors and greenways, featuring dusk-to-dawn smart power management to maximize off-grid battery autonomy.
Commercial Facilities & Residential Community Roads
Offers reliable, zero-electricity perimeter illumination for office parks, industrial facilities, and residential HOA roadways with robust 60mm/76mm tenon mount wind resistance.
Global Compliance & Engineering Quality
Seamless Project Approvals & Rapid Tender Compliance Worldwide
Accelerate municipal tender approvals and eliminate import clearance risks across 40+ countries. Our manufacturing facilities and product lines undergo rigorous third-party testing to comply with international infrastructure standards—including ISO 9001:2015 Quality Management System, CE (EMC & LVD), RoHS 2.0, FCC Part 15 Class B, and IEC 62722 / IEC 60598 photobiological safety specifications, along with UN38.3 lithium battery transport certification.
Illuminating Success Stories Worldwide
See Our Products Powering Projects Globally
SOLAR VS. GRID: TOTAL COST COMPARISON
Skip the Trenching. Eliminate Energy Bills.
Calculate your 5-year project ROI below and see how much your facility can save with Lumin Solar Solutions.
Private Project ROI Calculator
💡 Pro Tip: Switching to solar allows you to eliminate trenching costs and expensive cabling.
Traditional Grid vs. Lumin Solar Lighting Solutions Cost Analysis
| Project Cost Items (30 Units) | Traditional Grid | Lumin Solar Solutions |
|---|---|---|
| Trenching & Labor | $3,000 - $8,000 | $0 (No Digging) |
| Cabling & Wiring | $2,500 - $5,000 | $0 |
| Transformer/Switchgear | Essential Infrastructure Cost | Not Needed |
| Electricity Bill (Annual) | $1,500 - $2,500 | $0 (Free) |
| Installation Time | 7-14 Days | 1-2 Days |
| Total Hidden Costs | EXTREMELY HIGH | ZERO |
*Calculated based on average private industrial projects. Lumin Solar Solutions eliminates infrastructure overhead.
Why pay for copper wires and manual labor when you can invest that budget into high-quality solar technology?
Commercial & Ordering FAQ
Our standard Minimum Order Quantity (MOQ) is 50 units. We also fully support sample orders (1–5 units) for project evaluation, technical testing, and quality verification prior to bulk production.
We offer flexible international trade terms including FOB, CIF, EXW, and DDP (Delivered Duty Paid). Our DDP services cover 42+ countries to ensure seamless customs clearance and hassle-free door-to-door delivery.
We accept Wire Transfer (T/T) and Letter of Credit (L/C).
The standard lead time for mass production is 30 calendar days, calculated from the date your deposit is received. For customized OEM/ODM projects or specialized technical requirements, the delivery schedule will be mutually confirmed during contract review.
Yes, absolutely. We offer complete OEM/ODM solutions, including custom logo/branding, custom housing finishes, specialized lumen/wattage outputs, tailored optical spectrums, and smart controller lighting profiles.
We provide comprehensive warranty coverage across all system components: 2-year warranty for the LED luminaire and LiFePO4 battery, 8-year warranty for monocrystalline solar panels, and 10-year warranty for lighting poles. (Please refer to our product catalog for itemized terms).
We provide worldwide shipping via sea freight, air freight, and express courier. Our dedicated logistics team manages export documentation, compliance checks, and end-to-end cargo tracking to ensure safe delivery to your site or port.
Simply click the “Inquire Now” button or contact our sales department with your order details. Our sales engineers will review your project requirements and issue an official Proforma Invoice (PI) promptly.
