Galaxy Radiant Wheel 66W Panel Solar Garden Post Lights – 6-Head Commercial (GLCZ-5106)
Galaxy Radiant Wheel 66W Panel Solar Garden Post Lights – 6-Head Commercial (GLCZ-5106)
- Radiant Wheel Architecture: Featuring a 1.26m wide six-head radiant wheel frame, this Solar Courtyard & Garden Post-Top Lights fixture serves as a heavy-duty commercial solar post top light fitting Ø89mm (3.5″) pole tenons.
- 66W/80Ah Heavy Storage: Integrates a 5V/66W monocrystalline PV panel and a high-capacity 3.2V/80Ah (256Wh) Grade-A LiFePO4 battery with Smart BMS, achieving full charge in 3–5 hours with 2,000+ deep cycles.
- Six-Head High Efficacy: Engineered with high-efficacy SMD LED arrays distributed across 6 radiant heads, delivering high-lux standard output with Ra ≥ 80 true color rendering and long-term lumen retention.
- 360° Omnidirectional Optics: Equipped with precision optical lenses across all six heads, projecting symmetric 360° radial distribution and broad horizontal coverage while eliminating perimeter dark spots and glare.
- CCT Options & Smart Control: Available in factory-preset 3000K Warm White or 6500K Cool White options upon order, integrated with dusk-to-dawn light control supporting 10–12 hours nightly operation with 2–3 rainy days autonomy.
- Heavy-Duty IP65 & IK08 Structure: Built with a die-cast aluminum housing in sand grey or sand black, delivering IP65 weatherproof sealing and IK08 impact resistance across extreme outdoor temperatures from −20°C–+60°C.
- Civic Deployment & OEM/ODM: Optimized for major park corridors, civic plazas, and municipal avenues; fully customizable for B2B engineering projects including custom battery sizing, housing powder finishes, and branding.
- All-Night Illumination
- All-Weather Proof
- Built for a Decade+
- Smart Adaptive Control
- Easy Plug & Play
- Low Lifetime Cost
- Certified Worldwide
- Reliable Supply & Delivery
The Galaxy Radiant Wheel (GLCZ-5106) is a heavy-duty commercial solar post top light engineered for major park corridors, civic plazas, and municipal thoroughfares requiring wide-radius, zero-dark-spot illumination. Featuring a 1.26m wide six-head radiant wheel frame, a heavy-duty die-cast aluminum housing, and an integrated 66W monocrystalline PV panel, this luminaire mounts onto standard Ø89mm (3.5″) heavy pole tenons without requiring subterranean trenching. Positioned as a premier wide-span fixture within our broader Solar Courtyard & Garden Post-Top Lights portfolio, the GLCZ-5106 combines 360° omnidirectional radial distribution with reliable off-grid energy storage.
Key Differentiators
- 1.26m Radiant Wheel Architecture: Features a 1260mm span die-cast aluminum frame with six radial light heads designed to maximize ground-level lux coverage and ensure structural stability under high wind loads.
- 66W/80Ah Heavy Storage System: Integrates a high-efficiency 5V/66W monocrystalline PV panel with an 80Ah (256Wh) Grade-A LiFePO4 battery and Smart BMS, achieving complete recovery in 3–5 peak sun hours.
- 360° Omnidirectional Optics: Equipped with precision optical lenses across all six heads, delivering symmetric 360° radial distribution that eliminates peripheral shadows and reduces glare.
- Factory-Preset CCT Selection: Available in factory-configured 3000K Warm White or 6500K Cool White options upon order placement to align with specific architectural and municipal requirements.
Engineering Applications
- Civic Plazas & Town Squares: Delivers broad, high-lux 360° radial coverage across wide pedestrian gathering zones, civic centers, and public courtyards.
- Major Park Corridors & Pathways: Eliminates blind spots along primary park arteries, footpaths, perimeter walkways, and commercial campus boulevards.
- Resort Entrances & Intersections: Serves as a prominent visual landmark while providing dusk-to-dawn safety lighting for hotel drop-off zones, gated community roundabouts, and municipal avenues.
Technical Logic
The GLCZ-5106 utilizes an engineered power-to-storage ratio (66W PV : 256Wh LiFePO4 battery), enabling rapid 3–5 hour solar energy replenishment while sustaining continuous 10–12 hours of nightly dusk-to-dawn operation with 2–3 rainy days autonomy. The six individual radial heads act as dedicated thermal dissipation channels, transferring heat away from the SMD LED arrays and internal Smart BMS to maintain optical efficiency and prolong battery lifespan. This thermal-optical balance makes this commercial solar post top light a highly dependable off-grid lighting solution across outdoor temperatures ranging from −20°C to +60°C.
Selection & Specification Guide
- Pole Tenon & Mounting Fitment: Designed for standard Ø89mm (3.5″) heavy-duty top pole tenons at recommended installation heights between 3.5m and 5.5m (11ft–18ft).
- CCT Ordering Options: Select desired color temperature (3000K Warm White for warm landscape ambiance or 6500K Cool White for high-contrast security lighting) upon order placement.
- OEM/ODM Customization: Supports engineering-level modifications including custom powder-coat finishes (Sand Grey / Sand Black), battery capacity scaling, and laser-engraved corporate branding.
← Swipe horizontally to view details →
| Parameter | GLCZ-5106 |
|---|---|
| 🌞 Solar & Power System | |
| Solar Cell Type & Efficiency | A-Grade Monocrystalline Solar Cells (>21% Cell Efficiency) |
| PV Module Vmp & Rated Power | 5 V (Vmp) / 66 W Monocrystalline PV Panel |
| Battery Spec & Protection | 3.2 V / 80 Ah (256 Wh) LiFePO4 with Smart BMS |
| Full Charge Time | 3–5 hours (Under Standard Peak Sun Hours) |
| Operating Time & Autonomy | 10–12 hours/night (Dusk-to-Dawn) | 2–3 Rainy Days Backup |
| 💡 Lighting & Optical | |
| LED Package | High-Efficacy LED Array (360 pcs) |
| Luminous Flux / Output | Standard High-Lumen Output |
| Color Temperature (CCT) | 3000K Warm White / 6500K Cool White |
| Color Rendering Index (CRI) | Ra ≥ 80 (True Color Preservation) |
| Light Distribution | Symmetric 360° Multi-Head Radial Distribution |
| Beam Angle | 360° Horizontal Omnidirectional × 120° Downward Beam |
| 🏗️ Structure & Material | |
| Housing Materials | Heavy-Duty Die-Cast Aluminum Body + Optical PC Lens (Sand Grey / Sand Black) |
| Ingress Protection (IP Rating) | IP65 (Dust-Tight & Water-Jet Protected) |
| Impact Resistance (IK Rating) | IK08 (Vandal-Resistant Impact Rating) |
| Tenon / Pole Adapter Size | Fits Ø89 mm (3.5″) Heavy Pole Tenon |
| Recommended Mounting Height | 4.0–8.0 m (13–26 ft) |

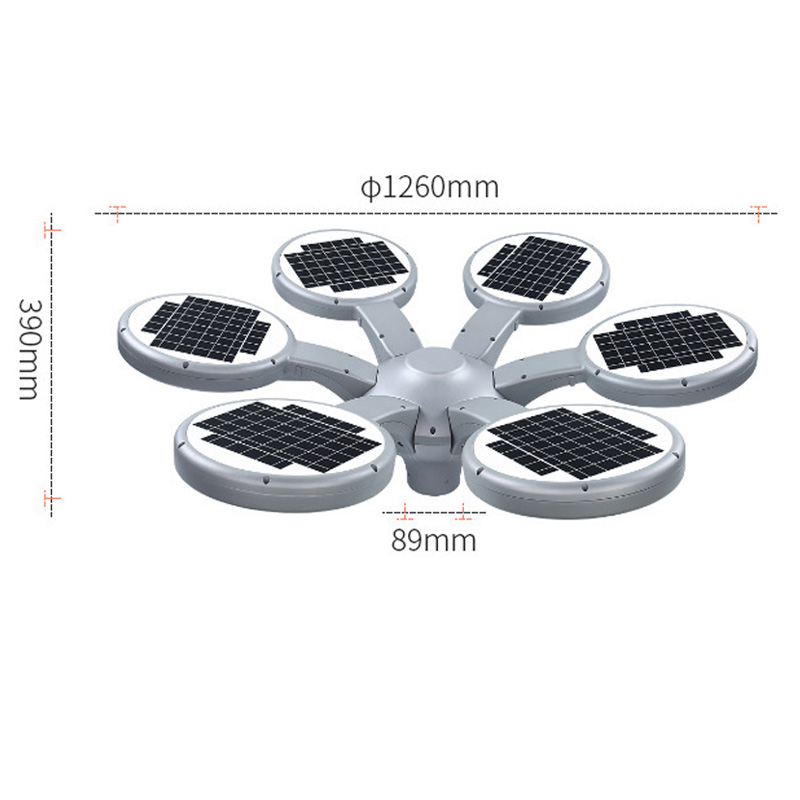

| Product Dimensions | Φ1,260 mm × H390 mm |
| Operating Temperature Range | −20 °C–+60 °C |
| 📦 Packaging & Compliance | |
| Carton / Packaging Dimensions | Petal CTN: 610 × 370 × 415 mm | Center Hub CTN: 390 × 390 × 370 mm (2 CTNs) |
| Net / Gross Weight | NW: 14.50 kg | GW: 16.80 kg (Combined 2 CTNs) |
| Certifications & Standards | CE, RoHS, FCC, ISO 9001 |
| Warranty Period | 2-Year Limited Warranty — Extended Warranty Available |
| 💼 Commercial Terms | |
| Minimum Order Quantity (MOQ) | 30 pcs |
| Production Lead Time | 20–25 calendar days |
| Sample Availability | Sample Available (1–2 Units) |
| OEM/ODM Customization | Custom branding, custom CCT & housing colors, scalable battery capacities, and bespoke dimming profiles. |
Have specific technical or installation questions about this model? Contact our engineering team for support.
Engineered for Architectural Integration & Visual Comfort
Combining wide-area 360° optical diffusers, heavy-duty weatherproof housings, and smart MPPT battery management for seamless civic plaza & pole-mount integration.
Architectural Post-Top Forms
Designed for 2.5m–4.5m (8ft–15ft) pole installations, featuring UFO, Clover, and Chalice forms to complement modern architectural landscapes.
360° Symmetric Area Optics
Engineered with optical-grade PC diffusers delivering high-lumen 360° wide coverage while suppressing direct glare for pedestrians.
76mm / 89mm Tenon Fitment
Features a heavy-duty slip-fitter collar designed for tool-free mounting on standard 76mm (3.0") or 89mm (3.5") pole tenons without grid wiring.
IP65 & Wind-Resistant Housing
Constructed from corrosion-resistant die-cast aluminum with structural sealing and high wind-load endurance for elevated outdoor pole mounting.
Smart Dusk-to-Dawn Control
Integrated microwave/PIR sensors and optical sensors automatically adjust light output from dusk to dawn for maximum off-grid efficiency.
Adaptive Power & LiFePO4
Powered by high-efficiency mono PV panels and A-grade LiFePO4 batteries with intelligent power regulation for 3–5 continuous cloudy days.
Lumin Solar Solutions manufactures high-output post-top solar courtyard lights and pole-mounted garden luminaires for wide-area site illumination. Engineered with heavy-duty die-cast aluminum, wind-resistant structural design, and smart MPPT dusk-to-dawn energy management, these systems deliver reliable perimeter and plaza lighting without underground cabling. Fits industry-standard 60mm (2.375″) and 76mm (3″) mounting poles. Contact our engineering team for Dialux 3D layout simulations and IES files.
Applications & Scenarios
Thoughtfully designed to blend architectural aesthetics with wide-area site security, delivering high-efficiency, uniform illumination for public parks, civic plazas, university campuses, and resort courtyards.
Municipal Parks & Civic Plazas
Delivers 360° wide-angle illumination for open public plazas, municipal park avenues, and civic gathering spaces, ensuring uniform light distribution and nighttime safety without utility power.
Luxury Resort Courtyards & Hotel Grounds
Enhances hospitality aesthetics with warm, anti-glare architectural lighting mounted at 2.5m–3.5m heights, creating a welcoming ambient glow for resort courtyards, pool perimeters, and outdoor dining areas.
Park Avenues & Pedestrian Greenways
Provides continuous high-visibility overhead lighting along 3.0m–4.5m park corridors and greenways, featuring dusk-to-dawn smart power management to maximize off-grid battery autonomy.
Commercial Facilities & Residential Community Roads
Offers reliable, zero-electricity perimeter illumination for office parks, industrial facilities, and residential HOA roadways with robust 60mm/76mm tenon mount wind resistance.
Global Compliance & Engineering Quality
Seamless Project Approvals & Rapid Tender Compliance Worldwide
Accelerate municipal tender approvals and eliminate import clearance risks across 40+ countries. Our manufacturing facilities and product lines undergo rigorous third-party testing to comply with international infrastructure standards—including ISO 9001:2015 Quality Management System, CE (EMC & LVD), RoHS 2.0, FCC Part 15 Class B, and IEC 62722 / IEC 60598 photobiological safety specifications, along with UN38.3 lithium battery transport certification.
Illuminating Success Stories Worldwide
See Our Products Powering Projects Globally
SOLAR VS. GRID: TOTAL COST COMPARISON
Skip the Trenching. Eliminate Energy Bills.
Calculate your 5-year project ROI below and see how much your facility can save with Lumin Solar Solutions.
Private Project ROI Calculator
💡 Pro Tip: Switching to solar allows you to eliminate trenching costs and expensive cabling.
Traditional Grid vs. Lumin Solar Lighting Solutions Cost Analysis
| Project Cost Items (30 Units) | Traditional Grid | Lumin Solar Solutions |
|---|---|---|
| Trenching & Labor | $3,000 - $8,000 | $0 (No Digging) |
| Cabling & Wiring | $2,500 - $5,000 | $0 |
| Transformer/Switchgear | Essential Infrastructure Cost | Not Needed |
| Electricity Bill (Annual) | $1,500 - $2,500 | $0 (Free) |
| Installation Time | 7-14 Days | 1-2 Days |
| Total Hidden Costs | EXTREMELY HIGH | ZERO |
*Calculated based on average private industrial projects. Lumin Solar Solutions eliminates infrastructure overhead.
Why pay for copper wires and manual labor when you can invest that budget into high-quality solar technology?
Commercial & Ordering FAQ
Our standard Minimum Order Quantity (MOQ) is 50 units. We also fully support sample orders (1–5 units) for project evaluation, technical testing, and quality verification prior to bulk production.
We offer flexible international trade terms including FOB, CIF, EXW, and DDP (Delivered Duty Paid). Our DDP services cover 42+ countries to ensure seamless customs clearance and hassle-free door-to-door delivery.
We accept Wire Transfer (T/T) and Letter of Credit (L/C).
The standard lead time for mass production is 30 calendar days, calculated from the date your deposit is received. For customized OEM/ODM projects or specialized technical requirements, the delivery schedule will be mutually confirmed during contract review.
Yes, absolutely. We offer complete OEM/ODM solutions, including custom logo/branding, custom housing finishes, specialized lumen/wattage outputs, tailored optical spectrums, and smart controller lighting profiles.
We provide comprehensive warranty coverage across all system components: 2-year warranty for the LED luminaire and LiFePO4 battery, 8-year warranty for monocrystalline solar panels, and 10-year warranty for lighting poles. (Please refer to our product catalog for itemized terms).
We provide worldwide shipping via sea freight, air freight, and express courier. Our dedicated logistics team manages export documentation, compliance checks, and end-to-end cargo tracking to ensure safe delivery to your site or port.
Simply click the “Inquire Now” button or contact our sales department with your order details. Our sales engineers will review your project requirements and issue an official Proforma Invoice (PI) promptly.
