COMMERCIAL & ARCHITECTURAL SOLAR COURTYARD & POST-TOP LUMINAIRES

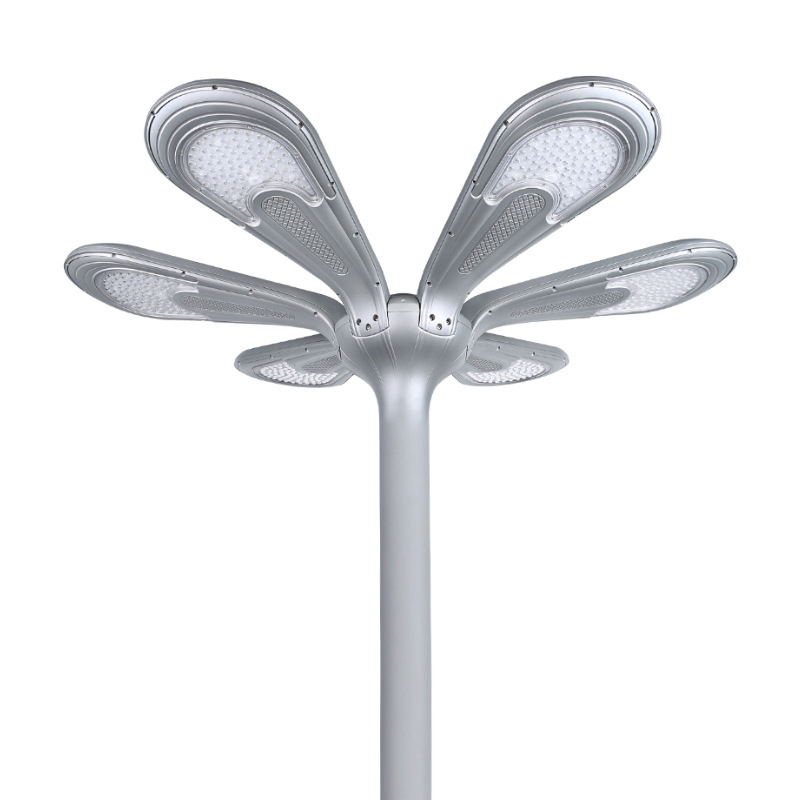

Galaxy Lily 96W Panel Solar Post-Top Lights – 6-Head Decorative (GLCZ-5105)
Galaxy Lily 96W Panel Solar Post-Top Lights – 6-Head Decorative (GLCZ-5105)
- Six-Head Lily Geometry: Featuring a 1.66m wide organic sculptural frame, this commercial Solar Courtyard & Garden Post-Top Lights fixture serves as a flagship 6 head solar post top light fitting Ø89mm (3.5″) heavy pole tenons.
- 96W/120Ah Flagship Capacity: Integrates a 5V/96W monocrystalline PV panel and a massive 3.2V/120Ah (384Wh) Grade-A LiFePO4 battery with Smart BMS, achieving full charge in 3–5 hours with 2,000+ deep cycles.
- 480 Philips Lumileds LEDs: Powered by 480 pcs Philips Lumileds SMD2835 LEDs configured across a 6-head array, delivering powerful standard high-lumen output and true-to-life color preservation with Ra ≥ 80.
- 360° Omnidirectional Optics: Equipped with optical-grade PC diffusers across all 6 light heads, projecting symmetric 360° radial distribution and broad horizontal coverage while eliminating perimeter glare and dark spots.
- CCT Options & Smart Control: Available in factory-preset 3000K Warm White or 6500K Cool White options upon order, integrated with dusk-to-dawn light control supporting 10–12 hours nightly operation with 2–3 rainy days autonomy.
- Heavy-Duty IP65 & IK08 Structure: Built with a heavy-duty die-cast aluminum body finished in sand black or sand grey, delivering IP65 weatherproof sealing and IK08 impact resistance across −20°C–+60°C operating conditions.
- Civic Deployment & OEM/ODM: Ideal for landmark civic plazas, luxury resort entrances, and municipal avenues; fully customizable for volume B2B engineering projects including custom battery sizing, housing finishes, and branding.
- All-Night Illumination
- All-Weather Proof
- Built for a Decade+
- Smart Adaptive Control
- Easy Plug & Play
- Low Lifetime Cost
- Certified Worldwide
- Reliable Supply & Delivery
The Galaxy Lily (GLCZ-5105) is an architectural-grade 6 head solar post top light engineered for high-lux civic plazas, luxury resort entrances, and municipal landmarks. Built with a 1.66m wide organic six-head lily structure, a heavy-duty die-cast aluminum frame, and an integrated 96W monocrystalline PV panel, this flagship luminaire fits standard Ø89mm (3.5″) heavy pole tenons without requiring grid infrastructure or subterranean trenching. Positioned as a premier sculptural fixture within our broader Solar Courtyard & Garden Post-Top Lights portfolio, the GLCZ-5105 combines 360° omnidirectional illumination with landmark visual appeal.
Key Differentiators
- 96W/120Ah Flagship Storage: Pairs a high-efficiency 5V/96W monocrystalline PV panel with a massive 3.2V/120Ah (384Wh) Grade-A LiFePO4 battery managed by Smart BMS, achieving full recovery in 3–5 peak sun hours.
- 480 Philips Lumileds Array: Powered by 480 high-efficacy Philips Lumileds SMD2835 LEDs distributed across six organic heads, delivering glare-free, uniform perimeter visibility with Ra ≥ 80 true color preservation.
- 1.66m Sculptural Lily Architecture: Features a 1660mm span die-cast aluminum housing engineered with heavy-duty Ø89mm tenon mounting for maximum structural stability against high wind loads.
- Factory-Preset CCT Selection: Available in factory-configured 3000K Warm White or 6500K Cool White options upon order placement to align with specific architectural and municipal requirements.
Engineering Applications
- Civic Landmarks & Town Squares: Delivers high-lux 360° radial distribution and sculptural elegance for public gathering spaces, civic centers, and municipal plazas.
- Luxury Resort Entrances & Roundabouts: Serves as a landmark visual centerpiece for hospitality drop-off zones, hotel perimeters, and exclusive gated community boulevards.
- Commercial Avenues & Campuses: Provides zero-electricity, maintenance-free dusk-to-dawn security lighting for corporate headquarters, university campuses, and exhibition complexes.
Technical Logic
The GLCZ-5105 utilizes an engineered power-to-storage ratio (96W PV : 384Wh LiFePO4 battery), enabling rapid 3–5 hour battery replenishment while maintaining continuous 10–12 hour nightly operation with 2–3 rainy days autonomy. The six individual light heads function as dedicated thermal heat sinks, efficiently dissipating thermal load away from the 480-LED array and Smart BMS to preserve lumen efficacy and extend battery cycle life. This thermal-optical synergy makes this 6 head solar post top light a highly reliable off-grid lighting asset for harsh outdoor environments.
Selection & Specification Guide
- Pole Tenon & Mounting Fitment: Designed for standard Ø89mm (3.5″) heavy-duty top pole tenons at recommended mounting heights between 4.0m and 6.0m (13ft–20ft).
- CCT Ordering Options: Select desired color temperature (3000K Warm White for warm landscape ambiance or 6500K Cool White for high-visibility perimeter security) upon order placement.
- OEM/ODM Customization: Supports engineering-level modifications including custom powder-coat finishes (Sand Black / Sand Grey), scaled battery capacities, and laser-engraved corporate branding.
← Swipe horizontally to view details →
| Parameter | GLCZ-5105 |
|---|---|
| 🌞 Solar & Power System | |
| Solar Cell Type & Efficiency | A-Grade Monocrystalline Solar Cells (>21% Cell Efficiency) |
| PV Module Vmp & Rated Power | 5 V (Vmp) / 96 W Monocrystalline PV Panel |
| Battery Type & BMS Protection | 3.2 V / 120 Ah (384 Wh) LiFePO4 with Smart BMS |
| Full Charge Time | 3–5 hours (Under Standard Peak Sun Hours) |
| Operating Time & Autonomy | 10–12 hours/night (Dusk-to-Dawn) | 2–3 Rainy Days Backup |
| 💡 Lighting & Optical | |
| LED Package | Philips Lumileds SMD2835 (480 pcs) |
| Total Luminous Flux | Standard High-Lumen Output (6-Head Decorative Array) |
| Color Temperature (CCT) | 3000 K Warm White / 6500 K Cool White |
| Color Rendering Index (CRI) | Ra ≥ 80 (True Color Preservation) |
| Light Distribution | Symmetric 360° Radial Distribution |
| Beam Angle | 360° Horizontal Omnidirectional Beam |
| 🏗️ Structure & Material | |
| Housing Materials | Heavy-Duty Die-Cast Aluminum Housing + PC Diffuser (Sand Black / Sand Grey) |
| Ingress Protection (IP Rating) | IP65 (Dust-Tight & Water-Jet Protected) |
| Impact Resistance (IK Rating) | IK08 (Vandal-Resistant Impact Rating) |
| Tenon / Pole Adapter Size | Fits Ø89 mm (3.5″) Heavy Pole Tenon |
| Recommended Mounting Height | 6.0–10.0 m (20–33 ft) |
| Fixture Dimensions / Diameter | Φ1,660 mm × H435 mm |
| Operating Temperature Range | −20 °C–+60 °C (−4 °F–+140 °F) |
| 📦 Packaging & Compliance | |
| Carton / Packaging Dimensions | Leaves: 830 × 360 × 400 mm (2 CTNs) | Hub Base: 390 × 390 × 370 mm (1 CTN) |
| Net / Gross Weight | NW: 29.06 kg | GW: 32.05 kg |
| Certifications & Standards | CE, RoHS, FCC, ISO 9001 |
| Warranty Period | 2-Year Limited Warranty — Extended Warranty Available |
| 💼 Commercial Terms | |
| Minimum Order Quantity (MOQ) | 30 pcs |
| Production Lead Time | 20–25 calendar days |
| Sample Availability | Sample Available (1–2 Units) |
| OEM/ODM Customization | Custom branding, custom CCT & housing colors, scalable battery capacities, and bespoke dimming profiles. |
Have specific technical or installation questions about this model? Contact our engineering team for support.
Engineered for Architectural Integration & Visual Comfort
Combining wide-area 360° optical diffusers, heavy-duty weatherproof housings, and smart MPPT battery management for seamless civic plaza & pole-mount integration.
Architectural Post-Top Forms
Designed for 2.5m–4.5m (8ft–15ft) pole installations, featuring UFO, Clover, and Chalice forms to complement modern architectural landscapes.
360° Symmetric Area Optics
Engineered with optical-grade PC diffusers delivering high-lumen 360° wide coverage while suppressing direct glare for pedestrians.
76mm / 89mm Tenon Fitment
Features a heavy-duty slip-fitter collar designed for tool-free mounting on standard 76mm (3.0") or 89mm (3.5") pole tenons without grid wiring.
IP65 & Wind-Resistant Housing
Constructed from corrosion-resistant die-cast aluminum with structural sealing and high wind-load endurance for elevated outdoor pole mounting.
Smart Dusk-to-Dawn Control
Integrated microwave/PIR sensors and optical sensors automatically adjust light output from dusk to dawn for maximum off-grid efficiency.
Adaptive Power & LiFePO4
Powered by high-efficiency mono PV panels and A-grade LiFePO4 batteries with intelligent power regulation for 3–5 continuous cloudy days.
Lumin Solar Solutions manufactures high-output post-top solar courtyard lights and pole-mounted garden luminaires for wide-area site illumination. Engineered with heavy-duty die-cast aluminum, wind-resistant structural design, and smart MPPT dusk-to-dawn energy management, these systems deliver reliable perimeter and plaza lighting without underground cabling. Fits industry-standard 60mm (2.375″) and 76mm (3″) mounting poles. Contact our engineering team for Dialux 3D layout simulations and IES files.
Applications & Scenarios
Thoughtfully designed to blend architectural aesthetics with wide-area site security, delivering high-efficiency, uniform illumination for public parks, civic plazas, university campuses, and resort courtyards.
Municipal Parks & Civic Plazas
Delivers 360° wide-angle illumination for open public plazas, municipal park avenues, and civic gathering spaces, ensuring uniform light distribution and nighttime safety without utility power.
Luxury Resort Courtyards & Hotel Grounds
Enhances hospitality aesthetics with warm, anti-glare architectural lighting mounted at 2.5m–3.5m heights, creating a welcoming ambient glow for resort courtyards, pool perimeters, and outdoor dining areas.
Park Avenues & Pedestrian Greenways
Provides continuous high-visibility overhead lighting along 3.0m–4.5m park corridors and greenways, featuring dusk-to-dawn smart power management to maximize off-grid battery autonomy.
Commercial Facilities & Residential Community Roads
Offers reliable, zero-electricity perimeter illumination for office parks, industrial facilities, and residential HOA roadways with robust 60mm/76mm tenon mount wind resistance.
Global Compliance & Engineering Quality
Seamless Project Approvals & Rapid Tender Compliance Worldwide
Accelerate municipal tender approvals and eliminate import clearance risks across 40+ countries. Our manufacturing facilities and product lines undergo rigorous third-party testing to comply with international infrastructure standards—including ISO 9001:2015 Quality Management System, CE (EMC & LVD), RoHS 2.0, FCC Part 15 Class B, and IEC 62722 / IEC 60598 photobiological safety specifications, along with UN38.3 lithium battery transport certification.

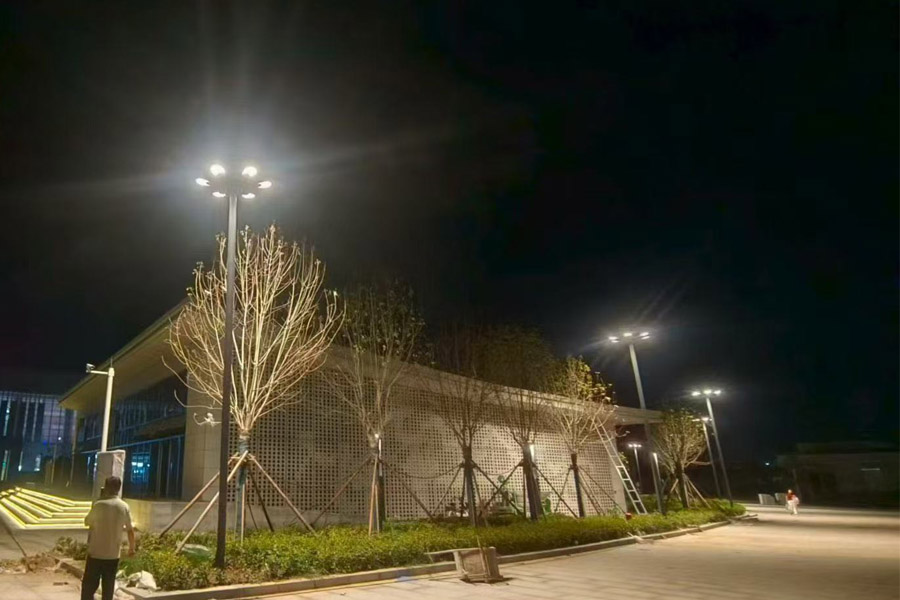

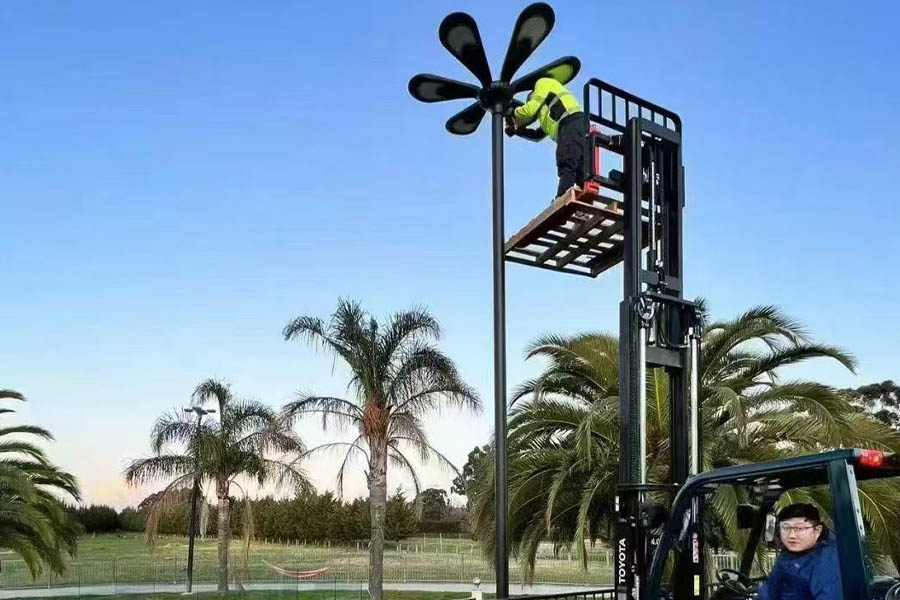

Illuminating Success Stories Worldwide
See Our Products Powering Projects Globally
SOLAR VS. GRID: TOTAL COST COMPARISON
Skip the Trenching. Eliminate Energy Bills.
Calculate your 5-year project ROI below and see how much your facility can save with Lumin Solar Solutions.
Private Project ROI Calculator
💡 Pro Tip: Switching to solar allows you to eliminate trenching costs and expensive cabling.
Traditional Grid vs. Lumin Solar Lighting Solutions Cost Analysis
| Project Cost Items (30 Units) | Traditional Grid | Lumin Solar Solutions |
|---|---|---|
| Trenching & Labor | $3,000 - $8,000 | $0 (No Digging) |
| Cabling & Wiring | $2,500 - $5,000 | $0 |
| Transformer/Switchgear | Essential Infrastructure Cost | Not Needed |
| Electricity Bill (Annual) | $1,500 - $2,500 | $0 (Free) |
| Installation Time | 7-14 Days | 1-2 Days |
| Total Hidden Costs | EXTREMELY HIGH | ZERO |
*Calculated based on average private industrial projects. Lumin Solar Solutions eliminates infrastructure overhead.
Why pay for copper wires and manual labor when you can invest that budget into high-quality solar technology?
Commercial & Ordering FAQ
Our standard Minimum Order Quantity (MOQ) is 50 units. We also fully support sample orders (1–5 units) for project evaluation, technical testing, and quality verification prior to bulk production.
We offer flexible international trade terms including FOB, CIF, EXW, and DDP (Delivered Duty Paid). Our DDP services cover 42+ countries to ensure seamless customs clearance and hassle-free door-to-door delivery.
We accept Wire Transfer (T/T) and Letter of Credit (L/C).
The standard lead time for mass production is 30 calendar days, calculated from the date your deposit is received. For customized OEM/ODM projects or specialized technical requirements, the delivery schedule will be mutually confirmed during contract review.
Yes, absolutely. We offer complete OEM/ODM solutions, including custom logo/branding, custom housing finishes, specialized lumen/wattage outputs, tailored optical spectrums, and smart controller lighting profiles.
We provide comprehensive warranty coverage across all system components: 2-year warranty for the LED luminaire and LiFePO4 battery, 8-year warranty for monocrystalline solar panels, and 10-year warranty for lighting poles. (Please refer to our product catalog for itemized terms).
We provide worldwide shipping via sea freight, air freight, and express courier. Our dedicated logistics team manages export documentation, compliance checks, and end-to-end cargo tracking to ensure safe delivery to your site or port.
Simply click the “Inquire Now” button or contact our sales department with your order details. Our sales engineers will review your project requirements and issue an official Proforma Invoice (PI) promptly.
