COMMERCIAL & ARCHITECTURAL SOLAR COURTYARD & POST-TOP LUMINAIRES
Galaxy Jasmine 25W Panel Solar Garden Post Lights – Floral Design (GLCZ-1104)
Galaxy Jasmine 25W Panel Solar Garden Post Lights – Floral Design (GLCZ-1104)
- Jasmine Floral Geometry: Featuring a 54cm jasmine floral aesthetic body, this Solar Courtyard & Garden Post-Top Lights luminaire serves as an elegant floral solar garden light fitting Ø76mm (3.0″) pole tenons.
- 25W/30Ah Solar System: Integrates a 5V/25W monocrystalline PV panel and a 3.2V/30Ah (96Wh) Grade-A LiFePO4 battery with Smart BMS, achieving full charge in 3–5 hours with 2,000+ deep cycle longevity.
- 30W High-Power LED: Driven by a 30W high-power SMD LED array integrated within the floral head, delivering high-efficacy lumen output with true-to-life color rendering performance of Ra ≥ 80.
- 360° Omnidirectional Optics: Equipped with an anti-UV optical PC diffuser surrounding the LED module, projecting symmetric 360° radial distribution and glare-free horizontal lighting to maximize perimeter walkway safety.
- CCT Options & Control: Available in factory-preset 3000K Warm White or 6500K Cool White options upon order, integrated with dusk-to-dawn light control supporting 10–12 hours nightly operation with 2–3 rainy days autonomy.
- Heavy-Duty IP65 Protection: Constructed with a die-cast aluminum housing in sand black or sand grey finish, delivering IP65 weatherproof sealing and IK08 impact resistance across operating temperatures from −20°C–+50°C.
- Greenway Deployment & OEM: Ideal for botanical parks, community greenways, and residential landscape belts; fully customizable for B2B engineering projects including custom battery capacities, housing finishes, and corporate branding.
- All-Night Illumination
- All-Weather Proof
- Built for a Decade+
- Smart Adaptive Control
- Easy Plug & Play
- Low Lifetime Cost
- Certified Worldwide
- Reliable Supply & Delivery
The Galaxy Jasmine (GLCZ-1104) is an architectural-grade floral solar garden light designed for botanical parks, public greenways, and residential landscape corridors that demand a blend of organic aesthetics and reliable illumination. Featuring a 54cm jasmine floral body, heavy-duty die-cast aluminum housing available in sand black or sand grey finishes, and an integrated 25W monocrystalline PV panel, this luminaire mounts onto standard Ø76mm (3.0″) pole tenons without complex trenching or grid wiring. Positioned as an eco-efficient fixture within our broader Solar Courtyard & Garden Post-Top Lights portfolio, the GLCZ-1104 delivers balanced 360° omnidirectional pathway lighting for outdoor public and commercial grounds.
Key Differentiators
- 54cm Jasmine Floral Profile: Sculptural die-cast aluminum housing with a 54cm floral span, offered in dual powder-coat finishes (Sand Black / Sand Grey) to blend into natural landscapes.
- 25W/30Ah Solar Storage System: Integrates a high-efficiency 5V/25W monocrystalline solar panel with a 3.2V/30Ah (96Wh) Grade-A LiFePO4 battery and Smart BMS for 2,000+ deep cycles.
- 30W Optical PC Diffuser Module: Drives a 30W high-power SMD LED array encased in an anti-UV optical PC diffuser, projecting 360° symmetric radial distribution with Ra ≥ 80 color rendering.
- Factory-Preset CCT Selection: Available in factory-configured 3000K Warm White or 6500K Cool White options upon order placement to match tailored architectural illumination schemes.
Engineering Applications

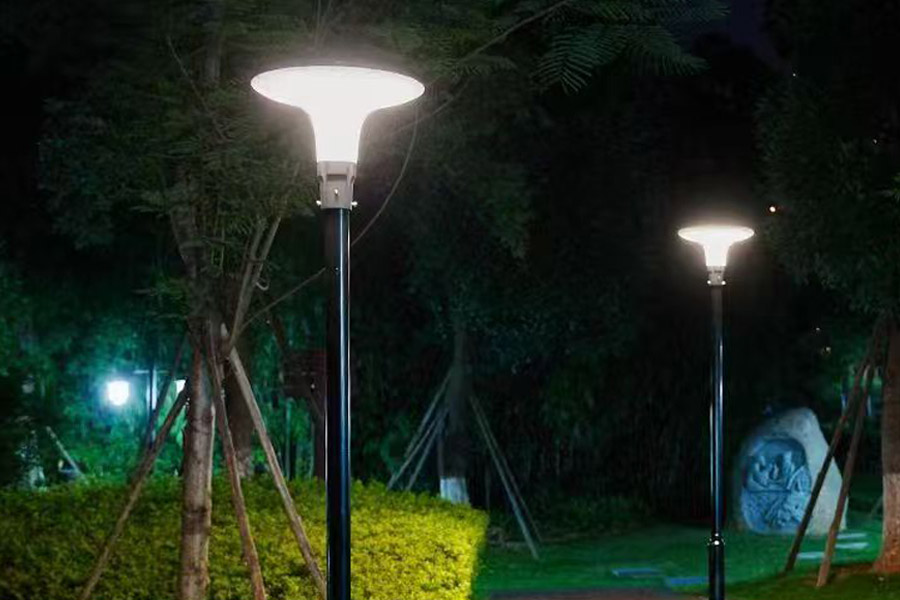

- Botanical Parks & Public Gardens: Harmonizes visually with surrounding flora while delivering glare-free 360° visual guidance along public footpaths.
- Community Greenways & Jogging Paths: Provides uniform dusk-to-dawn safety illumination along pedestrian corridors, linear parks, and recreational walkways.

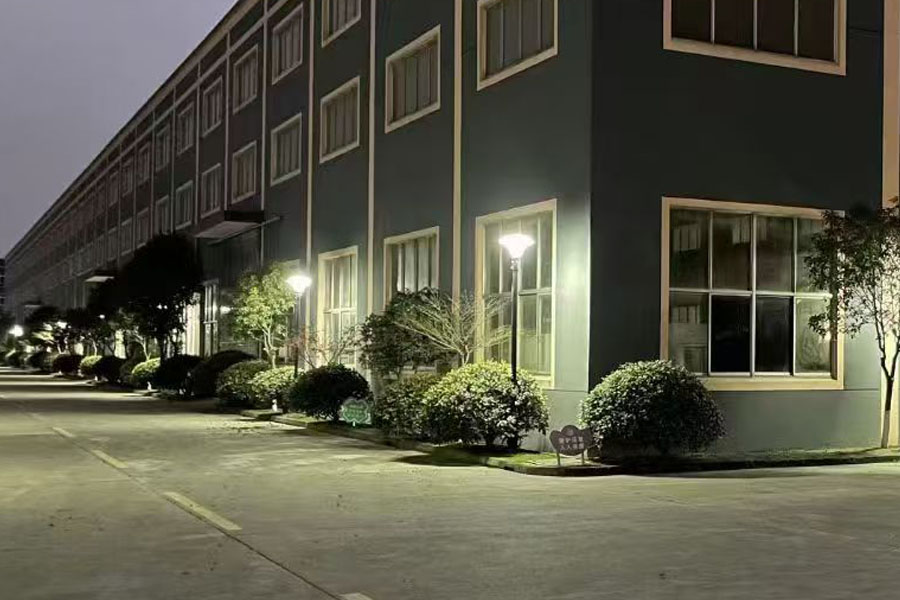

- Residential Landscape Belts: Elevates neighborhood entryways, perimeter courtyards, and suburban boulevard paths with low-glare accent lighting.
Technical Logic
The GLCZ-1104 utilizes an optimized power ratio between its 25W monocrystalline panel and 96Wh LiFePO4 battery storage, allowing rapid 3–5 hour solar energy replenishment under peak sun hours while sustaining continuous 10–12 hours of nightly dusk-to-dawn operation with 2–3 rainy days autonomy. The integrated optical PC diffuser scatters flux from the 30W LED array uniformly across a 360° radial plane, eliminating direct diode glare and perimeter dark spots. Furthermore, the floral die-cast aluminum body functions as a passive heat sink to lower LED junction temperatures, making this floral solar garden light a highly durable off-grid solution across operating temperatures from −20°C to +50°C.
Selection & Specification Guide

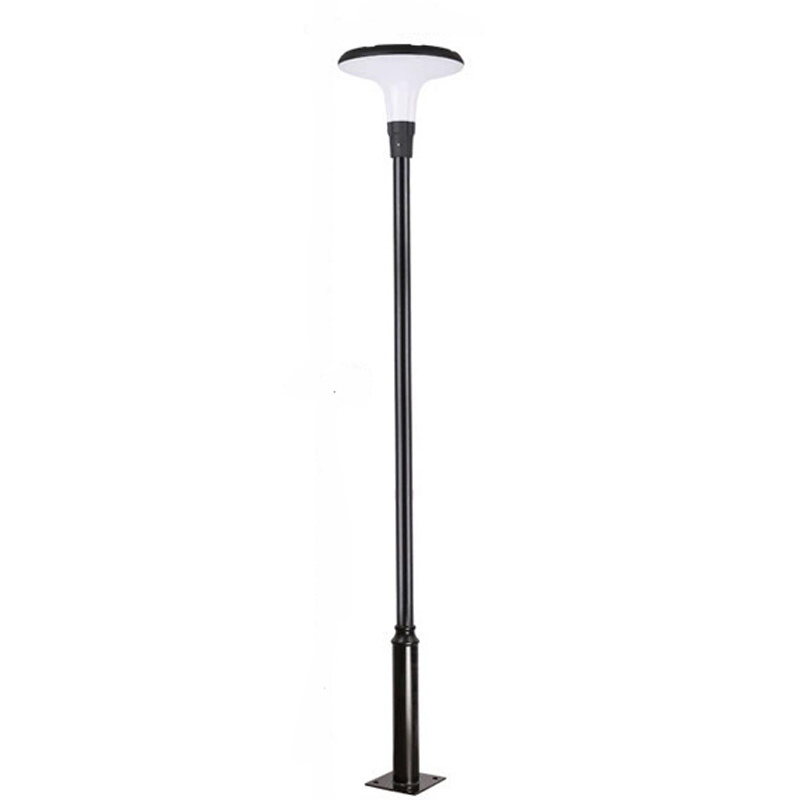

- Pole Tenon & Mounting Fitment: Engineered to fit standard Ø76mm (3.0″) top pole tenons at recommended installation heights between 2.8m and 4.0m (9ft–13ft).
- CCT & Powder Finish Ordering: Select preferred body finish (Sand Black or Sand Grey) and color temperature (3000K Warm White for warm landscape atmosphere or 6500K Cool White for high-visibility security) upon order.
- OEM/ODM Customization: Supports B2B custom engineering options including expanded battery capacity, custom powder-coat RAL matching, and laser-engraved corporate branding.
← Swipe horizontally to view details →
| Parameter | GLCZ-1104 |
|---|---|
| 🌞 Solar & Power System | |
| Solar Cell Type & Efficiency | A-Grade Monocrystalline Solar Cells (>21% Cell Efficiency) |
| PV Module Vmp & Rated Power | 5 V (Vmp) / 25 W Monocrystalline PV Panel |
| Battery Spec & Protection | 3.2 V / 30 Ah (96 Wh) LiFePO4 with Smart BMS |
| Full Charge Time | 3–5 hours (Under Standard Peak Sun Hours) |
| Operating Time & Autonomy | 10–12 hours/night (Dusk-to-Dawn) | 2–3 Rainy Days Backup |
| 💡 Lighting & Optical | |
| LED Package | High-Efficacy LED Array (160 pcs) |
| Luminous Flux / Output | Standard High-Lumen Output |
| Color Temperature (CCT) | 3000K Warm White / 6500K Cool White |
| Color Rendering Index (CRI) | Ra ≥ 80 (True Color Preservation) |
| Light Distribution | Symmetric 360° Radial Distribution |
| Beam Angle | 360° Horizontal Omnidirectional Beam |
| 🏗️ Structure & Material | |
| Housing Materials | Heavy-Duty Die-Cast Aluminum Body + PC Diffuser (Sand Black / Sand Grey) |
| Ingress Protection (IP Rating) | IP65 (Dust-Tight & Water-Jet Protected) |
| Impact Resistance (IK Rating) | IK08 (Vandal-Resistant Impact Rating) |
| Tenon / Pole Adapter Size | Fits Ø76 mm (3.0″) Standard Pole Tenon |
| Recommended Mounting Height | 2.6–4.0 m (8.5–13 ft) |
| Product Dimensions | Φ530 mm × H440 mm |
| Operating Temperature Range | −20 °C–+60 °C |
| 📦 Packaging & Compliance | |
| Carton / Packaging Dimensions | 540 × 540 × 470 mm (1 CTN) |
| Net / Gross Weight | NW: 6.70 kg | GW: 8.55 kg |
| Certifications & Standards | CE, RoHS, FCC, ISO 9001 |
| Warranty Period | 2-Year Limited Warranty — Extended Warranty Available |
| 💼 Commercial Terms | |
| Minimum Order Quantity (MOQ) | 30 pcs |
| Production Lead Time | 20–25 calendar days |
| Sample Availability | Sample Available (1–2 Units) |
| OEM/ODM Customization | Custom branding, custom CCT & housing colors, scalable battery capacities, and bespoke dimming profiles. |
Have specific technical or installation questions about this model? Contact our engineering team for support.
Engineered for Architectural Integration & Visual Comfort
Combining wide-area 360° optical diffusers, heavy-duty weatherproof housings, and smart MPPT battery management for seamless civic plaza & pole-mount integration.
Architectural Post-Top Forms
Designed for 2.5m–4.5m (8ft–15ft) pole installations, featuring UFO, Clover, and Chalice forms to complement modern architectural landscapes.
360° Symmetric Area Optics
Engineered with optical-grade PC diffusers delivering high-lumen 360° wide coverage while suppressing direct glare for pedestrians.
76mm / 89mm Tenon Fitment
Features a heavy-duty slip-fitter collar designed for tool-free mounting on standard 76mm (3.0") or 89mm (3.5") pole tenons without grid wiring.
IP65 & Wind-Resistant Housing
Constructed from corrosion-resistant die-cast aluminum with structural sealing and high wind-load endurance for elevated outdoor pole mounting.
Smart Dusk-to-Dawn Control
Integrated microwave/PIR sensors and optical sensors automatically adjust light output from dusk to dawn for maximum off-grid efficiency.
Adaptive Power & LiFePO4
Powered by high-efficiency mono PV panels and A-grade LiFePO4 batteries with intelligent power regulation for 3–5 continuous cloudy days.
Lumin Solar Solutions manufactures high-output post-top solar courtyard lights and pole-mounted garden luminaires for wide-area site illumination. Engineered with heavy-duty die-cast aluminum, wind-resistant structural design, and smart MPPT dusk-to-dawn energy management, these systems deliver reliable perimeter and plaza lighting without underground cabling. Fits industry-standard 60mm (2.375″) and 76mm (3″) mounting poles. Contact our engineering team for Dialux 3D layout simulations and IES files.
Applications & Scenarios
Thoughtfully designed to blend architectural aesthetics with wide-area site security, delivering high-efficiency, uniform illumination for public parks, civic plazas, university campuses, and resort courtyards.
Municipal Parks & Civic Plazas
Delivers 360° wide-angle illumination for open public plazas, municipal park avenues, and civic gathering spaces, ensuring uniform light distribution and nighttime safety without utility power.

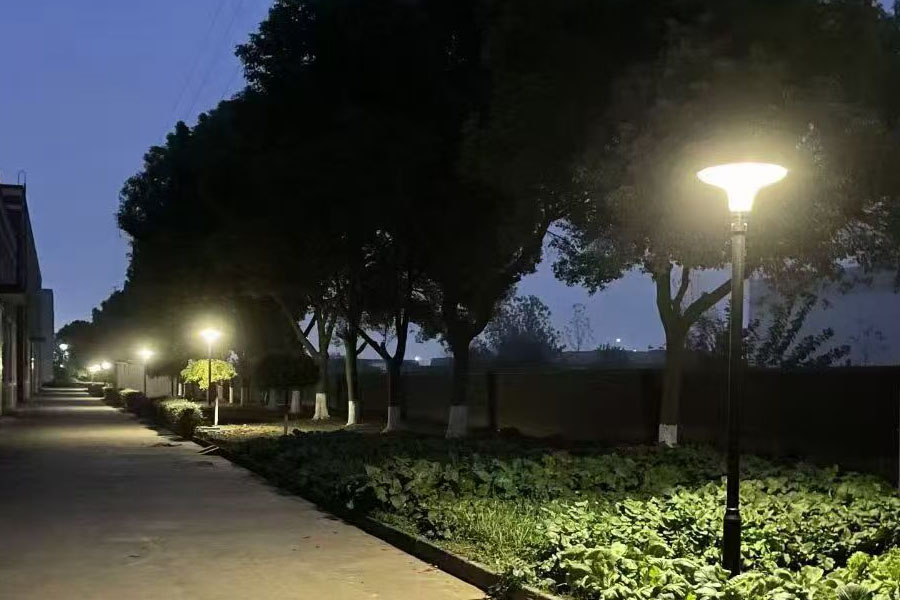

Luxury Resort Courtyards & Hotel Grounds
Enhances hospitality aesthetics with warm, anti-glare architectural lighting mounted at 2.5m–3.5m heights, creating a welcoming ambient glow for resort courtyards, pool perimeters, and outdoor dining areas.
Park Avenues & Pedestrian Greenways
Provides continuous high-visibility overhead lighting along 3.0m–4.5m park corridors and greenways, featuring dusk-to-dawn smart power management to maximize off-grid battery autonomy.
Commercial Facilities & Residential Community Roads
Offers reliable, zero-electricity perimeter illumination for office parks, industrial facilities, and residential HOA roadways with robust 60mm/76mm tenon mount wind resistance.
Global Compliance & Engineering Quality
Seamless Project Approvals & Rapid Tender Compliance Worldwide
Accelerate municipal tender approvals and eliminate import clearance risks across 40+ countries. Our manufacturing facilities and product lines undergo rigorous third-party testing to comply with international infrastructure standards—including ISO 9001:2015 Quality Management System, CE (EMC & LVD), RoHS 2.0, FCC Part 15 Class B, and IEC 62722 / IEC 60598 photobiological safety specifications, along with UN38.3 lithium battery transport certification.
Illuminating Success Stories Worldwide
See Our Products Powering Projects Globally
SOLAR VS. GRID: TOTAL COST COMPARISON
Skip the Trenching. Eliminate Energy Bills.
Calculate your 5-year project ROI below and see how much your facility can save with Lumin Solar Solutions.
Private Project ROI Calculator
💡 Pro Tip: Switching to solar allows you to eliminate trenching costs and expensive cabling.
Traditional Grid vs. Lumin Solar Lighting Solutions Cost Analysis
| Project Cost Items (30 Units) | Traditional Grid | Lumin Solar Solutions |
|---|---|---|
| Trenching & Labor | $3,000 - $8,000 | $0 (No Digging) |
| Cabling & Wiring | $2,500 - $5,000 | $0 |
| Transformer/Switchgear | Essential Infrastructure Cost | Not Needed |
| Electricity Bill (Annual) | $1,500 - $2,500 | $0 (Free) |
| Installation Time | 7-14 Days | 1-2 Days |
| Total Hidden Costs | EXTREMELY HIGH | ZERO |
*Calculated based on average private industrial projects. Lumin Solar Solutions eliminates infrastructure overhead.
Why pay for copper wires and manual labor when you can invest that budget into high-quality solar technology?
Commercial & Ordering FAQ
Our standard Minimum Order Quantity (MOQ) is 50 units. We also fully support sample orders (1–5 units) for project evaluation, technical testing, and quality verification prior to bulk production.
We offer flexible international trade terms including FOB, CIF, EXW, and DDP (Delivered Duty Paid). Our DDP services cover 42+ countries to ensure seamless customs clearance and hassle-free door-to-door delivery.
We accept Wire Transfer (T/T) and Letter of Credit (L/C).
The standard lead time for mass production is 30 calendar days, calculated from the date your deposit is received. For customized OEM/ODM projects or specialized technical requirements, the delivery schedule will be mutually confirmed during contract review.
Yes, absolutely. We offer complete OEM/ODM solutions, including custom logo/branding, custom housing finishes, specialized lumen/wattage outputs, tailored optical spectrums, and smart controller lighting profiles.
We provide comprehensive warranty coverage across all system components: 2-year warranty for the LED luminaire and LiFePO4 battery, 8-year warranty for monocrystalline solar panels, and 10-year warranty for lighting poles. (Please refer to our product catalog for itemized terms).
We provide worldwide shipping via sea freight, air freight, and express courier. Our dedicated logistics team manages export documentation, compliance checks, and end-to-end cargo tracking to ensure safe delivery to your site or port.
Simply click the “Inquire Now” button or contact our sales department with your order details. Our sales engineers will review your project requirements and issue an official Proforma Invoice (PI) promptly.
