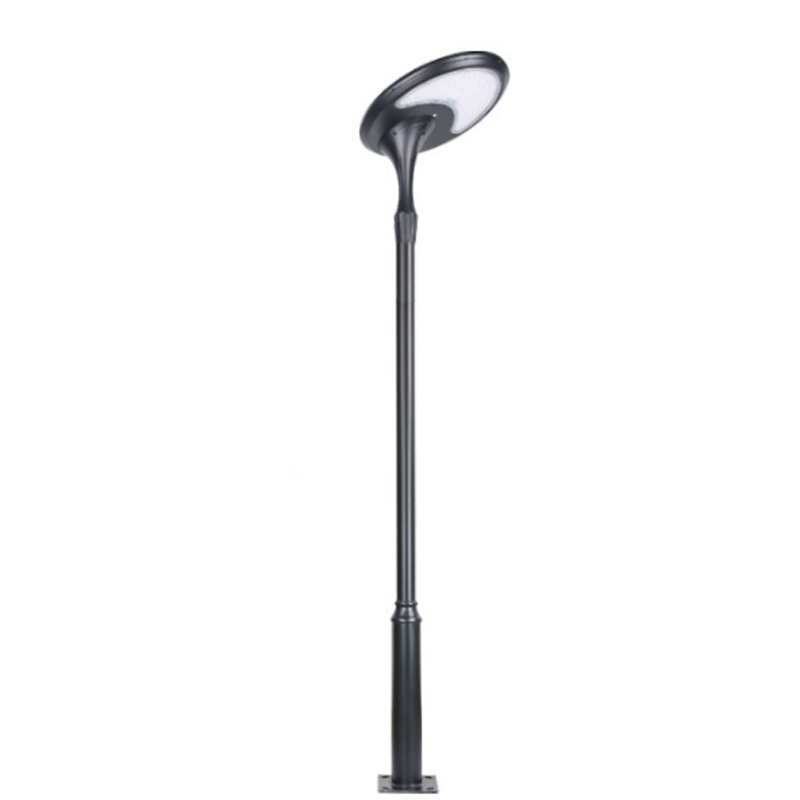

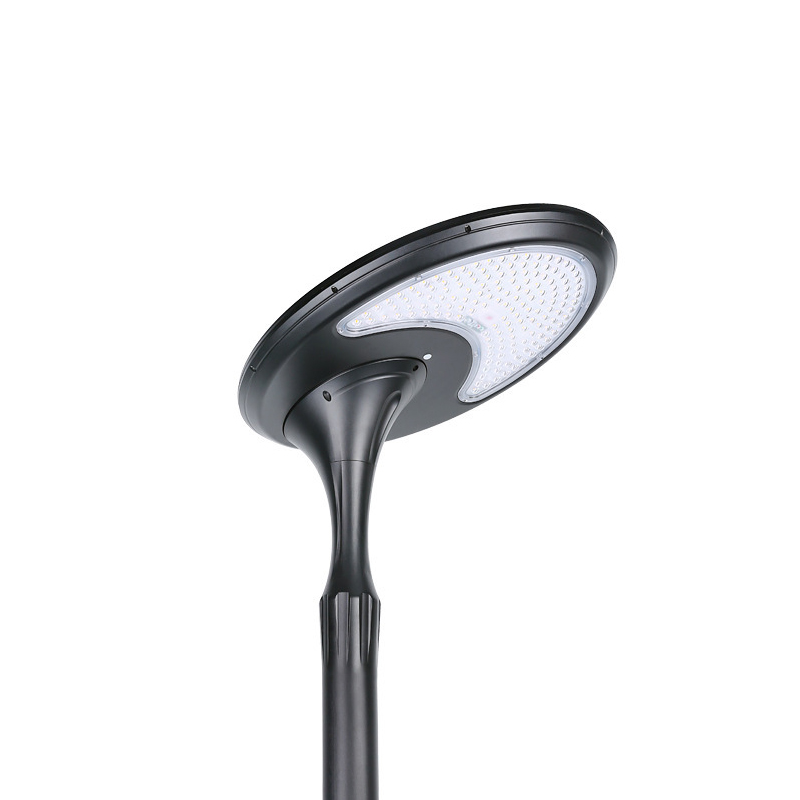

Galaxy Chalice 38W Panel Large Solar Post Lights – Sculptural Design (GLCZ-2808)
Galaxy Chalice 38W Panel Large Solar Post Lights – Sculptural Design (GLCZ-2808)
- Sculptural Chalice Silhouette: Featuring a 70x52cm chalice goblet profile, this Solar Courtyard & Garden Post-Top Lights luminaire serves as commercial large solar post lights fitting Ø76mm (3.0″) standard pole tenons.
- 38W/60Ah High-Storage System: Integrates a 5V/38W monocrystalline solar panel and a 3.2V/60Ah (192Wh) Grade-A LiFePO4 battery managed by Smart BMS, delivering full recharge in 3–5 hours with 2,000+ deep cycle longevity.
- 40W High-Output LED Array: Powered by a 40W high-power SMD LED array integrated within the chalice crown, delivering high-efficacy lumen output and accurate color rendering with a color rendering index of Ra ≥ 80.
- Symmetric 360° Optical Diffuser: Features an anti-UV optical PC diffuser surrounded by a heavy-duty reflector frame, casting a symmetric 360° radial distribution and wide horizontal beam pattern without glare or spot degradation.
- CCT Options & Smart Control: Available in factory-preset 3000K Warm White or 6500K Cool White options upon order, integrated with intelligent dusk-to-dawn sensors delivering 10–12 hours nightly operation and 2–3 rainy days autonomy.
- Heavy-Duty IP65 Protection: Built with a corrosion-resistant die-cast aluminum housing in a sand black finish, offering IP65 weatherproof sealing and IK08 impact resistance across extreme outdoor operating temperatures from −20°C–+60°C.
- Campus Gateway & OEM Options: Engineered for corporate campuses, high-end HOA gateways, and civic plazas; fully customizable for volume B2B contracts including battery scaling, custom powder coatings, and laser-engraved corporate branding.
- All-Night Illumination
- All-Weather Proof
- Built for a Decade+
- Smart Adaptive Control
- Easy Plug & Play
- Low Lifetime Cost
- Certified Worldwide
- Reliable Supply & Delivery
The Galaxy Chalice (GLCZ-2808) is an architectural-grade commercial luminaire engineered as large solar post lights for corporate campuses, high-end HOA gateways, and civic plazas requiring elevated visual presence and high-lumen off-grid illumination. Featuring a 70x52cm sculptural chalice goblet profile, heavy-duty die-cast aluminum construction in a sand-black finish, and an integrated 38W monocrystalline PV panel, this luminaire mounts directly onto standard Ø76mm (3.0″) pole tenons. Positioned as a landmark fixture within our broader Solar Courtyard & Garden Post-Top Lights portfolio, the GLCZ-2808 delivers 360° symmetric downward and lateral distribution without perimeter dark spots.
Key Differentiators
- 70x52cm Sculptural Chalice Profile: Grand chalice silhouette die-cast aluminum frame paired with optical PC diffusers for distinguished architectural aesthetics and glare-free illumination.
- 38W/60Ah High-Storage System: Combines a 5V/38W monocrystalline solar panel with a high-capacity 3.2V/60Ah (192Wh) Grade-A LiFePO4 battery and Smart BMS for 2,000+ deep cycles.
- 40W High-Lumen Output Array: Drives a 40W high-power SMD LED array delivering uniform 360° radial coverage with true color rendering of Ra ≥ 80.
- Factory-Preset CCT Selection: Available in factory-configured 3000K Warm White or 6500K Cool White options upon order placement to align with tailored landscape design requirements.
Engineering Applications
- Corporate Campuses & Business Parks: Enhances headquarters entrances, main driveways, and central plazas with authoritative sculptural styling and bright night lighting.
- High-End HOA Community Gateways: Provides dignified entryway illumination along residential boulevard entrances, roundabout centers, and clubhouse perimeters.
- Civic Plazas & Urban Promenades: Delivers wide-coverage perimeter lighting for public gathering squares, municipal parks, and riverfront walkways.
Technical Logic
The GLCZ-2808 leverages an optimized 38W PV to 192Wh LiFePO4 battery storage configuration, enabling rapid 3–5 hour solar energy replenishment under standard peak sun conditions while sustaining continuous 10–12 hours of nightly dusk-to-dawn operation with 2–3 rainy days autonomy. The integrated optical PC diffuser scatters flux from the 40W LED module uniformly across a 360° horizontal plane, eliminating hotspot glare and maximizing pole spacing efficiency. Furthermore, the structural chalice die-cast housing functions as a high-surface-area passive heat sink to lower LED junction temperatures, making these large solar post lights a highly dependable, maintenance-free solution operating across temperatures from −20°C to +60°C.
Selection & Specification Guide
- Pole Tenon & Mounting Fitment: Engineered to fit standard Ø76mm (3.0″) top pole tenons with recommended mounting heights between 3.5m and 5.0m (11ft–16ft).
- CCT Ordering Selection: Select preferred color temperature (3000K Warm White for warm ambient landscape illumination or 6500K Cool White for high-visibility security lighting) upon order placement.
- OEM/ODM Customization: Supports B2B custom engineering options including expanded battery capacity, custom powder-coat finishes (Sand Black / Sand Grey), and laser-engraved corporate branding.
← Swipe horizontally to view details →
| Parameter | GLCZ-2808 |
|---|---|
| 🌞 Solar & Power System | |
| Solar Cell Type & Efficiency | A-Grade Monocrystalline Solar Cells (>21% Cell Efficiency) |
| PV Module Vmp & Rated Power | 5 V (Vmp) / 38 W Monocrystalline PV Panel |
| Battery Spec & Protection | 3.2 V / 60 Ah (192 Wh) LiFePO4 with Smart BMS |
| Full Charge Time | 3–5 hours (Under Standard Peak Sun Hours) |
| Operating Time & Autonomy | 10–12 hours/night (Dusk-to-Dawn) | 2–3 Rainy Days Backup |
| 💡 Lighting & Optical | |
| LED Package | High-Efficacy LED Array (150 pcs) |
| Luminous Flux / Output | Standard High-Lumen Output |
| Color Temperature (CCT) | 3000K Warm White / 6500K Cool White |
| Color Rendering Index (CRI) | Ra ≥ 80 (True Color Preservation) |
| Light Distribution | Asymmetric Wide-Spread Batwing Distribution |
| Beam Angle | 120° Wide-Angle Downward Beam |
| 🏗️ Structure & Material | |
| Housing Materials | Heavy-Duty Die-Cast Aluminum Body + PC Diffuser (Sand Black) |
| Ingress Protection (IP Rating) | IP65 (Dust-Tight & Water-Jet Protected) |
| Impact Resistance (IK Rating) | IK08 (Vandal-Resistant Impact Rating) |
| Tenon / Pole Adapter Size | Fits Ø76 mm (3.0″) Standard Pole Tenon |
| Recommended Mounting Height | 3.0–6.0 m (10–20 ft) |
| Product Dimensions | 700 × 520 × H665 mm |
| Operating Temperature Range | −20 °C–+60 °C |
| 📦 Packaging & Compliance | |
| Carton / Packaging Dimensions | 910 × 570 × 250 mm (1 CTN) |
| Net / Gross Weight | NW: 8.48 kg | GW: 10.10 kg |
| Certifications & Standards | CE, RoHS, FCC, ISO 9001 |
| Warranty Period | 2-Year Limited Warranty — Extended Warranty Available |
| 💼 Commercial Terms | |
| Minimum Order Quantity (MOQ) | 30 pcs |
| Production Lead Time | 20–25 calendar days |
| Sample Availability | Sample Available (1–2 Units) |
| OEM/ODM Customization | Custom branding, custom CCT & housing colors, scalable battery capacities, and bespoke dimming profiles. |
Have specific technical or installation questions about this model? Contact our engineering team for support.
Engineered for Architectural Integration & Visual Comfort
Combining wide-area 360° optical diffusers, heavy-duty weatherproof housings, and smart MPPT battery management for seamless civic plaza & pole-mount integration.
Architectural Post-Top Forms
Designed for 2.5m–4.5m (8ft–15ft) pole installations, featuring UFO, Clover, and Chalice forms to complement modern architectural landscapes.
360° Symmetric Area Optics
Engineered with optical-grade PC diffusers delivering high-lumen 360° wide coverage while suppressing direct glare for pedestrians.
76mm / 89mm Tenon Fitment
Features a heavy-duty slip-fitter collar designed for tool-free mounting on standard 76mm (3.0") or 89mm (3.5") pole tenons without grid wiring.
IP65 & Wind-Resistant Housing
Constructed from corrosion-resistant die-cast aluminum with structural sealing and high wind-load endurance for elevated outdoor pole mounting.
Smart Dusk-to-Dawn Control
Integrated microwave/PIR sensors and optical sensors automatically adjust light output from dusk to dawn for maximum off-grid efficiency.
Adaptive Power & LiFePO4
Powered by high-efficiency mono PV panels and A-grade LiFePO4 batteries with intelligent power regulation for 3–5 continuous cloudy days.
Lumin Solar Solutions manufactures high-output post-top solar courtyard lights and pole-mounted garden luminaires for wide-area site illumination. Engineered with heavy-duty die-cast aluminum, wind-resistant structural design, and smart MPPT dusk-to-dawn energy management, these systems deliver reliable perimeter and plaza lighting without underground cabling. Fits industry-standard 60mm (2.375″) and 76mm (3″) mounting poles. Contact our engineering team for Dialux 3D layout simulations and IES files.
Applications & Scenarios
Thoughtfully designed to blend architectural aesthetics with wide-area site security, delivering high-efficiency, uniform illumination for public parks, civic plazas, university campuses, and resort courtyards.
Municipal Parks & Civic Plazas
Delivers 360° wide-angle illumination for open public plazas, municipal park avenues, and civic gathering spaces, ensuring uniform light distribution and nighttime safety without utility power.

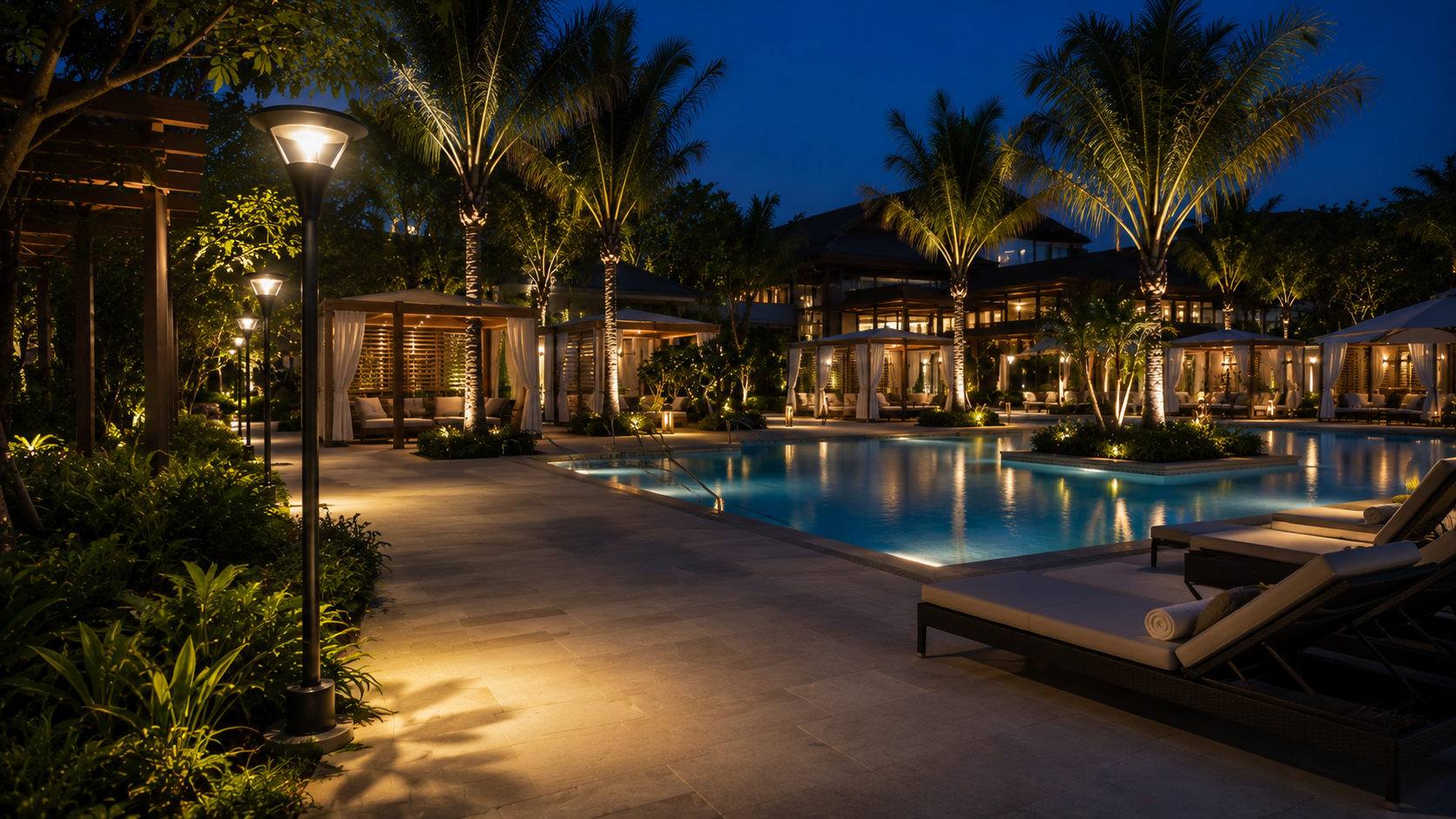

Luxury Resort Courtyards & Hotel Grounds
Enhances hospitality aesthetics with warm, anti-glare architectural lighting mounted at 2.5m–3.5m heights, creating a welcoming ambient glow for resort courtyards, pool perimeters, and outdoor dining areas.

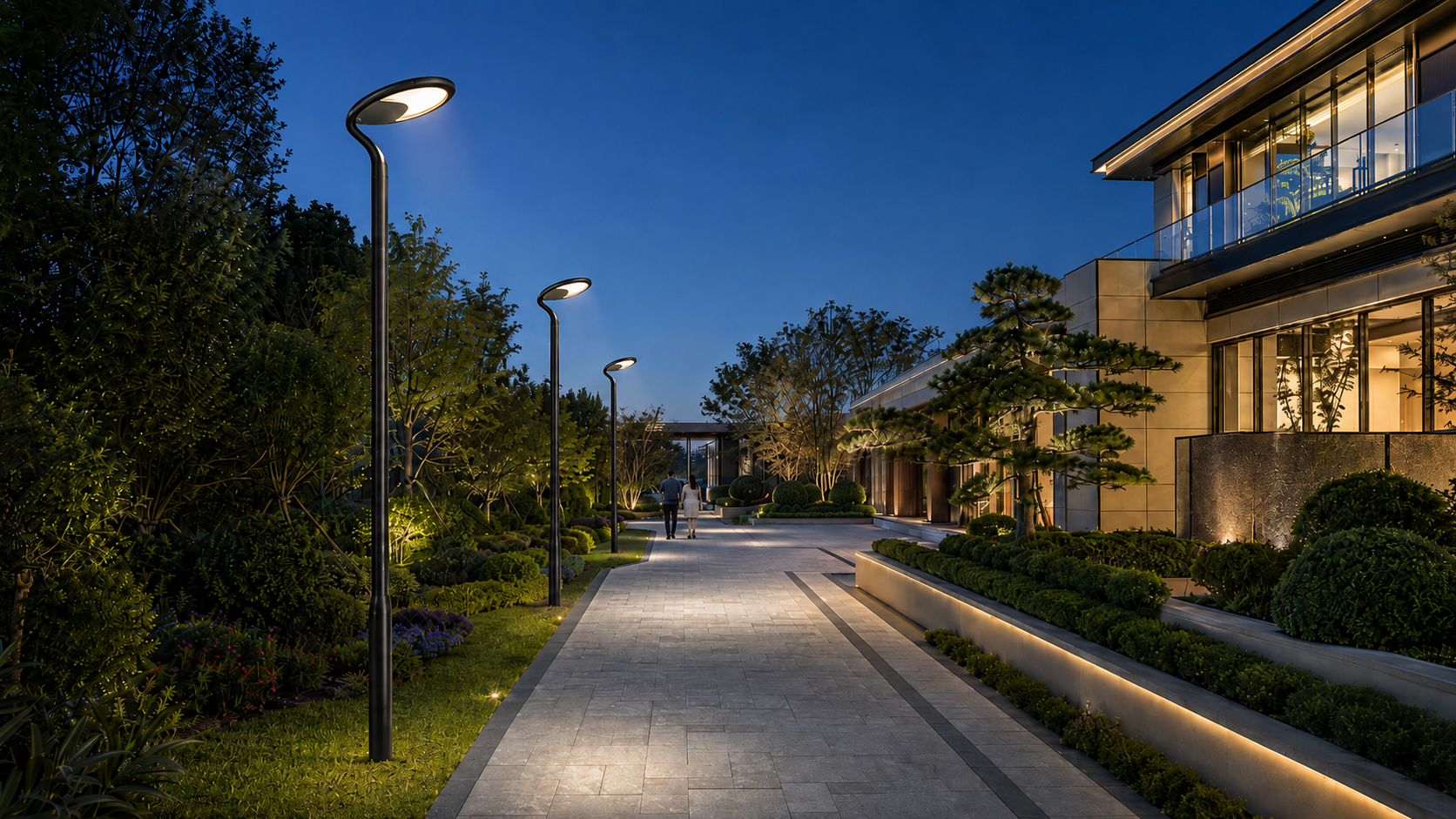

Park Avenues & Pedestrian Greenways
Provides continuous high-visibility overhead lighting along 3.0m–4.5m park corridors and greenways, featuring dusk-to-dawn smart power management to maximize off-grid battery autonomy.

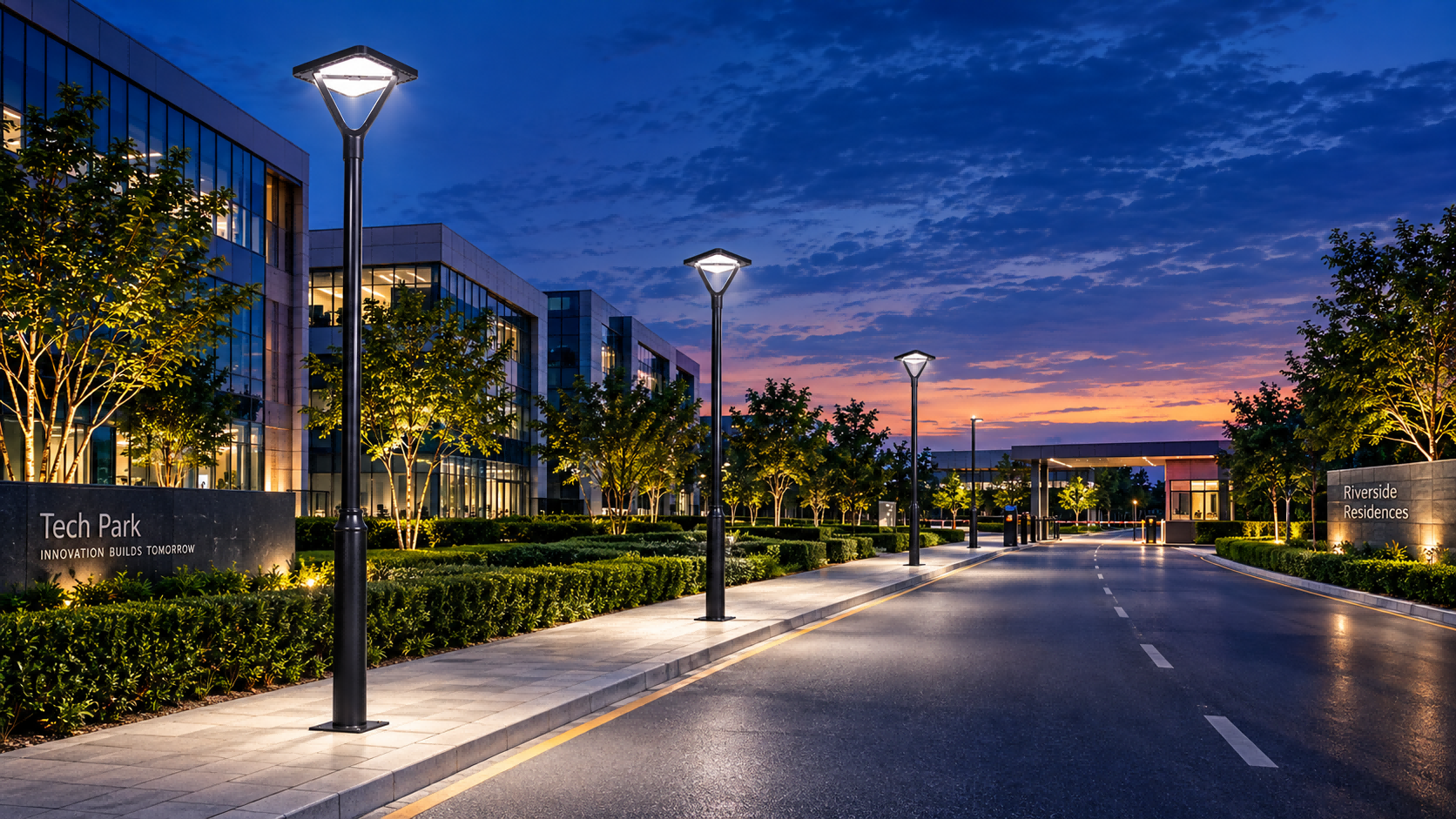

Commercial Facilities & Residential Community Roads
Offers reliable, zero-electricity perimeter illumination for office parks, industrial facilities, and residential HOA roadways with robust 60mm/76mm tenon mount wind resistance.
Global Compliance & Engineering Quality
Seamless Project Approvals & Rapid Tender Compliance Worldwide
Accelerate municipal tender approvals and eliminate import clearance risks across 40+ countries. Our manufacturing facilities and product lines undergo rigorous third-party testing to comply with international infrastructure standards—including ISO 9001:2015 Quality Management System, CE (EMC & LVD), RoHS 2.0, FCC Part 15 Class B, and IEC 62722 / IEC 60598 photobiological safety specifications, along with UN38.3 lithium battery transport certification.
Illuminating Success Stories Worldwide
See Our Products Powering Projects Globally
SOLAR VS. GRID: TOTAL COST COMPARISON
Skip the Trenching. Eliminate Energy Bills.
Calculate your 5-year project ROI below and see how much your facility can save with Lumin Solar Solutions.
Private Project ROI Calculator
💡 Pro Tip: Switching to solar allows you to eliminate trenching costs and expensive cabling.
Traditional Grid vs. Lumin Solar Lighting Solutions Cost Analysis
| Project Cost Items (30 Units) | Traditional Grid | Lumin Solar Solutions |
|---|---|---|
| Trenching & Labor | $3,000 - $8,000 | $0 (No Digging) |
| Cabling & Wiring | $2,500 - $5,000 | $0 |
| Transformer/Switchgear | Essential Infrastructure Cost | Not Needed |
| Electricity Bill (Annual) | $1,500 - $2,500 | $0 (Free) |
| Installation Time | 7-14 Days | 1-2 Days |
| Total Hidden Costs | EXTREMELY HIGH | ZERO |
*Calculated based on average private industrial projects. Lumin Solar Solutions eliminates infrastructure overhead.
Why pay for copper wires and manual labor when you can invest that budget into high-quality solar technology?
Commercial & Ordering FAQ
Our standard Minimum Order Quantity (MOQ) is 50 units. We also fully support sample orders (1–5 units) for project evaluation, technical testing, and quality verification prior to bulk production.
We offer flexible international trade terms including FOB, CIF, EXW, and DDP (Delivered Duty Paid). Our DDP services cover 42+ countries to ensure seamless customs clearance and hassle-free door-to-door delivery.
We accept Wire Transfer (T/T) and Letter of Credit (L/C).
The standard lead time for mass production is 30 calendar days, calculated from the date your deposit is received. For customized OEM/ODM projects or specialized technical requirements, the delivery schedule will be mutually confirmed during contract review.
Yes, absolutely. We offer complete OEM/ODM solutions, including custom logo/branding, custom housing finishes, specialized lumen/wattage outputs, tailored optical spectrums, and smart controller lighting profiles.
We provide comprehensive warranty coverage across all system components: 2-year warranty for the LED luminaire and LiFePO4 battery, 8-year warranty for monocrystalline solar panels, and 10-year warranty for lighting poles. (Please refer to our product catalog for itemized terms).
We provide worldwide shipping via sea freight, air freight, and express courier. Our dedicated logistics team manages export documentation, compliance checks, and end-to-end cargo tracking to ensure safe delivery to your site or port.
Simply click the “Inquire Now” button or contact our sales department with your order details. Our sales engineers will review your project requirements and issue an official Proforma Invoice (PI) promptly.
