COMMERCIAL & ARCHITECTURAL SOLAR COURTYARD & POST-TOP LUMINAIRES

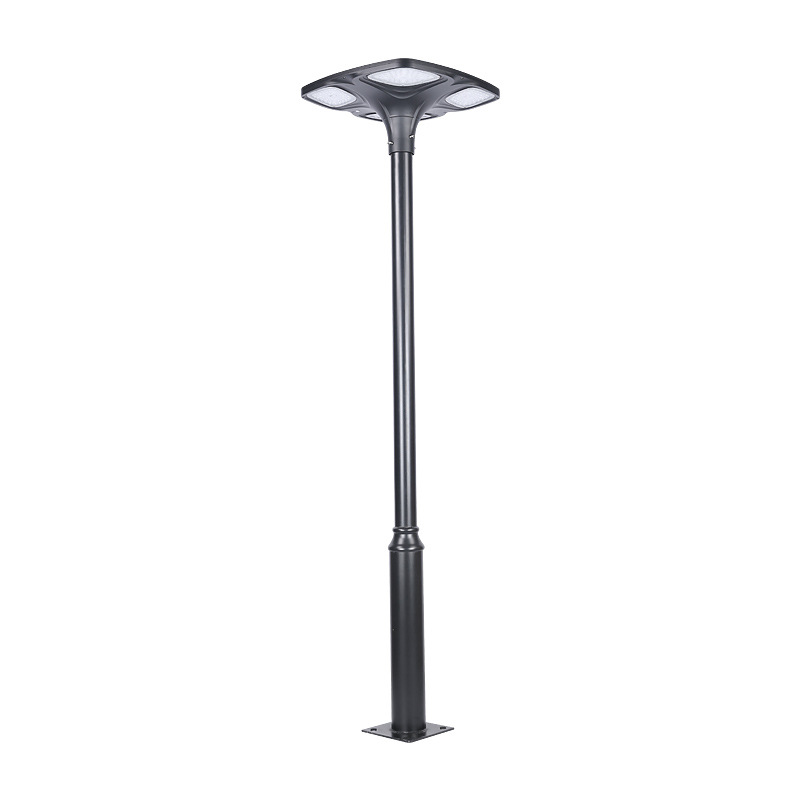

Galaxy Clover 32W Panel Solar Post-Top Lights – Anti-Glare Design (GLCZ-0805)
Galaxy Clover 32W Panel Solar Post-Top Lights – Anti-Glare Design (GLCZ-0805)
- Crescent Silhouette Geometry: Featuring a 480mm crescent curved profile, this Solar Courtyard & Garden Post-Top Lights luminaire serves as an ambient crescent solar garden light fitting Ø76mm (3.0″) pole tenons.
- 20W/20Ah Solar Storage: Integrates a 5V/20W monocrystalline PV panel and a compact 3.2V/20Ah (64Wh) Grade-A LiFePO4 battery with Smart BMS, achieving full charge in 3–5 hours with 2,000+ deep cycles.
- Ambient LED Array: Engineered with 100 pcs high-efficacy SMD LEDs integrated into a curved reflector housing, delivering soft glare-free ambient illumination with true color rendering of Ra ≥ 80.
- Curved Reflection Optics: Equipped with an optical-grade PC diffuser and curved internal reflector, projecting glare-free 360° horizontal omnidirectional distribution for subtle pathway visual guidance and shadow reduction.
- CCT Options & Smart Control: Available in factory-preset 3000K Warm White or 6500K Cool White options upon order, integrated with dusk-to-dawn light control supporting 10–12 hours nightly operation with 2–3 rainy days autonomy.
- Heavy-Duty IP65 Structure: Constructed with a sand-black die-cast aluminum frame, offering IP65 weatherproof sealing and IK08 impact resistance engineered for extreme outdoor conditions ranging from −20°C–+60°C.
- Boutique Application & OEM: Optimized for boutique resort walkways, villa gardens, and hospitality terraces; fully customizable for volume B2B engineering projects including battery capacity scaling, housing finishes, and branding.
- All-Night Illumination
- All-Weather Proof
- Built for a Decade+
- Smart Adaptive Control
- Easy Plug & Play
- Low Lifetime Cost
- Certified Worldwide
- Reliable Supply & Delivery
The Galaxy Clover (GLCZ-0805) is a commercial-grade anti glare solar post top light engineered for resort courtyards, luxury residential communities, and poolside walkways where soft, uniform illumination is paramount. Featuring a 56x56cm four-leaf clover profile, heavy-duty die-cast aluminum construction in a sand-black finish, and an integrated 32W monocrystalline PV panel, this luminaire mounts directly to standard Ø76mm (3.0″) pole tenons. Positioned as a premier glare-free fixture within our broader Solar Courtyard & Garden Post-Top Lights portfolio, the GLCZ-0805 delivers 360° symmetric downward lighting without visual discomfort or harsh perimeter glare.
Key Differentiators

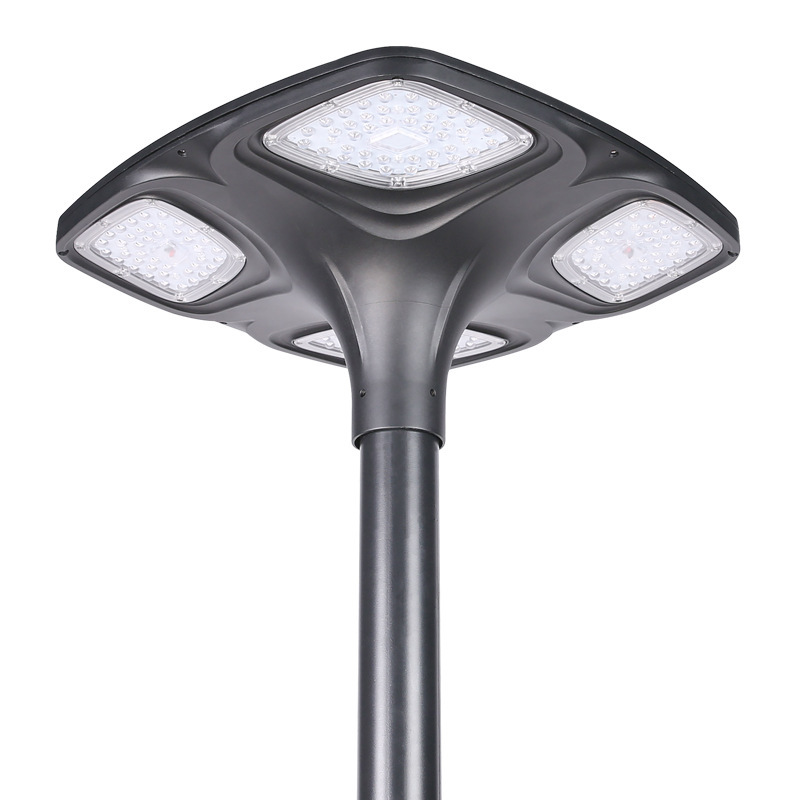

- 56x56cm Four-Leaf Clover Profile: Sculptural four-leaf clover die-cast aluminum frame paired with frosted optical PC diffusers for soft, downward anti-glare illumination.
- 32W/45Ah Golden Configuration: Combines a 5V/32W monocrystalline solar panel with a high-capacity 3.2V/45Ah (144Wh) Grade-A LiFePO4 battery and Smart BMS for 2,000+ deep cycles.
- Downward Anti-Glare Optics: Directs 40W high-efficacy LED output downward and outward through diffuse optics, creating uniform 360° ground lighting with Ra ≥ 80 color accuracy.
- Factory-Preset CCT Selection: Available in factory-configured 3000K Warm White or 6500K Cool White options upon order placement to match tailored landscape design requirements.
Engineering Applications

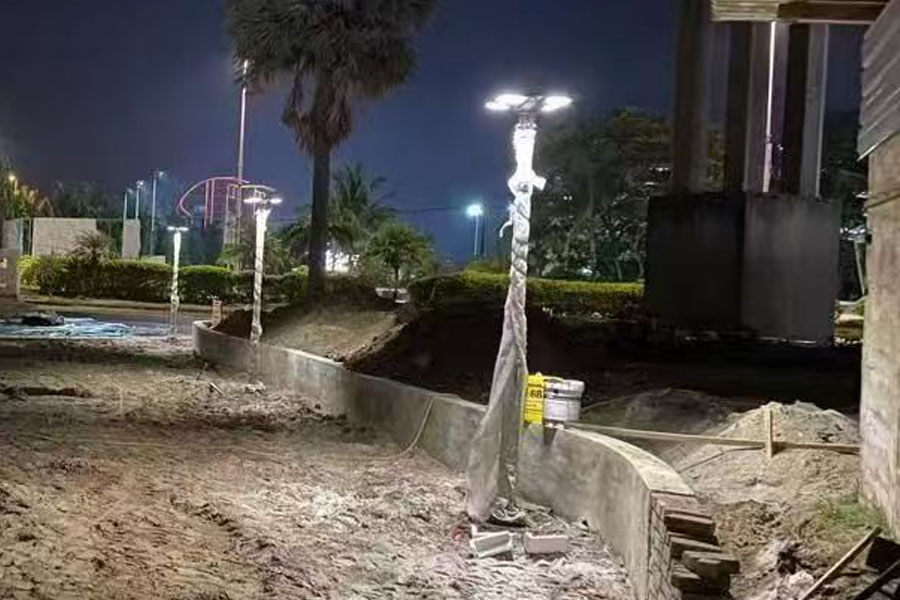

- Resort Courtyards & Patios: Delivers eye-comfortable, glare-free illumination across luxury hotel courtyards, outdoor dining patios, and relaxation lounges.

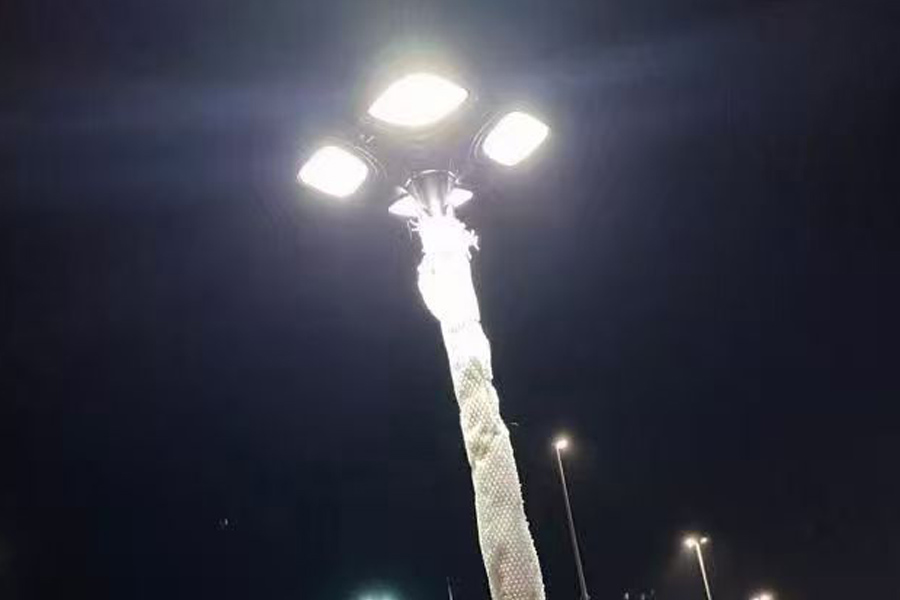

- Poolside Decks & Walkways: Eliminates harsh light reflection off water surfaces while providing clear visual guidance along swimming pool perimeters and garden paths.

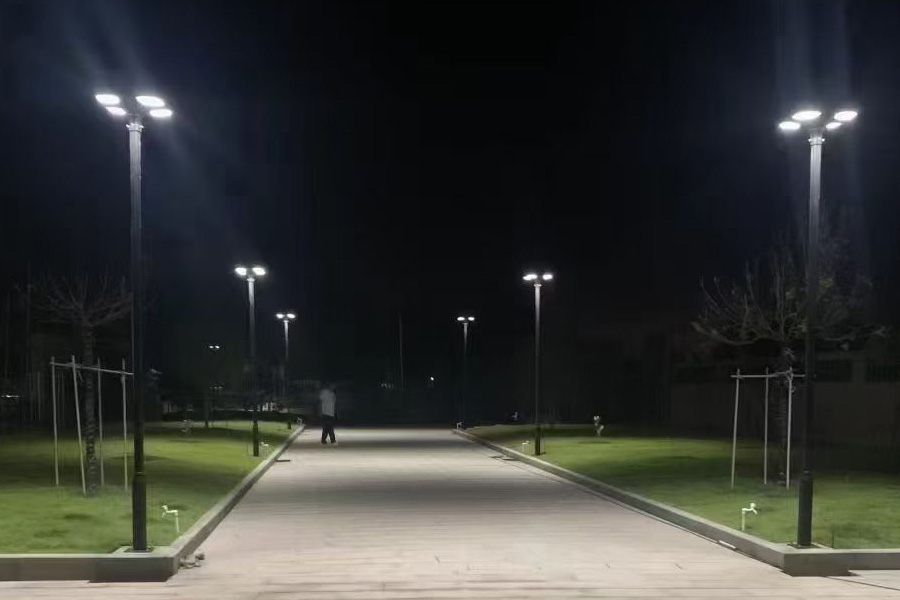

- High-End Residential Estates: Enhances private residential pathways, townhome entrances, and civic park greenways with soft, ambient night lighting.
Technical Logic
The GLCZ-0805 leverages an optimized 32W PV to 144Wh LiFePO4 battery power ratio, enabling complete charge recovery in 3–5 peak sun hours while supporting continuous 10–12 hours of nightly dusk-to-dawn operation with 2–3 rainy days autonomy. The downward-directed LED module configuration utilizes the heavy-duty aluminum frame as a primary thermal sink, lowering LED junction temperatures to maintain high optical efficacy. This thermal and optical integration makes this anti glare solar post top light a reliable, maintenance-free solution for outdoor environments operating across temperatures from −20°C to +60°C.
Selection & Specification Guide
- Pole Tenon & Mounting Fitment: Designed for standard Ø76mm (3.0″) top pole tenons with recommended installation heights between 3.0m and 4.5m (10ft–15ft).
- CCT Ordering Selection: Select preferred color temperature (3000K Warm White for cozy landscape ambiance or 6500K Cool White for high-contrast area visibility) upon order placement.
- OEM/ODM Customization: Supports B2B custom engineering options including powder-coat finishes (Sand Black / Sand Grey), expanded battery capacities, and customized brand logo laser engraving.
← Swipe horizontally to compare models →
| Parameter | GLCZ-0805 |
|---|---|
| 🌞 Solar & Power System | |
| Solar Cell Type & Efficiency | A-Grade Monocrystalline Solar Cells (>21% Cell Efficiency) |
| PV Module Vmp & Rated Power | 5V (Vmp) / 36W Monocrystalline PV Panel |
| Battery Spec & Protection | 3.2V / 45Ah (144Wh) LiFePO4 with Smart BMS |
| Full Charge Time | 3–5 Hours (Under Standard Peak Sun Hours) |
| Operating Time & Autonomy | 10–12 Hours/Night (Dusk-to-Dawn) | 2–3 Rainy Days Backup |
| 💡 Lighting & Optical | |
| LED Package | High-Efficacy LED Array (160 pcs) with Anti-Glare PC Optical Lens |
| Total Luminous Flux Output | Standard High-Lumen Output |
| Color Temperature (CCT) | 3000K Warm White / 6500K Cool White |
| Color Rendering Index (CRI) | Ra ≥ 80 (True Color Preservation) |
| Light Distribution | Symmetric 360° Radial Distribution |
| Beam Angle | 360° Horizontal Omnidirectional × Wide Downward Beam |
| 🏗️ Structure & Material | |
| Housing Materials | Heavy-Duty Die-Cast Aluminum Body + PC Lens (Sand Black) |
| Ingress Protection (IP Rating) | IP65 (Dust-tight & Water Jet Protected) |
| Impact Resistance (IK Rating) | IK08 (Vandal-Resistant Impact Rating) |
| Tenon / Pole Adapter Size | Fits Ø76mm (3.0″) Standard Pole Tenon |
| Recommended Mounting Height | 2.6–4.0 m (8.5–13 ft) |
| Product Dimensions (L × W × H) | 560 × 560 × 230 mm |
| Operating Temperature Range | −20°C–+60°C |
| 📦 Packaging & Compliance | |
| Carton / Packaging Dimensions | 570 × 570 × 270 mm (1 CTN) |
| Net / Gross Weight | NW: 7.86 kg | GW: 9.32 kg |
| Certifications & Standards | CE, RoHS, FCC, ISO 9001 |
| Warranty Period | 2-Year Limited Warranty — Extended Warranty Available |
| 💼 Commercial Terms | |
| Minimum Order Quantity (MOQ) | 30 pcs |
| Production Lead Time | 20–25 Calendar Days |
| Sample Availability | Sample Available (1–2 Units) |
| OEM/ODM Customization | Custom branding, custom CCT & housing colors, scalable battery capacities, and bespoke dimming profiles. |
Have specific technical or installation questions about this model? Contact our engineering team for support.
Engineered for Architectural Integration & Visual Comfort
Combining wide-area 360° optical diffusers, heavy-duty weatherproof housings, and smart MPPT battery management for seamless civic plaza & pole-mount integration.
Architectural Post-Top Forms
Designed for 2.5m–4.5m (8ft–15ft) pole installations, featuring UFO, Clover, and Chalice forms to complement modern architectural landscapes.
360° Symmetric Area Optics
Engineered with optical-grade PC diffusers delivering high-lumen 360° wide coverage while suppressing direct glare for pedestrians.
76mm / 89mm Tenon Fitment
Features a heavy-duty slip-fitter collar designed for tool-free mounting on standard 76mm (3.0") or 89mm (3.5") pole tenons without grid wiring.
IP65 & Wind-Resistant Housing
Constructed from corrosion-resistant die-cast aluminum with structural sealing and high wind-load endurance for elevated outdoor pole mounting.
Smart Dusk-to-Dawn Control
Integrated microwave/PIR sensors and optical sensors automatically adjust light output from dusk to dawn for maximum off-grid efficiency.
Adaptive Power & LiFePO4
Powered by high-efficiency mono PV panels and A-grade LiFePO4 batteries with intelligent power regulation for 3–5 continuous cloudy days.
Lumin Solar Solutions manufactures high-output post-top solar courtyard lights and pole-mounted garden luminaires for wide-area site illumination. Engineered with heavy-duty die-cast aluminum, wind-resistant structural design, and smart MPPT dusk-to-dawn energy management, these systems deliver reliable perimeter and plaza lighting without underground cabling. Fits industry-standard 60mm (2.375″) and 76mm (3″) mounting poles. Contact our engineering team for Dialux 3D layout simulations and IES files.
Applications & Scenarios
Thoughtfully designed to blend architectural aesthetics with wide-area site security, delivering high-efficiency, uniform illumination for public parks, civic plazas, university campuses, and resort courtyards.
Municipal Parks & Civic Plazas
Delivers 360° wide-angle illumination for open public plazas, municipal park avenues, and civic gathering spaces, ensuring uniform light distribution and nighttime safety without utility power.
Luxury Resort Courtyards & Hotel Grounds
Enhances hospitality aesthetics with warm, anti-glare architectural lighting mounted at 2.5m–3.5m heights, creating a welcoming ambient glow for resort courtyards, pool perimeters, and outdoor dining areas.

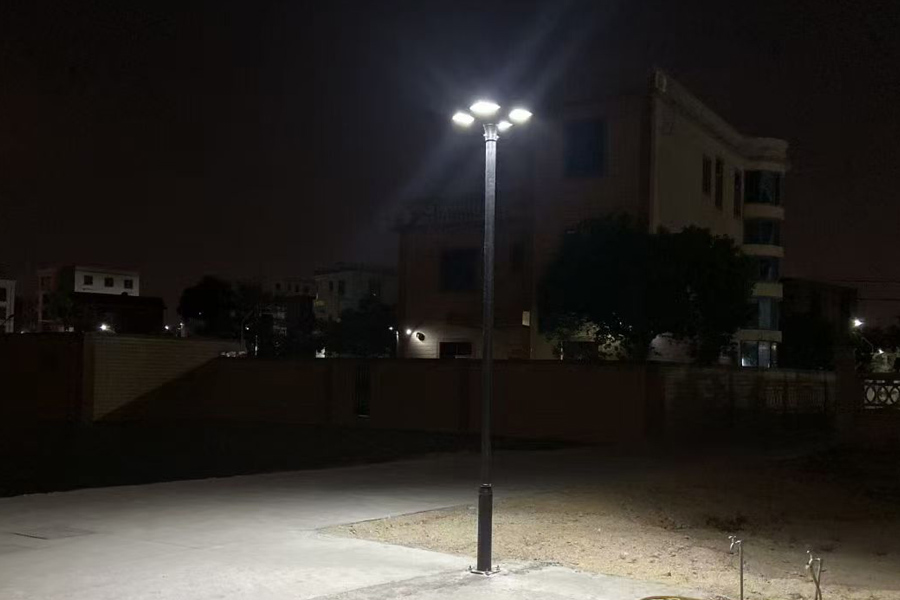

Park Avenues & Pedestrian Greenways
Provides continuous high-visibility overhead lighting along 3.0m–4.5m park corridors and greenways, featuring dusk-to-dawn smart power management to maximize off-grid battery autonomy.
Commercial Facilities & Residential Community Roads
Offers reliable, zero-electricity perimeter illumination for office parks, industrial facilities, and residential HOA roadways with robust 60mm/76mm tenon mount wind resistance.
Global Compliance & Engineering Quality
Seamless Project Approvals & Rapid Tender Compliance Worldwide
Accelerate municipal tender approvals and eliminate import clearance risks across 40+ countries. Our manufacturing facilities and product lines undergo rigorous third-party testing to comply with international infrastructure standards—including ISO 9001:2015 Quality Management System, CE (EMC & LVD), RoHS 2.0, FCC Part 15 Class B, and IEC 62722 / IEC 60598 photobiological safety specifications, along with UN38.3 lithium battery transport certification.
Illuminating Success Stories Worldwide
See Our Products Powering Projects Globally
SOLAR VS. GRID: TOTAL COST COMPARISON
Skip the Trenching. Eliminate Energy Bills.
Calculate your 5-year project ROI below and see how much your facility can save with Lumin Solar Solutions.
Private Project ROI Calculator
💡 Pro Tip: Switching to solar allows you to eliminate trenching costs and expensive cabling.
Traditional Grid vs. Lumin Solar Lighting Solutions Cost Analysis
| Project Cost Items (30 Units) | Traditional Grid | Lumin Solar Solutions |
|---|---|---|
| Trenching & Labor | $3,000 - $8,000 | $0 (No Digging) |
| Cabling & Wiring | $2,500 - $5,000 | $0 |
| Transformer/Switchgear | Essential Infrastructure Cost | Not Needed |
| Electricity Bill (Annual) | $1,500 - $2,500 | $0 (Free) |
| Installation Time | 7-14 Days | 1-2 Days |
| Total Hidden Costs | EXTREMELY HIGH | ZERO |
*Calculated based on average private industrial projects. Lumin Solar Solutions eliminates infrastructure overhead.
Why pay for copper wires and manual labor when you can invest that budget into high-quality solar technology?
Commercial & Ordering FAQ
Our standard Minimum Order Quantity (MOQ) is 50 units. We also fully support sample orders (1–5 units) for project evaluation, technical testing, and quality verification prior to bulk production.
We offer flexible international trade terms including FOB, CIF, EXW, and DDP (Delivered Duty Paid). Our DDP services cover 42+ countries to ensure seamless customs clearance and hassle-free door-to-door delivery.
We accept Wire Transfer (T/T) and Letter of Credit (L/C).
The standard lead time for mass production is 30 calendar days, calculated from the date your deposit is received. For customized OEM/ODM projects or specialized technical requirements, the delivery schedule will be mutually confirmed during contract review.
Yes, absolutely. We offer complete OEM/ODM solutions, including custom logo/branding, custom housing finishes, specialized lumen/wattage outputs, tailored optical spectrums, and smart controller lighting profiles.
We provide comprehensive warranty coverage across all system components: 2-year warranty for the LED luminaire and LiFePO4 battery, 8-year warranty for monocrystalline solar panels, and 10-year warranty for lighting poles. (Please refer to our product catalog for itemized terms).
We provide worldwide shipping via sea freight, air freight, and express courier. Our dedicated logistics team manages export documentation, compliance checks, and end-to-end cargo tracking to ensure safe delivery to your site or port.
Simply click the “Inquire Now” button or contact our sales department with your order details. Our sales engineers will review your project requirements and issue an official Proforma Invoice (PI) promptly.
Related products
Need a Customized Lighting Proposal & Fast Quotation?
Send us your project details (mounting height, pathway/area layout, quantity), and our engineering team will deliver a complete technical proposal within 3 days.
