COMMERCIAL & INDUSTRIAL SOLAR STREET LIGHTS

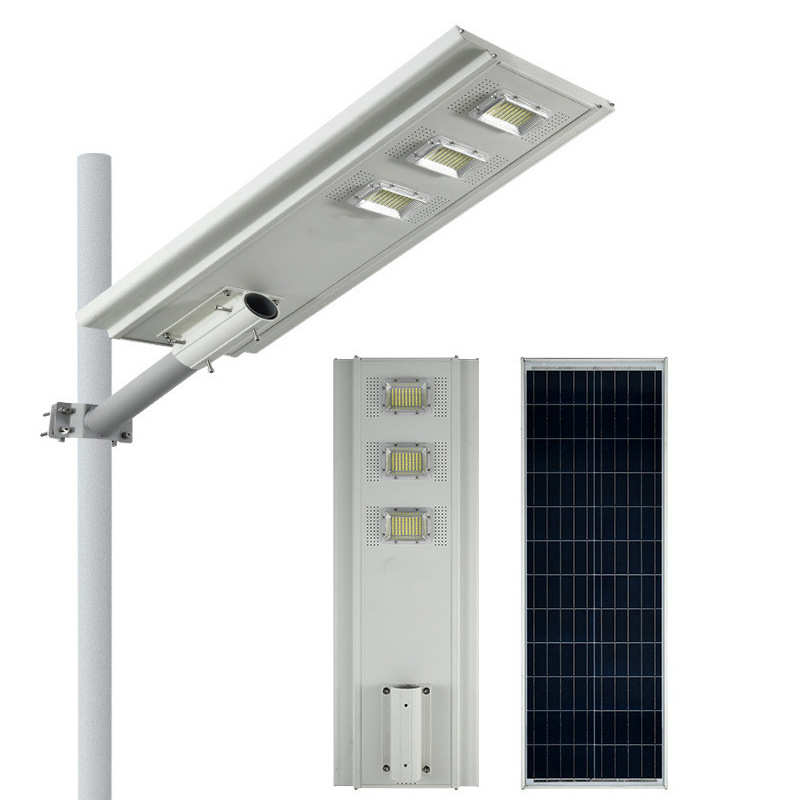

Nova Ultra-Slim Aluminum All-in-One Solar Street Light with SMD5730 LEDs (NVKZ-5730)
Nova Ultra-Slim Aluminum All-in-One Solar Street Light with SMD5730 LEDs (NVKZ-5730)
- Ultra-Slim Aluminum Chassis: Constructed with heavy-duty corrosion-resistant aluminum alloy housing, this All-in-One Solar Street Lights luminaire delivers ultra-slim aluminum All-in-One Solar Street Light performance for demanding roadway projects.
- High-Efficacy LED Engine: Outfitted with high-density SMD5730 LED arrays delivering up to 160 lm/W system efficacy with luminous flux outputs ranging from 2,800 lm to 8,000 lm across 24Ah, 30Ah, 42Ah, and 50Ah configurations.
- Asymmetric Batwing Optics: Features optical-grade UV-Resistant PC lenses engineered for Type II or Type III batwing light distribution with 70° × 140° asymmetric anti-glare angle and 3000K–6500K CCT options for uniform road coverage.
- Smart PIR Motion Control: Integrates smart controller with PIR motion sensor featuring 8–12 m detection range at 120° wide angle, Dusk-to-Dawn photocell, multi-stage timer dimming profiles, and IR remote control for energy management.
- Grade-A LiFePO4 Storage: Powered by 3.2V Grade-A LiFePO4 battery packs with Smart BMS Protection (2,000+ Deep Discharge Cycles) and monocrystalline PV cells (>21% efficiency), enabling 4–6 hours fast charging and 12 hours Dusk-to-Dawn lighting.
- IP65 Weatherproof Structure: Engineered with ultra-slim corrosion-resistant aluminum alloy housing, IP65 dust-tight and water-jet protection, IK08 impact resistance, and a standard Φ60mm spigot adapter for secure pole installation.
- Municipal & Commercial Application: Optimized for municipal solar street light roadways, highway networks, and commercial logistics parks, offering complete OEM/ODM customization for custom lighting curves, CCT, and private branding.
- All-Night Illumination
- All-Weather Proof
- Built for a Decade+
- Smart Adaptive Control
- Easy Plug & Play
- Low Lifetime Cost
- Certified Worldwide
- Reliable Supply & Delivery
Ultra-Slim Architecture for Linear Roadway Lighting
The Nova Ultra-Slim Aluminum All-in-One Solar Street Light is an integrated off-grid lighting platform designed around a thin aluminum-alloy chassis and multi-module solar-and-lighting layout. With a 45 mm overall housing height, the design provides a compact form factor for linear roads, municipal corridors, commercial access routes, and other projects requiring broad roadway coverage without a bulky luminaire profile.
Multi-Module Layout with Asymmetric Roadway Optics
The elongated housing accommodates SMD5730 LED arrays and progressively larger PV modules across the model range, creating a scalable configuration for different roadway dimensions and installation spacing. Type II / Type III distribution with asymmetric Batwing optics and a 70° × 140° beam angle is configured to spread light across the road surface, while optical-grade UV-resistant polycarbonate lenses or tempered glass support the optical assembly. The aluminum-alloy housing provides a corrosion-resistant structural enclosure for outdoor deployment.
Integrated Off-Grid System with Adaptive Control
Solar energy harvesting, LiFePO4 energy storage, LED illumination, and intelligent controls are integrated into one luminaire. A-Grade monocrystalline solar cells with >21% cell efficiency work with Grade-A LiFePO4 batteries and Smart BMS Protection, while PIR sensing, Dusk-to-Dawn control, timer operation, and remote control provide configurable lighting management. The system supports up to 12 hours of Dusk-to-Dawn operation with a 4–6 hour full-charge time under standard peak sun hours.

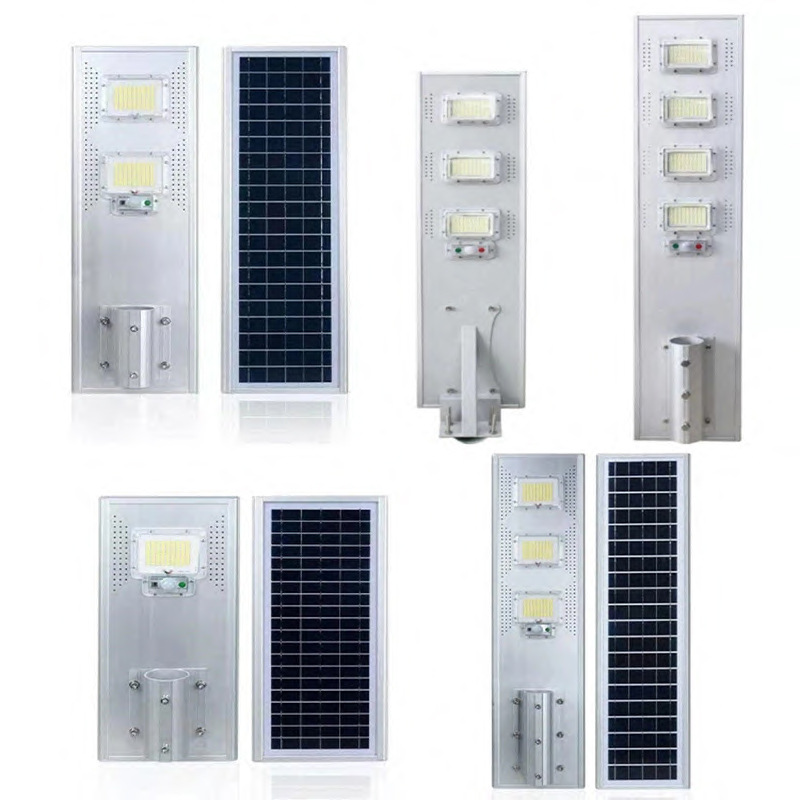

The NVKZ-5730 series is available in four product models: NVKZ-5730-50, NVKZ-5730-100, NVKZ-5730-150, and NVKZ-5730-200. Their PV, battery, LED-array, luminous-flux, dimensions, and recommended installation configurations scale with project requirements, supporting both municipal solar street light and commercial solar street light applications. For detailed specifications, see the Specifications tab. Explore our All-in-One Solar Street Lights collection for additional roadway and outdoor infrastructure solutions.
← Swipe horizontally to compare models →
| Parameter | NVKZ-5730-50 | NVKZ-5730-100 | NVKZ-5730-150 | NVKZ-5730-200 |
|---|---|---|---|---|
| 🌞 Solar & Power System | ||||
| Solar Cell Type & Efficiency | A-Grade Monocrystalline Solar Cells (>21% Cell Efficiency) | |||
| PV Module Vmp & Rated Power | 6V (Vmp) / 30W | 6V (Vmp) / 40W | 6V (Vmp) / 50W | 6V (Vmp) / 60W |
| PV Dimensions | 494 × 314 mm | 669 × 314 mm | 887 × 314 mm | 994 × 314 mm |
| Battery Type & BMS Protection | Grade-A LiFePO4 with Smart BMS Protection (Overcharge/Over-discharge/Temperature Protection), ≥2,000 Deep Discharge Cycles (80% DOD) |
|||
| Battery Capacity & System Voltage | 3.2V / 24Ah | 3.2V / 30Ah | 3.2V / 42Ah | 3.2V / 50Ah |
| Control & Operating Modes | Smart Controller + Motion Sensor + Dusk-to-Dawn Light Control + Remote Control + Timer | |||
| Motion Sensor Range & Angle | 8–12 m Sensor Range, 120° Wide Angle Detection | |||
| Full Charge Time | 4–6 hours (Under Standard Peak Sun Hours) | |||
| Operating Time & Autonomy | Up to 12 Hours (Dusk-to-Dawn) | |||
| 💡 Lighting & Optical | ||||
| LED Package | SMD5730 (104 pcs) | SMD5730 (208 pcs) | SMD5730 (312 pcs) | SMD5730 (416 pcs) |
| LED Package Efficacy | Up to 180 lm/W | |||
| Total Luminous Flux Output | 1,248–1,560 lm | 2,496–3,120 lm | 3,744–4,680 lm | 4,992–6,240 lm |
| Color Temperature (CCT) | 3000K–6500K, Customizable CCT | |||
| Color Rendering Index (CRI) | Ra ≥ 70 | |||
| Light Distribution | Type II / Type III | |||
| Optical Pattern | Batwing, Asymmetric | |||
| Beam Angle | 70° × 140° | |||
| LED Lifespan & Reliability | >50,000 Hours (L70 Performance) | |||
| 🏗️ Structure & Material | ||||
| Housing & Optical Materials | Aircraft-Grade Corrosion-Resistant Aluminum Alloy + Optical-Grade UV-Resistant Polycarbonate Lens / Tempered Glass | |||
| Pole Supply | Optional; ordered separately and not included in the luminaire carton. | |||
| Pole Material & Corrosion Resistance | Q235 Structural Steel, Hot-Dip Galvanized (HDG) + Outdoor Anti-Corrosion Powder Coating | |||
| Ingress Protection (IP Rating) | IP65 (Dust-tight & Water Jet Protected) | |||
| Impact Resistance (IK Rating) | IK08 (High Impact Resistance) | |||
| Wind Resistance | Up to 60 m/s* *Actual system wind resistance depends on pole height, pole geometry, installation conditions, and structural design. |
|||
| Pole Tenon & Spigot Diameter | Φ60 mm (Standard Pole Fit) | |||
| Mounting Bracket & Angle Adjustability | Integrated Sleeve / Adjustable Slip Fitter (±15° Optional) | |||
| PV Connection & Cable | Integrated Internal Connection (Plug-and-Play) | |||
| Recommended Pole Height & Installation Spacing | 4–6 m (Spacing 10–15 m) | 6–8 m (Spacing 15–20 m) | 7–9 m (Spacing 18–22 m) | 8–10 m (Spacing 20–25 m) |
| Product Dimensions (L × W × H) | 500 × 320 × 45 mm | 673 × 320 × 45 mm | 893 × 320 × 45 mm | 1,000 × 320 × 45 mm |
| Operating Temperature Range | −20°C–+60°C | |||
| 📦 Packaging & Compliance | ||||
| Carton / Packaging Dimensions | 650 × 340 × 51 mm | 823 × 370 × 105 mm | 1,043 × 370 × 105 mm | 1,150 × 370 × 105 mm |
| Packaging Quantity (PCS/CTN) | 1 pc / CTN | |||
| Standard Included Accessories | IR Remote Control, Stainless Steel Installation Screws/Bolts, User Manual | |||
| Certifications & Standards | CE, RoHS, ISO 9001 | |||
| Warranty Period | 2 Years (LED & Battery) | 8 Years (Solar Panel) | 10 Years (Poles) | |||
| 💼 Commercial Terms | ||||
| Minimum Order Quantity (MOQ) | 50 pcs | |||
| Production Lead Time | 30 Calendar Days | |||
| Sample Availability | Sample Available (1–5 Units) | |||
| OEM/ODM Customization | Customizable CCT, housing colors, branding/logo, packaging, and working modes | |||
Have specific technical or installation questions about this model? Contact our engineering team for support.
Applications & Scenarios
Engineered off-grid solar lighting solutions designed to meet the performance, reliability, and application requirements of commercial, municipal, and industrial projects across diverse outdoor environments.
Municipal Roads & Streets
Engineered for urban thoroughfares requiring standardized pole configurations, precise optics, and rapid deployment.
Recommended: All-in-One Systems
Highways & Arterial Roads
High-lumen, multi-lane illumination designed to meet rigorous roadway safety standards and extended nighttime runtimes.
Recommended: Split-Type Systems
Industrial Parks & Logistics Zones
Continuous zero-downtime lighting for heavy-traffic industrial corridors, freight yards, and manufacturing facilities.
Recommended: Split-Type Systems
Residential Communities & Campuses
Visual comfort optics optimized for glare-free, neighborhood-level illumination along residential streets and parks.
Recommended: All-in-One Systems
Rural & Off-Grid Infrastructure
Autonomous off-grid lighting solutions designed for remote villages, agricultural access roads, and grid-isolated regions.
Recommended: All-in-One Systems
Commercial Parking Lots & Perimeters
Wide-area security illumination engineered for retail plazas, outdoor facility perimeters, and commercial transit grounds.
Recommended: All-in-One / Split-Type
Need Custom Engineering Support for Your Roadway Project?
Our technical engineering team provides end-to-end design assistance for municipal contractors, EPCs, and infrastructure planners worldwide.
- DIALux Photometric Simulations – Precise Lux level and optimal pole spacing calculations
- Customized System Sizing – Tailored solar panel, LiFePO4 battery, and LED wattage configurations for specific autonomy days
- Full Technical Documentation – Complete IES files, CAD drawings, and installation specifications
Contact our engineering specialists today to receive customized technical proposals and IES test reports for your project.
Global Compliance & Engineering Quality
Seamless Project Approvals & Rapid Tender Compliance Worldwide
Accelerate municipal tender approvals and eliminate import clearance risks across 40+ countries. Our manufacturing facilities and product lines undergo rigorous third-party testing to comply with international infrastructure standards—including ISO 9001:2015 Quality Management System, CE (EMC & LVD), RoHS 2.0, FCC Part 15 Class B, and IEC 62722 / IEC 60598 photobiological safety specifications, along with UN38.3 lithium battery transport certification.
Illuminating Success Stories Worldwide
See Our Products Powering Projects Globally
Community Safety Lighting: NV Series Street Lights for S2 Heights Village Roads
Thailand Farm Solar Lighting: Waterfront Illumination with “Moon in Water” Garden Lights
High-Temperature Municipal Street Lighting Project, Dubai
Illuminating the New Port of Ndayane: A Landmark Solar Lighting Project, Senegal
Coastal Illumination Upgrade: Solar Flood Lighting for Australian Seaside Accommodation
Industrial-Grade Technical Highlights for Municipal Solar Street Lighting
High-lumen All-in-One and Split-Type solar street lights engineered with EN 13201 compliant optics, high-efficiency MPPT charge controllers, ADC12 die-cast housings, and Grade-A LiFePO4 battery autonomy for 6m–12m municipal, highway, and industrial road infrastructure.
EN 13201 Compliant Batwing Optics
Precision Type II / Type III asymmetric batwing optical lenses deliver high-uniformity, anti-glare road illumination optimized for 6m–12m mounting heights in full compliance with EN 13201 municipal safety standards.
Heavy-Duty Anti-Corrosion Housing & IP65/IP67 Rating
Rugged ADC12 aluminum alloy or high-density anti-rust PE composite housings with weather-tight silicone sealing guarantee long-term structural integrity across harsh coastal, high-salinity, and extreme temperature environments (-20°C to 65°C).
High-Efficiency Monocrystalline PV & MPPT Tracking
High-conversion monocrystalline solar panels paired with smart MPPT controllers (>98% tracking efficiency) maximize daily solar energy absorption even during low-irradiance overcast conditions.
Grade-A LiFePO4 & 3–5 Day Overcast Autonomy
High-capacity Grade-A LiFePO4 battery storage delivers 2,000+ deep cycles and smart battery management (BMS) for 3–5 days of continuous overcast lighting autonomy.
Microwave Sensing & Multi-Stage Timer Automation
Integrated 360° microwave radar sensors and customizable 4-in-1 timer modes automatically manage lumen output from 30% standby dimming to 100% full brightness upon traffic movement.
Adjustable Slip-Fitter Mount & Zero-Trenching
Reinforced adjustable mounting sleeves (0°–15° tilt adjustment) enable fast top-pole and side-arm installation on standard 60mm–89mm poles without grid trenching or cable routing.
SOLAR VS. GRID: TOTAL COST COMPARISON
Skip the Trenching. Eliminate Energy Bills.
Calculate your 5-year project ROI below and see how much your facility can save with Lumin Solar Solutions.
Private Project ROI Calculator
💡 Pro Tip: Switching to solar allows you to eliminate trenching costs and expensive cabling.
Traditional Grid vs. Lumin Solar Lighting Solutions Cost Analysis
| Project Cost Items (30 Units) | Traditional Grid | Lumin Solar Solutions |
|---|---|---|
| Trenching & Labor | $3,000 - $8,000 | $0 (No Digging) |
| Cabling & Wiring | $2,500 - $5,000 | $0 |
| Transformer/Switchgear | Essential Infrastructure Cost | Not Needed |
| Electricity Bill (Annual) | $1,500 - $2,500 | $0 (Free) |
| Installation Time | 7-14 Days | 1-2 Days |
| Total Hidden Costs | EXTREMELY HIGH | ZERO |
*Calculated based on average private industrial projects. Lumin Solar Solutions eliminates infrastructure overhead.
Why pay for copper wires and manual labor when you can invest that budget into high-quality solar technology?
Commercial & Ordering FAQ
Our standard Minimum Order Quantity (MOQ) is 50 units. We also fully support sample orders (1–5 units) for project evaluation, technical testing, and quality verification prior to bulk production.
We offer flexible international trade terms including FOB, CIF, EXW, and DDP (Delivered Duty Paid). Our DDP services cover 42+ countries to ensure seamless customs clearance and hassle-free door-to-door delivery.
We accept Wire Transfer (T/T) and Letter of Credit (L/C).
The standard lead time for mass production is 30 calendar days, calculated from the date your deposit is received. For customized OEM/ODM projects or specialized technical requirements, the delivery schedule will be mutually confirmed during contract review.
Yes, absolutely. We offer complete OEM/ODM solutions, including custom logo/branding, custom housing finishes, specialized lumen/wattage outputs, tailored optical spectrums, and smart controller lighting profiles.
We provide comprehensive warranty coverage across all system components: 2-year warranty for the LED luminaire and LiFePO4 battery, 8-year warranty for monocrystalline solar panels, and 10-year warranty for lighting poles. (Please refer to our product catalog for itemized terms).
We provide worldwide shipping via sea freight, air freight, and express courier. Our dedicated logistics team manages export documentation, compliance checks, and end-to-end cargo tracking to ensure safe delivery to your site or port.
Simply click the “Inquire Now” button or contact our sales department with your order details. Our sales engineers will review your project requirements and issue an official Proforma Invoice (PI) promptly.
