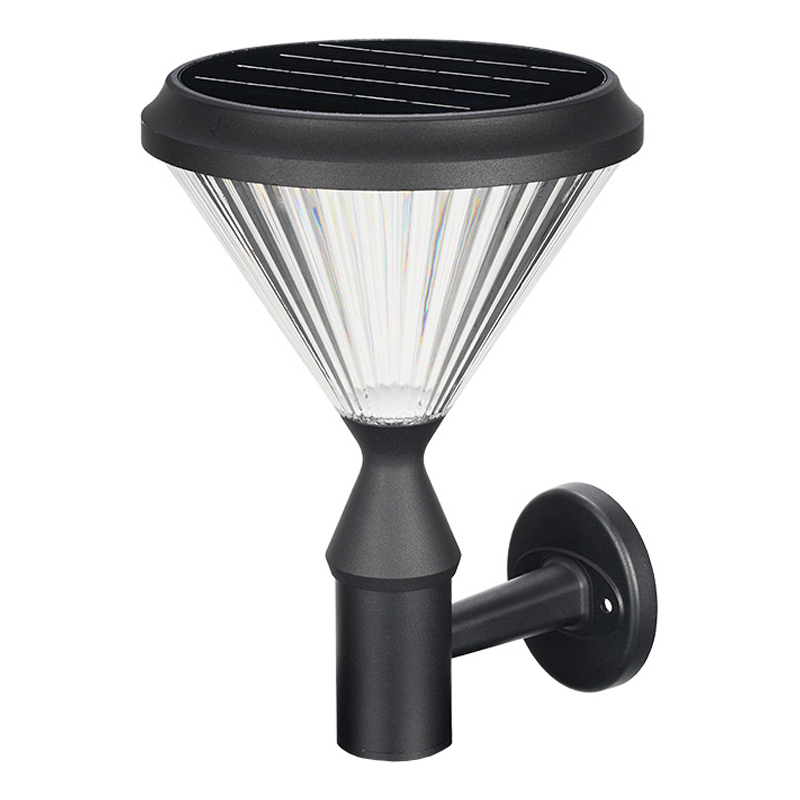

Polaris Prismatic-Diffuser Solar Wall Light (PSCZ-4005)
Polaris Prismatic-Diffuser Solar Wall Light (PSCZ-4005)
-
- Prismatic Design
- Faceted Diffuser
- Decorative Style
- Monocrystalline Solar Charging
- 3000K Warm White–6500K Cool Daylight (Customizable)
- Die-Cast Aluminum + PC Housing
- IP65 Outdoor Protection
- All-Night Illumination
- All-Weather Proof
- Built for a Decade+
- Smart Adaptive Control
- Easy Plug & Play
- Low Lifetime Cost
- Certified Worldwide
- Reliable Supply & Delivery
Prismatic Architectural Wall Lighting with a Faceted Diffuser
The Polaris PSCZ-4005 is a Prismatic Solar Wall Light designed for architectural and decorative outdoor wall lighting where the fixture’s optical appearance is an important part of the lighting design. Its large transparent PC diffuser uses a faceted, prismatic structure to create a distinctive crystal-style appearance, giving the fixture a decorative architectural character for building entrances, façades, and outdoor amenity areas.
Faceted Optical Design for Architectural Lighting
The primary distinction of this Prismatic Solar Wall Light is its faceted diffuser and tapered fixture form. The prismatic surface becomes an integral part of the visible luminaire design, creating a textured appearance as light passes through the diffuser. This approach makes the PSCZ-4005 particularly suitable for projects where architectural appearance and decorative illumination need to be considered alongside basic outdoor lighting requirements.
Self-Contained Solar Power for Off-Grid Wall Lighting
The PSCZ-4005 integrates a 5V / 4.5W monocrystalline solar module with a 3.2V / 8Ah lithium battery, providing a self-contained power configuration for suitable off-grid wall-lighting applications. Its 3,000–6,500K CCT range allows the lighting appearance to be selected according to the surrounding architectural environment and project requirements.
Outdoor Construction for Hospitality and Building Projects

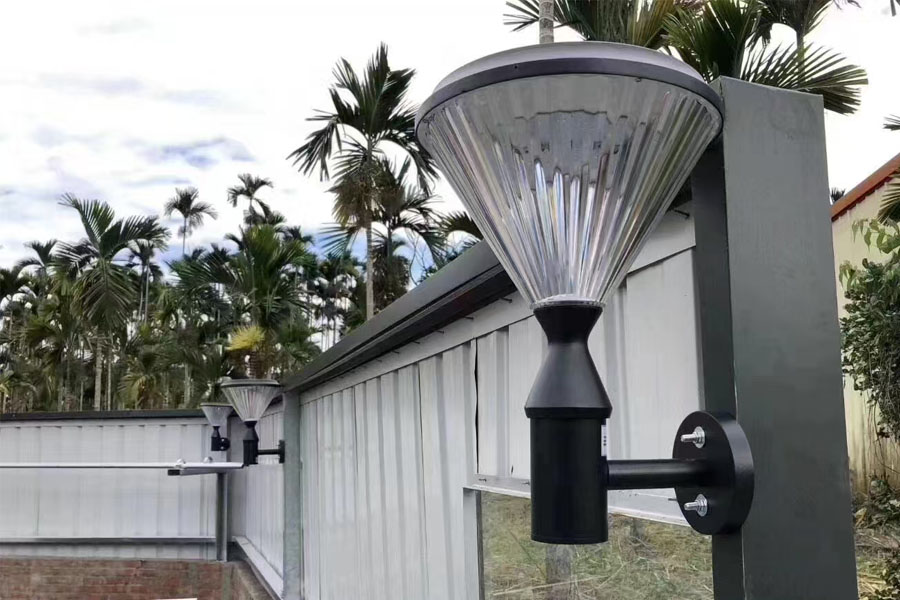

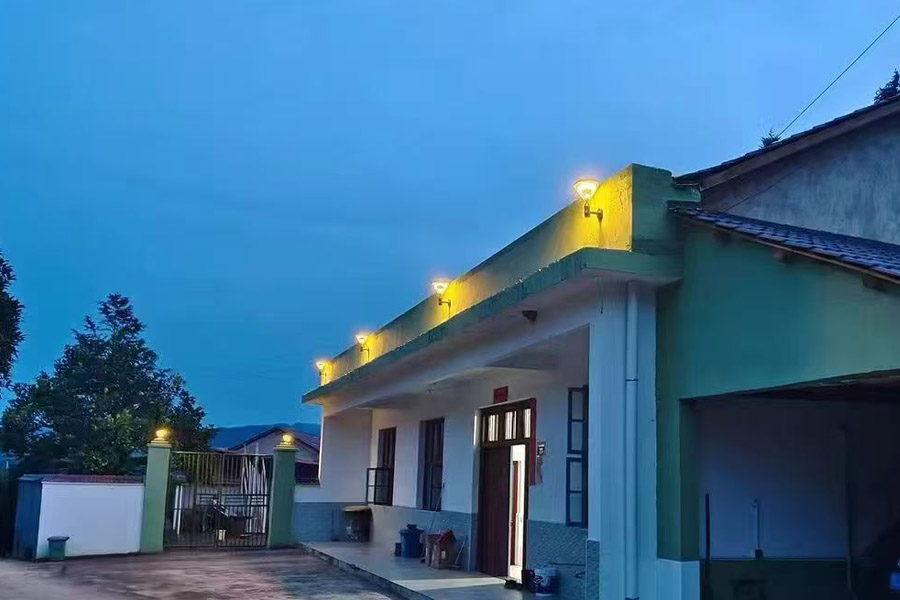

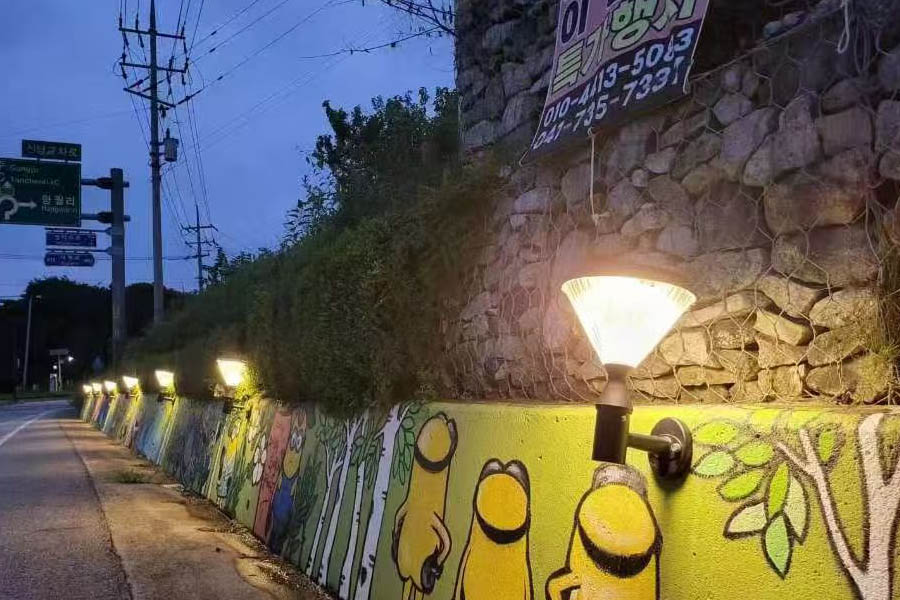

The die-cast aluminum and PC housing is rated IP65 for outdoor protection, providing a practical construction platform for wall-mounted architectural lighting. The PSCZ-4005 is suited to hotel entrances, hospitality properties, villa exteriors, courtyards, commercial building entrances, and architectural perimeter walls, and forms part of our Solar Wall-Pack Lights range.
For detailed specifications, see the Specifications tab.
← Swipe horizontally to view details →
| Parameter | PSCZ-4005 |
|---|---|
| 🌞 Solar & Power System | |
| Solar Cell Type & Efficiency | A-Grade Monocrystalline Solar Cells (>21% Cell Efficiency) |
| PV Module Vmp & Rated Power | 5V (Vmp) / 4.5W |
| Battery Spec & Protection | 3.2V / 8Ah LiFePO4 with Smart BMS |
| Full Charge Time | 3–5 Hours (Under Standard Peak Sun Hours) |
| Operating Time & Autonomy | 12 Hours Continuous (Dusk-to-Dawn) |
| 💡 Lighting & Optical | |
| LED Package | 30 pcs |
| Luminous Flux / Output | 450 lm–600 lm (Nominal) |
| Color Temperature (CCT) | 3000K–6500K (Customizable) |
| Color Rendering Index (CRI) | Ra ≥ 70 |
| Light Distribution | Symmetric 360° Radial Distribution |
| Optical Pattern | Faceted Prismatic Refraction |
| Beam Angle | 360° Horizontal × 120° Vertical |
| LED Lifespan & Reliability | >50,000 Hours (L70 Performance) |
| 🏗️ Structure & Material | |
| Housing Materials | Die-Cast Aluminum + PC (Gray / Sand Black |
| Ingress Protection (IP Rating) | IP65 (Dust-tight & Water Jet Protected) |
| Impact Resistance (IK Rating) | IK08 (High Impact Resistance) |
| Mounting Type | Wall Mount / Surface Mount |

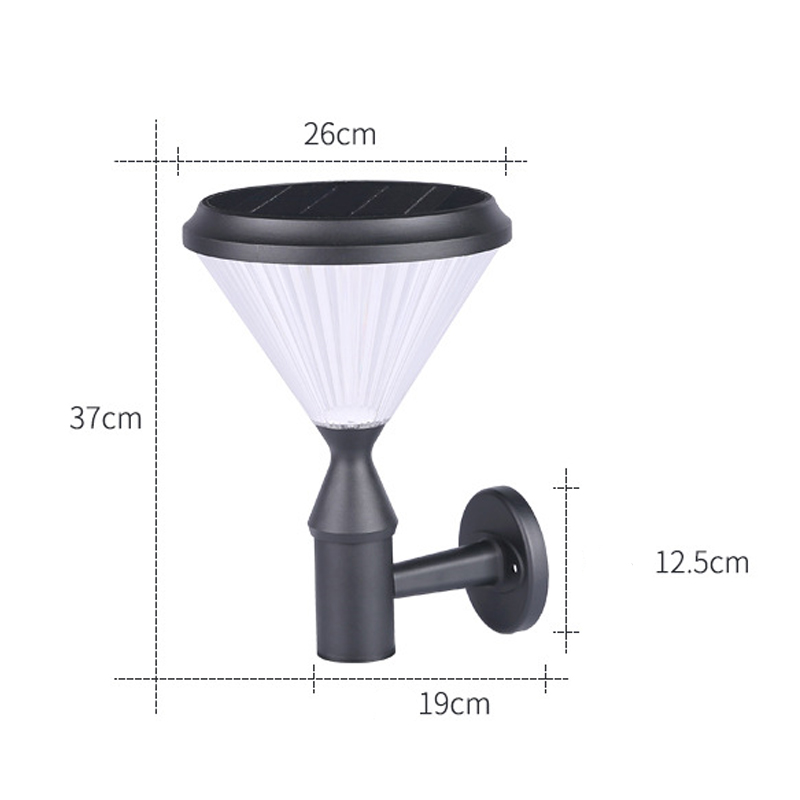

| Product Dimensions | Φ260 mm x H370 mm |
| Operating Temperature Range | −20°C–+60°C |
| 📦 Packaging & Compliance | |
| Carton / Packaging Dimensions | 860 × 360 × 320 mm |
| Packaging Quantity | 5 pcs / CTN |
| Certifications & Standards | CE, RoHS, CB, FCC, ISO 9001 |
| Warranty Period | 2 Years |
| 💼 Commercial Terms | |
| Minimum Order Quantity (MOQ) | 50 pcs |
| Production Lead Time | 30 Calendar Days |
| Sample Availability | Sample Available (1–5 Units) |
| OEM/ODM Customization | Custom branding, custom CCT & housing colors, scalable battery capacities, and bespoke dimming profiles. |
Have specific technical or installation questions about this model? Contact our engineering team for support.
Applications & Scenarios
High-efficacy commercial solar wall-pack lights provide maintenance-free, zero-grid illumination across building exteriors, security perimeters, logistics docks, and pedestrian access corridors.

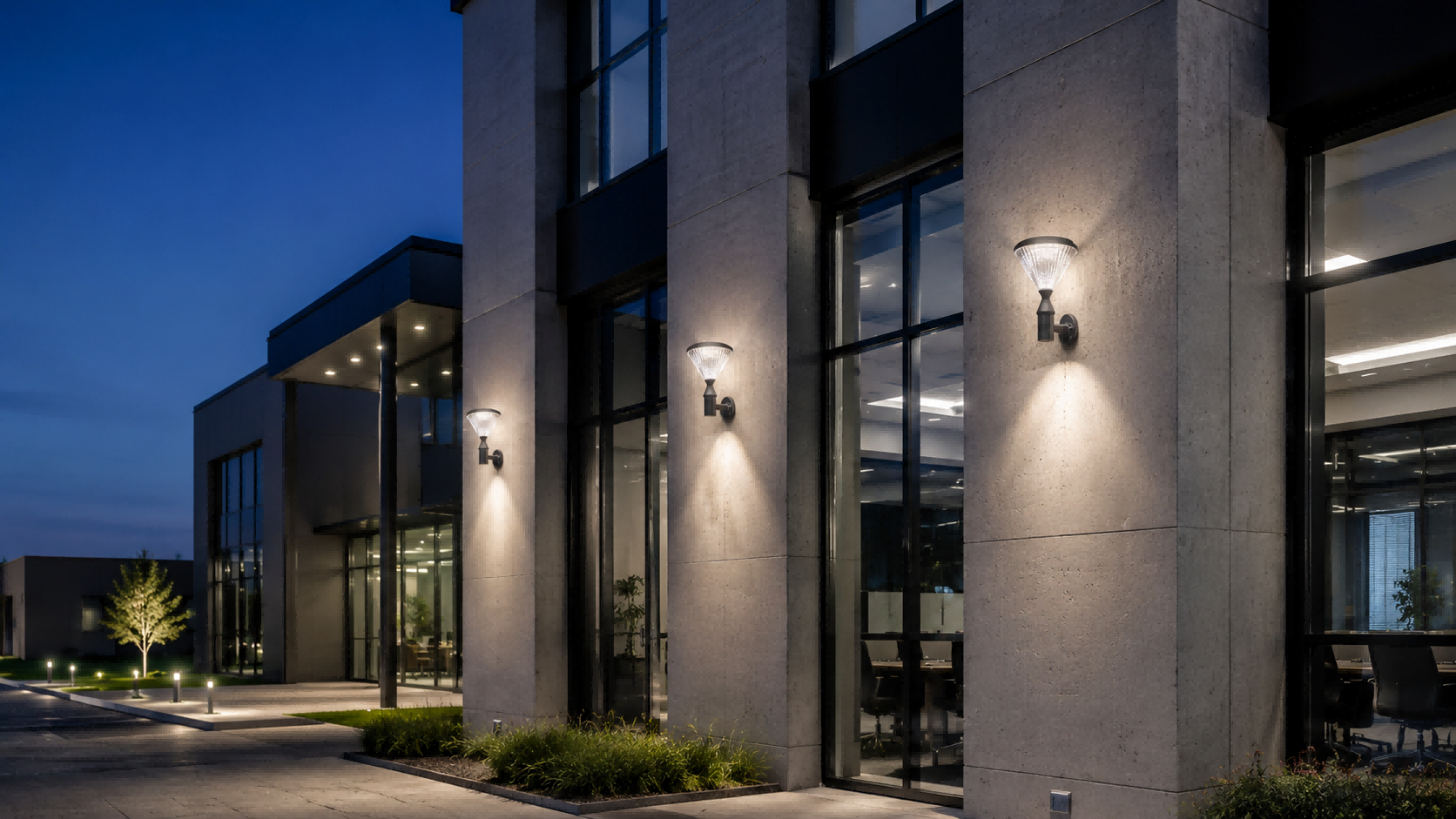

Commercial Building Exteriors & Architectural Facades
Delivers clean, glare-free vertical surface illumination and wall-washing effects for office parks, retail plazas, and commercial headquarters. Enhances nighttime architectural aesthetics and brand visibility without complex electrical conduit installations.

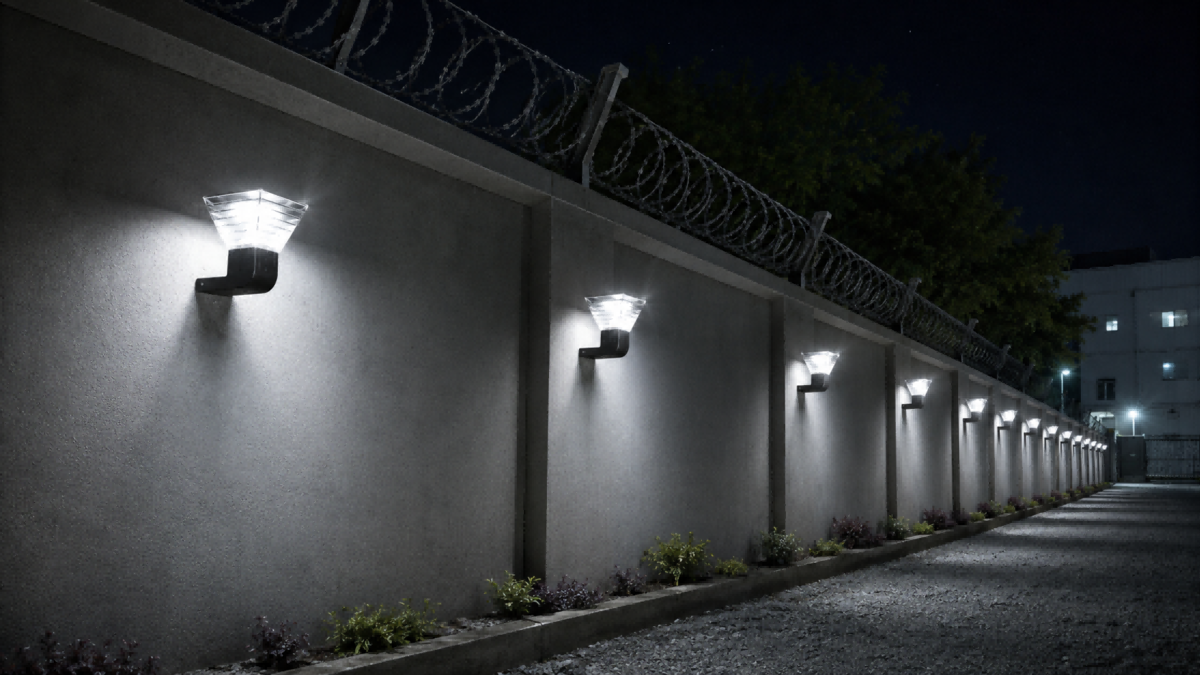

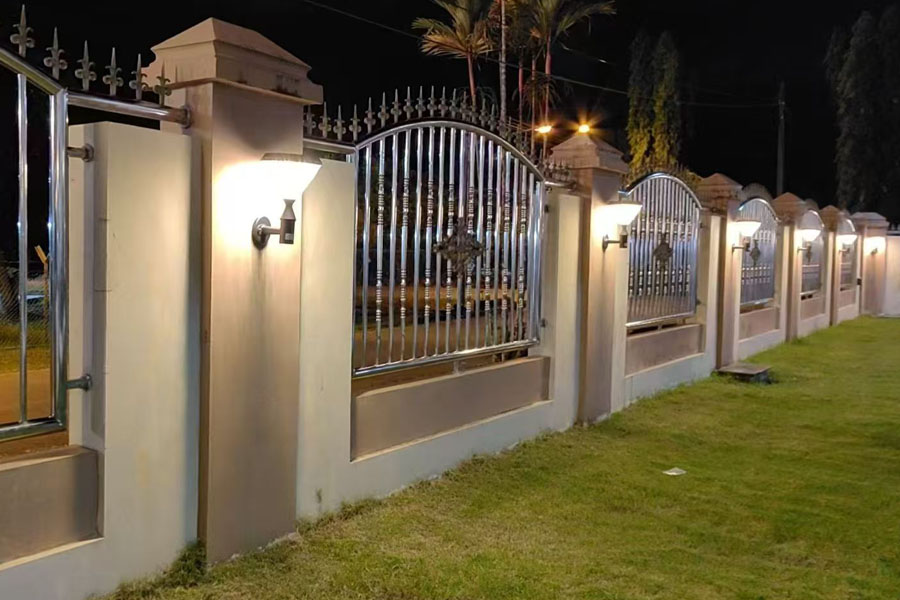

Perimeter Security & Facility Boundary Fencing
Eliminates dark spots along critical property boundaries, perimeter walls, and security fences. Integrated PIR motion sensors automatically boost standby lighting to 100% full brightness upon movement, deterring intruders and enhancing 24/7 site safety.

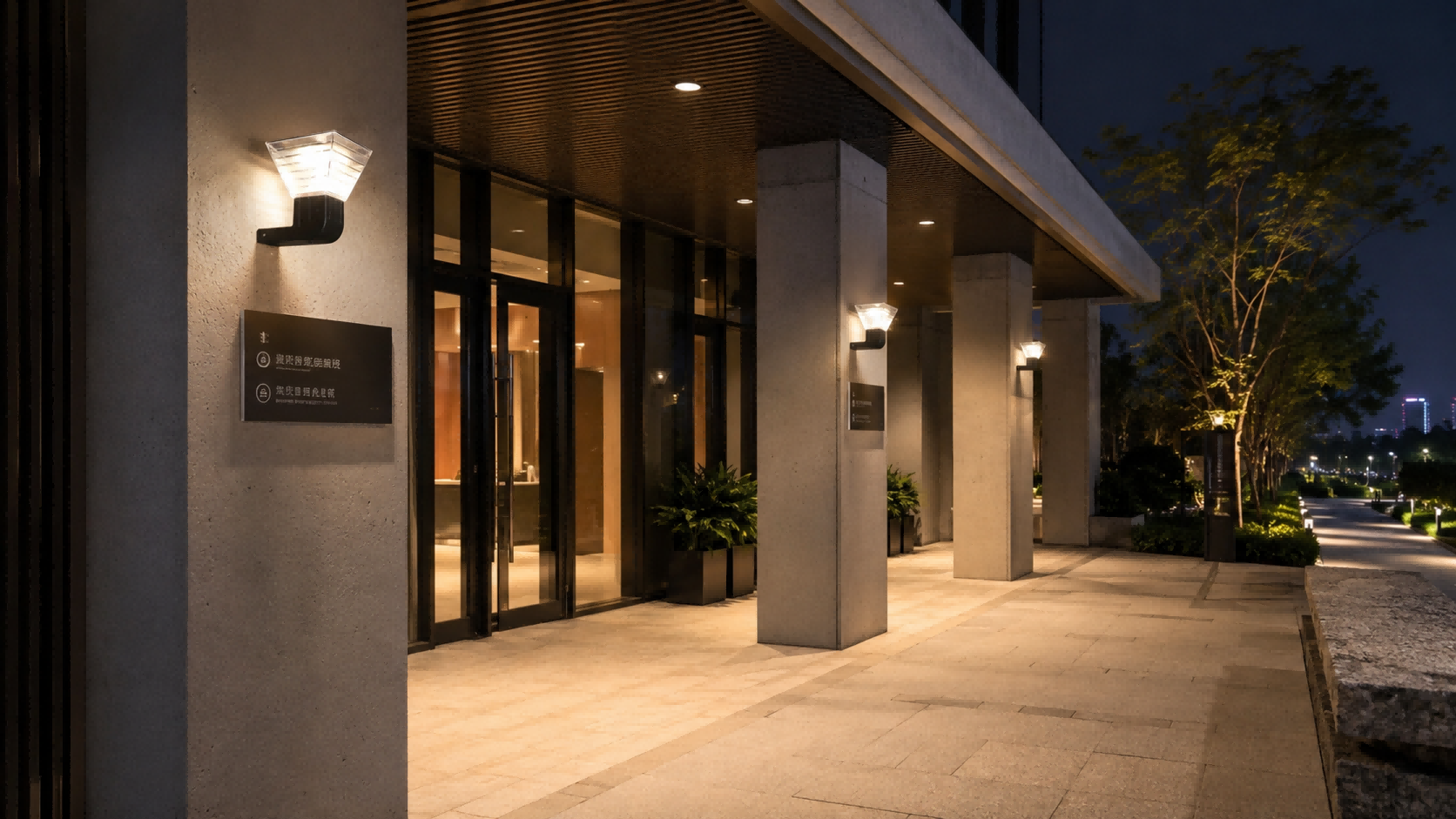

Building Entrances, Corridors & Access Walkways
Provides safe, reliable passage for employees, visitors, and residents near exterior doors, public stairwells, covered walkways, and balcony corridors. Dusk-to-dawn automation ensures continuous glare-free guidance.

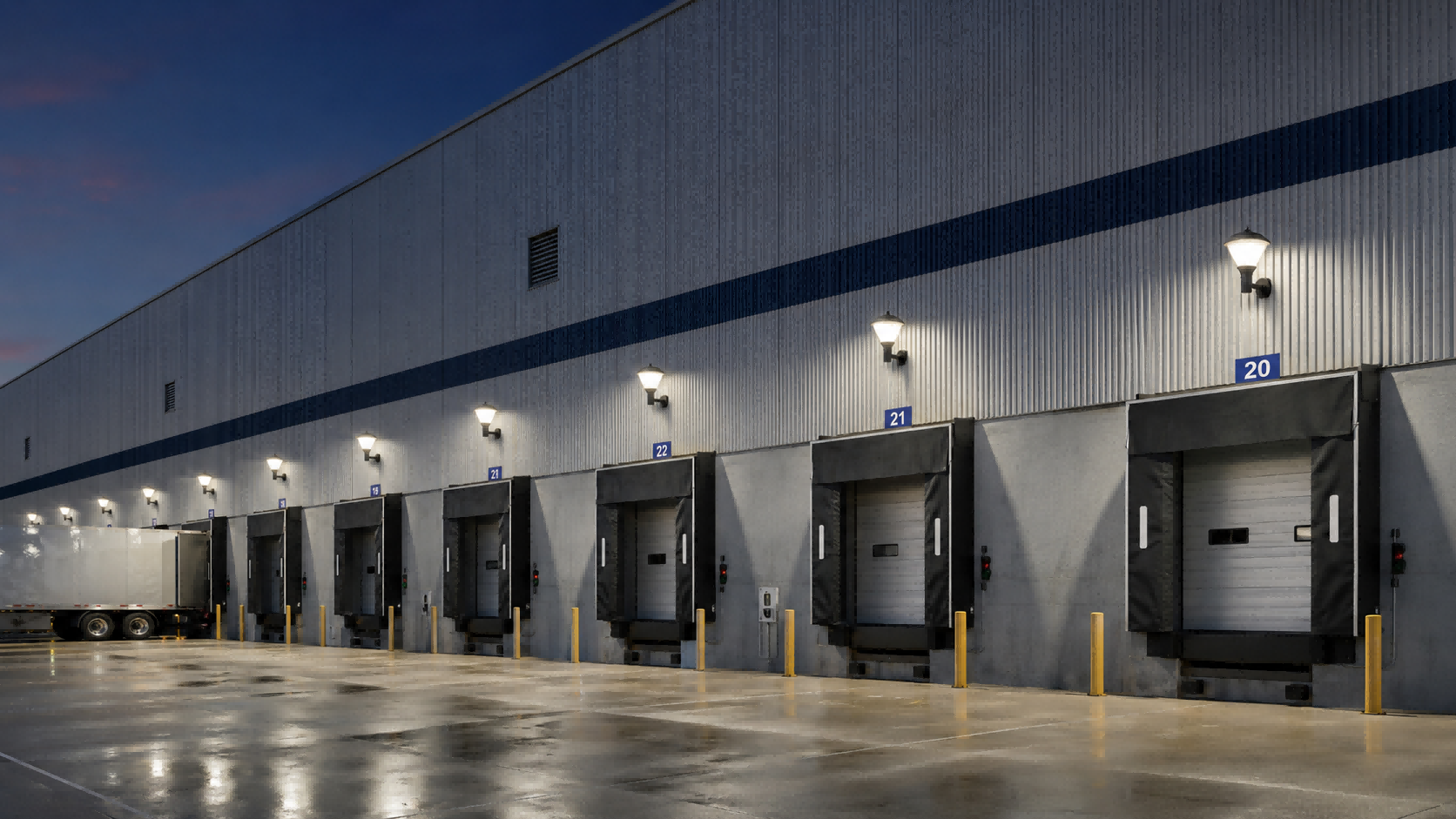

Warehouses, Logistics Hubs & Loading Docks
Engineered for high-durability operational illumination around freight loading bays, industrial storage yards, and utility doors. Rugged IP65/IP67 die-cast aluminum housing resists vibration, dust, and heavy outdoor weather.

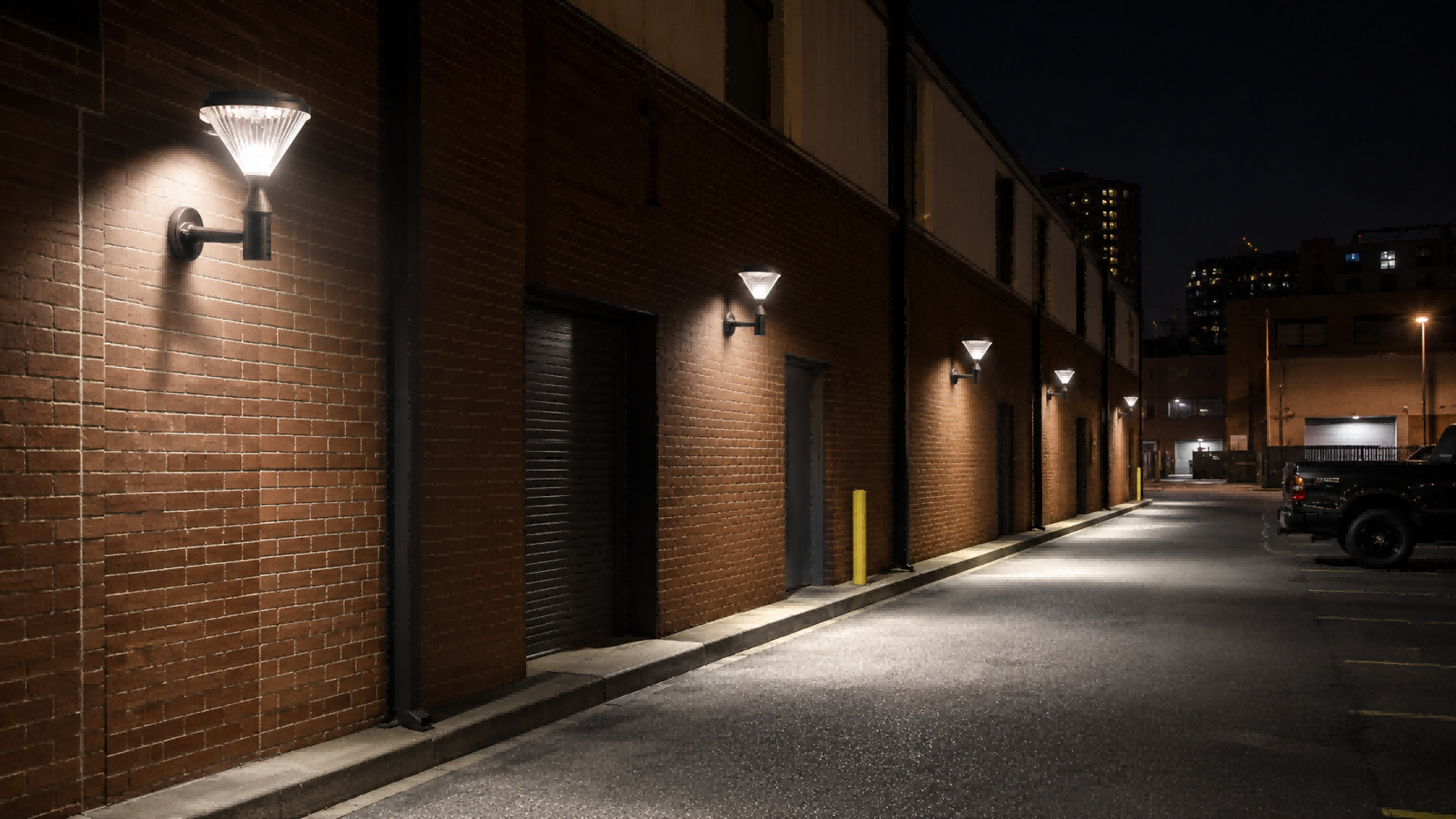

Parking Garages, Driveways & Service Alleyways
Illuminates dark vehicular access routes, open-air parking structures, and narrow service alleys. Delivers wide-angle light distribution to improve driver and pedestrian visibility while cutting annual operating overhead.

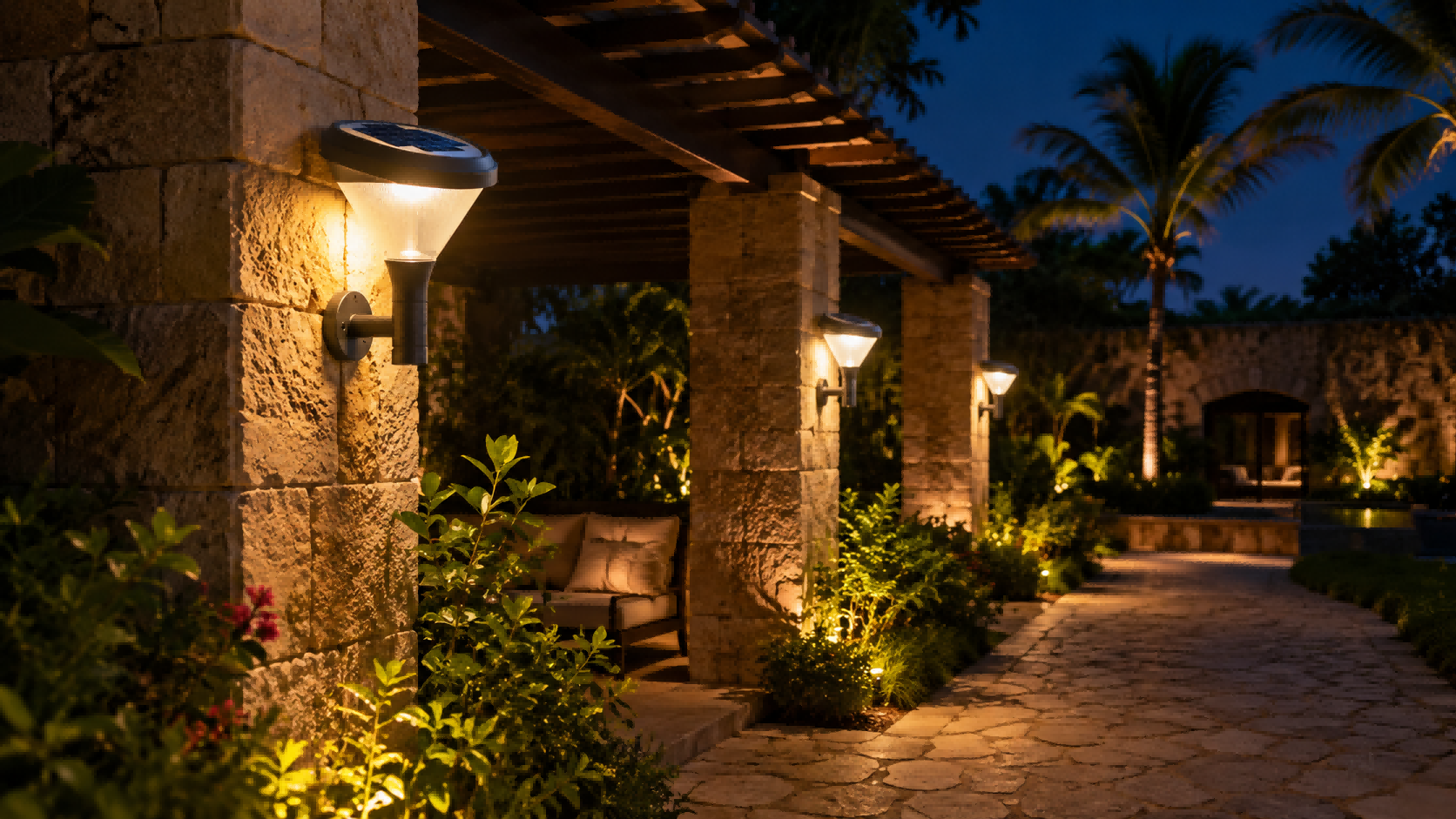

Hospitality Courtyards, Pergolas & Residential Estates
Blends seamlessly into upscale outdoor spaces including hotel patios, garden gates, residential fences, and pergola seating corners. Offers dual warm (3000K) and cool white (6000K) color options for versatile ambiance.
Your Assurance of Quality & Safety
Internationally Recognized Certifications
Our Credentials Ensure Your Peace of Mind:
We are ISO 9001 certified for quality management. Our products hold major international certifications including CE, RoHS, ETL, and IEC, and are designed to meet region-specific standards. This means proven performance and seamless acceptance, whether your project is in a mature or developing market.
Illuminating Success Stories Worldwide
See Our Products Powering Projects Globally
Community Safety Lighting: NV Series Street Lights for S2 Heights Village Roads
Thailand Farm Solar Lighting: Waterfront Illumination with “Moon in Water” Garden Lights
High-Temperature Municipal Street Lighting Project, Dubai
Illuminating the New Port of Ndayane: A Landmark Solar Lighting Project, Senegal
Coastal Illumination Upgrade: Solar Flood Lighting for Australian Seaside Accommodation
Industrial-Grade Technical Highlights for Commercial Solar Wall-Packs
Heavy-duty die-cast aluminum wall-packs engineered with forward-throw optics, PIR motion automation, IP65/IP67 weatherproofing, and high-capacity LiFePO4 battery storage for 20+ years of zero-grid perimeter security.
Wide-Angle Wall-Wash & Forward-Throw Optics
Asymmetric 120°–140° beam distribution with UV-stabilized anti-glare diffusers delivers uniform vertical wall-washing and zero-dark-spot perimeter lighting.
ADC12 Die-Cast Aluminum & IK08 Rating
Rugged corrosion-resistant aluminum housing with UV-stabilized powder coating and IK08 impact resistance protects against vandalism and severe weather.
IP65/IP67 Sealed Weatherproof Architecture
Precision-potted electronic controls and weather-tight silicone gaskets ensure flawless operation across extreme ambient temperatures from -20°C to 65°C.
Smart Lighting & Motion Control
Integrated high-conversion monocrystalline solar panels paired with Grade-A LiFePO4 batteries deliver 2,000+ deep cycles and 3–5 days of continuous overcast autonomy.
PIR/Microwave Motion Automation
Integrated smart sensors automatically switch from 30% standby dimming to 100% full brightness upon movement within 8–12 meters for 24/7 facility safety.
Zero-Conduit Surface Mount & Dual CCT
Pre-drilled mounting flanges eliminate costly electrical conduits, featuring field-switchable dual CCT (3000K warm / 6000K cool white) for custom architectural aesthetics.
