COMMERCIAL & ARCHITECTURAL SOLAR WALL-PACK LIGHTS
Polaris Minimalist Diffused Solar Wall Light (PSCZ-2104)
Polaris Minimalist Diffused Solar Wall Light (PSCZ-2104)
-
- Minimalist Design
- Soft Diffused Lighting
- Compact Form
- Monocrystalline Solar Charging
- 3000K Warm White–6500K Cool Daylight (Customizable)
- Die-Cast Aluminum + PC Housing
- IP65 Outdoor Protection
- All-Night Illumination
- All-Weather Proof
- Built for a Decade+
- Smart Adaptive Control
- Easy Plug & Play
- Low Lifetime Cost
- Certified Worldwide
- Reliable Supply & Delivery
Minimalist Solar Wall Lighting with Soft-Diffused Illumination
The Polaris PSCZ-2104 is a Minimalist Solar Wall Light designed for architectural outdoor areas that require a compact, visually restrained wall-mounted fixture with soft diffused illumination. Its rounded body and simple form allow the luminaire to integrate naturally with contemporary façades, entrances, pathways, and perimeter areas without introducing a visually complex fixture profile.
Minimalist Form with Soft-Diffused Light
The defining characteristic of this Minimalist Solar Wall Light is the combination of its rounded compact form and soft-diffused lighting surface. The diffused design helps create a softer visual appearance from the LED source, while the simple housing maintains a clean architectural profile. This makes the PSCZ-2104 appropriate for projects where functional outdoor illumination needs to coexist with a restrained architectural design language.
Integrated Solar Power for Off-Grid Wall Lighting
The PSCZ-2104 uses a 5V / 5W monocrystalline solar module together with a 3.2V / 8Ah lithium battery in an integrated solar lighting configuration. This self-contained arrangement supports suitable off-grid wall-lighting installations without requiring a conventional wired power connection at the fixture. The 3,000–6,500K CCT range provides flexibility for different architectural lighting requirements.
Compact Outdoor Construction for Architectural Projects
Built from die-cast aluminum and PC and rated IP65, the PSCZ-2104 provides a practical outdoor housing configuration for wall-mounted installation. It is suitable for residential and mixed-use buildings, commercial entrances, courtyards, walkways, building perimeters, and modern architectural exteriors within our broader Solar Wall-Pack Lights range.
For detailed specifications, see the Specifications tab.
← Swipe horizontally to view details →
| Parameter | PSCZ-2104 |
|---|---|
| 🌞 Solar & Power System | |
| Solar Cell Type & Efficiency | A-Grade Monocrystalline Solar Cells (>21% Cell Efficiency) |
| PV Module Vmp & Rated Power | 5V (Vmp) / 5W |
| Battery Spec & Protection | 3.2V / 8Ah LiFePO4 with Smart BMS |
| Full Charge Time | 3–5 Hours (Under Standard Peak Sun Hours) |
| Operating Time & Autonomy | 12 Hours Continuous (Dusk-to-Dawn) |
| 💡 Lighting & Optical | |
| LED Package | 30 pcs |
| Luminous Flux / Output | 450 lm–600 lm (Nominal) |
| Color Temperature (CCT) | 3000K–6500K (Customizable) |
| Color Rendering Index (CRI) | Ra ≥ 70 |
| Light Distribution | Symmetric (180° Diffused) |
| Optical Pattern | Soft Diffused Anti-Glare |
| Beam Angle | 120° × 120° |
| LED Lifespan & Reliability | >50,000 Hours (L70 Performance) |
| 🏗️ Structure & Material | |
| Housing Materials | Die-Cast Aluminum + PC (Gray / Sand Black |
| Ingress Protection (IP Rating) | IP65 (Dust-tight & Water Jet Protected) |
| Impact Resistance (IK Rating) | IK08 (High Impact Resistance) |
| Mounting Type | Wall Mount / Surface Mount |

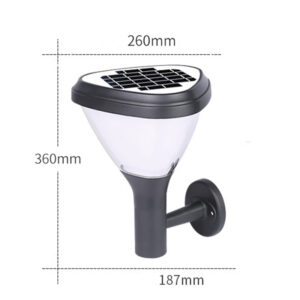

| Product Dimensions | Φ260 mm × H360 mm |
| Operating Temperature Range | −20°C–+60°C |
| 📦 Packaging & Compliance | |
| Carton / Packaging Dimensions | |
| Packaging Quantity | 5 pcs / CTN |
| Certifications & Standards | CE, RoHS |
| Warranty Period | 2 Years |
| 💼 Commercial Terms | |
| Minimum Order Quantity (MOQ) | 50 pcs |
| Production Lead Time | 30 Calendar Days |
| Sample Availability | Sample Available (1–5 Units) |
| OEM/ODM Customization | Custom branding, custom CCT & housing colors, scalable battery capacities, and bespoke dimming profiles. |
Have specific technical or installation questions about this model? Contact our engineering team for support.
Applications & Scenarios
High-efficacy commercial solar wall-pack lights provide maintenance-free, zero-grid illumination across building exteriors, security perimeters, logistics docks, and pedestrian access corridors.
Commercial Building Exteriors & Architectural Facades
Delivers clean, glare-free vertical surface illumination and wall-washing effects for office parks, retail plazas, and commercial headquarters. Enhances nighttime architectural aesthetics and brand visibility without complex electrical conduit installations.
Perimeter Security & Facility Boundary Fencing
Eliminates dark spots along critical property boundaries, perimeter walls, and security fences. Integrated PIR motion sensors automatically boost standby lighting to 100% full brightness upon movement, deterring intruders and enhancing 24/7 site safety.
Building Entrances, Corridors & Access Walkways
Provides safe, reliable passage for employees, visitors, and residents near exterior doors, public stairwells, covered walkways, and balcony corridors. Dusk-to-dawn automation ensures continuous glare-free guidance.
Warehouses, Logistics Hubs & Loading Docks
Engineered for high-durability operational illumination around freight loading bays, industrial storage yards, and utility doors. Rugged IP65/IP67 die-cast aluminum housing resists vibration, dust, and heavy outdoor weather.
Parking Garages, Driveways & Service Alleyways
Illuminates dark vehicular access routes, open-air parking structures, and narrow service alleys. Delivers wide-angle light distribution to improve driver and pedestrian visibility while cutting annual operating overhead.
Hospitality Courtyards, Pergolas & Residential Estates
Blends seamlessly into upscale outdoor spaces including hotel patios, garden gates, residential fences, and pergola seating corners. Offers dual warm (3000K) and cool white (6000K) color options for versatile ambiance.
Your Assurance of Quality & Safety
Internationally Recognized Certifications
Our Credentials Ensure Your Peace of Mind:
We are ISO 9001 certified for quality management. Our products hold major international certifications including CE, RoHS, ETL, and IEC, and are designed to meet region-specific standards. This means proven performance and seamless acceptance, whether your project is in a mature or developing market.
Illuminating Success Stories Worldwide
See Our Products Powering Projects Globally
Community Safety Lighting: NV Series Street Lights for S2 Heights Village Roads
Thailand Farm Solar Lighting: Waterfront Illumination with “Moon in Water” Garden Lights
High-Temperature Municipal Street Lighting Project, Dubai
Illuminating the New Port of Ndayane: A Landmark Solar Lighting Project, Senegal
Coastal Illumination Upgrade: Solar Flood Lighting for Australian Seaside Accommodation
Industrial-Grade Technical Highlights for Commercial Solar Wall-Packs
Heavy-duty die-cast aluminum wall-packs engineered with forward-throw optics, PIR motion automation, IP65/IP67 weatherproofing, and high-capacity LiFePO4 battery storage for 20+ years of zero-grid perimeter security.
Wide-Angle Wall-Wash & Forward-Throw Optics
Asymmetric 120°–140° beam distribution with UV-stabilized anti-glare diffusers delivers uniform vertical wall-washing and zero-dark-spot perimeter lighting.
ADC12 Die-Cast Aluminum & IK08 Rating
Rugged corrosion-resistant aluminum housing with UV-stabilized powder coating and IK08 impact resistance protects against vandalism and severe weather.
IP65/IP67 Sealed Weatherproof Architecture
Precision-potted electronic controls and weather-tight silicone gaskets ensure flawless operation across extreme ambient temperatures from -20°C to 65°C.
Smart Lighting & Motion Control
Integrated high-conversion monocrystalline solar panels paired with Grade-A LiFePO4 batteries deliver 2,000+ deep cycles and 3–5 days of continuous overcast autonomy.
PIR/Microwave Motion Automation
Integrated smart sensors automatically switch from 30% standby dimming to 100% full brightness upon movement within 8–12 meters for 24/7 facility safety.
Zero-Conduit Surface Mount & Dual CCT
Pre-drilled mounting flanges eliminate costly electrical conduits, featuring field-switchable dual CCT (3000K warm / 6000K cool white) for custom architectural aesthetics.
SOLAR VS. GRID: TOTAL COST COMPARISON
Skip the Trenching. Eliminate Energy Bills.
Calculate your 5-year project ROI below and see how much your facility can save with Lumin Solar Solutions.
Private Project ROI Calculator
💡 Pro Tip: Switching to solar allows you to eliminate trenching costs and expensive cabling.
Traditional Grid vs. Lumin Solar Lighting Solutions Cost Analysis
| Project Cost Items (30 Units) | Traditional Grid | Lumin Solar Solutions |
|---|---|---|
| Trenching & Labor | $3,000 - $8,000 | $0 (No Digging) |
| Cabling & Wiring | $2,500 - $5,000 | $0 |
| Transformer/Switchgear | Essential Infrastructure Cost | Not Needed |
| Electricity Bill (Annual) | $1,500 - $2,500 | $0 (Free) |
| Installation Time | 7-14 Days | 1-2 Days |
| Total Hidden Costs | EXTREMELY HIGH | ZERO |
*Calculated based on average private industrial projects. Lumin Solar Solutions eliminates infrastructure overhead.
Why pay for copper wires and manual labor when you can invest that budget into high-quality solar technology?
Commercial & Ordering FAQ
Our standard Minimum Order Quantity (MOQ) is 50 units. We also fully support sample orders (1–5 units) for project evaluation, technical testing, and quality verification prior to bulk production.
We offer flexible international trade terms including FOB, CIF, EXW, and DDP (Delivered Duty Paid). Our DDP services cover 42+ countries to ensure seamless customs clearance and hassle-free door-to-door delivery.
We accept Wire Transfer (T/T) and Letter of Credit (L/C).
The standard lead time for mass production is 30 calendar days, calculated from the date your deposit is received. For customized OEM/ODM projects or specialized technical requirements, the delivery schedule will be mutually confirmed during contract review.
Yes, absolutely. We offer complete OEM/ODM solutions, including custom logo/branding, custom housing finishes, specialized lumen/wattage outputs, tailored optical spectrums, and smart controller lighting profiles.
We provide comprehensive warranty coverage across all system components: 2-year warranty for the LED luminaire and LiFePO4 battery, 8-year warranty for monocrystalline solar panels, and 10-year warranty for lighting poles. (Please refer to our product catalog for itemized terms).
We provide worldwide shipping via sea freight, air freight, and express courier. Our dedicated logistics team manages export documentation, compliance checks, and end-to-end cargo tracking to ensure safe delivery to your site or port.
Simply click the “Inquire Now” button or contact our sales department with your order details. Our sales engineers will review your project requirements and issue an official Proforma Invoice (PI) promptly.
Need a Customized Lighting Proposal & Fast Quotation?
Send us your project details (mounting height, wall surface area, quantity), and our engineering team will deliver a complete technical proposal within 3 days.
- Fast RFQ Response
- DIALux Simulation
- Worldwide Delivery
- Factory Direct & OEM
