COMMERCIAL & ARCHITECTURAL SOLAR BOLLARD & PILLAR LIGHTS
Cyrus Mini Ripple-Pattern Solar Pillar Light (CYCZ-0907)
Cyrus Mini Ripple-Pattern Solar Pillar Light (CYCZ-0907)
- Efficient 2W Output: Delivers 140–200 lm of low-glare 360° refractive light diffusion, making this 2W solar pillar light ideal for landscape accent illumination.
- Monocrystalline Solar Panel: Integrated 5V/2W high-efficiency monocrystalline silicon panel ensures fast 4–6 hour daylight charging in full sun.
- Grade-A LiFePO4 Battery: Powered by a durable 3.2V/3Ah (3000mAh) lithium iron phosphate battery supporting 10–12 hours of nightly autonomy.
- Die-Cast Aluminum Housing: Crafted with ADC12 die-cast aluminum and heavy-duty UV-resistant PC lens in an elegant sand black powder-coated finish.
- IP65 Weatherproof Rating: Fully IP65 waterproof and IK08 impact-resistant, operating reliably in harsh outdoor climates from -20°C to 60°C.
- Dusk-to-Dawn Operation: Features an automated light sensor for effortless dusk-to-dawn control with easy surface mounting on concrete bases, fence posts, and garden walls.
- All-Night Illumination
- All-Weather Proof
- Built for a Decade+
- Smart Adaptive Control
- Easy Plug & Play
- Low Lifetime Cost
- Certified Worldwide
- Reliable Supply & Delivery

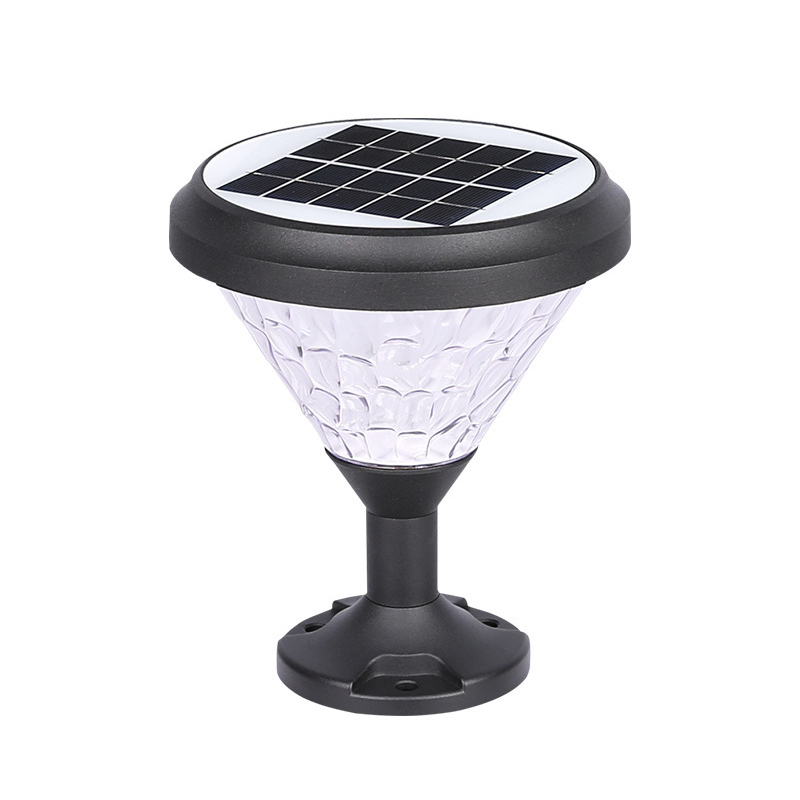

The Cyrus Mini Ripple-Pattern Solar Pillar Light (CYCZ-0907) is a compact, architectural-grade off-grid luminaire engineered for low-level landscape accent illumination.
Key Differentiators

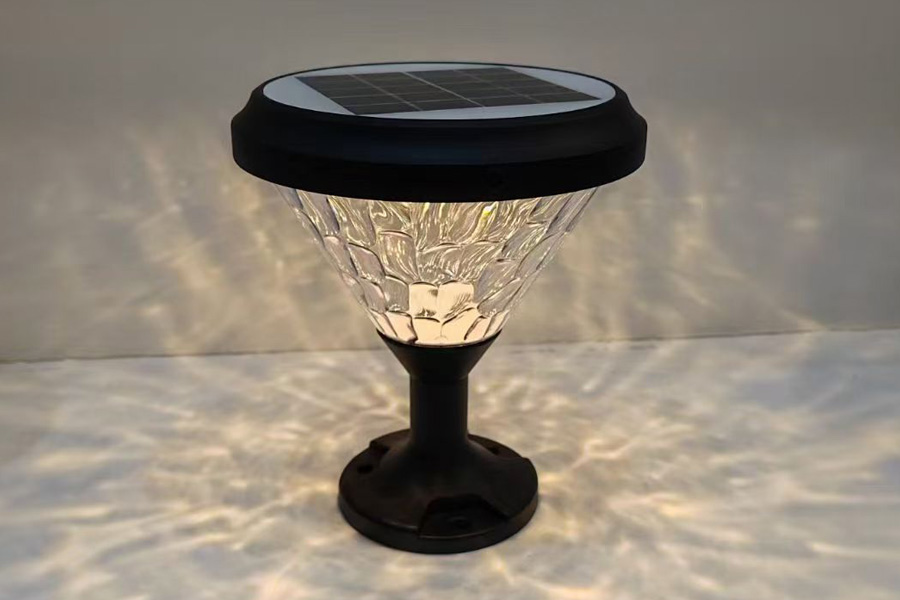

Features a high-transmittance optical lens with a 360° ripple-pattern diffuser that refracts light into dynamic visual water-ripple patterns while maintaining glare-free visual comfort.
Engineering Applications

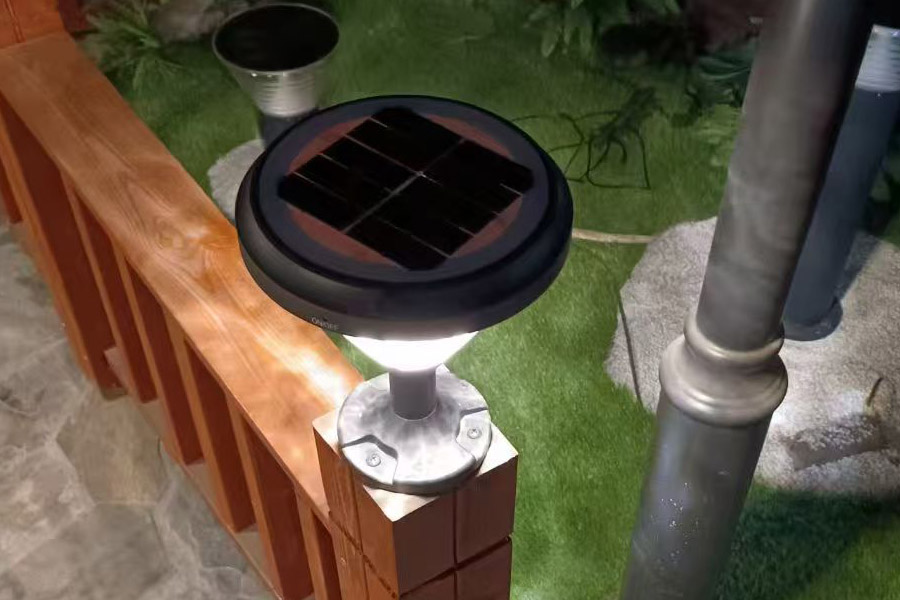

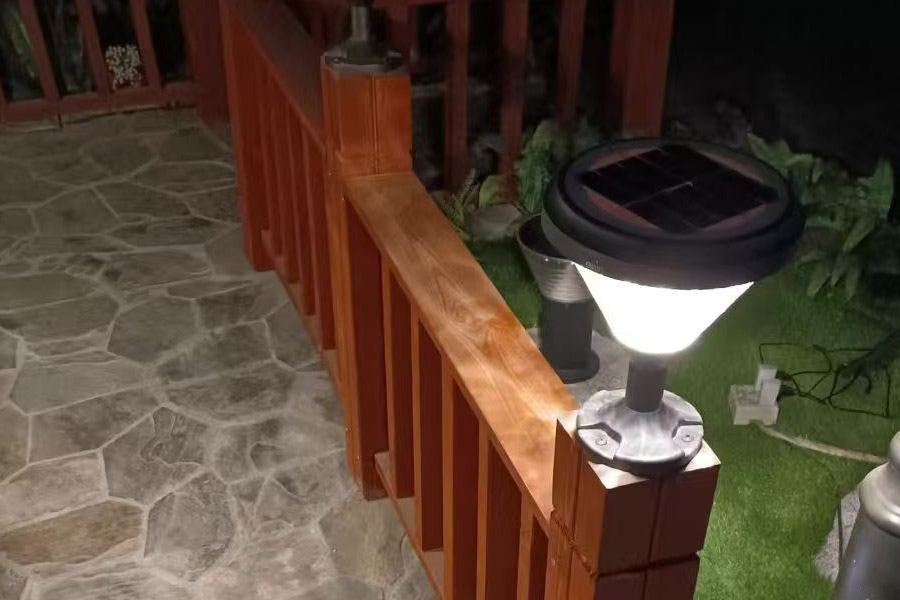

Purpose-built for residential and commercial accent pillar lighting, including gate posts, perimeter fence walls, garden walkway edges, and terrace pedestals.
Technical Logic
As a specialized Ripple-Pattern Solar Pillar Light, it integrates a top-mounted 5V/2W monocrystalline solar panel and a 3.2V/3Ah (3000mAh) LiFePO4 battery to deliver 140–200 lm of stable output with 10–12 hours of nightly autonomy. Constructed with ADC12 die-cast aluminum and IP65/IK08 weather-sealing for operating temperatures ranging from -20°C to 60°C.
Selection & Specification Guide
Recommended for B2B lighting contractors and landscape designers requiring low-profile, decorative plinth-mount accenting with zero utility trenching costs. Explore our broader Solar Bollard & Pillar Lights collection for complete architectural outdoor project solutions.
← Swipe horizontally to view details →
| Parameter | CYCZ-0907 |
|---|---|
| 🌞 Solar & Power System | |
| Solar Cell Type & Efficiency | High-Efficiency Monocrystalline Silicon (>21% Cell Efficiency) |
| PV Module Vmp & Rated Power | 5V (Vmp) / 2W |
| Battery Specification | 3.2V / 3Ah Grade-A LiFePO4 |
| Full Charge Time | 4–6 Hours (Under Standard Peak Sun Hours) |
| Operating Time & Autonomy | Automatic Dusk-to-Dawn Nightly Operation |
| 💡 Lighting & Optical | |
| LED Package | 2W High-Efficacy Architectural LED Engine (SMD) |
| Luminous Flux / Output | 140–200 lm |
| Color Temperature (CCT) | 3000K / 6500K (Warm White / Cool White, CCT Customizable) |
| Color Rendering Index (CRI) | Ra ≥ 80 |
| Light Distribution | 360° Low-Glare Omnidirectional Diffusion |
| Optical Pattern | 360° Ripple-Pattern Refractive Optical Lens |
| Beam Angle | 360° Horizontal Coverage |
| LED Lifespan & Reliability | >50,000 Hours (L70 Performance) |
| 🏗️ Structure & Material | |
| Housing Materials | ADC12 Die-Cast Aluminum + UV-Resistant PC Diffuser (Sand Black Finish) |
| Ingress Protection (IP Rating) | IP65 (Waterproof & Dustproof) |
| Impact Resistance (IK Rating) | IK08 (High Durability) |
| Mounting Type | Ground / Plinth Mount (Villa Entry Pillars, Fences & Deck Plinths) |

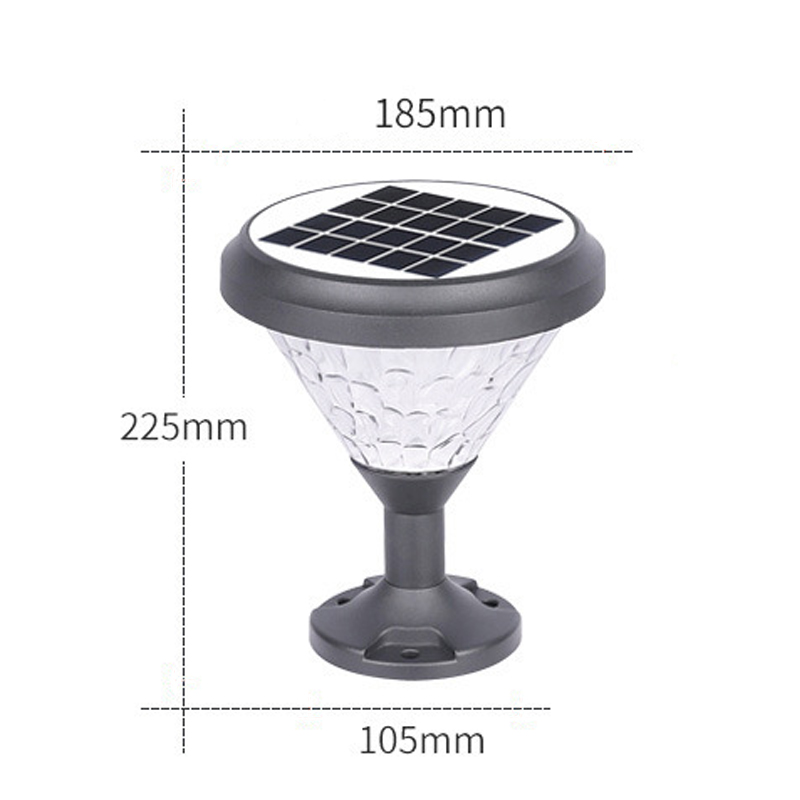

| Product Dimensions | Top Φ185 × Base Φ105 × H225 mm |
| Operating Temperature Range | −20°C–+60°C |
| 📦 Packaging & Compliance | |
| Carton / Packaging Dimensions | 940 × 415 × 200 mm |
| Packaging Quantity | 10 pcs / CTN (N.W.: 6.7 kg / G.W.: 10.4 kg) |
| Certifications & Standards | CE, RoHS |
| Warranty Period | 2 Years Commercial Warranty |
| 💼 Commercial Terms | |
| Minimum Order Quantity (MOQ) | 50 pcs |
| Production Lead Time | 30 Calendar Days |
| Sample Availability | Sample Available (1–5 Units for Evaluation) |
| OEM/ODM Customization | Custom Logo, Packaging, CCT, Housing Finishes, Wattage & Smart Profiles |
Have specific technical or installation questions about this model? Contact our engineering team for support.
Applications & Scenarios
Versatile, human-scale solar bollard and pillar luminaires designed to deliver low-glare, 360-degree ambient and pathway illumination across commercial complexes, public parks, residential estates, and hospitality walkways with zero grid power.
Commercial Walkways & Pedestrian Corridors
Provides uniform, low-glare ground-level illuminance (10 to 30 lux) along paved walkways, pedestrian corridors, and outdoor retail plazas. Integrated 360-degree optical diffusers eliminate harsh visual glare for safe nighttime foot traffic.
Garden Pavilions, Park Paths & Public Plazas
Delivers reliable dusk-to-dawn accent lighting around garden pavilions, pergolas, municipal park paths, and community plazas. High-capacity LiFePO4 energy storage ensures 3 to 5 consecutive nights of autonomous operation during overcast weather.
Courtyards, Patios & Hospitality Terraces
Enhances nighttime architectural aesthetics across private courtyards, patio areas, dining terraces, and luxury resort walkways. Features dual CCT warm ambient options (3000K/4000K) wrapped in corrosion-resistant die-cast aluminum.
Perimeter Fences, Gates & Pillar Tops
Engineered for surface-mount plinth installation on concrete piers, masonry fence posts, entryway columns, and boundary walls. Heavy-duty mounting flanges securely anchor with expansion bolts rated for wind resistance up to 140 km/h.
Flower Beds, Garden Edges & Landscape Borders
Compact mini solar pillars illuminate low-level flower beds, garden edges, pathway borders, and planter boxes without obstructing architectural sightlines. Fully sealed IP65 housings resist rain, dust, and coastal salt spray.
Corporate Campuses & Facility Perimeters
Improves nighttime facility safety and campus navigation around commercial office complexes, parking access paths, and facility perimeters with zero electricity costs and zero underground conduit trenching.
Your Assurance of Quality & Safety
Internationally Recognized Certifications
Our Credentials Ensure Your Peace of Mind:
We are ISO 9001 certified for quality management. Our products hold major international certifications including CE, RoHS, ETL, and IEC, and are designed to meet region-specific standards. This means proven performance and seamless acceptance, whether your project is in a mature or developing market.
Illuminating Success Stories Worldwide
See Our Products Powering Projects Globally
Community Safety Lighting: NV Series Street Lights for S2 Heights Village Roads
Thailand Farm Solar Lighting: Waterfront Illumination with “Moon in Water” Garden Lights
High-Temperature Municipal Street Lighting Project, Dubai
Illuminating the New Port of Ndayane: A Landmark Solar Lighting Project, Senegal
Coastal Illumination Upgrade: Solar Flood Lighting for Australian Seaside Accommodation
Industrial-Grade Technical Highlights for Solar Bollard & Pillar Infrastructure
Architectural-grade solar bollards featuring ADC12 die-cast aluminum, 360-degree low-glare optics, IK08 vandal resistance, and high-capacity LiFePO4 energy storage for 20+ years of maintenance-free pathway illumination.
360° Low-Glare Optical Diffusion
Downward-directed optical diffusers and UV-stabilized frosted PC lenses project uniform ground-level illuminance (10–30 lux) while eliminating harsh eye glare for pedestrians.
ADC12 Die-Cast Aluminum & IK08 Impact
Heavy-duty ADC12 architectural aluminum housing with fluorocarbon anti-corrosion coating and IK08 impact resistance protects against vandalism and harsh outdoor environments.
IP65/IP67 Sealed Weatherproof Architecture
Fully potted electronic controls, weather-sealed silicone gaskets, and internal drainage channels ensure reliable operation across extreme ambient temperatures from -25°C to 65°C.
Monocrystalline PV & Grade-A LiFePO4
Top-integrated high-efficiency monocrystalline solar panels paired with Grade-A LiFePO4 battery storage deliver 2,000+ deep cycles and 3–5 days of overcast continuous autonomy.
Zero-Trenching Plinth & Flange Mounting
Heavy-duty surface-mount base flanges with J-bolt anchor cages enable fast, zero-trenching installation on concrete piers and masonry walls, rated for 140 km/h wind loads.
Dual-CCT Switching & Smart Dusk-to-Dawn
Integrated microwave motion sensors and dual CCT selection (3000K warm / 6000K cool white) automatically balance architectural landscape mood lighting with full-brightness safety illumination.
SOLAR VS. GRID: TOTAL COST COMPARISON
Skip the Trenching. Eliminate Energy Bills.
Calculate your 5-year project ROI below and see how much your facility can save with Lumin Solar Solutions.
Private Project ROI Calculator
💡 Pro Tip: Switching to solar allows you to eliminate trenching costs and expensive cabling.
Traditional Grid vs. Lumin Solar Lighting Solutions Cost Analysis
| Project Cost Items (30 Units) | Traditional Grid | Lumin Solar Solutions |
|---|---|---|
| Trenching & Labor | $3,000 - $8,000 | $0 (No Digging) |
| Cabling & Wiring | $2,500 - $5,000 | $0 |
| Transformer/Switchgear | Essential Infrastructure Cost | Not Needed |
| Electricity Bill (Annual) | $1,500 - $2,500 | $0 (Free) |
| Installation Time | 7-14 Days | 1-2 Days |
| Total Hidden Costs | EXTREMELY HIGH | ZERO |
*Calculated based on average private industrial projects. Lumin Solar Solutions eliminates infrastructure overhead.
Why pay for copper wires and manual labor when you can invest that budget into high-quality solar technology?
Commercial & Ordering FAQ
Our standard Minimum Order Quantity (MOQ) is 50 units. We also fully support sample orders (1–5 units) for project evaluation, technical testing, and quality verification prior to bulk production.
We offer flexible international trade terms including FOB, CIF, EXW, and DDP (Delivered Duty Paid). Our DDP services cover 42+ countries to ensure seamless customs clearance and hassle-free door-to-door delivery.
We accept Wire Transfer (T/T) and Letter of Credit (L/C).
The standard lead time for mass production is 30 calendar days, calculated from the date your deposit is received. For customized OEM/ODM projects or specialized technical requirements, the delivery schedule will be mutually confirmed during contract review.
Yes, absolutely. We offer complete OEM/ODM solutions, including custom logo/branding, custom housing finishes, specialized lumen/wattage outputs, tailored optical spectrums, and smart controller lighting profiles.
We provide comprehensive warranty coverage across all system components: 2-year warranty for the LED luminaire and LiFePO4 battery, 8-year warranty for monocrystalline solar panels, and 10-year warranty for lighting poles. (Please refer to our product catalog for itemized terms).
We provide worldwide shipping via sea freight, air freight, and express courier. Our dedicated logistics team manages export documentation, compliance checks, and end-to-end cargo tracking to ensure safe delivery to your site or port.
Simply click the “Inquire Now” button or contact our sales department with your order details. Our sales engineers will review your project requirements and issue an official Proforma Invoice (PI) promptly.
Need a Customized Lighting Proposal & Fast Quotation?
Send us your project details (walkway length, area layout, quantity), and our engineering team will deliver a complete technical proposal within 3 days.
- Fast RFQ Response
- DIALux Simulation
- Worldwide Delivery
- Factory Direct & OEM
