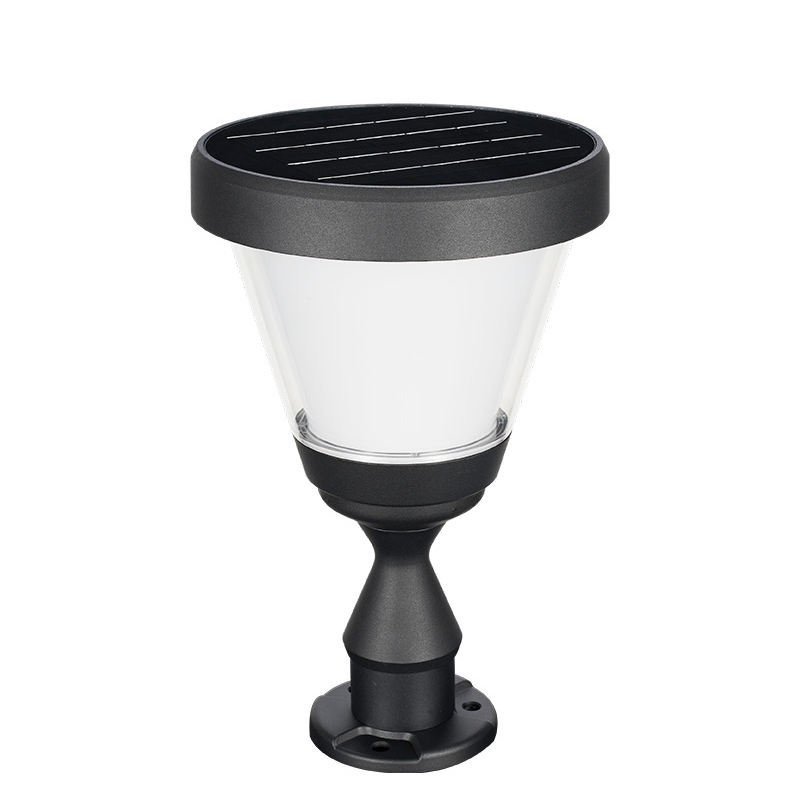

Cyrus Commercial 4.5W Ripple Solar Pillar Light (CYCZ-2106)
Cyrus Commercial 4.5W Ripple Solar Pillar Light (CYCZ-2106)
- Optimal 4.5W Illumination: Delivers 500–580 lm of low-glare 360° ambient light through a unique refractive optical lens, making this 4.5W solar pillar light ideal for commercial pathways and garden borders.
- Monocrystalline Solar Panel: Integrated 5V/4.5W high-efficiency monocrystalline silicon panel ensures fast 4–6 hour daylight charging in full sun.
- Long-Life Lithium Battery: Powered by a durable 3.2V/8Ah (8000mAh) lithium iron phosphate battery supporting continuous dusk-to-dawn performance and multi-night autonomy.
- Die-Cast Aluminum Housing: Constructed with heavy-duty die-cast aluminum and UV-resistant PC shade for long-term outdoor structural durability.
- IP65 Weatherproof Rating: Fully IP65 waterproof rated to withstand severe rain, dust, and extreme outdoor temperatures from -20°C to 60°C.
- Versatile Landscape Application: Ideal for surface-mounting on concrete plinths, fence pillars, walkways, patios, and residential landscape edges.
- All-Night Illumination
- All-Weather Proof
- Built for a Decade+
- Smart Adaptive Control
- Easy Plug & Play
- Low Lifetime Cost
- Certified Worldwide
- Reliable Supply & Delivery
The Cyrus Commercial 4.5W Ripple Solar Pillar Light (CYCZ-2106) is a mid-sized, high-autonomy Commercial Solar Pillar Light engineered for extended coverage across commercial estates.
Key Differentiators
Scales up to a Φ240mm × H370mm form factor, combining wide-coverage 360° low-glare optical diffusion with an expanded energy storage system.
Engineering Applications
Ideal for commercial and hospitality pathway & plinth lighting, including resort grounds, commercial pedestrian corridors, residential main path plinths, and plaza concrete pedestals.
Technical Logic
Built for professional installations, this Commercial Solar Pillar Light incorporates a 5V/4.5W monocrystalline solar panel and an expanded 3.2V/8Ah (8000mAh) LiFePO4 battery system, guaranteeing multi-night autonomy during overcast weather. Enclosed in an IP65 die-cast aluminum body with automated dusk-to-dawn performance.
Selection & Specification Guide
Designed for commercial B2B procurement requiring higher lumen output, wider foot-candle distribution, and high-reliability operating performance. Explore our complete range of Solar Bollard & Pillar Lights for additional commercial project options.
← Swipe horizontally to view details →
| Parameter | CYCZ-2106 |
|---|---|
| 🌞 Solar & Power System | |
| Solar Cell Type & Efficiency | High-Efficiency Monocrystalline Silicon (>21% Cell Efficiency) |
| PV Module Vmp & Rated Power | 5V (Vmp) / 4.5W |
| Battery Specification | 3.2V / 8Ah Grade-A LiFePO4 |
| Full Charge Time | 4–6 Hours (Under Standard Peak Sun Hours) |
| Operating Time & Autonomy | Automatic Dusk-to-Dawn Nightly Operation |
| 💡 Lighting & Optical | |
| LED Package | 4.5W High-Efficacy Architectural LED Engine (SMD) |
| Luminous Flux / Output | 500–580 lm |
| Color Temperature (CCT) | 3000K / 6500K (Warm White / Cool White, CCT Customizable) |
| Color Rendering Index (CRI) | Ra ≥ 80 |
| Light Distribution | 360° Low-Glare Omnidirectional Diffusion |
| Optical Pattern | 360° Ripple-Pattern Refractive Optical Lens |
| Beam Angle | 360° Horizontal Coverage |
| LED Lifespan & Reliability | >50,000 Hours (L70 Performance) |
| 🏗️ Structure & Material | |
| Housing Materials | ADC12 Die-Cast Aluminum + UV-Resistant PC Diffuser (Sand Black Finish) |
| Ingress Protection (IP Rating) | IP65 (Waterproof & Dustproof) |
| Impact Resistance (IK Rating) | IK08 (High Durability) |
| Mounting Type | Ground / Plinth Mount (Resort Grounds, Walkways & Pedestals) |

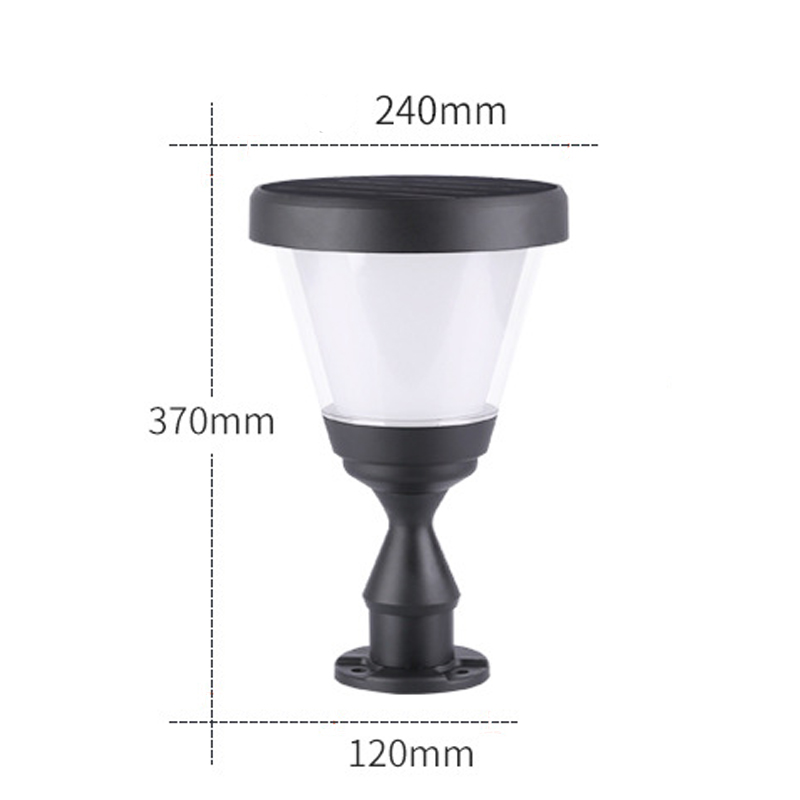

| Product Dimensions | Top Φ240 × Base Φ120 × H370 mm |
| Operating Temperature Range | −20°C–+60°C |
| 📦 Packaging & Compliance | |
| Carton / Packaging Dimensions | 520 × 520 × 430 mm |
| Packaging Quantity | 4 pcs / CTN |
| Certifications & Standards | CE, RoHS |
| Warranty Period | 2 Years Commercial Warranty |
| 💼 Commercial Terms | |
| Minimum Order Quantity (MOQ) | 50 pcs |
| Production Lead Time | 30 Calendar Days |
| Sample Availability | Sample Available (1–5 Units for Evaluation) |
| OEM/ODM Customization | Custom Logo, Packaging, CCT, Housing Finishes, Wattage & Smart Profiles |
Have specific technical or installation questions about this model? Contact our engineering team for support.
Applications & Scenarios
Versatile, human-scale solar bollard and pillar luminaires designed to deliver low-glare, 360-degree ambient and pathway illumination across commercial complexes, public parks, residential estates, and hospitality walkways with zero grid power.

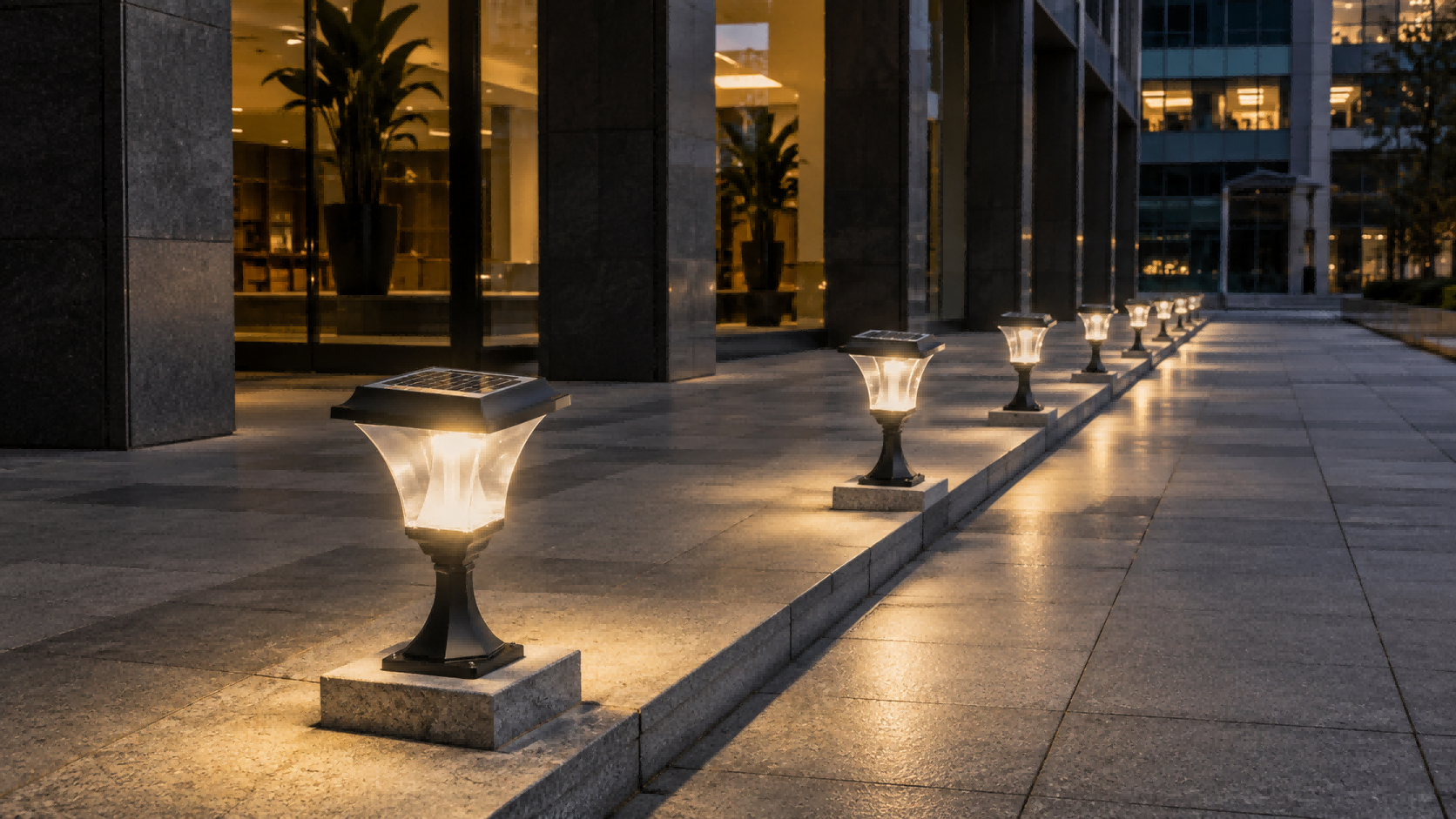

Commercial Walkways & Pedestrian Corridors
Provides uniform, low-glare ground-level illuminance (10 to 30 lux) along paved walkways, pedestrian corridors, and outdoor retail plazas. Integrated 360-degree optical diffusers eliminate harsh visual glare for safe nighttime foot traffic.

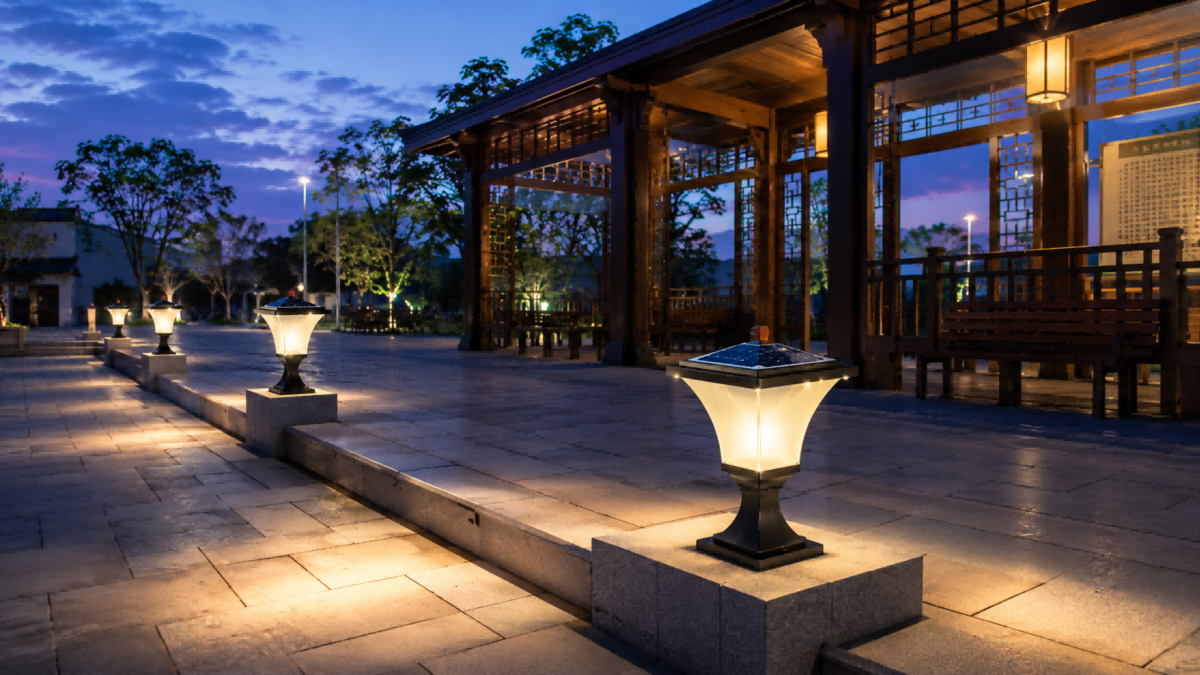

Garden Pavilions, Park Paths & Public Plazas
Delivers reliable dusk-to-dawn accent lighting around garden pavilions, pergolas, municipal park paths, and community plazas. High-capacity LiFePO4 energy storage ensures 3 to 5 consecutive nights of autonomous operation during overcast weather.

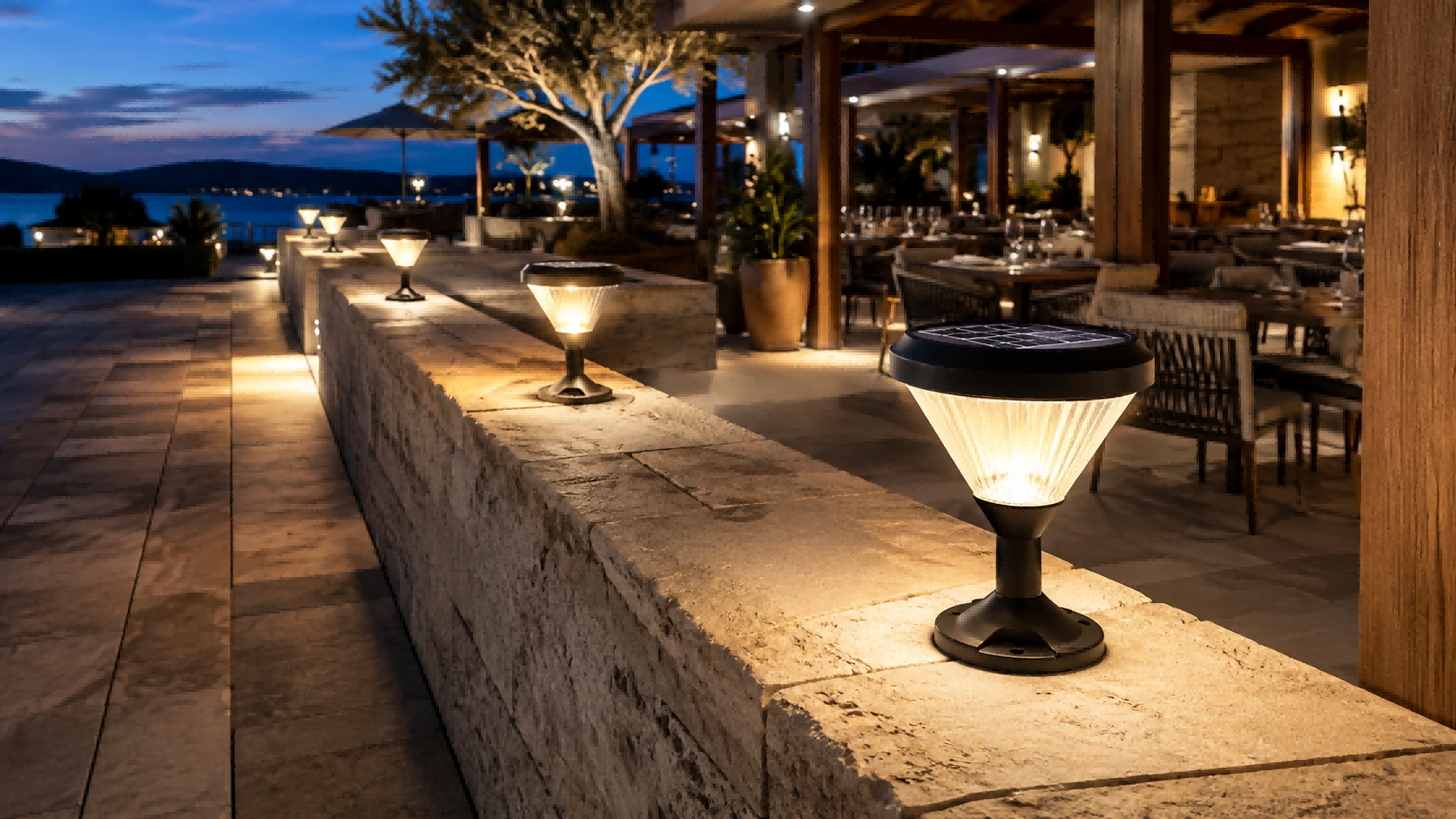

Courtyards, Patios & Hospitality Terraces
Enhances nighttime architectural aesthetics across private courtyards, patio areas, dining terraces, and luxury resort walkways. Features dual CCT warm ambient options (3000K/4000K) wrapped in corrosion-resistant die-cast aluminum.

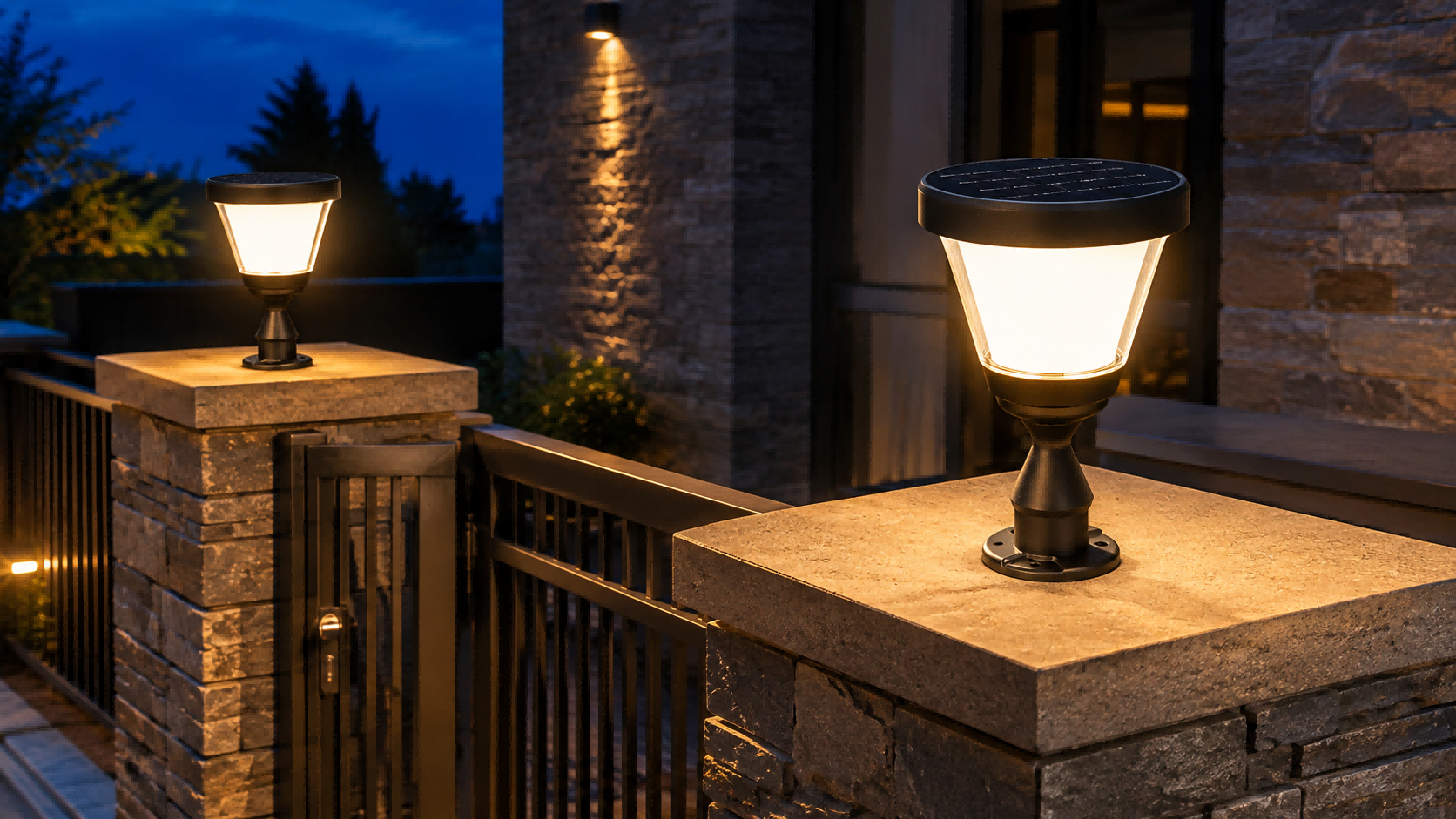

Perimeter Fences, Gates & Pillar Tops
Engineered for surface-mount plinth installation on concrete piers, masonry fence posts, entryway columns, and boundary walls. Heavy-duty mounting flanges securely anchor with expansion bolts rated for wind resistance up to 140 km/h.

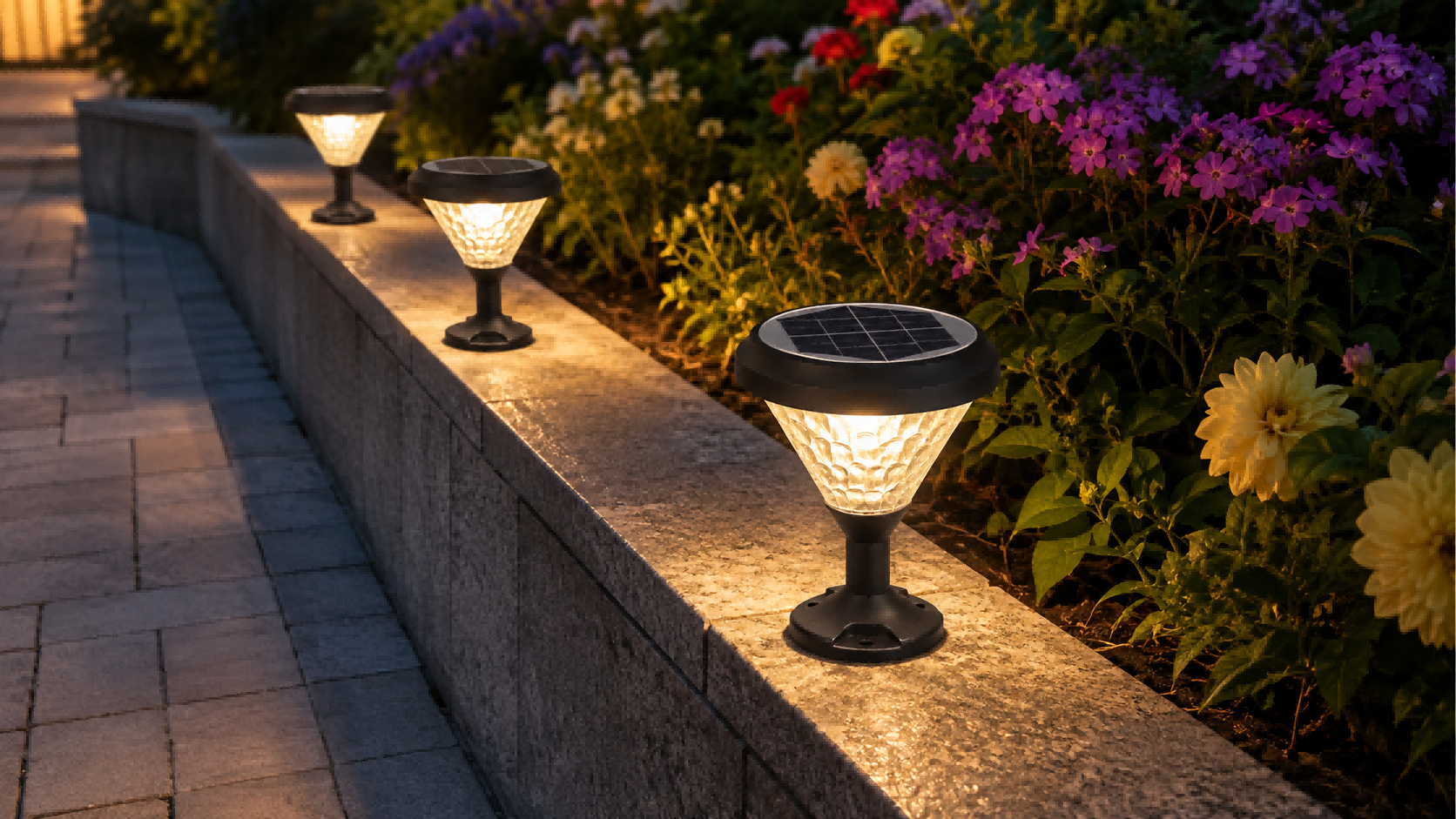

Flower Beds, Garden Edges & Landscape Borders
Compact mini solar pillars illuminate low-level flower beds, garden edges, pathway borders, and planter boxes without obstructing architectural sightlines. Fully sealed IP65 housings resist rain, dust, and coastal salt spray.

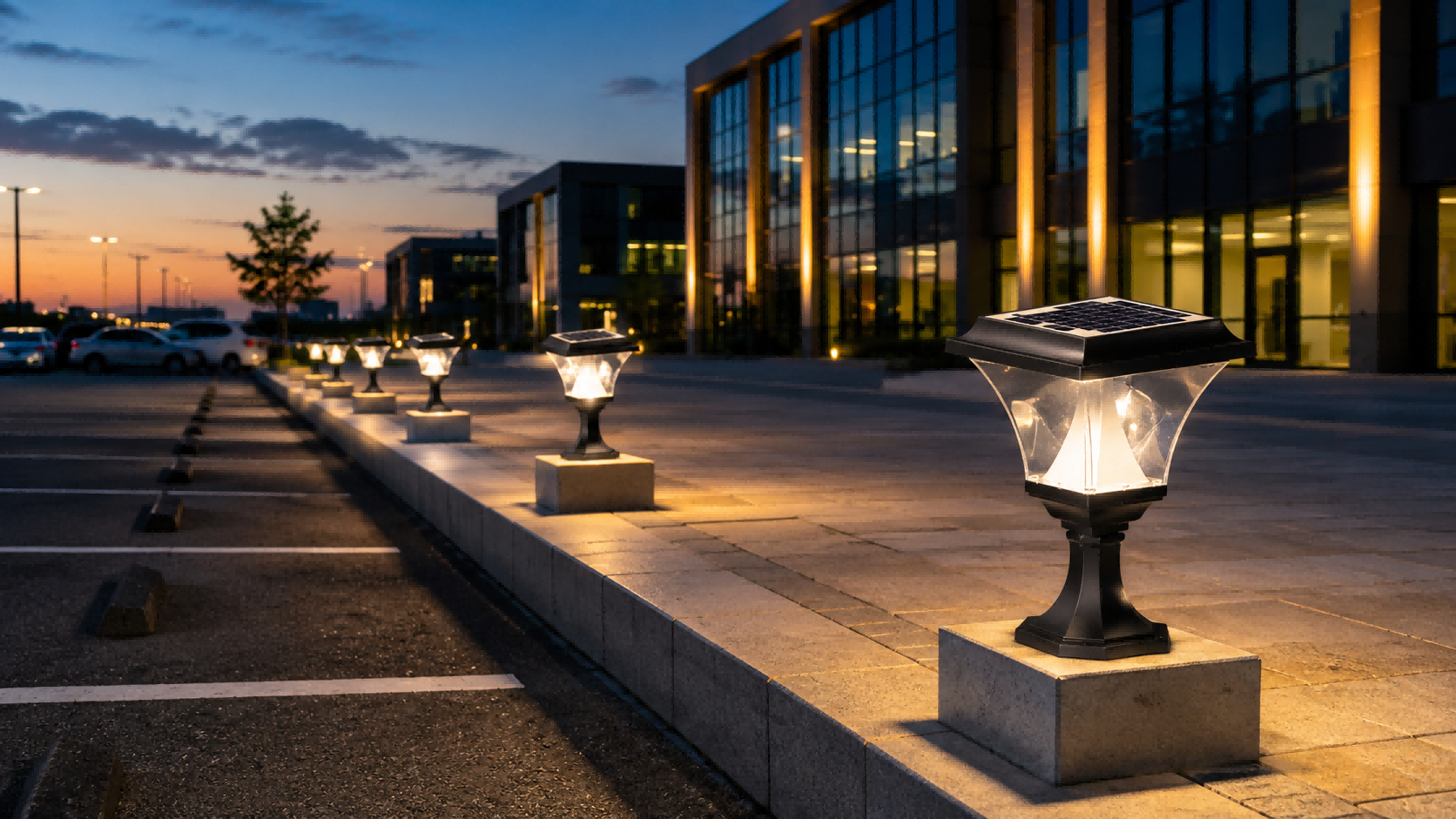

Corporate Campuses & Facility Perimeters
Improves nighttime facility safety and campus navigation around commercial office complexes, parking access paths, and facility perimeters with zero electricity costs and zero underground conduit trenching.
Your Assurance of Quality & Safety
Internationally Recognized Certifications
Our Credentials Ensure Your Peace of Mind:
We are ISO 9001 certified for quality management. Our products hold major international certifications including CE, RoHS, ETL, and IEC, and are designed to meet region-specific standards. This means proven performance and seamless acceptance, whether your project is in a mature or developing market.
Illuminating Success Stories Worldwide
See Our Products Powering Projects Globally
Community Safety Lighting: NV Series Street Lights for S2 Heights Village Roads
Thailand Farm Solar Lighting: Waterfront Illumination with “Moon in Water” Garden Lights
High-Temperature Municipal Street Lighting Project, Dubai
Illuminating the New Port of Ndayane: A Landmark Solar Lighting Project, Senegal
Coastal Illumination Upgrade: Solar Flood Lighting for Australian Seaside Accommodation
Industrial-Grade Technical Highlights for Solar Bollard & Pillar Infrastructure
Architectural-grade solar bollards featuring ADC12 die-cast aluminum, 360-degree low-glare optics, IK08 vandal resistance, and high-capacity LiFePO4 energy storage for 20+ years of maintenance-free pathway illumination.
360° Low-Glare Optical Diffusion
Downward-directed optical diffusers and UV-stabilized frosted PC lenses project uniform ground-level illuminance (10–30 lux) while eliminating harsh eye glare for pedestrians.
ADC12 Die-Cast Aluminum & IK08 Impact
Heavy-duty ADC12 architectural aluminum housing with fluorocarbon anti-corrosion coating and IK08 impact resistance protects against vandalism and harsh outdoor environments.
IP65/IP67 Sealed Weatherproof Architecture
Fully potted electronic controls, weather-sealed silicone gaskets, and internal drainage channels ensure reliable operation across extreme ambient temperatures from -25°C to 65°C.
Monocrystalline PV & Grade-A LiFePO4
Top-integrated high-efficiency monocrystalline solar panels paired with Grade-A LiFePO4 battery storage deliver 2,000+ deep cycles and 3–5 days of overcast continuous autonomy.
Zero-Trenching Plinth & Flange Mounting
Heavy-duty surface-mount base flanges with J-bolt anchor cages enable fast, zero-trenching installation on concrete piers and masonry walls, rated for 140 km/h wind loads.
Dual-CCT Switching & Smart Dusk-to-Dawn
Integrated microwave motion sensors and dual CCT selection (3000K warm / 6000K cool white) automatically balance architectural landscape mood lighting with full-brightness safety illumination.
